# List CSV Network Status
###### v0.0.5 by Jason Regula
## Description:

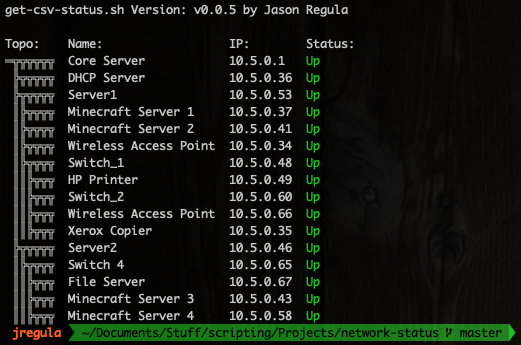

Will read a CSV file, pinging all listed devices, outputs a formatted list showing network device hierarchy and ping status for each. Helps detiertmain which upstream device issues start with
###
## Usage:
`./get-csv-status.sh [-ctfh]`
* get-csv-status.sh -c \ #set how many packets to ping with, (defualt = 1)
* get-csv-status.sh -t \ #set timeout for ping response, (defualt = 2)
* get-csv-status.sh -f \ #read from the specified CSV file, expects ip's in column "B" (ignores row 1)
* get-csv-status.sh -h #will print help
###### Basic Usage:
`./get-csv-status.sh` will create (if it does not already exist) a subfolder in the script's location called "resourses". It checks this folder for a file called "ip-list.csv".
`./get-csv-status.sh -f ` will only read the CSV file given.
## CSV FILE:
File should Ideally contain four columns:
A=Name, B=IP, C=Group, D=Layer
Header (first row) is ignored so you can name your columns whatever you want, just make sure to add something.
Due to how current version handles malformed CSV files to minimize issues when given blank values `Group` and `Layer` should not be equal to `0`. For core devices use `00` or `000` (as I've used in the sample below).
sample.csv:
| Name: | IP: | Group: | Layer: |
|-----------------------|-----------|--------|--------|
| Core Server | 10.5.0.1 | 000 | 000 |
| DHCP Server | 10.5.0.36 | 000 | 1 |
| Server1 | 10.5.0.53 | 1 | 1 |
| Switch_1 | 10.5.0.48 | 2 | 2 |
| Wireless Access Point | 10.5.0.34 | 1 | 2 |
| Minecraft Server #1 | 10.5.0.37 | 1 | 2 |
| Minecraft Server #2 | 10.5.0.41 | 1 | 2 |
| Switch_2 | 10.5.0.60 | 2 | 3 |
| Wireless Access Point | 10.5.0.66 | 2 | 3 |
| Xerox Copier | 10.5.0.35 | 2 | 3 |
| HP Printer | 10.5.0.49 | 2 | 3 |
| Server2 | 10.5.0.46 | 3 | 1 |
| Switch 4 | 10.5.0.65 | 3 | 2 |
| Minecraft Server #3 | 10.5.0.43 | 3 | 3 |
| Minecraft Server #4 | 10.5.0.58 | 3 | 3 |
| File Server | 10.5.0.67 | 3 | 3 |
###### Note: Randomly created the above CSV file for testing purposes before deciding to use it as an example file, so it's not setup like a typical network would be. Though it works until I come up with something better.
`Groups` tell the script what network branch each device is connected too.
`Layers` tell it how far it should be on the branch, currently up to 5 branches are supported (not counting 00/000). I plan to get the script to auto detect how many branches it should show in the output but that may be a ways off.
