# Analog Write

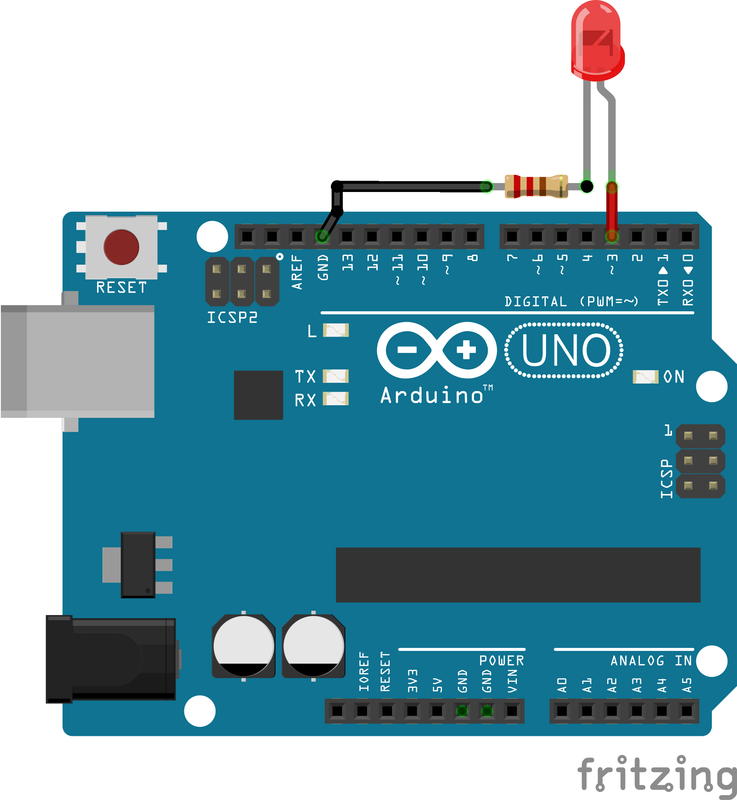

[![awrite-bb.png](https://i.postimg.cc/pTyj3NV2/awrite-bb.png)](https://postimg.cc/9R5zqnqS)

Usar salidas PWM para simular salidas analogicas

## Hardware y software necesarios

- Placa de desarrollo Arduino

- LED

- Resistencia 220 $\displaystyle \Omega$ - 1 $\displaystyle K\Omega$

- [Arduino IDE](https://www.arduino.cc/en/software) o [Arduino CLI](https://arduino.github.io/arduino-cli/0.23/installation/)

El codigo imprime valores en una salida PWM de 0 a 255 y 255 a 0 usando:

| Variable | [Tipo](https://docs.microsoft.com/en-us/cpp/cpp/data-type-ranges?view=msvc-170) | Descripción |

| -------- | ---- | ----------- |

| Out | byte | pin de [salida PWM](https://www.arduino.cc/reference/en/language/functions/analog-io/analogwrite/) |

| Brightness | byte | valor de la salida PWM |

| Fade | byte | velocidad de la salida PWM |

| Delay | byte | tiempo de espera entre cambios de estado |

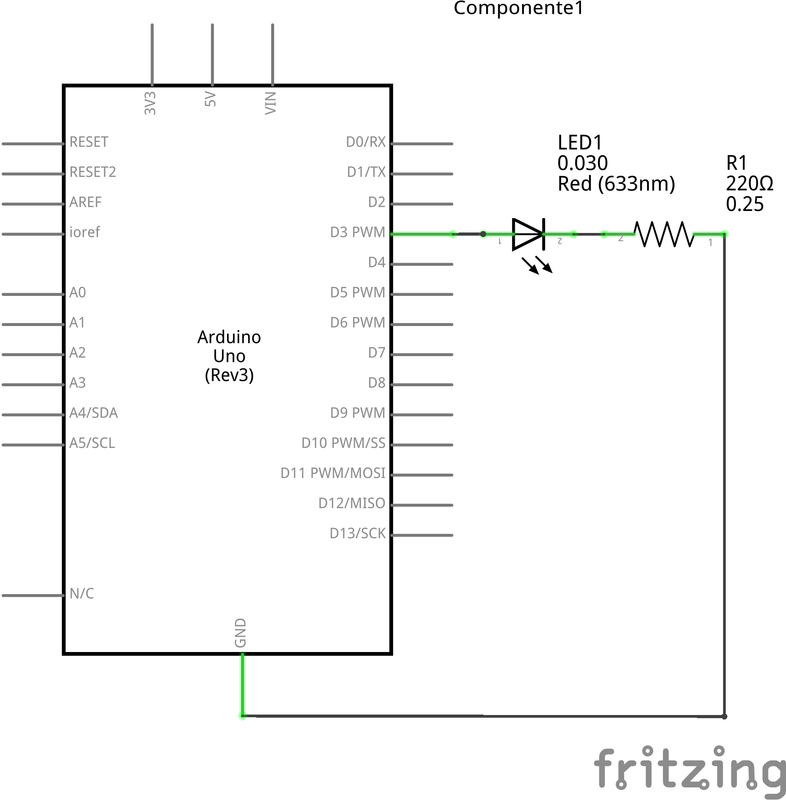

[![awrite-esquem-tico.png](https://i.postimg.cc/d1XCYWDG/awrite-esquem-tico.png)](https://postimg.cc/S26RLf6K)
