https://github.com/ales-drnz/mpv_studio

MPV Studio is the standalone reference client for the mpv_audio_kit engine: a cross-platform audio player with a full DSP rack, real-time visualizers, Jellyfin, Plex and Samba streaming, and a built-in mpv command console.
https://github.com/ales-drnz/mpv_studio

jellyfin libmpv mpv plex samba streaming

Last synced: 19 days ago
JSON representation

MPV Studio is the standalone reference client for the mpv_audio_kit engine: a cross-platform audio player with a full DSP rack, real-time visualizers, Jellyfin, Plex and Samba streaming, and a built-in mpv command console.

• Host: GitHub
• URL: https://github.com/ales-drnz/mpv_studio
• Owner: ales-drnz
• Created: 2026-05-29T20:31:46.000Z (29 days ago)
• Default Branch: main
• Last Pushed: 2026-06-05T03:43:15.000Z (23 days ago)
• Last Synced: 2026-06-05T05:13:56.042Z (23 days ago)
• Topics: jellyfin, libmpv, mpv, plex, samba, streaming
• Language: Dart
• Homepage:
• Size: 6.38 MB
• Stars: 0
• Watchers: 0
• Forks: 0
• Open Issues: 0
• Metadata Files:
  • Readme: README.md
  • Changelog: CHANGELOG.md

Awesome Lists containing this project

README


# MPV Studio

#### Cross-platform audio player built on mpv_audio_kit.

[![](https://img.shields.io/badge/built%20with-mpv__audio__kit-orange.svg?style=for-the-badge)](https://pub.dev/packages/mpv_audio_kit)

[![](https://img.shields.io/badge/Flutter-3.27+-blue.svg?style=for-the-badge&logo=flutter&logoColor=white)](https://flutter.dev)

[![](https://img.shields.io/github/stars/ales-drnz/mpv_studio?style=for-the-badge&logo=github&logoColor=white)](https://github.com/ales-drnz/mpv_studio)

[![](https://img.shields.io/discord/1485588004029333516?style=for-the-badge&logo=discord&logoColor=white)](https://discord.gg/g2Qf4Mq9MP)

[![](https://img.shields.io/badge/Patreon-F96854?style=for-the-badge&logo=patreon&logoColor=white)](https://www.patreon.com/cw/ales_drnz)

[![](https://img.shields.io/badge/Buy%20Me%20a%20Coffee-FFDD00?style=for-the-badge&logo=buy-me-a-coffee&logoColor=black)](https://www.buymeacoffee.com/ales.drnz)



MPV Studio is the standalone reference client for the mpv_audio_kit engine: a cross-platform audio player with a full DSP rack, real-time visualizers, Jellyfin, Plex and Samba streaming, and a built-in mpv command console.

---

## Platforms

| Platform  | Minimum | Architectures |

| :--- | :--- | :--- |

| **Android** | 7.0 (SDK 24) | arm64-v8a, armeabi-v7a, x86_64 |

| **iOS** | 15.0 | arm64, x86_64 |

| **macOS** | 12.0 | arm64, x86_64 |

| **Windows**| 10 | arm64, x86_64 |

| **Linux** | Ubuntu 24.04 | aarch64, x86_64 |

---

## Contents

*   [Guide](#guide)



    1. Playback

    * [1.1 Now playing](#11-now-playing)

    * [1.2 Visualizers](#12-visualizers)





    2. Queue





    3. Stream

    * [3.1 Jellyfin](#31-jellyfin)

    * [3.2 Plex](#32-plex)





    4. Effects

    * [4.1 The DSP rack](#41-the-dsp-rack)

    * [4.2 Interactive controls](#42-interactive-controls)





    5. Settings





    6. Console





    7. Building from source

    * [7.1 Requirements](#71-requirements)

    * [7.2 Run](#72-run)



*   [Project background](#project-background)

---

## Guide

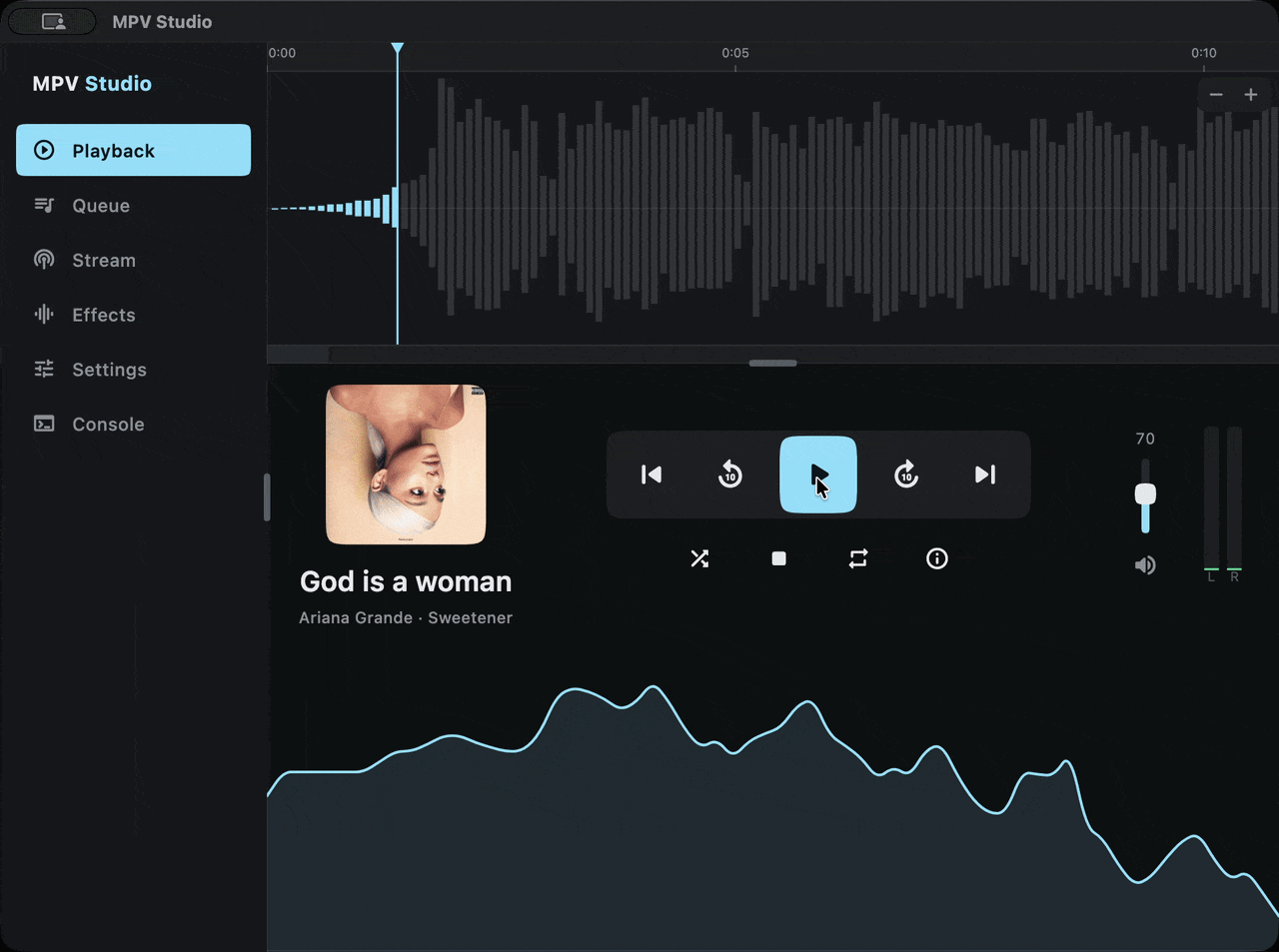

### 1. Playback







The home screen: cover art, metadata and transport bound to mpv_audio_kit's play-pause **intent**, so the controls never flicker while you scrub.

#### 1.1 Now playing

Cover art, track info, a scrubbable seekbar, and a volume control, driven entirely by the engine's reactive streams.

#### 1.2 Visualizers

Three real-time meters fed by mpv_audio_kit's FFT and PCM streams: a log-spaced **spectrum** curve, a **VU** meter, and a progressive **waveform** seekbar that fills in as network tracks decode.

---

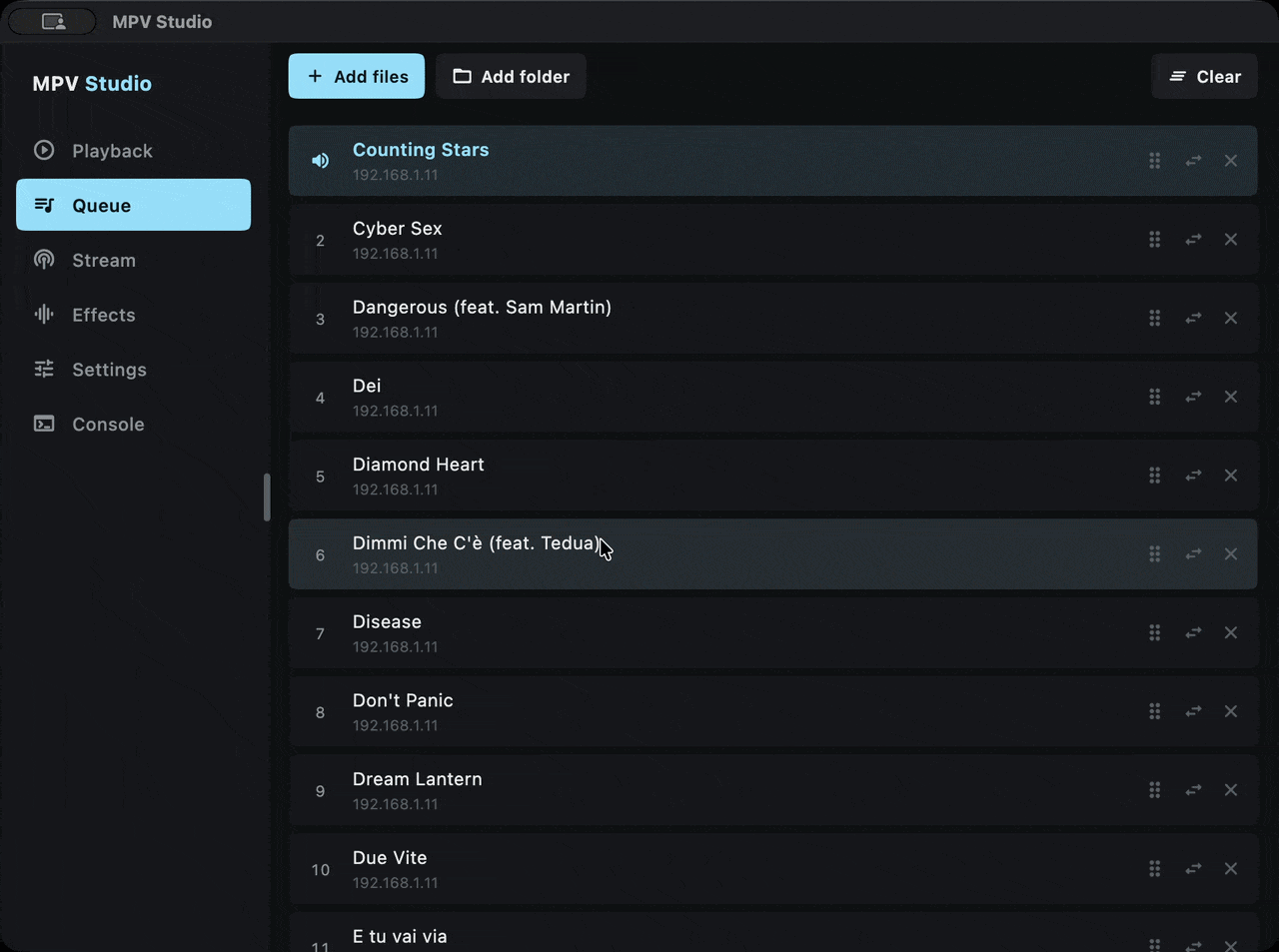

### 2. Queue







A reorderable playlist with drag-and-drop, gapless transitions, and a determinate prefetch indicator for the next track.

---

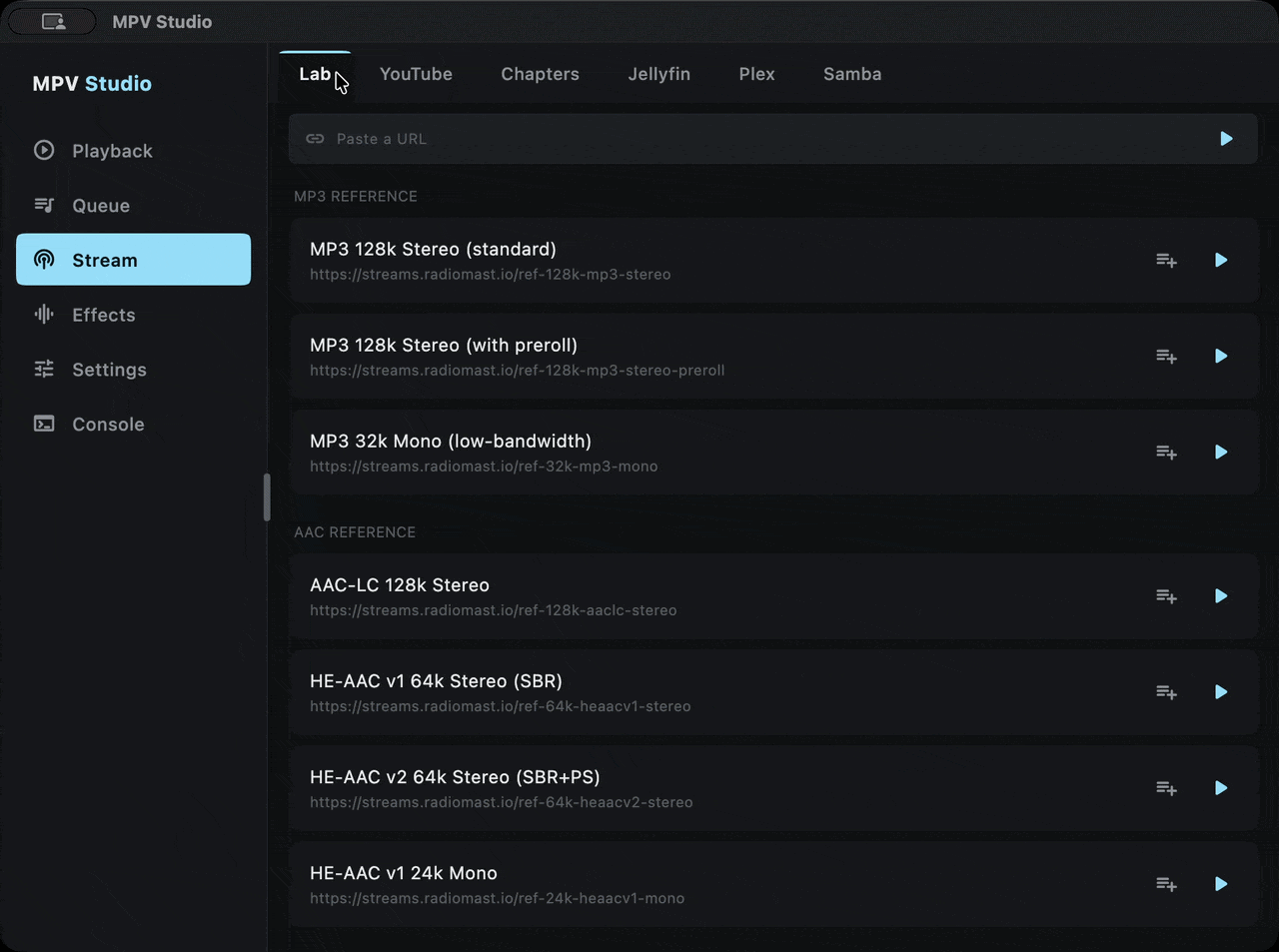

### 3. Stream







Browse and play from self-hosted media servers. Each library tab pages lazily as you scroll.

#### 3.1 Jellyfin

Connects to a Jellyfin server and streams its libraries directly (HLS), seeking through transcoded sources.

#### 3.2 Plex

Resolves Plex transcode URLs lazily through an `on_load` hook and a `/decision` session manager, and reports playback progress back to the server.

---

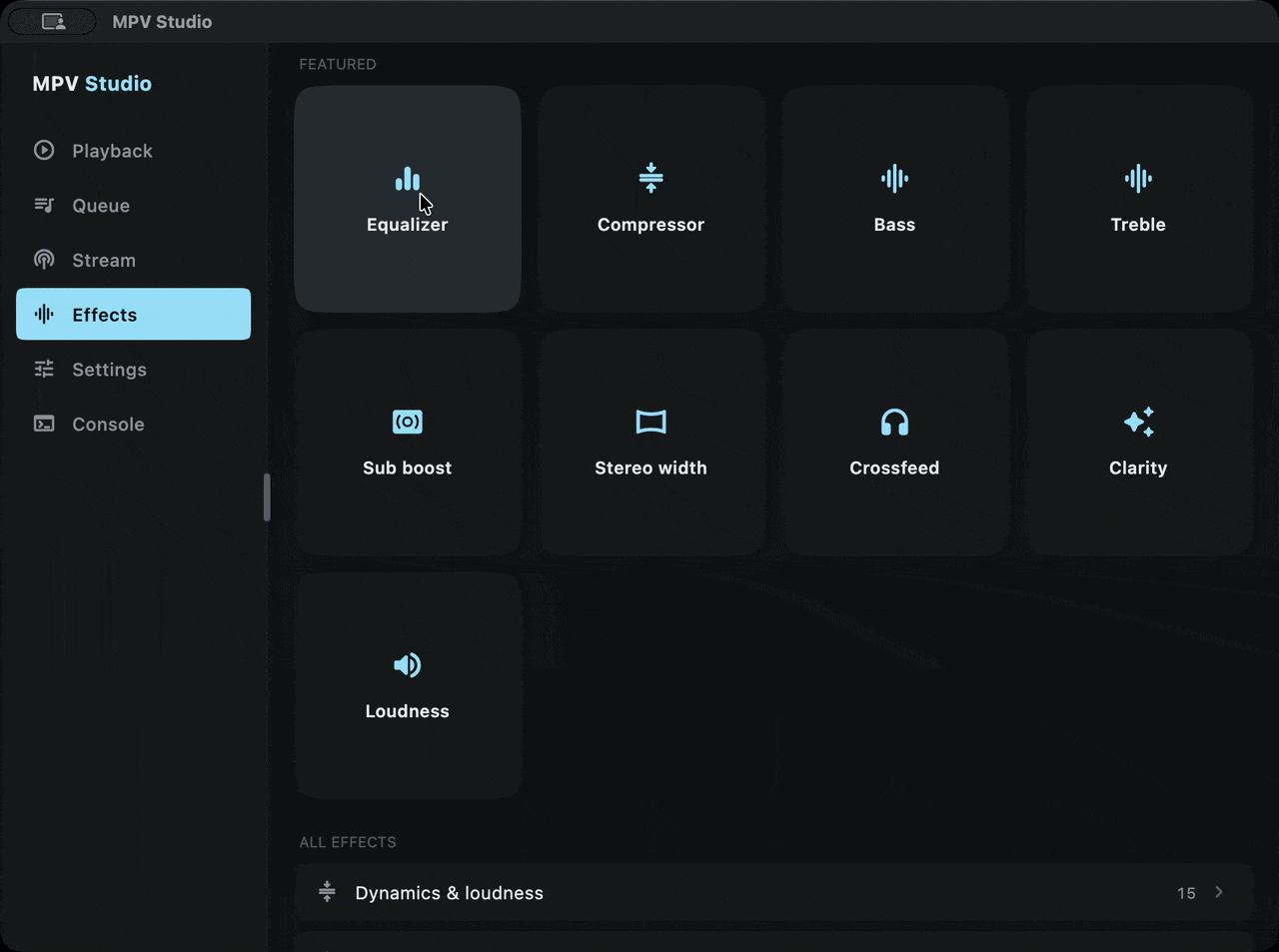

### 4. Effects







A live DSP rack on top of mpv_audio_kit's `AudioEffects` bundle: toggle and tune effects and hear the change immediately.

#### 4.1 The DSP rack

18-band graphic EQ, compressor, loudness normalization, headphone crossfeed, crystalizer, stereo tools, bass and treble, and more.

#### 4.2 Interactive controls

Each effect renders its own live diagram (a compressor curve, a frequency response curve, a crossfeed diagram, a stereo scope, a loudness gauge), driven by per-filter PCM taps so the visualization tracks the actual signal.

---

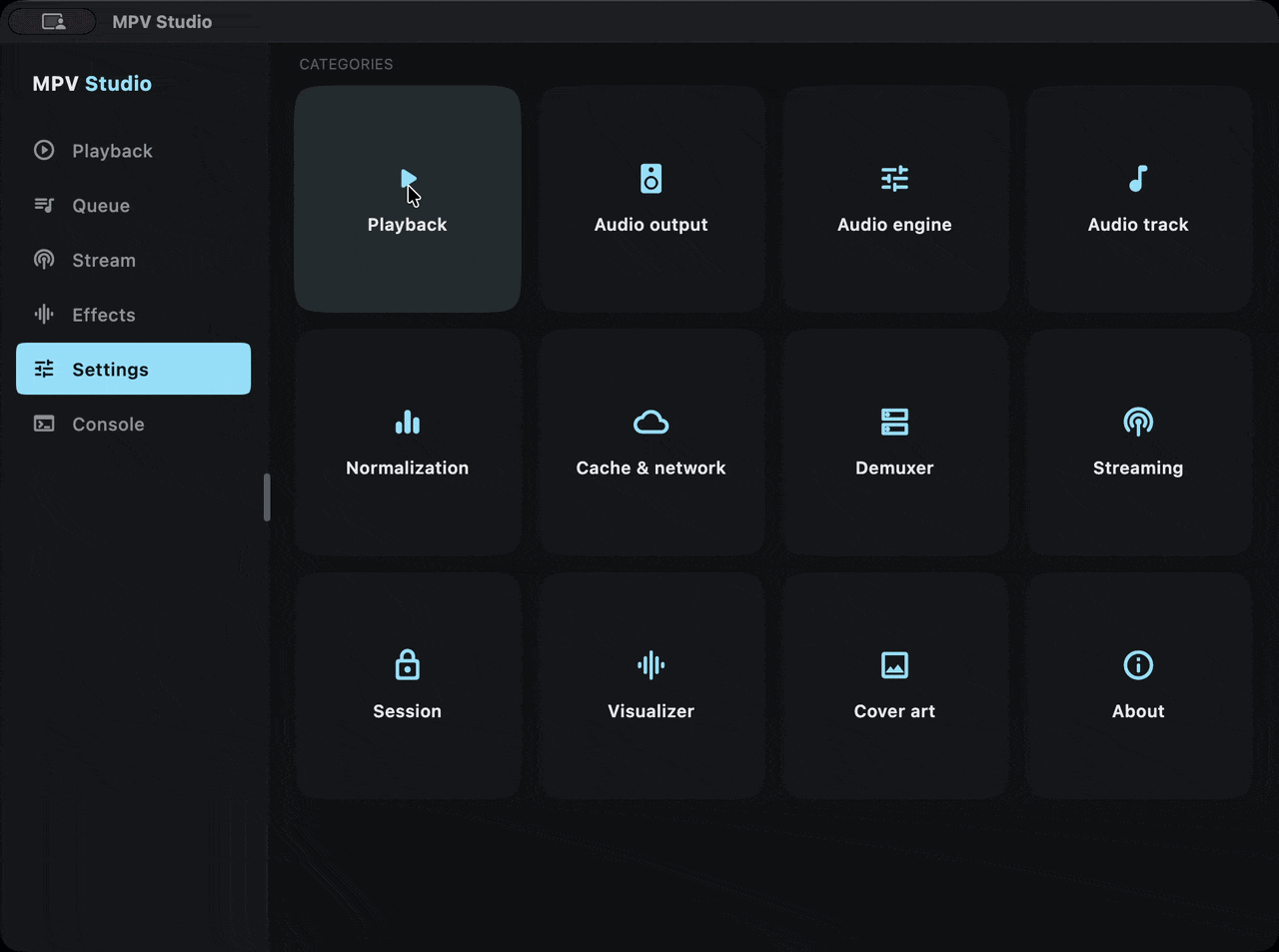

### 5. Settings







Every mpv subsystem grouped into one screen: audio engine and output, audio track, A-B loop, chapters, demuxer cache, hooks, OS media session, and streaming. Choices persist across launches.

---

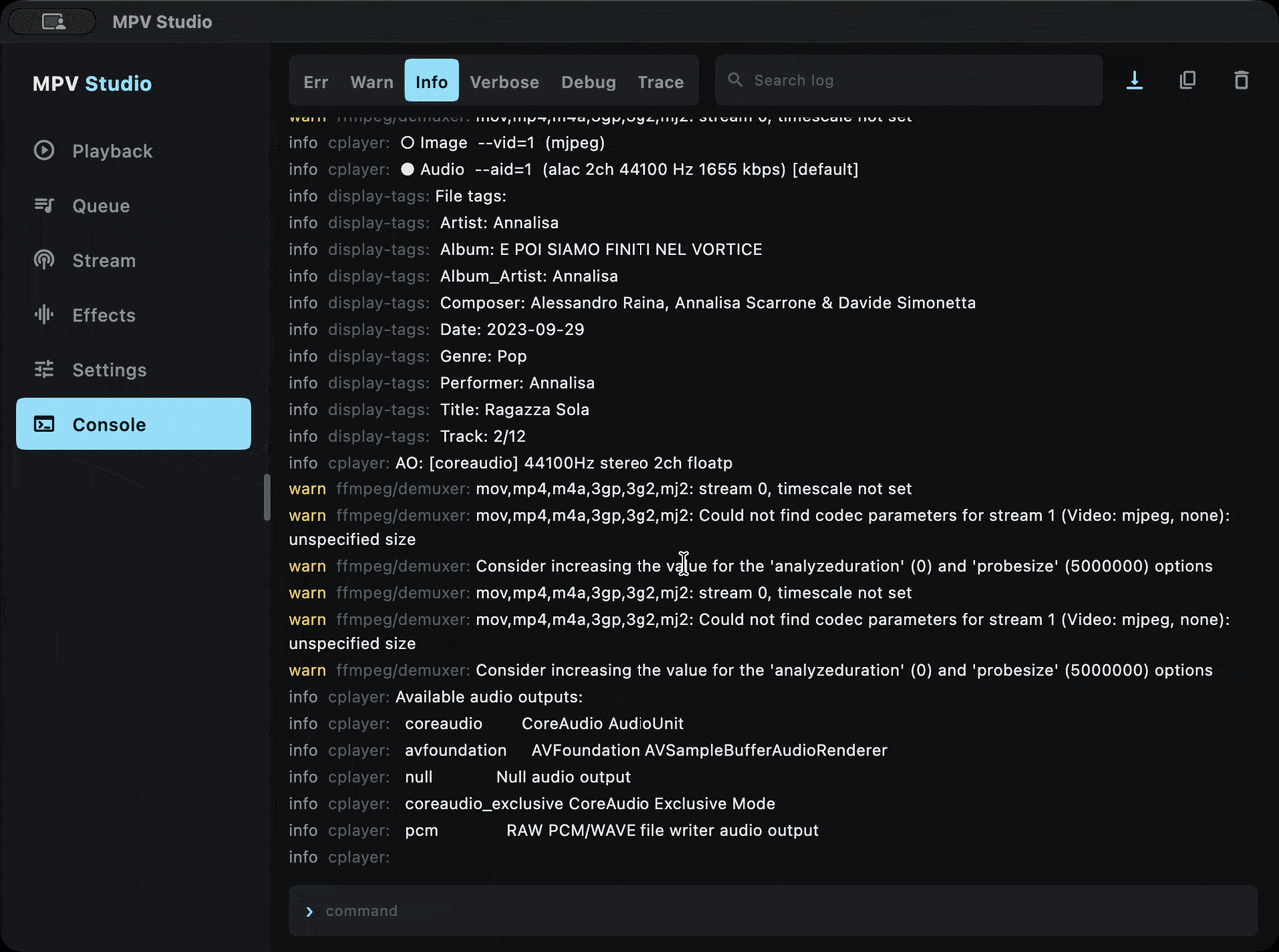

### 6. Console







A built-in mpv command console with a command catalog, autocomplete suggestions, and the live engine log, captured from boot, so it's never empty when you open it.

---

### 7. Building from source

#### 7.1 Requirements

- **Flutter** 3.27 or newer (Dart `^3.6.0`).

- The native toolchain for your target platform (Xcode for Apple, Android SDK and NDK for Android, the desktop build tools for Linux and Windows).

#### 7.2 Run

```bash

flutter pub get

flutter run -d macos        # or windows, linux, ,

```

To build a release artifact, use the standard `flutter build `.

---

## Project background

The app was implemented through the use of Claude Code.

---

*Developed by Alessandro Di Ronza*
