README


# WebRTC

![](https://img.shields.io/badge/signaling-Go_Fiber-blue)

![](https://img.shields.io/badge/pwa-JavaScript-green)

![](https://img.shields.io/badge/protocol-WebRTC-red)

![GitHub release (with filter)](https://img.shields.io/github/v/release/amirhnajafiz/webrtc)

Implementing a Video application with ```WebRTC```. In this project we are going to

use Javascript WebRTC modules and Websockets in order to create a communication system over video stream.

For our signaling server we are going to use ```Golang Fiber```.

## setup

In order to set up project you have two options. You can build it on your

own system (you need to have Golang installed on your system) or you can

start it on a container.

Build the project on your system:

```shell

go build -o main

chmod +x ./main

./main

```

### env

Set the project env variables to deploy it on production

```shell

HTTP_PORT=80 # project port

DEV_MODE=false # logging option

APP_VERSION=v0.2.0 # app version

```

Run the project on container:

```shell

docker run --rm -it -d -p 80:80 $(docker build -q . -f build/Dockerfile)

```

After that you can access the application on ```localhost```.

## network activity

As you can see in network activity diagram, two peers connect to signaling server, stun server, and turn server

in order to setup a session for communicating over ```webrtc``` protocol.

![](https://developer.mozilla.org/en-US/docs/Web/API/WebRTC_API/Connectivity/webrtc-complete-diagram.png)

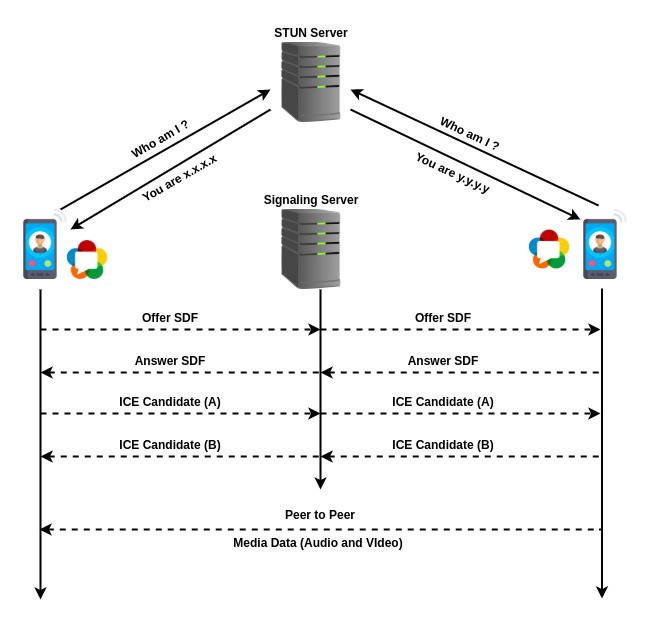

### visual schema

See what’s it look like in a call between two peers.

![](https://img.kancloud.cn/71/45/7145c9f8d8f4c39caf7fb5b4ce98d8b1_651x619.jpeg)

## fsm

In the following schema you can see the application ```Finite State Machine```.

The process of making a call and joining a call is being handled like this.

![](.github/diagram.svg)

## resources

- [www.webrtc.org](https://webrtc.org/)

- [www.developer.mozilla.org/webrtc/api](https://developer.mozilla.org/en-US/docs/Web/API/WebRTC_API)

- [www.w3.org/webrtc](https://www.w3.org/TR/webrtc/)

## contribute

Feel free to submit you pull requests on this repository.
