# ATick for .NET
**Standalone PDF digital-signature library for .NET — PAdES / CMS signing with no external services.**
[](https://www.nuget.org/packages/ATick/)
[](https://dotnet.microsoft.com/)
[](#pades-levels)
[](#compatibility--one-package-everywhere)
[](LICENSE)
[](https://github.com/Aniketc068/ATick-Python)
[](https://github.com/Aniketc068/ATick-Java)
[](https://github.com/Aniketc068/ATick-Node)
[](https://github.com/Aniketc068/ATick-PHP)
**Also available in other languages** — the same ATick engine, the same API, native to each ecosystem:
| Language | Install | Source · Docs |
|---|---|---|
| **Python** | `pip install atick` | [ATick-Python](https://github.com/Aniketc068/ATick-Python) · [docs](https://atick.readthedocs.io/) |
| **Java** | `io.github.aniketc068:atick` (Maven) | [ATick-Java](https://github.com/Aniketc068/ATick-Java) · [docs](https://atick-java.readthedocs.io/) |
| **Node.js** | `npm install atick` | [ATick-Node](https://github.com/Aniketc068/ATick-Node) · [docs](https://atick-node.readthedocs.io/) |
| **PHP** | `composer require aniketc068/atick` | [ATick-PHP](https://github.com/Aniketc068/ATick-PHP) · [docs](https://atick-php.readthedocs.io/) |
---
ATick signs PDFs the way Adobe Acrobat and the EU DSS do — **PAdES baseline** signatures with
timestamps and long-term validation. It calls a bundled native engine through **P/Invoke**, so there
is **no external service** and **nothing to configure**. The matching engine for your OS/arch ships
**inside the package** and is loaded automatically. Add one NuGet package and you are done.
```csharp
using Aniketc068.ATick;
byte[] pdf = File.ReadAllBytes("doc.pdf");
byte[] pfx = File.ReadAllBytes("my.pfx");
byte[] signed = Atick.SignPfx(pdf, pfx,
"{\"password\":\"••••\",\"cn\":\"Aniket Chaturvedi\",\"reason\":\"Approved\"," +
"\"green_tick\":true,\"page\":1,\"rect\":[300,55,575,175]," +
"\"pades\":true,\"timestamp\":true,\"ltv\":true}"); // PAdES-B-LT
File.WriteAllBytes("signed.pdf", signed);
```
---
## The green tick your readers trust

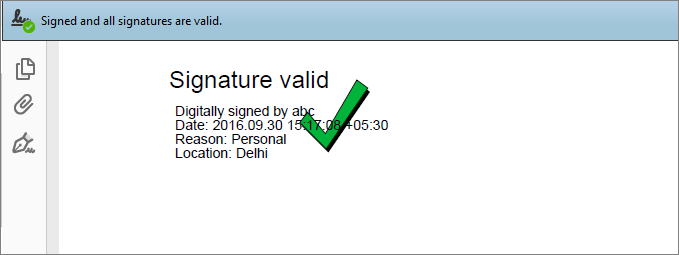

ATick draws a verified-signature appearance with a green tick. When the certificate is valid and
trusted, Adobe Reader / Acrobat shows **“Signed and all signatures are valid.”**
Adobe colours that same mark by the signature's real status — you don't draw these, Adobe does:
Valid & trusted
green tick
Validity unknown
yellow “?”
Not verified
“?” not validated
Invalid
red cross
The **green** tick appears only when the signature is valid *and* the certificate chains to a root
Adobe trusts.
---
## Why ATick
| | ATick for .NET |
|---|---|
| **Zero external services** | the crypto, PKCS#12/PEM, image decode, timestamp & LTV are all in the engine |
| **One package** | the native engine for every platform is bundled — `dotnet add package ATick` and run |
| **Full PAdES** | B-B, B-T, B-LT, B-LTA — recognised by Adobe Acrobat as *“PAdES Signature Level”* |
| **Deferred / remote keys** | two-step `Prepare` → external CMS → `Embed` for a token / HSM / smart-card / Windows store via your own provider |
| **Cross-platform** | Windows (64/32-bit), Linux (x64/ARM64/ARM), macOS (Intel + Apple Silicon) — .NET 6 and up |
| **Clear errors** | every failure is a normal `AtickException` you can catch |
---
## Features (A → Z)
| Feature | How |
|---|---|
| **Sign with a `.pfx` / `.p12` / `.pem`** | `Atick.SignPfx(pdf, pfx, options)` — PKCS#12 or PEM (key + certs), auto-detected |
| **PAdES levels** B-B / B-T / B-LT / B-LTA | `"pades":true` + `"timestamp":true` + `"ltv":true` + `"lta":true` |
| **Hash algorithm** | `"hash_algo":"sha256" \| "sha384" \| "sha512"` |
| **Timestamp authority** | built in — or your own with `"tsa_url":"…"` (and `"tsa_auth":["user","pass"]`) |
| **Long-term validation (LTV)** | `"ltv":true` embeds the chain + revocation (CRL/OCSP) |
| **Multi-page / custom coordinates** | `"placements":[[page,[x1,y1,x2,y2]], …]` |
| **Signature layout** | `"mode":"single"` (one signature on many pages) · `"mode":"shared"` (many fields, same value) |
| **Multi-signatory** | sign an already-signed PDF again — each signature is its own revision, all stay valid |
| **Certification (DocMDP)** | `"certify":1` (no changes) · `2` (form filling) · `3` (form filling + annotations) |
| **Field locking (FieldMDP)** | `"lock_fields":["*"]` or `["FieldA", …]` |
| **Pre-sign checks** | `"verify_expiry":true`, `"verify_crl":true`, `"verify_ocsp":true` (or `"verify":true`) |
| **Document metadata** | `Atick.SetMetadata(pdf, options)` |
| **Password protection** | `"encrypt_password"` (+ `"owner_password"`) for output; `"open_password"` for input; `Atick.Decrypt(pdf, pw)` |
| **Appearance** | options `cn, org, ou, location, reason, text, date, dn, body, heading, image` — auto-fit text, transparent logo |
| **The mark** | the `?` (Adobe greens it), an always-green tick, or nothing — see [The mark](#the-mark) |
| **CN on the left** (Adobe-style) | `"image":"cn"` |
| **Distinguished name** | `"dn":"CN=…, O=…, C=IN"` |
| **Custom-text-only appearance** | `"body":"*APPROVED*\nby *Aniket*"` — `\n` = line, `*x*` = bold |
| **Invisible signature** | `"placements":[]` |
| **Sign an already-signed PDF** | sign again (incremental) — existing signatures stay valid; use a fresh `"field_name"` |
| **Container only** | `Atick.PrepareFields(pdf, options)` |
| **Document timestamp** | `"lta":true` while signing; `Atick.AddDocTimestamp(pdf, options)` afterwards (PAdES-B-LTA) |
| **Fast signing** | revocation cache (ON by default) — `Atick.SetFastSigning(false)` to disable |
| **Deferred / eSign (2-step)** | `Atick.Prepare(pdf, options)` → external CMS → `Atick.Embed(prepared, cms)` |
| **Detached CMS** | `Atick.CmsPfx(data, pfx, options)` |
---
## Install
```bash
dotnet add package ATick
```
or in your `.csproj`:
```xml
```
The native engine for your platform comes with the package — nothing else to install.
---
## Compatibility — one package everywhere
- **Every .NET — .NET Framework 2.0 through the latest .NET.** The package multi-targets
`net20`, `net35`, `net40`, `net48`, `netstandard2.0`, `net6.0` and `net8.0`, so it works on old
.NET Framework (Windows 7 era) and on modern cross-platform .NET alike.
- **Every OS/arch** — the package bundles a native engine per platform and .NET loads the right one:
| RID | Bundled |
|---|---|
| `win-x64` / `win-x86` | **Windows 7 and up**, 64 / 32-bit (one Windows-7-compatible engine covers Win 7 → 11) |
| `win-arm64` | Windows on ARM64 |
| `linux-x64` / `linux-arm64` / `linux-arm` | Linux x64 / ARM64 / ARM |
| `osx-x64` / `osx-arm64` | macOS Intel / Apple Silicon |
On modern .NET the engine is resolved per-RID automatically; on .NET Framework MSBuild targets copy
the right-arch engine next to your app and ATick pre-loads it. So `ATick` is one cross-platform
dependency — just like `pip install atick` (Python) or `io.github.aniketc068:atick` (Java).
---
## The API
```csharp
Atick.SignPfx(pdf, pfx, optionsJson) // sign with a .pfx / .p12 / .pem (auto-detected)
Atick.Prepare(pdf, optionsJson) // deferred / eSign: returns (Prepared, BytesToSign)
Atick.CmsPfx(data, pfx, optionsJson) // detached CMS over data
Atick.Embed(prepared, cms) // embed a detached CMS into a prepared PDF
Atick.PrepareFields(pdf, optionsJson) // make an empty signature field (template)
Atick.SignField(pdf, pfx, optionsJson) // sign an existing empty field
Atick.SetMetadata(pdf, optionsJson) // Title / Author / Subject / Keywords / …
Atick.AddDocTimestamp(pdf, optionsJson) // archive DocTimeStamp (PAdES-B-LTA)
Atick.SetFastSigning(true | false) // revocation-cache toggle
Atick.Decrypt(pdf, password) // decrypt a password-protected PDF
Atick.Version() // engine version
```
All options are a JSON string. Any failure throws `AtickException`.
### Options (JSON)
`cn, org, ou, location, reason, text, date, dn, body, heading, show_mark, green_tick, always_check,
mark_color (hex / name / [r,g,b]), mark_gradient, mark_scale, text_color, bg_color, border, font_size,
width, height, page, rect, placements ([[page,[x1,y1,x2,y2]], …]), mode (single/shared), field_name,
pades, hash_algo (sha256/384/512), timestamp, tsa_url, tsa_auth, ltv, lta, certify, lock_fields,
verify, verify_expiry, verify_crl, verify_ocsp, open_password, encrypt_password, owner_password,
contents_size`.
---
## The mark
```csharp
"{… ,\"green_tick\":true}" // the "?" mark — Adobe paints it GREEN for valid+trusted, RED if invalid
"{… ,\"always_check\":true}" // the green-tick graphic as the base
"{… ,\"green_tick\":false}" // no mark — a plain signature
```
Colour it: `"mark_color":"#E53935"`, `"blue"`, `[255,140,0]` — or a gradient
`"mark_gradient":["red","orange","yellow"]`.
---
## Deferred signing & Indian eSign (two-step)
When the private key lives elsewhere (a USB token / HSM / smart-card / Windows store via your own
provider, or an eSign ESP):
```csharp
// 1) prepare (no key): appearance + the exact bytes to sign
var (prepared, bytesToSign) = Atick.Prepare(pdf,
"{\"cn\":\"DS TEST\",\"reason\":\"eSign\",\"placements\":[[1,[300,55,575,175]]],\"contents_size\":16384}");
// 2) your signer (token / HSM / eSign ESP) makes a DETACHED CMS over bytesToSign.
// The eSign InputHash is just the SHA-256 of bytesToSign:
byte[] digest = System.Security.Cryptography.SHA256.HashData(bytesToSign);
// ... sign with your provider, get back a detached CMS ...
// 3) embed
byte[] signed = Atick.Embed(prepared, cms);
```
---
## PAdES levels
```csharp
Atick.SignPfx(pdf, pfx, "{… ,\"pades\":true}") // B-B
Atick.SignPfx(pdf, pfx, "{… ,\"pades\":true,\"timestamp\":true}") // B-T
Atick.SignPfx(pdf, pfx, "{… ,\"pades\":true,\"timestamp\":true,\"ltv\":true}") // B-LT
Atick.SignPfx(pdf, pfx, "{… ,\"pades\":true,\"timestamp\":true,\"lta\":true}") // B-LTA
```
---
## Examples
Self-contained console programs live in [`examples/`](examples/) — one per feature, mirroring the
Python and Java examples (sign, PAdES levels, appearance, mark colours, hashes, certify/lock,
multi-placement, encrypted, multi-revision, dates, deferred eSign, document timestamp, metadata,
field API, PEM, verify, sign-already-signed, fast signing, container).
```bash
cd examples/SignPfx
dotnet run
```
---
## Errors
```csharp
try
{
Atick.SignPfx(pdf, pfx, "{\"password\":\"wrong\"}");
}
catch (AtickException e)
{
Console.WriteLine("signing failed: " + e.Message);
}
```
---
## License
ATick is **dual-licensed** — free for personal & open use, paid if you sell:
- **Free under [GNU AGPL-3.0](LICENSE)** — personal projects, learning, internal use, and
open-source projects (released publicly under AGPL-3.0).
- **Commercial license (paid)** — if you **build a product with ATick and sell it**, or use it in a
**closed-source / commercial** product, you must buy a commercial license first. Contact
**aniketc.pro@gmail.com** for a quote.
See [LICENSING.md](LICENSING.md) for details. © 2026 Aniket Chaturvedi.
