README

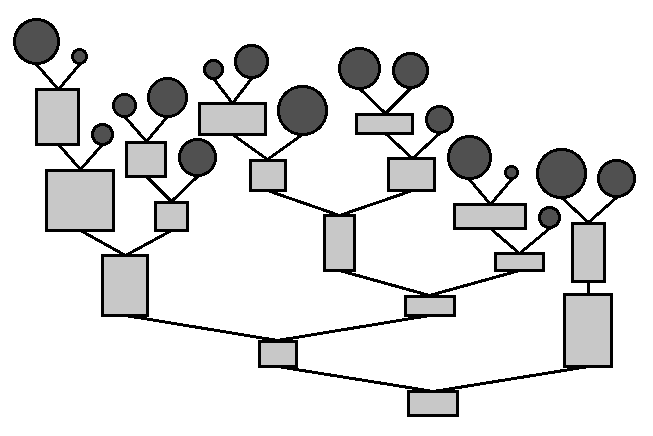

A small library to layout trees vertically in a pretty way: **[online documentation](https://art-w.github.io/prettree/prettree/Prettree)**
- minimal width and height
- parent centered above its children
- nodes and leaves can have different sizes
- custom padding between each subtrees
Note that this library doesn't handle drawing the tree, it only computes the ideal position of every nodes and leaves! You will need to define a function which traverses your custom tree, building a layout and its rendering function:
```ocaml
type t = Leaf | Bin of t * t
let rec my_layout = function
| Leaf ->
Prettree.make (leaf_width, leaf_height) @@ fun (x, y) ->
(* TODO: draw a leaf at position (x, y) *)
(x, y) (* return the leaf position such that we can draw edges to it later *)
| Bin (left, right) ->
Prettree.vert @@ (* parent is vertically over its children *)
let open Prettree.Syntax in
let+ (parent_x, parent_y) =
Prettree.make (parent_width, parent_height) @@ fun (x, y) ->
(* TODO: draw the parent node at (x, y) *)
(x, y)
and+ () = Prettree.padding 1.0 (* vertical separation betwen parent and children *)
and+ (left_x, left_y), (right_x, right_y) =
Prettree.horz @@ (* siblings are horizontally aligned *)
let+ left_pos = my_layout left
and+ () = Prettree.padding 1.0 (* horizontal separation between left and right *)
and+ right_pos = my_layout right
in
left_pos, right_pos (* return children positions *)
in
(* TODO: draw edges from (parent_x, parent_y) to (left_x, left_y)
and from (parent_x, parent_y) to (right_x, right_y)
*)
(parent_x, parent_y) (* return the parent position *)
let () =
(* compute our test tree layout *)
let test_layout = my_layout (Bin (Leaf, Leaf)) in
(* extract the layout to get the bounding box and our rendering function *)
let (tree_width, tree_height), my_render = Prettree.extract test_layout in
(* call our rendering function at some initial position (0,0) *)
let (root_x, root_y) = my_render (0.0, 0.0) in
(* ... *)
```

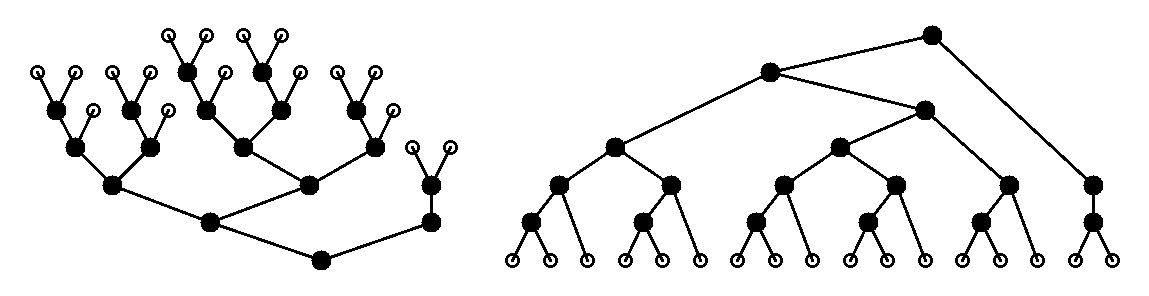

The `tests/` folder contains variations using `Graphics` to render the trees, and also unicode art:
```
┏━━━━━━━━━━━┓
┃ fibonacci ┃
┗━━━━━┯━━━━━┛
│
┏━━┷━┓
┃ 13 ┃
┗━━┯━┛
┌────────────────────┴──────────────────┐
┏━┷━┓ ┏━┷━┓
┃ 5 ┃ ┃ 8 ┃
┗━┯━┛ ┗━┯━┛
┌──────┴───────┐ ┌───────────┴───────────┐
┏━┷━┓ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓
┃ 2 ┃ ┃ 3 ┃ ┃ 3 ┃ ┃ 5 ┃
┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛
┌──┴──┐ ┌───┴────┐ ┌───┴────┐ ┌──────┴───────┐
┷ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓
1 ┃ 1 ┃ ┃ 1 ┃ ┃ 2 ┃ ┃ 1 ┃ ┃ 2 ┃ ┃ 2 ┃ ┃ 3 ┃
┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛
┌─┴─┐ ┌─┴─┐ ┌──┴──┐ ┌─┴─┐ ┌──┴──┐ ┌──┴──┐ ┌───┴────┐
┷ ┷ ┷ ┷ ┷ ┏━┷━┓ ┷ ┷ ┷ ┏━┷━┓ ┷ ┏━┷━┓ ┏━┷━┓ ┏━┷━┓
0 1 0 1 1 ┃ 1 ┃ 0 1 1 ┃ 1 ┃ 1 ┃ 1 ┃ ┃ 1 ┃ ┃ 2 ┃
┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛ ┗━┯━┛
┌─┴─┐ ┌─┴─┐ ┌─┴─┐ ┌─┴─┐ ┌──┴──┐
┷ ┷ ┷ ┷ ┷ ┷ ┷ ┷ ┷ ┏━┷━┓
0 1 0 1 0 1 0 1 1 ┃ 1 ┃
┗━┯━┛
┌─┴─┐
┷ ┷
0 1
```
