README


Hand Gesture Recognition

============================

## Detects finger movements of hands and shows appropriate output.



#### Steps:

+ *Segment hand region from a real-time video sequence*

  - Background Subtraction

  - Motion Detection and Thresholding

  - Contour Extraction



+ *Count fingers*

  - Get convex hull of the segmented hand region and compute the most extreme points in the convex hull

  - Get center of palm using extremes points

  - Using center of palm, construct a circle with the maximum Euclidean distance as radius

  - Perform bitwise AND operation on thresholded hand image and the circular ROI

  - Compute count of fingers using the finger slices obtained in previous step

#### To run the file use:    **python sudo.py**

![#f03c15](https://placehold.it/15/f03c15/000000?text=+) `Memory Intensive Operation`

![#f03c15](https://placehold.it/15/f03c15/000000?text=+) `This script creates screenshot for every frame captured and stores it in directory 'screenshots'`

![#f03c15](https://placehold.it/15/f03c15/000000?text=+) `Hence, there is a little delay during frame capture`

### To-Do List:

- [x] Segment hand region

- [x] Detect numbers using count of fingers

- [ ] Detect characters using finger motion

- [ ] Capture words using word motion

- [ ] Automate tasks with each character / word

#### Screenshots:

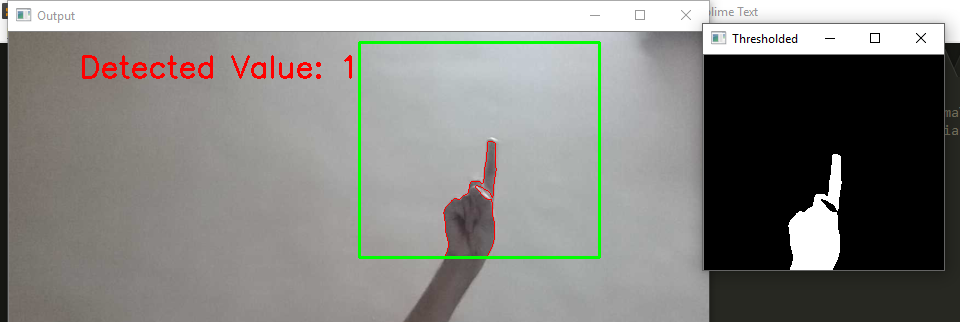

#### ![Screenshot1](https://rawgit.com/avidLearnerInProgress/hand-gesture-recognition/master/screenshots/screenshot_1.png)

#### ![Screenshot2](https://rawgit.com/avidLearnerInProgress/hand-gesture-recognition/master/screenshots/screenshot_2.png)

#### ![Screenshot3](https://rawgit.com/avidLearnerInProgress/hand-gesture-recognition/master/screenshots/screenshot_3.png)

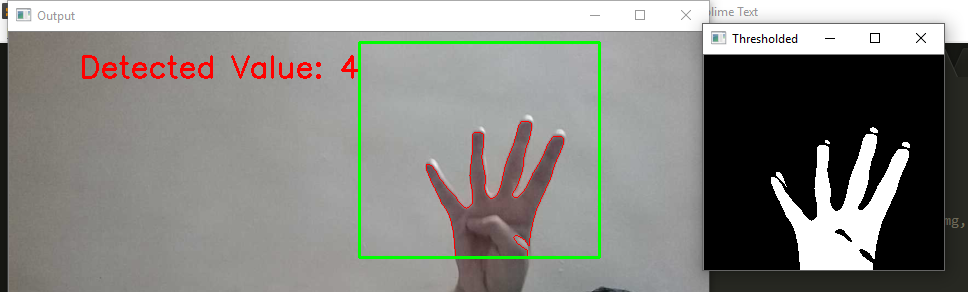

#### ![Screenshot4](https://rawgit.com/avidLearnerInProgress/hand-gesture-recognition/master/screenshots/screenshot_4.png)

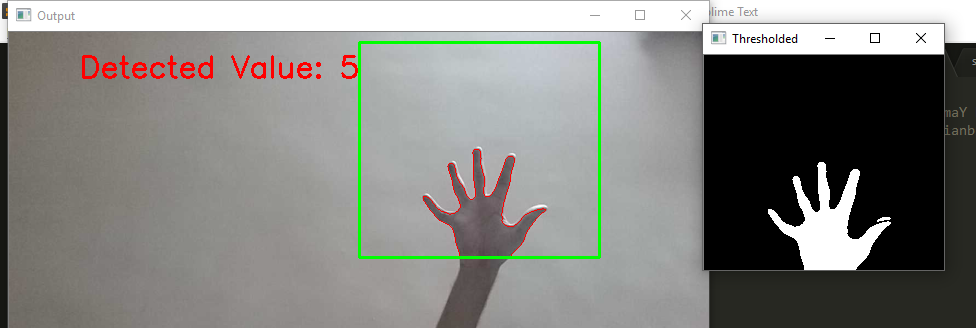

#### ![Screenshot5](https://rawgit.com/avidLearnerInProgress/hand-gesture-recognition/master/screenshots/screenshot_5.png)
