Renders B800 text to a BGRA buffer.
https://github.com/aybe/b800

Last synced: about 1 year ago
JSON representation

Renders B800 text to a BGRA buffer.

• Host: GitHub
• URL: https://github.com/aybe/b800
• Owner: aybe
• Created: 2014-12-12T19:31:19.000Z (over 11 years ago)
• Default Branch: master
• Last Pushed: 2014-12-12T19:56:01.000Z (over 11 years ago)
• Last Synced: 2025-01-31T11:23:15.589Z (over 1 year ago)
• Language: C#
• Homepage:
• Size: 484 KB
• Stars: 3
• Watchers: 2
• Forks: 0
• Open Issues: 0
• Metadata Files:
  • Readme: README.md

Awesome Lists containing this project

README


B800

====

Renders B800 text to a BGRA buffer.

**Features**

- support of arbitrary fonts

- support of arbitrary column width

- character expansion style like in VGA text mode

**Showcase**

Classic mode (un-expanded):

![](https://raw.githubusercontent.com/aybe/B800/master/sample.png)

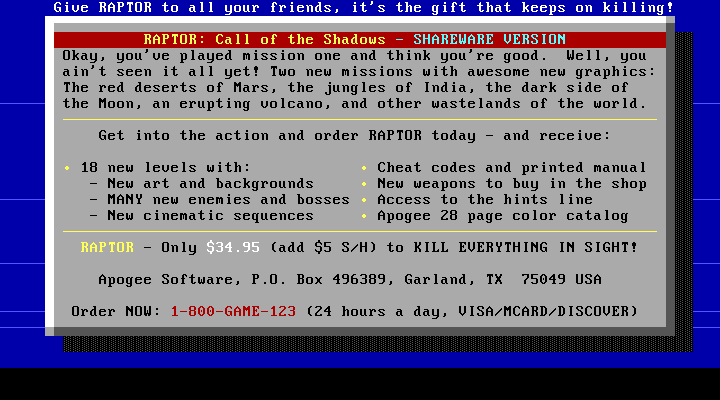

Expanded mode:

![](https://raw.githubusercontent.com/aybe/B800/master/sample_expanded.png)

**Example**

Reading a text file and producing a bitmap out of it (WPF):

```

string path = @"Samples\SAMPLE1.TXT";

byte[] b800Data = File.ReadAllBytes(path);

bool expand = true;

int columns = 80;

Font font = new Cp437Font16();

Tuple render = B800Renderer.Render(font, b800Data, columns, expand);

int pixelWidth = render.Item1;

int pixelHeight = render.Item2;

int[] pixels = render.Item3;

BitmapSource source =

    BitmapSource.Create(pixelWidth, pixelHeight, 96, 96, PixelFormats.Bgra32, null, pixels, pixelWidth*4);

```

**TODO**

- implement the blink flag to produce an animation when content is animated

**Credits**

[Joseph Gil for the fonts.](http://ftp.sunet.se/pub/simtelnet/msdos/screen/fntcol16.zip)

[Malvineous for the B800 text page.](http://www.shikadi.net/moddingwiki/B800_Text)

And me for the code :D
