Four Souls MPC Formatter v1.0.0
**Four Souls MPC Formatter** is a program to format your locally downloaded, print-ready [Four Souls](https://foursouls.com) cards into XML files. These files are then fed into [mpc-autofill](https://github.com/chilli-axe/mpc-autofill) to ✨automagically✨ fill out your [_MakePlayingCards_](https://www.makeplayingcards.com/) order.
### Standing on the Shoulders of Giants
_mpc-autofill_ was originally designed for handling _Magic: The Gathering_ cards, but thanks to its powerful automation, we can use the same process to make printing _Four Souls_ cards just as easy.
## Contents
1. [Getting Started](#getting-started)
2. [How to Format Card Directories](#how-to-format-card-directories)
3. [How to Create Double-Sided Cards](#how-to-create-double-sided-cards)
4. [FAQ](#faq)
5. [Additional Questions](#additional-questions)
6. [Attributions](#attributions)
7. [Logo License](#logo-license)
8. [License](#license)
## Getting Started
This section provides an overview of how to set up and use _Four Souls MPC Formatter_. It will guide you through downloading the necessary programs, organizing your working directory, and adding your downloaded _Four Souls_ cards to directories. By following these steps, you'll be able to generate XML order files and use _mpc-autofill_ to prepare your cards for printing through _MakePlayingCards_.
This setup will guide you as though you're using the default directories and file names on a Windows OS.
1. **Set Up a Working Directory**
- Create a new directory where you'll store your downloaded cards, necessary programs, config files, and output files in order to use _Four Souls MPC Formatter_.
```
my-working-directory/
```
2. **Download _Four Souls MPC Formatter_ into your Working Directory**
- Download the [latest version](https://github.com/bfrymire/four-souls-mpc-formatter/releases/latest) from the Releases tab and place it in your working directory.
```
my-working-directory/
├── four-souls-mpc-formatter.exe
```
3. **Run _Four Souls MPC Formatter_ to Create Config File and Directories**
- Run the `four-souls-mpc-formatter.exe` program.
- The config file will be created automatically if it's missing.
- If you ever need to reset it, select the `Reset Config File to Default` option.
- Select the `Create Working Directories` option to create the directories.
```
my-working-directory/
├── cards/
│ ├── card_backs/
│ ├── expansions/
│ │ ├── Singles/
├── orders/
├── config.json
├── four-souls-mpc-formatter.exe
```
4. **Download Standard Print-Ready _Four Souls_ Card Backs**
- The card back image files needed to print _Four Souls_ cards are not included here. They can be downloaded from the [Four Souls Templates Google Drive](https://drive.google.com/drive/u/0/folders/1b9iAG4i-SjnryKLiNMAKW8XFxeBt1Wjz).
- Once downloaded, move the card back image files into `cards/card_backs/`.
- The `four-souls-mpc-formatter.exe` program relies on the names in the `config.json` file to match up with the card back image files when generating the order files. These must match up either way, so you have two options:
1. Edit the `config.json` file to have the downloaded card back file names.
2. Rename the card back image files based on the default config file names.
- Make sure to preserve your file types when renaming the files. _(e.g., `.jpg`, `.png`)_
**`config.json` Default Card Back File Names**
| Card Type | File Name |
| ------------------------------ | --------------------------- |
| Bonus Soul | bonus_soul_card_back.jpg |
| Character | character_card_back.jpg |
| Loot | loot_card_back.jpg |
| Monster | monster_card_back.jpg |
| Room | room_card_back.jpg |
| Starting Item _(Eternal Item)_ | starting_item_card_back.jpg |
| Treausre | treasure_card_back.jpg |
```
my-working-directory/
├── cards/
│ ├── card_backs/
│ │ ├── bonus_soul_card_back.jpg
│ │ ├── character_card_back.jpg
│ │ ├── ...
│ ├── expansions/
├── orders/
```
5. **Download _mpc-autofill_**
- Download the [latest version of _mpc-autofill_](https://github.com/chilli-axe/mpc-autofill/releases/latest).
- Place the `autofill-windows.exe` program in the `orders/` directory.
```
my-working-directory/
├── cards/
├── orders/
│ ├── autofill-windows.exe
```
6. **Download Print-Ready _Four Souls_ Cards**
- Download your favorite print-ready _Four Souls_ cards and move them to `cards/expansions/` into their own directory.
- Organize cards within each expansion folder by card types _(e.g., `loot/`, `treasure/`)_ recognized by vanilla _Four Souls_. Follow the [How to Format Card Directories](#how-to-format-card-directories).
- For cards that have unique backs, follow [How to Create Double-Sided Cards](#how-to-create-double-sided-cards).
```
my-working-directory/
├── cards/
│ ├── card_backs/
│ ├── expansions/
│ │ ├── My Favorite Four Souls Cards/
│ │ │ ├── loot/
│ │ │ ├── treasure/
│ │ │ ├── ...
├── orders/
```
7. **Run _Four Souls MPC Formatter_**
- You should now be ready to run the formatter to create the order files.
- Run the `four-souls-mpc-formatter.exe` program.
- Select the `Generate MPC Order Files` option.
- After running the program, you should see your XML order files created in `orders/`.
```
my-working-directory/
├── cards/
├── orders/
│ ├── autofill-windows.exe
│ ├── order_Base_Card_Types_loot.xml
│ ├── order_Base_Card_Types_treasure.xml
│ ├── ...
```

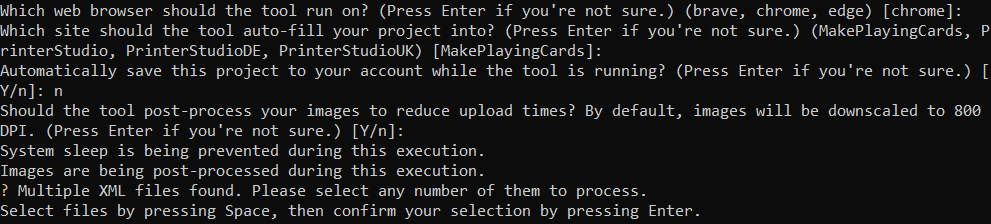

8. **Run _mpc-autofill_**
- Run the _mpc-autofill_ `autofill-windows.exe` program from within the `orders/` directory, as it searches for XML files in the same location.
- Follow the on-screen prompts.
- ⚠️ **Important!** ⚠️ The color correction settings provided by [Print Four Souls](https://printfoursouls.com/) were specifically tested for _MakePlayingCards_. If you're using a different print service, results may vary. When choosing _"Which site should the tool auto-fill your project into?"_, make sure to select _MakePlayingCards_.
```
my-working-directory/
├── cards/
├── orders/
│ ├── autofill-windows.exe
│ ├── order_Base_Card_Types_loot.xml
│ ├── order_Base_Card_Types_treasure.xml
│ ├── ...
```
9. **Review Your Order**
- Once _mpc-autofill_ has finished filling out the card fronts and backs, carefully review the **Preview & Add to Cart** step to ensure all cards are correctly formatted.
10. **Update Your _MakePlayingCards_ Cart**
- _mpc-autofill_ has default settings it selects on _MakePlayingCards_:
- **Card Stock:** _(M31) Linen_
- **Card Finishing:** _MPC game card finish_

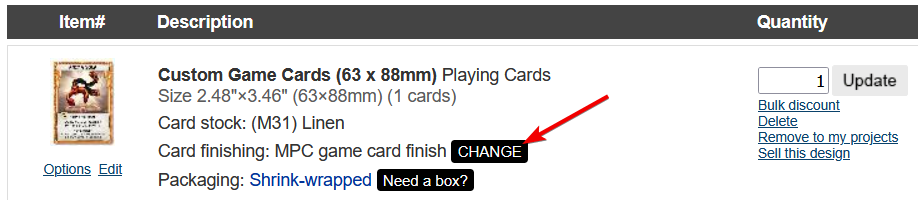

- Once the order is in your cart, update the **Card Finishing** setting.

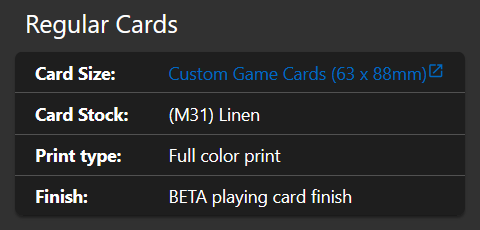

- Based on [Print Four Souls](https://printfoursouls.com//) recommendations, change **Card Finishing** to **BETA playing card finish**.
11. **Complete Order!**
- Now, finalize your _MakePlayingCards_ order. Happy printing!
## How to Format Card Directories
To ensure that _Four Souls MPC Formatter_ correctly processes your cards, you need to organize them into specific directories based on their card type. The default card types recognized by vanilla _Four Souls_ are:
- Bonus Soul
- Character
- Loot
- Monster
- Room
- Starting Item _(also commonly referred to as Eternal Item)_
- Treasure
Each card type should be placed in its corresponding directory within an expansion folder. This ensures that the generated order files correctly group card types for printing.
### Example Directory Structure
When organizing your expansion, follow this structure:
```
my-working-directory/
├── cards/
│ ├── card_backs/
│ ├── expansions/
│ │ ├── My Favorite Four Souls Cards/
│ │ │ ├── bonus_soul/
│ │ │ ├── character/
│ │ │ ├── loot/
│ │ │ ├── monster/
│ │ │ ├── room/
│ │ │ ├── starting_item/
│ │ │ ├── treasure/
│ │ ...
├── orders/
```
In this example, the expansion _"My Favorite Four Souls Cards"_ contains seven subdirectories, each corresponding to a _Four Souls_ card type.
### Notes on Formatting
- **Folder names do not have to be case-sensitive**, `Starting Item/` and `starting_item/` will both be recognized as the same card type.
- **Use "Starting Item" and not "Eternal Item"** when creating a card type folder for a character's initial item.
- **Do not mix card types** within the same folder. Each card type must have its own folder.
- **File names do not matter**, but using a consistent naming convention is recommended.
- **Use unique file names** across all cards. _mpc-autofill_ may not properly fill out card slots that are using the same file name.
- If an expansion **does not include** a certain card type, simply leave that folder out.
Following this structure ensures that _Four Souls MPC Formatter_ can properly group and process your cards when generating order files.
If your card(s) need a custom card back, continue reading [How to Create Double-Sided Cards](#how-to-create-double-sided-cards).
## How to Create Double-Sided Cards
To create double-sided cards, you need to group card fronts with their corresponding card back in a dedicated folder inside the `cards/expansions/Singles/` directory.
### Steps:
1. Inside `cards/expansions/Singles/`, create a **new folder** with a descriptive name for your set of double-sided cards.
2. Place all **card front images** inside this folder. All cards in this folder will share the same card back.
3. Inside this folder, create a `card_back/` directory.
4. Place the **card back image** inside `card_back/`.

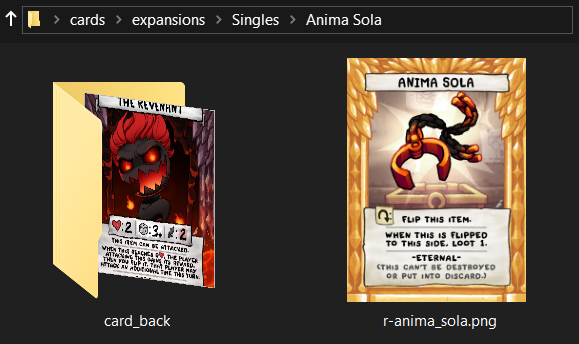

### Example Directory Structure
```
my-working-directory/
├── cards/
│ ├── card_backs/
│ ├── expansions/
│ │ ├── Singles/
│ │ │ ├── Anima Sola/
│ │ │ │ ├── card_back/
│ │ │ │ │ ├── r-the_revenant.png
│ │ │ ├── r-anima_sola.png
```
## FAQ
##### **Q:** Does this color correct my _Four Souls_ cards?
**A:** No, this tool is only for streamlining the process of creating your _MakePlayingCards_ order.
For color correction, follow the method outlined on [Print Four Souls](https://printfoursouls.com/).
##### **Q:** Where can I get print-ready card backs?
**A:** You can download them from the [Four Souls Templates Google Drive](https://drive.google.com/drive/u/0/folders/1b9iAG4i-SjnryKLiNMAKW8XFxeBt1Wjz).
##### **Q:** Will this work on macOS or Linux?
**A:** Not at this time. Windows is the only supported OS.
##### **Q:** I need help with mpc-autofill. Where should I go?
**A:** Check out the [_mpc-autofill_ repository](https://github.com/chilli-axe/mpc-autofill) for further support and documentation. The _mpc-autofill_ tool we're using is the desktop-tool.
##### **Q:** Can I use custom card backs?
**A:** Yes! Place them in `cards/expansions/Singles//card_back/`.
For more details, check out [How to Create Double-Sided Cards](#how-to-create-double-sided-cards).
## Additional Questions
Have any questions? [Create a new issue!](https://github.com/bfrymire/four-souls-mpc-formatter/issues/new)
## Attributions
A huge thanks to the following projects and their contributors:
- [Print Four Souls](https://printfoursouls.com/) for their work in refining a color-accurate method for printing _Four Souls_ cards.
- [mpc-autofill](https://github.com/chilli-axe/mpc-autofill) for handling the automation of order filling, making the process seamless.
## Logo License
The logo for the project has a separate [Logo License](./LICENSE_LOGO).
## License
[MIT License](./LICENSE)
