README
# plantuml-example
##### userAuthorization.puml
```java
@startuml
'https://plantuml.com/use-case-diagram
left to right direction
actor "System Administrator" as actorAdmin
rectangle "User Authorization" {
usecase (Validate Users) as usecaseValidateUsers
usecase (Check Password) as usecaseCheckPassword
actorAdmin -- usecaseValidateUsers
usecaseValidateUsers -> usecaseCheckPassword : <>
}
@enduml
```

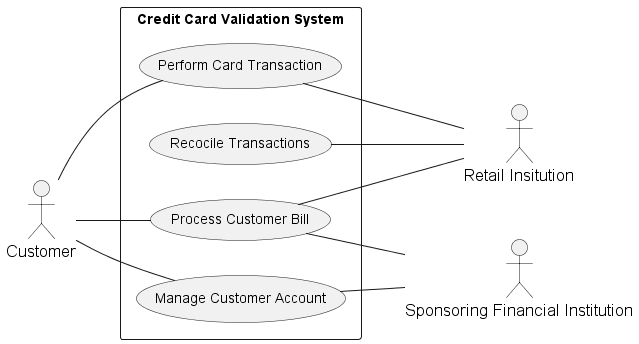

##### creditCardValidationSystem.puml
```java
@startuml
'https://plantuml.com/use-case-diagram
skinparam sequence {
'ArrowColor DeepSkyBlue
'ActorBorderColor DeepSkyBlue
'LifeLineBorderColor blue
'LifeLineBackgroundColor #A9DCDF
'ParticipantBorderColor DeepSkyBlue
'ParticipantBackgroundColor DodgerBlue
ParticipantFontName Thai
ParticipantFontSize 17
'ParticipantFontColor #A9DCDF
'ActorBackgroundColor blue
ActorFontColor black
ActorFontSize 17
ActorFontName Thai
}
' -------------------------
left to right direction
actor "Customer" as actorCustomer
actor "Retail Insitution" as actorRetailInstitution
actor "Sponsoring Financial Institution" as actorSponsoringFinancialInstitution
rectangle "Credit Card Validation System" {
usecase (Perform Card Transaction) as usecasePerformCardTransaction
usecase (Process Customer Bill) as usecaseProcessCustomerBill
usecase (Recocile Transactions) as usecaseRecocileTransactions
usecase (Manage Customer Account) as usecaseManageCustomerAccount
actorCustomer -- usecasePerformCardTransaction
actorCustomer -- usecaseProcessCustomerBill
actorCustomer -- usecaseManageCustomerAccount
usecaseProcessCustomerBill -- actorRetailInstitution
usecasePerformCardTransaction -- actorRetailInstitution
usecaseRecocileTransactions -- actorRetailInstitution
usecaseProcessCustomerBill -- actorSponsoringFinancialInstitution
usecaseManageCustomerAccount -- actorSponsoringFinancialInstitution
}
' ----------------------------
@enduml
```

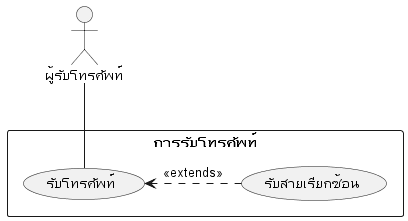

##### recievedCall.puml
```java
@startuml
'https://plantuml.com/use-case-diagram
actor "ผู้รับโทรศัพท์" as actorCallReciever
rectangle "การรับโทรศัพท์" as revievedCall {
usecase (รับโทรศัพท์) as usecaseRecieve
usecase (รับสายเรียกซ้อน) as usecaseCallWaiting
actorCallReciever -- usecaseRecieve
usecaseRecieve <. usecaseCallWaiting : <>
}
@enduml
```
##### studentRegister.puml
```java
@startuml
left to right direction
actor "เจ้าหน้าที่" as actorRegisterationOfficer
actor "นักศึกษา" as actorStudent
rectangle "การลงทะเบียนเรียนของนักศึกษา" as rectangleRegisterationOfStudent {
usecase (ลงทะเบียนนักศึกษาใหม่) as usecaseRegisterOfNewStudent
usecase (ลงทะเบียนนักศึกษาปัจจุบัน) as usecaseRegisterOfPresentStudent
usecase (เก็บหลักฐาน) as usecaseKeepEvidence
usecase (ชำระเงินค่าเล่าเรียน) as usecasePayRegisterationFee
usecase (มีเงินไม่พอชำระค่าเล่าเรียน) as usecaseNotHaveEnoughMoneyForPayEducationFee
usecase (หลักฐานไม่พร้อม) as usecaseEvidenceNotReady
usecase (ได้รับการยกเว้นค่าเล่าเรียน) as usecaseExceptEducationFee
actorRegisterationOfficer -- usecaseRegisterOfNewStudent
actorRegisterationOfficer - usecaseRegisterOfPresentStudent
usecasePayRegisterationFee -- actorStudent
usecaseRegisterOfNewStudent -> usecasePayRegisterationFee : <>
usecaseRegisterOfNewStudent -> usecaseKeepEvidence : <>
usecaseRegisterOfPresentStudent --> usecasePayRegisterationFee : <>
usecaseRegisterOfPresentStudent --> usecaseKeepEvidence : <>
usecaseEvidenceNotReady ..> usecaseKeepEvidence : <>
usecaseExceptEducationFee <.. usecasePayRegisterationFee :<>
usecaseNotHaveEnoughMoneyForPayEducationFee <.. usecasePayRegisterationFee :<>
}
@enduml
```
