# IVT Rego6xx Control
A REST API server and MQTT client which provides control over IVT heatpumps, which uses a Rego6xx controller.
Its the successor project of [Rego6xxSrv](https://github.com/BlueAndi/Rego6xxSrv). Homeassistant MQTT automatic device discovery is supported as well.
[](http://choosealicense.com/licenses/mit/)
[](https://www.repostatus.org/#active)
[](https://github.com/BlueAndi/IVTRego6xxControl/releases)
- [Motivation](#motivation)
- [Hardware](#hardware)
- [Deployment](#deployment)
- [Software](#software)
- [Installation](#installation)
- [Build](#build)
- [Flash to target and monitor](#flash-to-target-and-monitor)
- [Usage](#usage)
- [Sensors](#sensors)
- [Binary Sensors](#binary-sensors)
- [Text Sensors](#text-sensors)
- [Buttons](#buttons)
- [Numbers](#numbers)
- [API Endpoints and MQTT Topics](#api-endpoints-and-mqtt-topics)
- [SW-Architecture](#sw-architecture)
- [Details](#details)
- [Command IDs](#command-ids)
- [System Register Addresses](#system-register-addresses)
- [Settings](#settings)
- [Control Data](#control-data)
- [Device Values](#device-values)
- [Temperature Sensor Values](#temperature-sensor-values)
- [Front Panel LED and Button Addresses](#front-panel-led-and-button-addresses)
- [Used Libraries](#used-libraries)
- [Issues, Ideas And Bugs](#issues-ideas-and-bugs)
- [License](#license)
- [Contribution](#contribution)
## Motivation
Unfortunately my Junkers heatpump (original build by IVT) has no smart interface out of the box. Therefore the service interface of the build-in rego6xx controller shall be used to read sensor data or to modify temperature threshold and etc.
The first adapter I created was the [Rego6xxSrv](https://github.com/BlueAndi/Rego6xxSrv) based on a ATmega644P, which is still up and running. But meanwhile the ATmega644P board I used is obsolete since 2024-01-01 and regarding my ideas the resources are very limited. Therefore the decision was made to create a secon adapter with less resource constraints and easier integration into a home automation.
The protocol for the Rego6xx controller was original derived from [http://rago600.sourceforge.net/](http://rago600.sourceforge.net/).
## Hardware
The [Olimex ESP32-POE-ISO](https://www.olimex.com/Products/IoT/ESP32/ESP32-POE-ISO/open-source-hardware) board with the RS-232 level shifter [Olimex MOD-RS232](https://www.olimex.com/Products/Modules/Interface/MOD-RS232/open-source-hardware) is used.

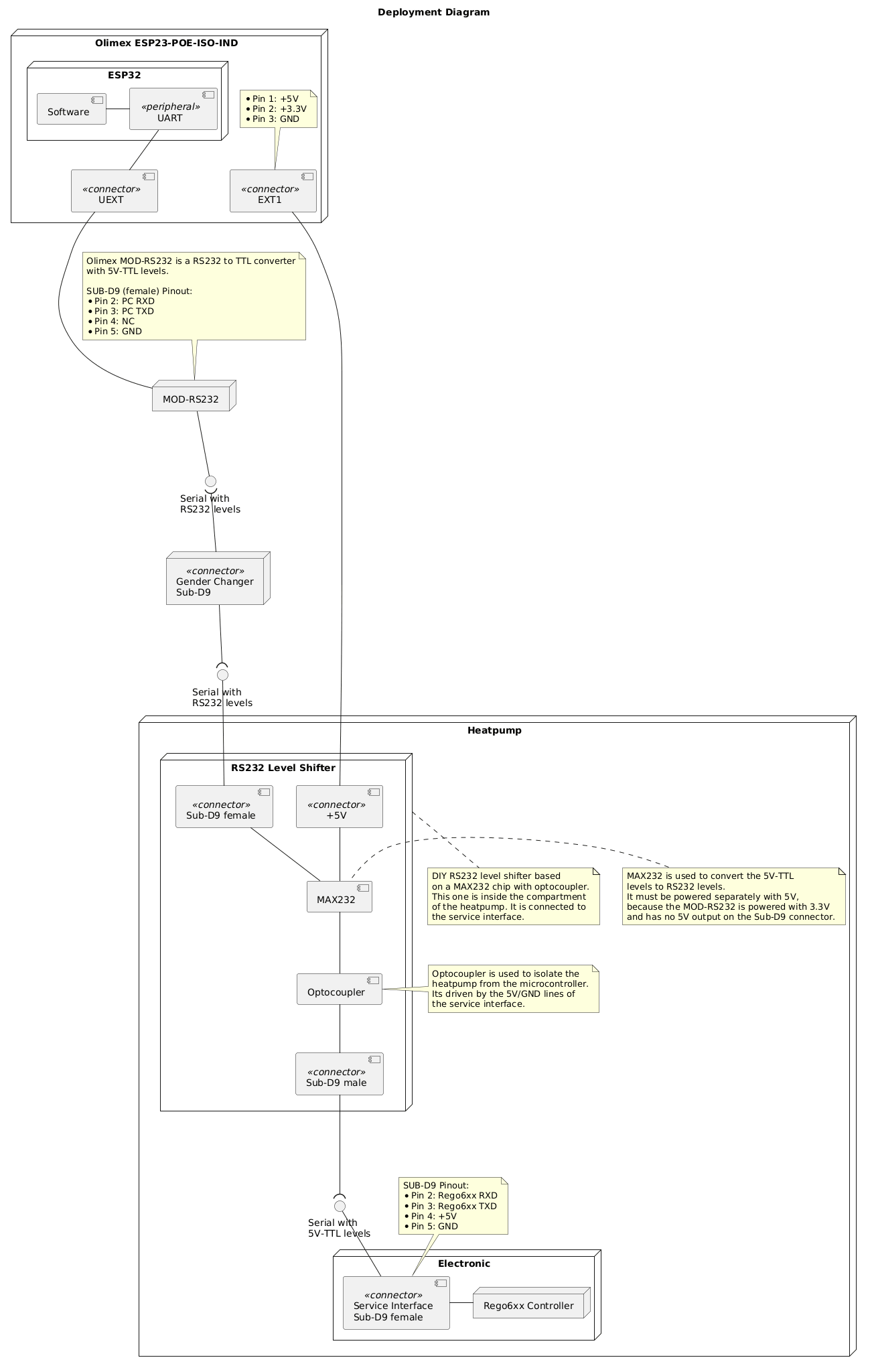

## Deployment
## Software
ESPHome is used as the base of the software. The IVT reg6xx controller is implemented like a custom component.
### Installation
1. Install Python.
2. Setup [virtual environment](https://docs.python.org/3/library/venv.html).
```bash
python -m venv .venv
```
3. Activate virtual environment.
- Windows CMD: ```.venv\Scripts\activate.bat```
- Windows PowerShell: ```.venv\Scripts\activate.ps1```
- Linux: ```.venv/Scripts/activate```
4. Install packages.
```bash
pip install -r requirements.txt
```
5. Create a ```secrets.yaml``` in the project root folder. Replace **my_user** and **my_password** according to the MQTT broker credentials.
```yaml
mqtt_broker: my_broker_url
mqtt_user: my_user
mqtt_password: my_password
```
### Build
```bash
esphome compile IVTRego6xxCtrl.yaml
```
### Flash to target and monitor
```bash
esphome run IVTRego6xxCtrl.yaml
```
### Usage
## Sensors
| **Name** | **Description** | **Command ID** | **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Value** |
|------------|--------------------------------|----------------|------------------------------------------------|------------------------------------------------|-------------------------|
| **gt1** | Radiator return temperature | 0x02 | 0x0209 | 0x020B | Signed 16-bit in 0.1 °C |
| **gt2** | Outdoor temperature | 0x02 | 0x020A | 0x020C | Signed 16-bit in 0.1 °C |
| **gt3** | Hot water temperature | 0x02 | 0x020B | 0x020D | Signed 16-bit in 0.1 °C |
| **gt4** | Forward temperature | 0x02 | 0x020C | 0x020E | Signed 16-bit in 0.1 °C |
| **gt5** | Room temperature | 0x02 | 0x020D | 0x020F | Signed 16-bit in 0.1 °C |
| **gt6** | Compressor temperature | 0x02 | 0x020E | 0x0210 | Signed 16-bit in 0.1 °C |
| **gt8** | Heat fluid out temperature | 0x02 | 0x020F | 0x0211 | Signed 16-bit in 0.1 °C |
| **gt9** | Heat fluid in temperature | 0x02 | 0x0210 | 0x0212 | Signed 16-bit in 0.1 °C |
| **gt10** | Cold fluid in temperature | 0x02 | 0x0211 | 0x0213 | Signed 16-bit in 0.1 °C |
| **gt11** | Cold fluid out temperature | 0x02 | 0x0212 | 0x0214 | Signed 16-bit in 0.1 °C |
| **gt3X** | External hot water temperature | 0x02 | 0x0213 | 0x0215 | Signed 16-bit in 0.1 °C |
## Binary Sensors
| **Name** | **Description** | **Command ID** | **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Value** |
|------------|-----------------|----------------|------------------------------------------------|------------------------------------------------|--------------|
| **power** | Power | 0x00 | 0x0012 | 0x0012 | 0: off 1: on |
| **pump** | Pump | 0x00 | 0x0013 | 0x0013 | 0: off 1: on |
| **heating**| Heating | 0x00 | 0x0014 | 0x0014 | 0: off 1: on |
| **boiler** | Boiler | 0x00 | 0x0015 | 0x0015 | 0: off 1: on |
| **alarm** | Alarm | 0x00 | 0x0016 | 0x0016 | 0: off 1: on |
## Text Sensors
| **Name** | **Description** | **Command ID** | **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Value** |
|-------------------|-----------------|----------------|------------------------------------------------|------------------------------------------------|------------------------|
| **display_row_1** | Display row 1 | 0x20 | 0x0000 | 0x0000 | '\0' terminated string |
| **display_row_2** | Display row 2 | 0x20 | 0x0001 | 0x0001 | '\0' terminated string |
| **display_row_3** | Display row 3 | 0x20 | 0x0002 | 0x0002 | '\0' terminated string |
| **display_row_4** | Display row 4 | 0x20 | 0x0003 | 0x0003 | '\0' terminated string |
## Buttons
| **Name** | **Description** | **Command ID** | **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Value** |
|---------------------|-------------------|----------------|------------------------------------------------|------------------------------------------------|------------|
| **power_button** | Power button | 0x01 | 0x0008 | 0x0008 | 1: pressed |
| **left_button** | Left button | 0x01 | 0x0009 | 0x0009 | 1: pressed |
| **middle_button** | Middle button | 0x01 | 0x000A | 0x000A | 1: pressed |
| **right_button** | Right button | 0x01 | 0x000B | 0x000B | 1: pressed |
| **turn_wheel_left** | Turn wheel left | 0x01 | 0x0044 | 0x0044 | 0x1FFFFF |
| **turn_wheel_right**| Turn wheel right | 0x01 | 0x0044 | 0x0044 | 0x000001 |
## Numbers
| **Name** | **Description** | **Command ID** | **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Value** |
|--------------------|---------------------------------|-------------------|------------------------------------------------|------------------------------------------------|-------------------------|
| **gt1_target** | GT1 target temperature | 0x02 / 0x03 | 0x006E | 0x006E | Signed 16-bit in 0.1 °C |
| **gt1_on** | GT1 on temperature threshold | 0x02 / 0x03 | 0x006F | 0x006F | Signed 16-bit in 0.1 °C |
| **gt1_off** | GT1 off temperature threshold | 0x02 / 0x03 | 0x0070 | 0x0070 | Signed 16-bit in 0.1 °C |
| **gt3_target** | GT3 target temperature | 0x02 / 0x03 | 0x002B | 0x002B | Signed 16-bit in 0.1 °C |
| **gt3_on** | GT3 on temperature threshold | 0x02 / 0x03 | 0x0073 | 0x0073 | Signed 16-bit in 0.1 °C |
| **gt3_off** | GT3 off temperature threshold | 0x02 / 0x03 | 0x0074 | 0x0074 | Signed 16-bit in 0.1 °C |
| **gt4_target** | GT4 target temperature | 0x02 / 0x03 | 0x006D | 0x006D | Signed 16-bit in 0.1 °C |
| **add_heat_power** | Add heat power | 0x02 / 0x03 | 0x006C | 0x006C | Signed 16-bit in 0.1 % |
## API Endpoints and MQTT Topics
| **Name** | **Description** | **REST API** | **MQTT Topic** |
|---------------------|--------------------------------|------------------------------------------------|-----------------------------------------------|
| **gt1** | Radiator return temperature | `http:///sensor/gt1` | `heatpumpctrl/sensor/gt1/state` |
| **gt2** | Outdoor temperature | `http:///sensor/gt2` | `heatpumpctrl/sensor/gt2/state` |
| **gt3** | Hot water temperature | `http:///sensor/gt3` | `heatpumpctrl/sensor/gt3/state` |
| **gt4** | Forward temperature | `http:///sensor/gt4` | `heatpumpctrl/sensor/gt4/state` |
| **gt5** | Room temperature | `http:///sensor/gt5` | `heatpumpctrl/sensor/gt5/state` |
| **gt6** | Compressor temperature | `http:///sensor/gt6` | `heatpumpctrl/sensor/gt6/state` |
| **gt8** | Heat fluid out temperature | `http:///sensor/gt8` | `heatpumpctrl/sensor/gt8/state` |
| **gt9** | Heat fluid in temperature | `http:///sensor/gt9` | `heatpumpctrl/sensor/gt9/state` |
| **gt10** | Cold fluid in temperature | `http:///sensor/gt10` | `heatpumpctrl/sensor/gt10/state` |
| **gt3X** | External hot water temperature | `http:///sensor/gt3x` | `heatpumpctrl/sensor/gt3x/state` |
| **power** | Power | `http:///binary_sensor/power` | `heatpumpctrl/binary_sensor/power/state` |
| **pump** | Pump | `http:///binary_sensor/pump` | `heatpumpctrl/binary_sensor/pump/state` |
| **heating** | Heating | `http:///binary_sensor/heating` | `heatpumpctrl/binary_sensor/heating/state` |
| **boiler** | Boiler | `http:///binary_sensor/boiler` | `heatpumpctrl/binary_sensor/boiler/state` |
| **alarm** | Alarm | `http:///binary_sensor/alarm` | `heatpumpctrl/binary_sensor/alarm/state` |
| **display_row_1** | Display row 1 | `http:///text_sensor/display_row_1`| `heatpumpctrl/text_sensor/display_row_1/state`|
| **display_row_2** | Display row 2 | `http:///text_sensor/display_row_2`| `heatpumpctrl/text_sensor/display_row_2/state`|
| **display_row_3** | Display row 3 | `http:///text_sensor/display_row_3`| `heatpumpctrl/text_sensor/display_row_3/state`|
| **display_row_4** | Display row 4 | `http:///text_sensor/display_row_4`| `heatpumpctrl/text_sensor/display_row_4/state`|
| **power_button** | Power button | `http:///button/power_button` | `heatpumpctrl/button/power_button/state` |
| **left_button** | Left button | `http:///button/left_button` | `heatpumpctrl/button/left_button/state` |
| **middle_button** | Middle button | `http:///button/middle_button` | `heatpumpctrl/button/middle_button/state` |
| **right_button** | Right button | `http:///button/right_button` | `heatpumpctrl/button/right_button/state` |
| **gt1_target** | GT1 target temperature | `http:///number/gt1_target` | `heatpumpctrl/number/gt1_target/state` |
| **gt1_on** | GT1 on temperature threshold | `http:///number/gt1_on` | `heatpumpctrl/number/gt1_on/state` |
| **gt1_off** | GT1 off temperature threshold | `http:///number/gt1_off` | `heatpumpctrl/number/gt1_off/state` |
| **gt3_target** | GT3 target temperature | `http:///number/gt3_target` | `heatpumpctrl/number/gt3_target/state` |
| **gt3_on** | GT3 on temperature threshold | `http:///number/gt3_on` | `heatpumpctrl/number/gt3_on/state` |
| **gt3_off** | GT3 off temperature threshold | `http:///number/gt3_off` | `heatpumpctrl/number/gt3_off/state` |
| **gt4_target** | GT4 target temperature | `http:///number/gt4_target` | `heatpumpctrl/number/gt4_target/state` |
| **add_heat_power** | Add heat power | `http:///number/add_heat_power` | `heatpumpctrl/number/add_heat_power/state` |

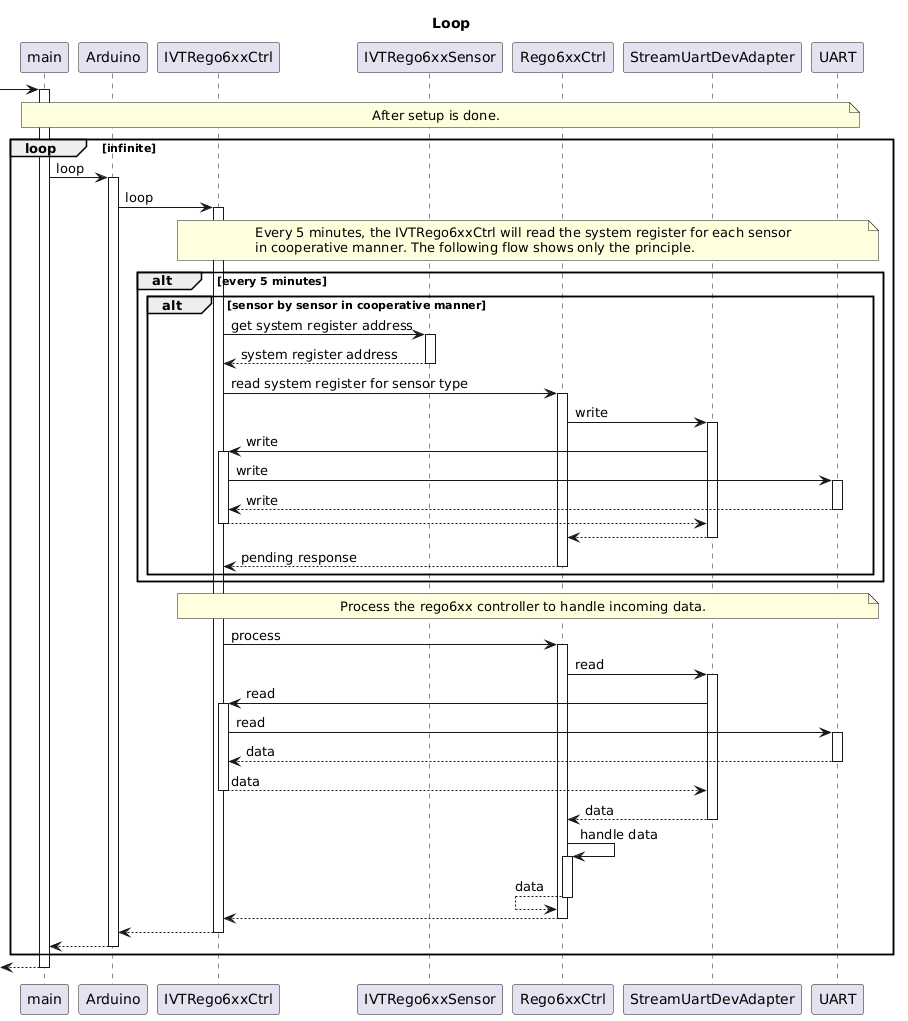

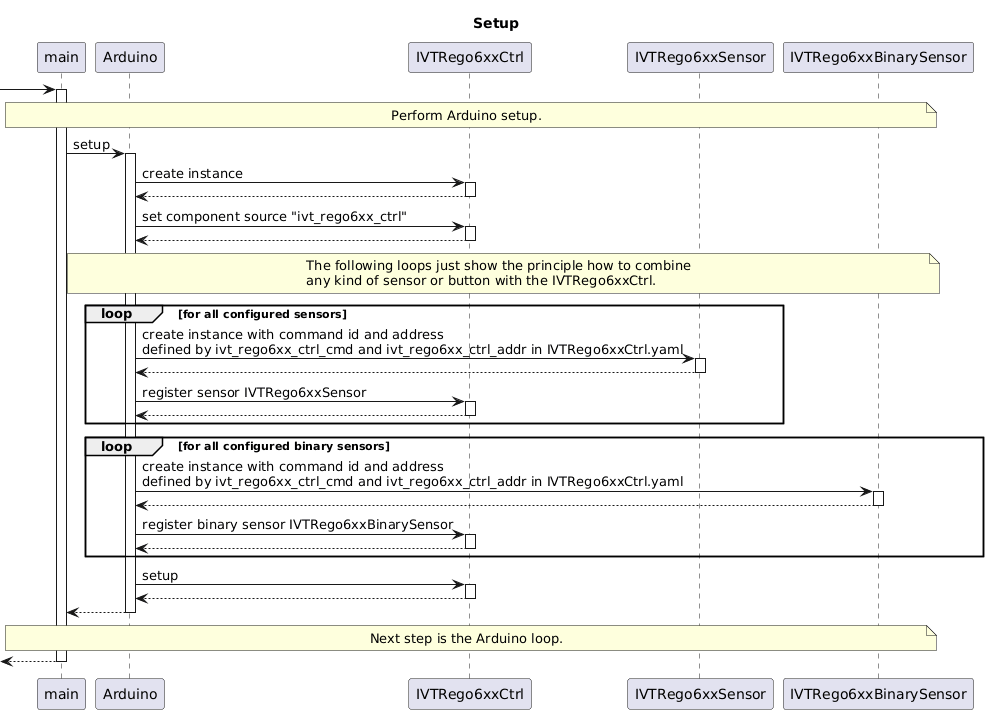

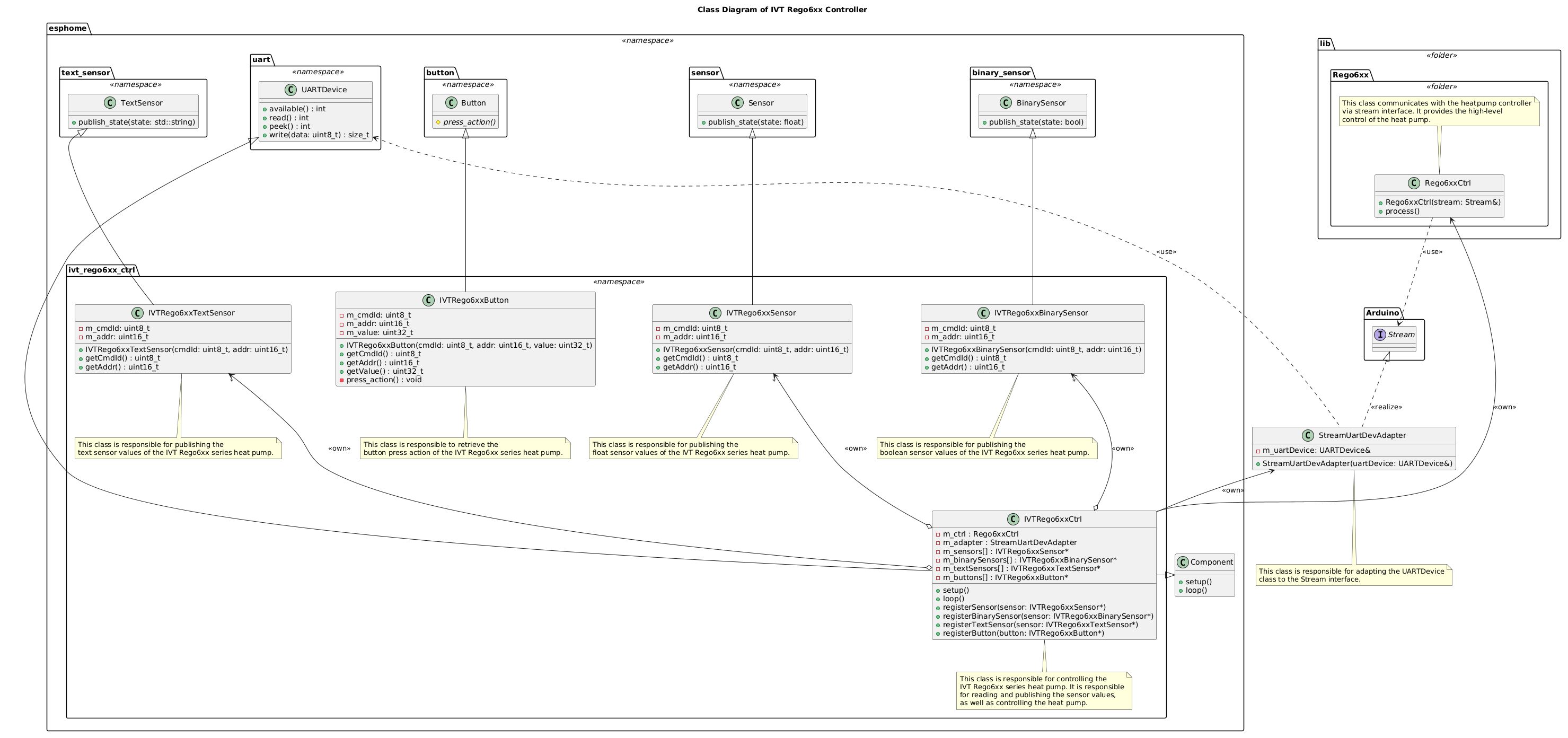

## SW-Architecture
## Details
### Command IDs
| **Command ID** | **Description** |
|----------------|------------------------------------------|
| 0x00 | Read from front panel (register 0x093FF) |
| 0x01 | Write to front panel (register 0x09FF) |
| 0x02 | Read system register (register 0x1345) |
| 0x03 | Write system register (register 0x1345) |
| 0x04 | Read timer register (register 0x1B45) |
| 0x05 | Write timer register (register 0x1B45) |
| 0x06 | Read register 1B61 (register 0x1B61) |
| 0x07 | Write register 1B61 (register 0x1B61) |
| 0x20 | Read display |
| 0x40 | Read last error line |
| 0x42 | Read previous error line |
| 0x7F | Read REGO version |
### System Register Addresses
#### Settings
| **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Description** |
|------------------------------------------------|------------------------------------------------|------------------------------------------------|
| 0x0000 | 0x0000 | Heat curve |
| 0x0001 | 0x0001 | Heat curve fine adjustment |
| 0x0021 | 0x0021 | Indoor temperature settings |
| 0x0022 | 0x0022 | Curve influenced by indoor temperature |
| 0x001E | 0x001E | Adjust curve at 20 degree outdoor temperature |
| 0x001C | 0x001C | Adjust curve at 15 degree outdoor temperature |
| 0x001A | 0x001A | Adjust curve at 10 degree outdoor temperature |
| 0x0018 | 0x0018 | Adjust curve at 5 degree outdoor temperature |
| 0x0016 | 0x0016 | Adjust curve at 0 degree outdoor temperature |
| 0x0014 | 0x0014 | Adjust curve at -5 degree outdoor temperature |
| 0x0012 | 0x0012 | Adjust curve at -10 degree outdoor temperature |
| 0x0010 | 0x0010 | Adjust curve at -15 degree outdoor temperature |
| 0x000E | 0x000E | Adjust curve at -20 degree outdoor temperature |
| 0x000C | 0x000C | Adjust curve at -25 degree outdoor temperature |
| 0x000A | 0x000A | Adjust curve at -30 degree outdoor temperature |
| 0x0008 | 0x0008 | Adjust curve at -35 degree outdoor temperature |
| 0x0002 | 0x0002 | Heat curve coupling difference |
#### Control Data
| **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Description** |
|------------------------------------------------|------------------------------------------------|------------------------------------------------|
| 0x006E | 0x006E | GT1 target value |
| 0x006F | 0x006F | GT1 on value |
| 0x0070 | 0x0070 | GT1 off value |
| 0x002B | 0x002B | GT3 target value |
| 0x0073 | 0x0073 | GT3 on value |
| 0x0074 | 0x0074 | GT3 off value |
| 0x006D | 0x006D | GT4 target value |
| 0x006C | 0x006C | Additional heat power in percent |
#### Device Values
| **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Description** |
|------------------------------------------------|------------------------------------------------|------------------------------------------------|
| 0x01FD | 0x01FF | Ground loop pump P3 |
| 0x01FE | 0x0200 | Compressor |
| 0x01FF | 0x0201 | Additional heat 3KW |
| 0x0200 | 0x0202 | Additional heat 6KW |
| 0x0203 | 0x0205 | Radiator pump P1 |
| 0x0204 | 0x0206 | Heat carrier pump P2 |
| 0x0205 | 0x0207 | Tree-way valve VXV |
| 0x0206 | 0x0208 | Alarm |
#### Temperature Sensor Values
| **Rego600-635**
**System Register Address** | **Rego636-...**
**System Register Address** | **Description** |
|------------------------------------------------|------------------------------------------------|------------------------------------------------|
| 0x0209 | 0x020B | Radiator return GT1 |
| 0x020A | 0x020C | Outdoor GT2 |
| 0x020B | 0x020D | Hot water GT3 |
| 0x020C | 0x020E | Forward GT4 |
| 0x020D | 0x020F | Room GT5 |
| 0x020E | 0x0210 | Compressor GT6 |
| 0x020F | 0x0211 | Heat fluid out GT8 |
| 0x0210 | 0x0212 | Heat fluid in GT9 |
| 0x0211 | 0x0213 | Cold fluid in GT10 |
| 0x0212 | 0x0214 | Cold fluid out GT11 |
| 0x0213 | 0x0215 | External hot water GT3X |
#### Front Panel LED and Button Addresses
| **Rego600-635**
**Address** | **Rego636-...**
**Address** | **Description** |
|--------------------------------|--------------------------------|------------------|
| 0x0008 | 0x0008 | Power button |
| 0x0009 | 0x0009 | Left button |
| 0x000A | 0x000A | Middle button |
| 0x000B | 0x000B | Right button |
| 0x0012 | 0x0012 | Power LED |
| 0x0013 | 0x0013 | Pump LED |
| 0x0014 | 0x0014 | Heating LED |
| 0x0015 | 0x0015 | Boiler LED |
| 0x0016 | 0x0016 | Alarm LED |
| 0x0044 | 0x0044 | Wheel |
## Used Libraries
| Library | Description | License |
| - | - | - |
| [ESPHome](https://github.com/esphome/esphome) | ESPHome | MIT and GPLv3 |
## Issues, Ideas And Bugs
If you have further ideas or you found some bugs, great! Create a [issue](https://github.com/BlueAndi/IVTRego6xxControl/issues) or if you are able and willing to fix it by yourself, clone the repository and create a pull request.
## License
The whole source code is published under the [MIT license](http://choosealicense.com/licenses/mit/).
Consider the different licenses of the used third party libraries too!
## Contribution
Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, shall be licensed as above, without any
additional terms or conditions.
