# Relay Board 01

[![License](https://img.shields.io/badge/license-MIT-blue.svg)](http://choosealicense.com/licenses/mit/)

[![Repo Status](https://www.repostatus.org/badges/latest/wip.svg)](https://www.repostatus.org/#wip)

[![Release](https://img.shields.io/github/release/BlueAndi/RelayBoard01.svg)](https://github.com/BlueAndi/RelayBoard01/releases)

The board is a VSCP node for the CAN-bus and controls several relays, which are external connected.

![prototype](./doc/images/prototype.jpg)

## Principle Flows

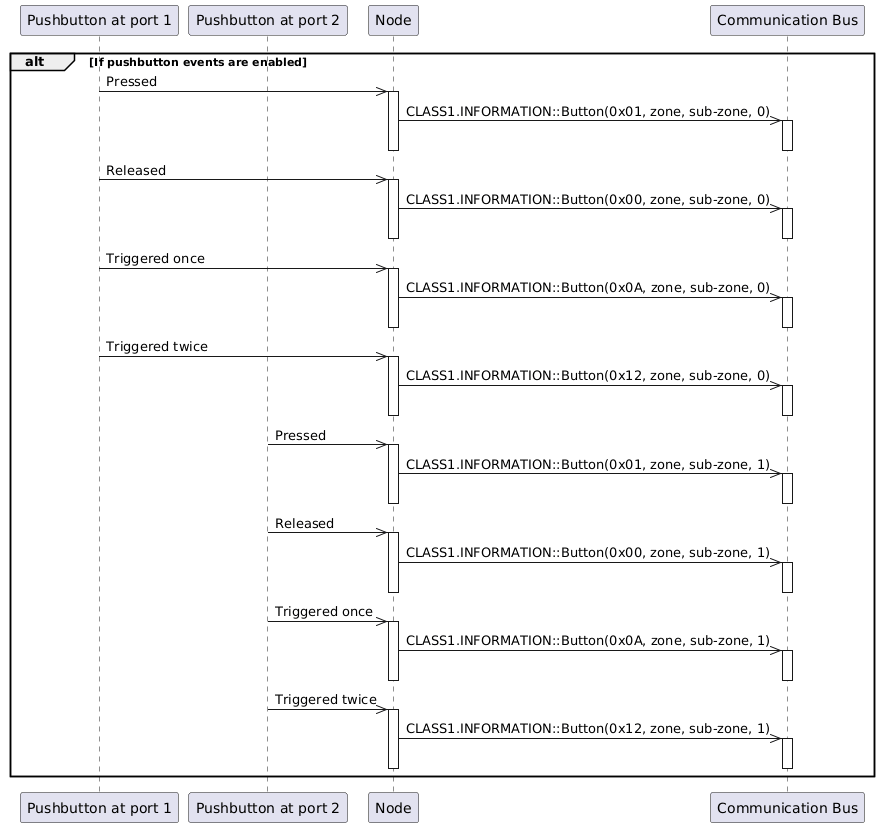

### Pushbutton

![pushbutton_behaviour](http://www.plantuml.com/plantuml/proxy?cache=no&src=https://raw.githubusercontent.com/BlueAndi/RelayBoard01/master/doc/architecture/pushbutton_behavior.plantuml)

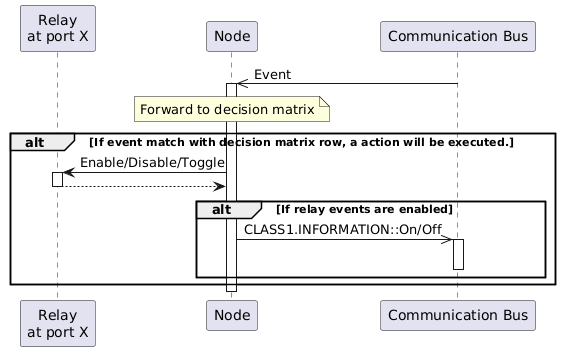

### Relay

![relay_behaviour](http://www.plantuml.com/plantuml/proxy?cache=no&src=https://raw.githubusercontent.com/BlueAndi/RelayBoard01/master/doc/architecture/relay_behavior.plantuml)

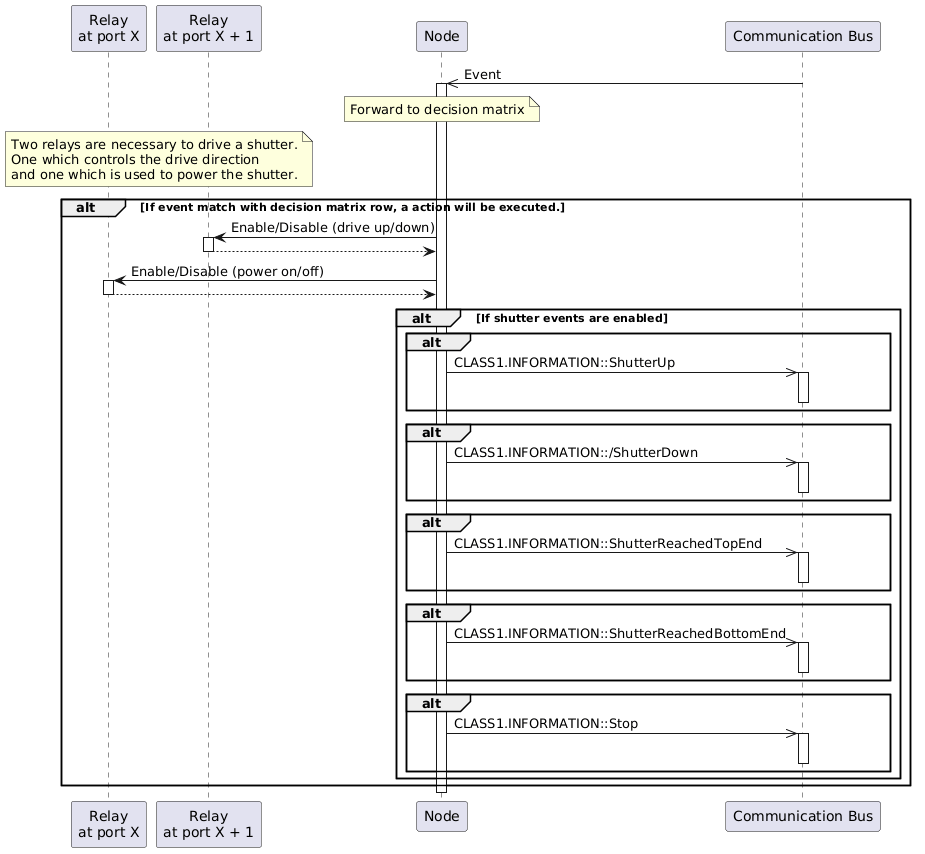

### Shutter

![shutter_behaviour](http://www.plantuml.com/plantuml/proxy?cache=no&src=https://raw.githubusercontent.com/BlueAndi/RelayBoard01/master/doc/architecture/shutter_behavior.plantuml)

# Used Libraries

| Library | Description | License |

| - | - | - |

| [Arduino](https://github.com/arduino/ArduinoCore-avr) | Arduino AVR Boards | LGPL |

| [avr-can-lib](https://github.com/dergraaf/avr-can-lib) | MCP2515 CAN transceiver driver. | BSD |

| [PlatformIO](https://platformio.org) | PlatformIO is a cross-platform, cross-architecture, multiple framework, professional tool for embedded systems engineers and for software developers who write applications for embedded products. | Apache-2.0 |

| [VSCP L1 Framework](https://github.com/BlueAndi/vscp-framework) | Very Simple Control Protocol (VSCP) Level 1 Framework. | MIT |
