Gestión de Controles
https://github.com/cesar-ignacio/gestioncontroles
Last synced: about 2 months ago
JSON representation
Gestión de Controles
- Host: GitHub
- URL: https://github.com/cesar-ignacio/gestioncontroles
- Owner: Cesar-Ignacio
- Created: 2022-04-16T22:15:26.000Z (over 2 years ago)
- Default Branch: master
- Last Pushed: 2022-04-30T02:24:27.000Z (over 2 years ago)
- Last Synced: 2023-08-18T11:51:13.041Z (over 1 year ago)
- Language: C#
- Size: 391 KB
- Stars: 0
- Watchers: 1
- Forks: 0
- Open Issues: 0
-
Metadata Files:
- Readme: README.md
Awesome Lists containing this project
README
## Gestión de Controles
Permite crear controles, asignar las marcas disponibles y una imagen. Puede eliminarse y modificarse .
Las consultas se hacen por las marcas y se podrá descontar la cantidad digitada.
## Base de Datos

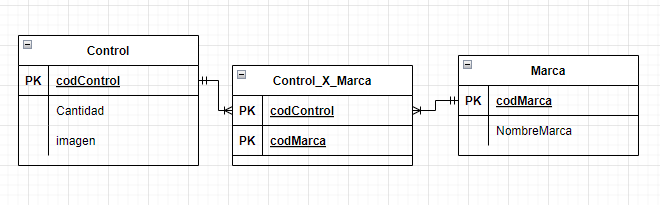

### DER
[](https://postimg.cc/kVmQ4HY7)
#### Script de la base de datos utilizada
```sql
create database Control
ON PRIMARY
(
NAME='control_dat',
Filename='C:\DRIVERS\control.mdf'
)
USE Control
go
--Creacion de tablas
--tabla control
create table Control
(
codControl varchar(10) PRIMARY KEY NOT NULL,
cantidad int not null,
imagen image not null
)
--tabla Marca
create table Marca
(
codMarca varchar(10) PRIMARY KEY NOT NULL,
nombreMarca nchar(30) not null
)
--tabla Control x Marca
create table Control_X_Marca
(
codControl varchar(10) NOT NULL,
codMarca varchar(10) NOT NULL,
CONSTRAINT FK_CodCon FOREIGN KEY (codControl) REFERENCES Control(CodControl),
CONSTRAINT FK_CodMar FOREIGN KEY (codMarca) REFERENCES Marca(CodMarca),
CONSTRAINT PK_ControlMarca PRIMARY KEY (codControl,codMarca)
)
go
--PROCEDIMIENTOS ALMACENADOS
--INSERTA CONTROLES
CREATE PROCEDURE sp_InsertControl
@codControl varchar(10),
@cantidad int,
@imagen image
AS
INSERT INTO Control(codControl,cantidad,imagen)
SELECT @codControl,@cantidad,@imagen
GO
--INSERTAR MARCAS
CREATE PROCEDURE sp_InsertarMarca
@codMarca varchar(10),
@nombreMarca nchar(30)
AS
INSERT INTO Marca(codMarca,nombreMarca)
SELECT @codMarca,@nombreMarca
GO
--INSERTAR MARCA X CONTROL
CREATE PROCEDURE sp_InsertaMarcaControl
@codControl varchar(10),
@codMarca varchar(10)
AS
INSERT INTO Control_X_Marca (codControl,codMarca)
SELECT @codControl,@codMarca
GO
--ACTUALIZAR CONTROL
CREATE PROCEDURE spActualizarControl
@codControl varchar(10),
@cantidad int,
@imagen image
AS
UPDATE Control set cantidad=@cantidad, imagen=@imagen where codControl=@codControl
GO
--ELIMINAR CONTROL MARCA
CREATE PROCEDURE sp_EliminarMarcaControl
@codControl varchar(10)
AS
delete from Control_X_Marca where codControl=@codControl
GO
--Carga de datos
--CONTROL
--EXEC sp_InsertControl 'CR7',5
--EXEC sp_InsertControl 'CR8',5
--EXEC sp_InsertControl 'CR10',5
--EXEC sp_InsertControl 'CR11',5
--EXEC sp_InsertControl 'CR14',5
--MARCAS
EXEC sp_InsertarMarca 'M01','Philips'
EXEC sp_InsertarMarca 'M02','JVS'
EXEC sp_InsertarMarca 'M03','Sony'
EXEC sp_InsertarMarca 'M04','Fisher'
EXEC sp_InsertarMarca 'M05','Toshiba'
EXEC sp_InsertarMarca 'M06','Hitachi'
EXEC sp_InsertarMarca 'M07','Admiral'
EXEC sp_InsertarMarca 'M08','AIWA'
EXEC sp_InsertarMarca 'M09','Ansonic'
EXEC sp_InsertarMarca 'M010','APEX'
EXEC sp_InsertarMarca 'M011','Philco'
EXEC sp_InsertarMarca 'M012','LG'
EXEC sp_InsertarMarca 'M013','Noblex'
EXEC sp_InsertarMarca 'M014','Sanyo'
EXEC sp_InsertarMarca 'M015','Top House'
EXEC sp_InsertarMarca 'M016','Samsung'
EXEC sp_InsertarMarca 'M017','RCA'
EXEC sp_InsertarMarca 'M018','Panasonic'
--CONTROL MARCAS
EXEC sp_InsertaMarcaControl 'CR11','M011'
EXEC sp_InsertaMarcaControl 'CR11','M012'
EXEC sp_InsertaMarcaControl 'CR20','M09'
EXEC sp_InsertaMarcaControl 'CR20','M05'
EXEC sp_InsertaMarcaControl 'pro014','M03'
--TRIGER
go
CREATE trigger tr_eliminacionControl
on Control
instead of delete
as
begin
DECLARE @codControl varchar(10)
Select @codControl=codControl from deleted
delete from Control_X_Marca where codControl=@codControl
delete from Control where codControl=@codControl
end
go
---
```

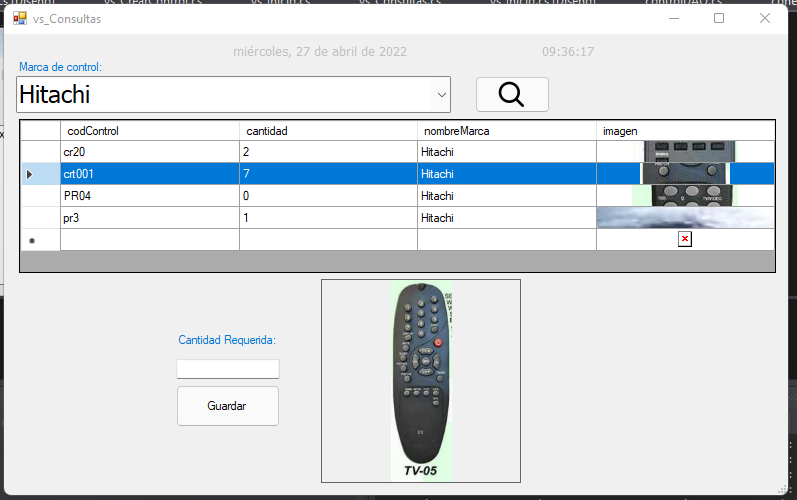

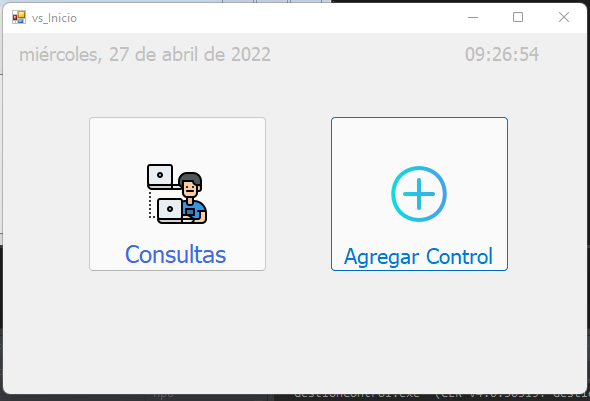

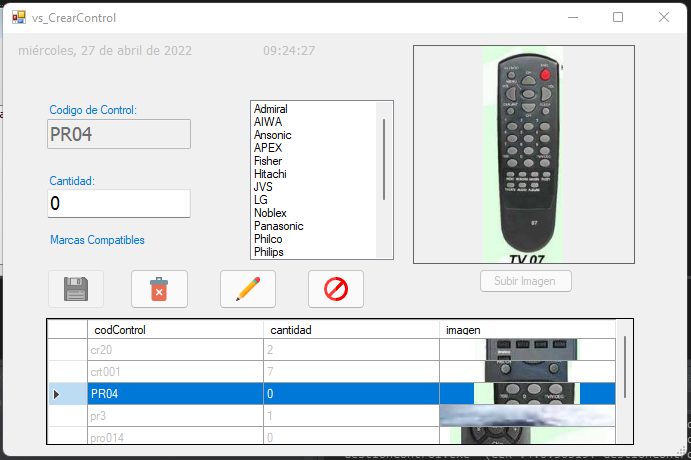

## Vistas
[](https://postimg.cc/N5pQyvP4)
[](https://postimg.cc/DWbhYJfj)
[](https://postimg.cc/34XTYsv2)
