# 🥷🏽 Dark Safe 🏦

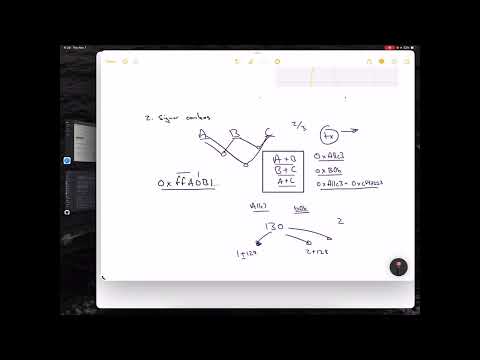

## Deep Dive Video 📺
[](https://www.youtube.com/watch?v=7GUZNb0jpDE)
Repo Structure
```plaintext
├── circuits # contains the noir code
│ ├── src
│ │ └── main.nr # the DarkSafe Noir circuit
│ ├── Prover.toml # contains all the private inputs / data
│ └── Verifier.toml # contains all the public inputs / data
├── contracts
│ ├── DarkSafe.sol # the Zodiac Module to be installed on the safe
│ └── Verifier.sol # the `nargo` cli generated contract used to verify the a generated proof
├── scripts
│ └── build.ts # A CLI tool to help generate the input data
```
## What
A zodiac-compatible [Safe](https://safe.global) module that shields the ethereum addresses of up to 8 authorized "dark signers".
## Background
The idea for this project started back at devcon 6 - where I saw Noir had efficient keccak256 and secp256k1 signature verification circuits.
I spent the plane ride home wondering if Noir could enable Gnosis Safes with a shielded set of signers, removing the attack vector of publically stored signer addresses.
This would allow for anonymous onchain orgs, where signers could coordinate to execute transactions.
### Problem
Using this project as a research playground, I wanted to find an _~ elegant ~_ data structure that represented **_the set of valid sigers_** and **_the signing threshold_** in a **single hash**.
- I knew I did not want to store all the leaves of some `n` depth merkle tree, nor do hash path and leaf index computation off-chain. Also... Merkle trees are boring 🚫🌳
### Solution
Thanks to some great help from [@autoparallel](https://github.com/autoparallel) and [@0xjepsen](https://github.com/0xjepsen), I ended up representing valid signer sets (including signing threshold) into a polynomial.
This polynomial is [emitted in an event onchain](contracts/DarkSafe.sol#L48) as a _reverse_ encoded array, of 32 byte coefficiencts, with the array index representing the degree of the `x` value's exponent. For example:
```plaintext
# Polynomial in array form: index represents exponent degree.
[42, 1, 9, 145, 1]
# Polynomial in standard algebraic form
Polynomial = x^4 + 145x^3 + 9x^2 + x + 42
👆🏼 👆🏼 👆🏼
# (implied) (1x^4) (1x^1) (42x^0)
```
This polynomial represents all the valid combinations of the signers.
Just like Safe, it protects against:
- double signing
- under signing
- non-signer signatures
## A TLDR Of How It works
### 👷🏽♂️ Setup
1. An admin selects up to 8 Ethereum EOA `addresses` as signers on the safe and a signing `threshold`
- (Note: to prevent brute-force attacks decoding who the signers are, add at least **one** fresh EOA as a signer).
2. [`K choose N`](scripts/build.ts#L53) over the signer set and the threshold to find all possible _additive_ combinations of the Ethereum addresses (remember, an eth address is just a number, so you can use addition to express a combination of multiple addresses).
3. Consider those combinations as ["roots"](scripts/build.ts#L60) and [Lagrange Interpolate](scripts/build.ts#L68) a polynomial that passes through all those points where `y=0`.
4. Take the [Pedersen hash](scripts/build.ts#L137) of the polynomial as a suscinct commitment to the polynomial.
5. Deploy a new instance of [DarkSafe](contracts/DarkSafe.sol#L31), via the [ModuleProxyFactory](https://github.com/gnosisguild/zodiac/blob/master/contracts/factory/ModuleProxyFactory.sol#L40) passing the `polynomialHash` and the `polynomial` as initialization params.
- The contract will emit the `polynomial` and `polynomialHash` in a `SignersRotated()` event as decentralized, succinct data stucture to represent the signer set and threshold.
### ✍️ Signing
1. Sign over a [SafeMessageHash](https://github.com/safe-global/safe-contracts/blob/master/contracts/Safe.sol#L392) with an EOA Private Key (via `eth_personalSign`).
2. Pass your signature to the next signer.
3. Repeat steps 1+2 until a valid signer until a valid proof can be generated via the Noir circuit.
- This keeps other signers anonymous on a "need-to-know" basis. In other words, not all signers need to be known at proof generation.
4. Have some relayer call the [\_execute](contracts/DarkSafe.sol#L55) function, passing only the safe TX data, and the valid noir proof.
5. 🍃 Transaction is executed 🍃
## See it in action
```bash
yarn && yarn build --debug
```
## Run tests
```bash
yarn && yarn build
cd circuits/ && nargo prove
forge test
```
## Notes
- Check out [DRY](https://github.com/dry-ethglobal-brussels/dry-mobile-app) - a cool merkle tree implementation with FaceID by some noir OGs
- This project is just for fun, demonstrating a relatively efficient and elegant usecase for Noir and shouldn't be used in production unless we work together on this and get it audited
- Interpolating a polynomial over the K choose N of the signer set is _not_ secure enough for me to be comfortable. It is not impossible to brute force k choose n up to 8 over all the Ethereum addresses and compute f(x) to try and brute-force find out who's on the safe.
Some possible solutions are:
- Always spin up a fresh EOA to add as a signer, it's important this account has never made an Ethereum transaction on any chain.
- Refactor the code to accept a bit of randomness: an `r` value to hash together with each `root`. This makes it impossible to brute force. The `r` value can be as simple as a known `password` has to at least be known by the prover.
## Massive Thanks to...
the boiz
- [@autoparallel](https://github.com/autoparallel)
- [@0xjepsen](https://github.com/0xjepsen)
noir guys
- [@TomAFrench](https://github.com/TomAFrench)
- [@kevaundray](https://github.com/kevaundray)
- [@signorecello](https://github.com/signorecello)
- [@critesjosh](https://github.com/critesjosh)
and [Dave Pasirstein](https://github.com/dpasirst) who said that fateful day "hey I think you need to be looking into polynomials" - many thanks, Dave
