# CAT
# Description
The CAT Board is a Raspberry Pi HAT with a Lattice iCE40HX FPGA.
* License: [CC BY 4.0](http://creativecommons.org/licenses/by/4.0/legalcode)
* Documentation: [CAT-Board.readthedocs.org](https://CAT-Board.readthedocs.org)
# Features
* Lattice iCE40-HX8K FPGA in 256-pin BGA.
* 32 MByte SDRAM (16M x 16).
* Serial configuration flash (at least 2 Mbit).
* Three Grove connectors.
* Two PMOD connectors.
* One 20x2 header with 3.3V, ground and 18 FPGA I/Os.
* Two SATA headers (for differential signals; don't know if they would work with SATA HDDs.)
* DIP switch with four SPST switches.
* Two momentary pushbuttons.
* Four LEDs.
* 100 MHz oscillator.
* 5.0 V jack for external power supply.
* 3.3 V and 1.2 V regulators.
* Adjustable voltage on one bank of FPGA I/O pins.
* 32 KByte HAT EEPROM.
* 40-pin RPi GPIO header.
[ CAT Schematic ](https://raw.githubusercontent.com/xesscorp/CAT-Board/master/docs/Manual/pics/CAT_schematic.pdf)

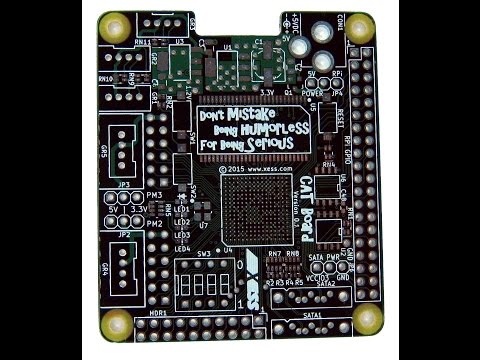

[](http://www.youtube.com/watch?v=EHtcOrdl9Xw "CAT Board: First Look")
