# VTK - Visualization Toolkit Python Examples
Explore the world of 3D graphics and visualization with VTK examples in Python.
## Demo

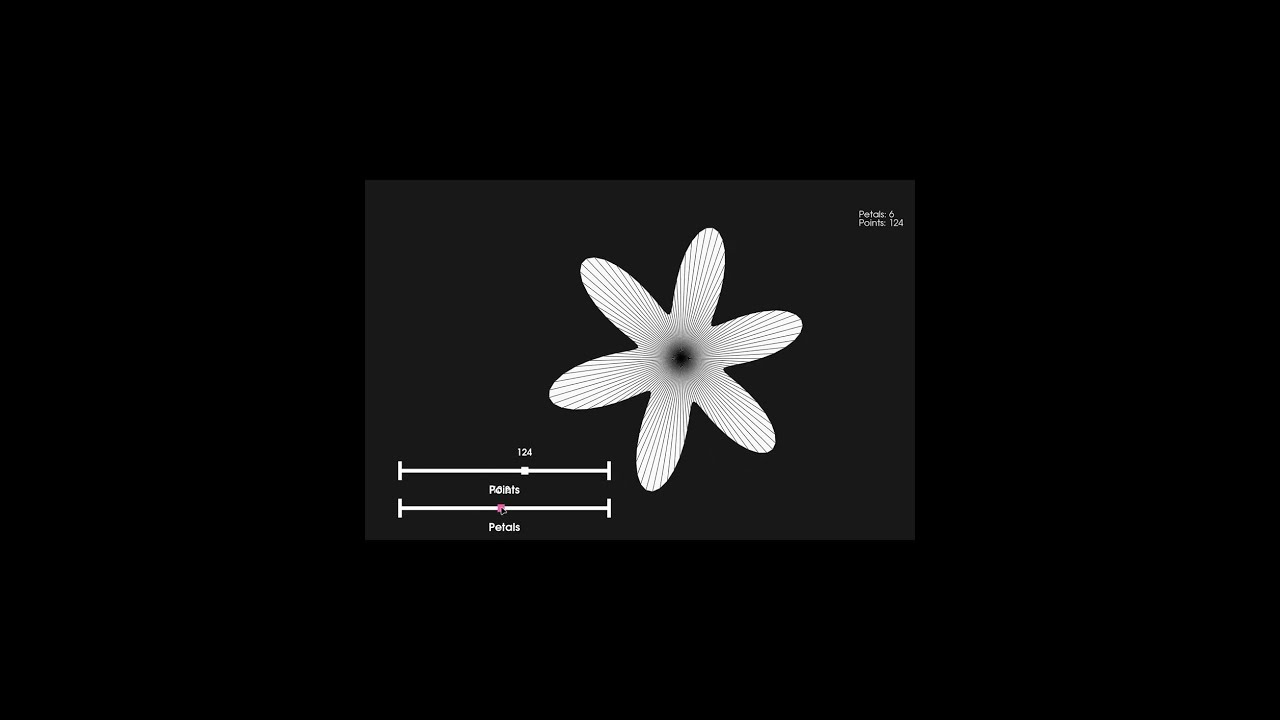

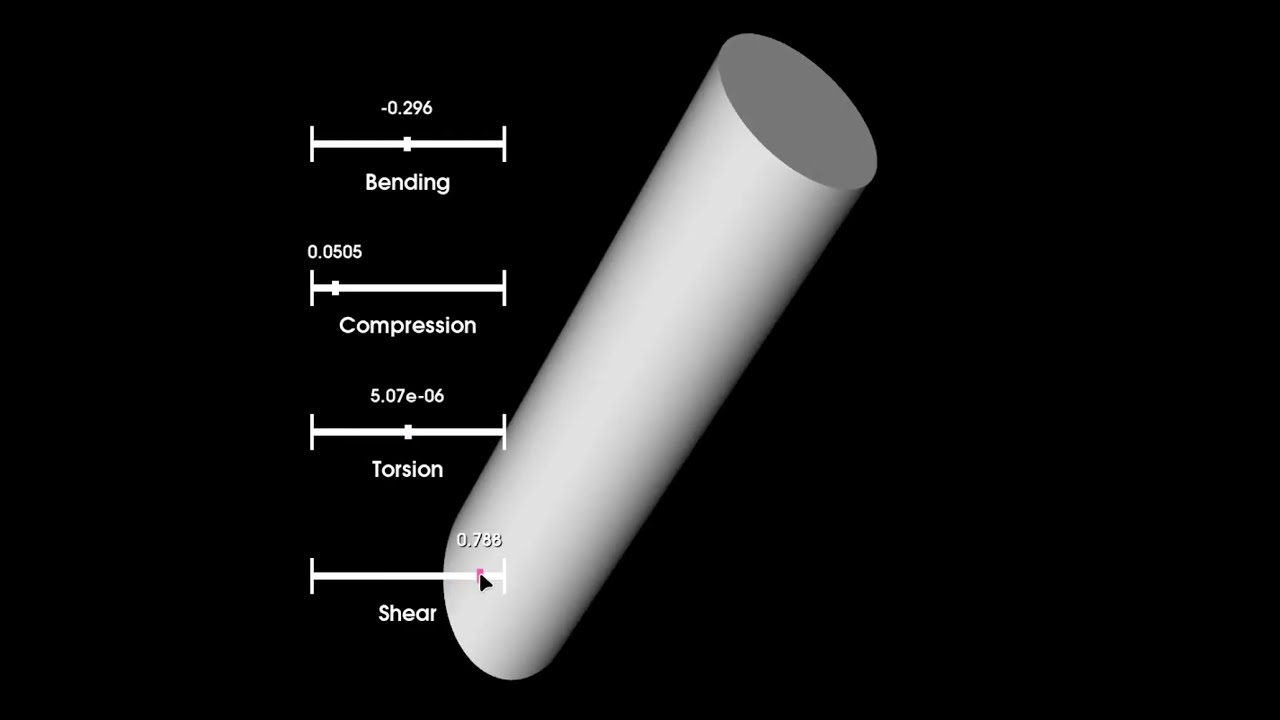

To watch the Short, just click on the thumbnail. That will open the YouTube Shorts player so you can view the video instantly. Enjoy!
[](https://youtube.com/shorts/Qgoh9NbNqdc?feature=share)
[](https://youtube.com/shorts/0jAN9Q-GGCk?feature=share)
## Overview
The Visualization Toolkit, or VTK, is a cornerstone in the field of 3D graphics and scientific visualization:
- **What is VTK?**
- VTK is an advanced 3D graphics and visualization software library that has been empowering scientific and data visualization, 3D graphics, and image processing.
- **The Toolkit's Features:**
- It offers an extensive collection of algorithms, providing hundreds of tools tailored for various visualization needs.
- **Development and Maintenance:**
- Since 1993, Kitware Inc. has been the driving force behind VTK, ensuring continuous development and maintenance.
- **Open-Source and Cross-Language:**
- Being open-source, VTK invites collaboration and expansion. While it's primarily written in C++, it also offers Python, Java, and Tcl bindings.
## Getting Started with VTK
### Installation Guide
For getting VTK up and running on your system:
- **Platform-Specific Instructions:**
- Visit the [official VTK download page](https://vtk.org/download/) for detailed installation guides on Windows, Linux, and macOS.
### Basic Workflow in VTK
To harness the power of VTK effectively, follow this basic workflow:
1. **Data Input and Representation:** Your first step involves choosing the appropriate data structure for your dataset.
2. **Data Manipulation and Processing:** Next, apply a variety of filters and algorithms to manipulate and process the data as needed.
3. **Visualization and Rendering:** For the visual representation of data, make use of mappers, actors, and renderers.
4. **Interaction and Exporting:** Lastly, incorporate interactive elements into your visualization and utilize export functionalities as required.
## Running the Examples
### Setting Up Your Environment
To begin with your project, it's important to set up your environment properly. Here's how:
1. **Creating a Virtual Environment:** Use `virtualenv` or `conda` for isolating your project dependencies. This helps in managing packages specific to this project without affecting others.
2. **Activating and Installing Dependencies:** Once the virtual environment is created, activate it. Then, install all the required packages using the following command:
```
pip install -r requirements.txt
```
### Executing Scripts
Running the scripts is straightforward. Just follow these steps:
- Navigate to the script's directory within the `src/` folder. For example, if you're looking to run a script about basic shapes:
```
cd src/01_basic_shapes
python circle.py
```
- The above command will execute the `circle.py` script, which demonstrates creating a simple circle using VTK.
### Using an Integrated Development Environment (IDE)
If you prefer using an IDE like Visual Studio Code or PyCharm, here's what you need to do:
1. **Project Setup:** Open your chosen IDE and load the project folder. This will make all your project files accessible in one place.
2. **Interpreter Configuration:** Configure the Python interpreter in your IDE to point to the virtual environment you created earlier. This ensures that your IDE uses the correct Python version and dependencies.
3. **Running Scripts:** Select the script you want to run. Use your IDE's tools (often a "Run" button) to execute the script.
4. **Debugging:** Leverage your IDE's debugging features like breakpoints and step-through debugging to analyze your scripts more closely.
## Basic Shapes
| Number | Description | Link |
| --- | --- | --- |
| 1 | Demonstrates the steps to create a perfectly round circle | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/circle.py) |
| 2 | Describes the process of generating a 3D cone | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/cone.py) |
| 3 | Explore how to make a simple cube in 3D space | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/cube.py) |
| 4 | Learn to draw a cylinder using vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/cylinder.py) |
| 5 | Get started with glyph production in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/glyph.py) |
| 6 | Tutorial on creating a 2D square | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/square.py) |
| 7 | Guides you through the creation of a simple triangle | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/01_basic_shapes/triangle.py) |
## Advanced Shapes
| Number | Description | Link |
| --- | --- | --- |
| 1 | A detailed example of creating a 3D box that encloses other objects | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/enclosing_box.py) |
| 2 | Shows how to construct an isosurface in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/isosurface.py) |
| 3 | Delves into creating scenes with multiple dependent objects | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/multiple_dependent_objects.py) |
| 4 | Explores creating complex scenes with multiple independent objects | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/multiple_independent_objects.py) |
| 5 | Introduction to the creation of streamlines in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/streamlines.py) |
| 6 | Teaches you how to use triangulation techniques in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/triangulation.py) |
| 7 | Explores the world of volume rendering in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/volume_rendering.py) |
| 8 | A comparison of different visualization techniques in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/visualization_techniques_comparison.py) |
| 9 | Demonstrates how to visualize flow simulation data | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/02_advanced_shapes/flow_simulation_visualization.py) |
## Structures and Datasets
| Number | Description | Link |
| --- | --- | --- |
| 1 | Shows you how to manipulate points in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/points.py) |
| 2 | Dives into the workings of cells within vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/cells.py) |
| 3 | An overview of handling fields in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/fields.py) |
| 4 | Detailed example of working with multiblock datasets | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/multiblock_dataset.py) |
| 5 | Covers the basics of poly data structures in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/poly_data.py) |
| 6 | Teaches you how to work with structured grids | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/structured_grid.py) |
| 7 | Guides you through the intricacies of unstructured grids | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/unstructured_grid.py) |
| 8 | Introduction to structured mesh concepts in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/structured_mesh.py) |
| 9 | Explores the creation and manipulation of unstructured meshes | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/03_structures_and_datasets/unstructured_mesh.py) |
## Input and Output
| Number | Description | Link |
| --- | --- | --- |
| 1 | Introduction to working with OBJ files in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_obj.py) |
| 2 | Learn to read and write STL files with vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_stl.py) |
| 3 | Overview of handling VTK file format | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_vtk.py) |
| 4 | Guides you through the usage of VTM file format | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_vtm.py) |
| 5 | Explores handling VTU file formats with vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_vtu.py) |
| 6 | Walkthrough of handling Exodus II files | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_exodus_ii.py) |
| 7 | Tutorial on interacting with OpenFOAM files | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/04_input_output/io_openfoam.py) |
## Data Conversion
| Number | Description | Link |
| --- | --- | --- |
| 1 | Interface for data conversion utilities | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/converter_interface.py) |
| 2 | Learn to convert between STL and VTK formats | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/stl_vtk.py) |
| 3 | Demonstrates conversion between VTK and OBJ formats | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/vtk_obj.py) |
| 4 | Teaches conversion between STL and OBJ formats | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/stl_obj.py) |
| 5 | Shows you how to convert between VTK and VTM formats | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/vtk_vtm.py) |
| 6 | Guides you through the conversion between VTK and VTU formats | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/05_data_conversion/vtk_vtu.py) |
## Visualization Pipeline
| Number | Description | Link |
| --- | --- | --- |
| 1 | Shows handling multiple objects in the actor-mapper setup | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/actor_mapper_multiple_objects.py) |
| 2 | Teaches you how to add text labels in your visualization | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/adding_text_labels.py) |
| 3 | Demonstrates scalar color mapping in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/scalar_color_mapping.py) |
| 4 | Walks you through creating camera movements | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/camera_movement.py) |
| 5 | Shows various filters in action in vtk | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/filters_in_action.py) |
| 6 | Guides you through creating lighting and shadows in your visualization | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/lighting_and_shadows.py) |
| 7 | Shows you how to animate your visualization pipeline | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/06_visualization_pipeline/pipeline_animation.py) |
## Interactive Widgets
| Number | Description | Link |
| --- | --- | --- |
| 1 | Guides you to use the orientation marker widget | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/07_interactive_widgets/orientation_marker.py) |
| 2 | Tutorial on creating and using sliders in your visualization | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/07_interactive_widgets/slider.py) |
| 3 | Learn how to interact with simple buttons in your visualization | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/07_interactive_widgets/simple_button.py) |
| 4 | Demonstrates creating interactive planes intersection | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/07_interactive_widgets/planes_intersection.py) |
## Integrations with External Tools
| Number | Description | Link |
| --- | --- | --- |
| 1 | Learn to integrate VTK with Qt to create a 3D sphere visualization | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/08_integration_with_ui/qt_sphere.py) |
| 2 | Demonstrates the use of Matplotlib for creating a 3D sphere using VTK | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/08_integration_with_ui/matplotlib_sphere.py) |
| 3 | Shows how to create surface plots using VTK and Matplotlib | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/08_integration_with_ui/matplotlib_surface_plot.py) |
## Computational Fluid Dynamics (CFD)
| Number | Description | Link |
| --- | --- | --- |
| 1 | 1D heat convection problems | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/heat_convection_solver_1d.py) |
| 2 | 1D fixed end heat transfer | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/fixed_end_heat_transfer_1d.py) |
| 3 | 1D convective end heat transfer | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/convective_end_heat_transfer_1d.py) |
| 4 | 1D enhanced heat transfer | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/enhanced_heat_transfer_solver_1d.py) |
| 5 | 2D heat conduction problems | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/heat_conduction_solver_2d.py) |
| 6 | 2D enhanced heat transfer | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/enhanced_heat_transfer_solver_2d.py) |
| 7 | Simple fluid flow | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/fluid_flow_simulator.py) |
| 8 | Fluid flow around an obstacle | [Python](https://github.com/djeada/VTK-Examples/blob/main/src/09_cfd/obstacle_flow_simulation.py) |
## References
* [PyScience: VTK](https://pyscience.wordpress.com/tag/vtk/)
* [Program Creek: VTK](https://www.programcreek.com/python/index/480/vtk)
* [Visualization Course 2014](https://www.cb.uu.se/~aht/Vis2014/)
* [Data Visualization Course, SJTU](https://www.cs.sjtu.edu.cn/~shengbin/course/datavis/)
## How to Contribute
We encourage contributions that enhance the repository's value. To contribute:
1. Fork the repository.
2. Create your feature branch (`git checkout -b feature/AmazingFeature`).
3. Commit your changes (`git commit -m 'Add some AmazingFeature'`).
4. Push to the branch (`git push origin feature/AmazingFeature`).
5. Open a Pull Request.
