# sillywalks 🎩👞



## 🦜 About



sillywalks is a command-line tool for monitoring CPU, memory, and I/O

usage of a process and its subprocesses. It provides real-time

statistics and generates time-series plots, offering insights into

resource consumption over time.

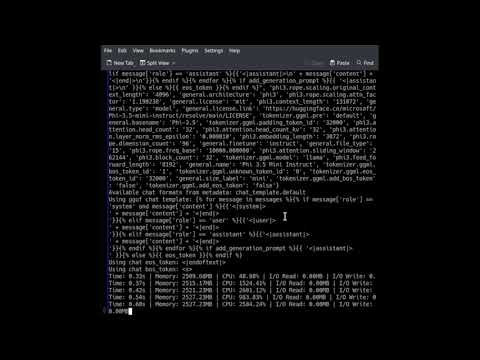

Here's a YouTube video that shows usage:



[![sillywalks intro](https://img.youtube.com/vi/3a7gU9Y_5f4/0.jpg)](https://www.youtube.com/watch?v=3a7gU9Y_5f4)



## 🧀 Features



- Tracks CPU usage, memory consumption, and I/O rates

- Monitors the main process and its subprocesses

- Provides real-time console updates

- Generates time-series plots for easy visualization

- Offers optional Prometheus metrics output



## 🛋️  Installation



It's recommended to use a virtual environment:



```bash

python3 -m venv venv

source venv/bin/activate

pip install -U pip wheel

```



Install sillywalks from source:



```bash

pip install -e ".[devel]"

```



Or from PyPI (soon):



```bash

pip install sillywalks

```



## 🥥 Usage



Run sillywalks from the command line:



```bash

sillywalks [options]  [args...]

```



Replace `` with the program you want to monitor, and

`[args...]` with any arguments for that program.



### 🎛️ Options



- `--frequency FLOAT`: Set the logging frequency in Hz (default: 10.0)

- `--no-console`: Disable console output

- `--prometheus`: Enable Prometheus metrics

- `--port INT`: Set the port for Prometheus metrics server (default: 8000)



### 📚 Examples



1. Monitor a Python script:

   ```bash

   sillywalks python3 my_script.py

   ```



2. Watch a video encoding process:

   ```bash

   sillywalks ffmpeg -i input.mp4 -c:v libx264 -crf 23 output.mp4

   ```



3. Track a machine learning training job and enable the Prometheus metrics:

   ```bash

   sillywalks --prometheus python3 train_model.py --epochs 100 --batch-size 32

   ```



## 📊 Output



sillywalks provides two types of output:



1. Real-time console updates: These appear in your terminal as the

   monitored process runs.

2. Time-series plot: A PNG file showing how resource usage changes

   over time.



The plot includes separate graphs for memory usage, CPU usage, and I/O

rates (read and write).



## 🔧 Under the Hood



sillywalks uses [psutil](https://psutil.readthedocs.io/) (Python

System and Process Utilities) to collect resource usage data. It

periodically samples the process and its subprocesses, calculating CPU

usage, memory consumption, and I/O rates. The tool uses

[matplotlib](https://matplotlib.org/) to generate the time-series

plots.



Key points:



- CPU usage is calculated as a percentage of total CPU time.

- Memory usage is measured in megabytes (MB) using the Unique Set Size (USS).

- I/O rates are calculated in megabytes per second (MB/s) for both

  read and write operations.



## 📊 Prometheus Integration



sillywalks offers integration with

[Prometheus](https://prometheus.io/), a powerful monitoring and

alerting toolkit. This feature allows you to collect and store metrics

over time, enabling advanced querying, visualization, and alerting

capabilities.



### Activating Prometheus Output



To enable Prometheus metrics, use the `--prometheus` flag:



```bash

sillywalks --prometheus your_command

```



By default, the Prometheus metrics server starts on port 8000. Specify

a different port with `--port`:



```bash

sillywalks --prometheus --port 9090 your_command

```



### Available Metrics



sillywalks exposes the following metrics:



- `process_memory_usage_mb`: Memory usage in MB

- `process_cpu_usage_percent`: CPU usage in percent

- `process_io_read_mbps`: I/O read rate in MB/s

- `process_io_write_mbps`: I/O write rate in MB/s



### Using Prometheus with sillywalks



1. Configure Prometheus to scrape metrics from the sillywalks

   endpoint. Refer to the [Prometheus configuration

   documentation](https://prometheus.io/docs/prometheus/latest/configuration/configuration/)

   for details.



2. Use PromQL to query and analyze your data. Check the [PromQL

   documentation](https://prometheus.io/docs/prometheus/latest/querying/basics/)

   for query examples and best practices.



3. Visualize metrics using [Grafana](https://grafana.com/) or the

   Prometheus web UI. The [Grafana

   documentation](https://grafana.com/docs/grafana/latest/getting-started/get-started-grafana-prometheus/)

   provides guidance on setting up dashboards.



4. Set up alerts based on your metrics. The [Prometheus alerting

   documentation](https://prometheus.io/docs/alerting/latest/overview/)

   explains how to configure alerting rules.



By integrating sillywalks with Prometheus, you can gain deeper

insights into your process's behavior over time and incorporate this

monitoring into your broader observability infrastructure.



## 🤔 When to Use sillywalks



sillywalks is ideal for high-level resource monitoring of

processes. Use it when you want to:



- Understand the overall resource consumption of a program

- Identify performance bottlenecks at a process level

- Monitor long-running tasks or background processes



For more detailed, code-level insights, consider using a profiler like

[py-spy](https://github.com/benfred/py-spy) in conjunction with

sillywalks.



## 🧹 Linting



We use Ruff and Black to lint and prettify the code.  You may want to

install the respective plug-ins for your editor.  To run Black and

Ruff in your source checkout, use:



```bash

make lint

```



## 🐟 References



- Daniel [blogged about how I used an LLM to write the code for

  sillywalks](https://danielnouri.org/notes/2024/09/02/the-hottest-new-programming-language-is-english/).

  The blog post contains lessons learned and advice on how to best

  learn the skill of [prompt

  engineering](https://huggingface.co/docs/transformers/en/tasks/prompting)

  for beginners and others!



- This software uses [psutil](https://psutil.readthedocs.io/) at its

  core.  psutil is a cross-platform library for retrieving information

  on running processes and system utilization (CPU, memory, disks,

  network, sensors) in Python.



- Monty Python's [Ministry of Silly Walks on

  YouTube](https://youtu.be/iV2ViNJFZC8)



## 🐮 Contributing



Contributions are welcome! Feel free to submit issues or pull requests

on our GitHub repository. Whether you're fixing bugs, adding features,

or improving documentation, your help is appreciated.
