https://github.com/eiichiroito/m5stickcuartudpbridge

M5StickC UART-UDP Bridge for controlling Tello
https://github.com/eiichiroito/m5stickcuartudpbridge

m5stickc microbit tello vscode

Last synced: about 1 month ago
JSON representation

M5StickC UART-UDP Bridge for controlling Tello

• Host: GitHub
• URL: https://github.com/eiichiroito/m5stickcuartudpbridge
• Owner: EiichiroIto
• License: mit
• Created: 2020-06-19T00:16:58.000Z (almost 5 years ago)
• Default Branch: master
• Last Pushed: 2020-08-05T09:27:20.000Z (over 4 years ago)
• Last Synced: 2025-01-26T05:14:51.842Z (3 months ago)
• Topics: m5stickc, microbit, tello, vscode
• Language: C++
• Size: 196 KB
• Stars: 2
• Watchers: 4
• Forks: 1
• Open Issues: 0
• Metadata Files:
  • Readme: README.md
  • License: LICENSE

Awesome Lists containing this project

README

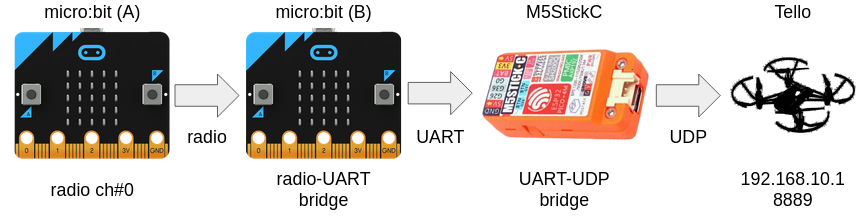

## Overview

![Overview](https://raw.githubusercontent.com/EiichiroIto/m5stickcUartUdpBridge/master/images/microbit-tello.png)

## Connection

    micro:bit      M5StickC

       GND     ----   GND

       3V      ----   3V3

       Pin0    ----   G36

    radio-UART     UART-UDP

## micro:witch program (radio-UART bridge program)

![microwitch1](https://raw.githubusercontent.com/EiichiroIto/m5stickcUartUdpBridge/master/images/tello-uart.gif)

## MicroPython program (radio-UART bridge program)

```

import microbit

from microbit import uart

import radio

a = 0

radio.on()

radio.config(group=0)

microbit.sleep(3000)

microbit.display.scroll(str('start'))

uart.init(baudrate=115200,tx=microbit.pin0,rx=microbit.pin1)

while True:

    a = radio.receive()

    if not(a is None):

        uart.write(a)

```
