README
# 洋葱架构脚手架项目
- [洋葱架构脚手架项目](#洋葱架构脚手架项目)
- [技术栈](#技术栈)
- [架构说明](#架构说明)
- [分层结构说明](#分层结构说明)
- [本地构建](#本地构建)
- [启动依赖](#启动依赖)
- [编译](#编译)
- [运行](#运行)
- [修复代码格式](#修复代码格式)
- [其他](#其他)
- [CI流水线](#CI流水线)
- [Swagger访问地址](#Swagger访问地址)
## 技术栈
- JDK 11
- Gradle 7.2
- Spring Boot 2.5.6
- Database Access - Spring Data JPA
- Database Migration - Flyway
- Integration Test - Docker Compose
## 架构说明
本项目代码结构参考 Onion Architecture，参考以下介绍:
* [The Onion Architecture : part 1](https://jeffreypalermo.com/2008/07/the-onion-architecture-part-1/)
* [The Onion Architecture : part 2](https://jeffreypalermo.com/2008/07/the-onion-architecture-part-2/)
* [The Onion Architecture : part 3](https://jeffreypalermo.com/2008/08/the-onion-architecture-part-3/)
* [The Onion Architecture : part 4](https://jeffreypalermo.com/2013/08/onion-architecture-part-4-after-four-years/)
* [ArchUnit Onion Architecture](https://www.archunit.org/userguide/html/000_Index.html#_architectures)

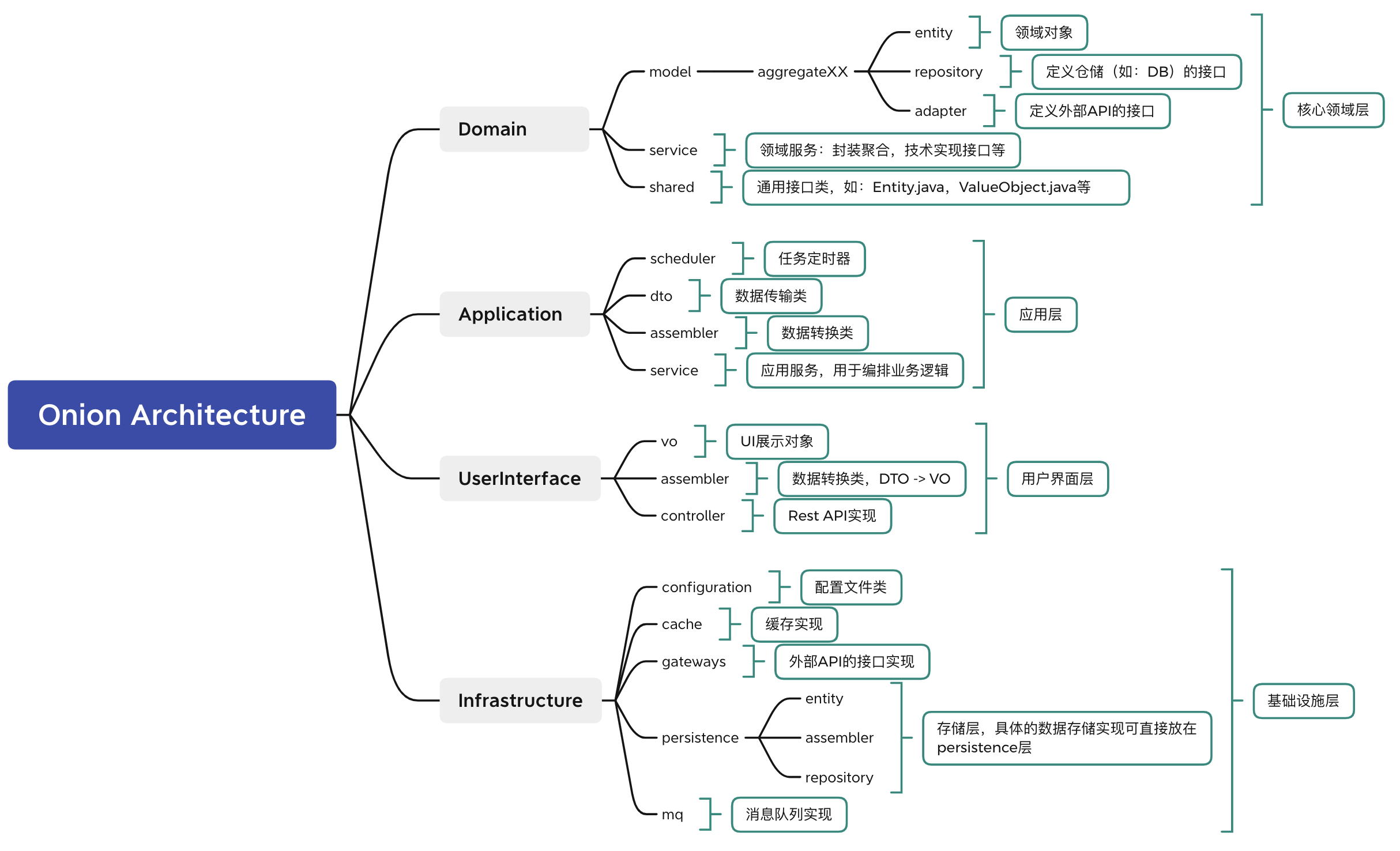

## 分层结构说明
package分层调用关系如下：
```
Architectures.LayeredArchitecture layeredArchitectureDelegate = layeredArchitecture()
.layer(DOMAIN_MODEL_LAYER).definedBy(domainModelPackageIdentifiers)
.layer(DOMAIN_SERVICE_LAYER).definedBy(domainServicePackageIdentifiers)
.layer(APPLICATION_SERVICE_LAYER).definedBy(applicationPackageIdentifiers)
.layer(ADAPTER_LAYER).definedBy(concatenateAll(adapterPackageIdentifiers.values()))
.whereLayer(DOMAIN_MODEL_LAYER).mayOnlyBeAccessedByLayers(DOMAIN_SERVICE_LAYER, APPLICATION_SERVICE_LAYER, ADAPTER_LAYER)
.whereLayer(DOMAIN_SERVICE_LAYER).mayOnlyBeAccessedByLayers(APPLICATION_SERVICE_LAYER, ADAPTER_LAYER)
.whereLayer(APPLICATION_SERVICE_LAYER).mayOnlyBeAccessedByLayers(ADAPTER_LAYER)
.withOptionalLayers(optionalLayers);
```
主要是为了隔离代码的传播，实现高内聚低耦合。
测试策略和结构参考:
* [Testing Strategies in a Microservices Architecture](https://martinfowler.com/articles/microservice-testing)
* [Unit and Integration Tests for RestControllers in Spring Boot](https://thepracticaldeveloper.com/2017/07/31/guide-spring-boot-controller-tests)
## 本地构建
### 启动依赖
```
docker-compose up -d
```
也可以使用命令：
```
./gradlew composeUp
./gradlew composeDown
```
### 编译
```
./gradlew clean build
或者
./gradlew clean composeUp build composeDown
```
### 运行
```
./gradlew bootRun
```
### 修复代码格式
```
./gradlew spotlessApply
```
## 其他
### CI流水线
参考.github/workflows下的ci.yaml文件
### Swagger访问地址
本地启动后，访问如下地址：
http://localhost:8082/swagger-ui/
这里本地的端口是8082，可以根据自己项目实际情况调整
