# pygemc
[![Tests][tests-badge]][tests]
[![Python][python-badge]][pyproject]
[![PyPI][pypi-badge]][pypi]
[![License: GEMC][license-badge]][license]
[![GEMC documentation][docs-badge]][docs]
`pygemc` is the Python API used by [GEMC](https://github.com/gemc/src) to define detector geometry, materials, optical properties, mirrors,
and lightweight output-analysis workflows. It lets users build GEMC databases with Python scripts, preview geometry
with PyVista, and inspect GEMC CSV or ROOT output without writing C++.
The package is installed with pip or as part of the GEMC source build.
## Features
- Python classes for GEMC geometry and material databases
- `GVolume` helpers for common Geant4 solids such as boxes, tubes, cones, and trapezoids
- `GVolume.g4placement_type` to select the `G4Transform3D` active or passive constructor
- `GMaterial` helpers for chemical formulas, fractional-mass mixtures, and optical/scintillation properties
- `GConfiguration` run, variation, factory, SQLite, ASCII, and PyVista configuration handling
- `autogeometry()` convenience setup for detector scripts
- SQLite and ASCII database output
- PyVista rendering, interactive Qt display, and VTK.js `.vtksz` export for geometry inspection and documentation
- `gemc-system-template` CLI for generating ready-to-run detector systems
- Python code snippets for supported Geant4 solid constructors
- `gemc-sqlite` CLI for creating and inspecting GEMC SQLite database files
- `gemc-analyzer` CLI for summarizing and plotting GEMC CSV or ROOT output
- Unit conversion helpers for length, angle, time, and energy strings
- Pytest suite that does not require a compiled `gemc` binary
# Installation
## Stable PyPI Install
Use a Python virtual environment for direct `pip` installs.
On macOS with Homebrew use `/opt/homebrew/bin/python3` to ensure the correct interpreter is used:
```shell
/opt/homebrew/bin/python3 -m venv ~/venv/pygemc
source ~/venv/pygemc/bin/activate
python -m pip install --upgrade pip
```
Install [`pygemc` from PyPI](https://pypi.org/project/pygemc/) with:
```shell
python -m pip install pygemc
```
Optional ROOT-file analysis dependencies:
```shell
python -m pip install "pygemc[root]"
```
## Install with GEMC
When GEMC is built from source, pygemc available in your scripts without
any activation step or separate pip install and gemc and Python tools are available:
```shell
gemc -v
gemc-system-template --help
gemc-sqlite --help
gemc-analyzer --help
```
# Quickstart
Create a detector template:
```shell
gemc-system-template -s counter
cd counter
./counter.py
```
The generated system contains:
| File | Purpose |
| -------------- | -------------------------------------------- |
| `counter.py` | Main geometry-builder script |
| `geometry.py` | Example volumes, including a flux detector |
| `materials.py` | Example methane-gas material |
| `counter.yaml` | GEMC steering card |
| `README.md` | Placeholder notes for the generated detector |
Run with PyVista visualization:
```shell
./counter.py -pv
```
Export a VTK.js scene:
```shell
./counter.py -pvvtk counter -pvz 0.25
```
Use a light flat background for documentation exports:
```shell
./counter.py -pvvtk counter -pvbg "0.92 0.92 0.98" -pvbgt none
```
Run the generated simulation with GEMC when the compiled `gemc` executable is available:
```shell
gemc counter.yaml
```
Analyze output:
```shell
gemc-analyzer counter_t0_digitized.csv totEdep --kind csv --bins 50
```
# Geometry API
Typical geometry scripts create a configuration and publish volumes/materials to it:
```python
from pygemc import GMaterial, GVolume, autogeometry
cfg = autogeometry("examples", "counter")
gas = GMaterial("methaneGas")
gas.description = "methane gas CH4 0.000667 g/cm3"
gas.density = 0.000667
gas.addNAtoms("C", 1)
gas.addNAtoms("H", 4)
gas.publish(cfg)
flux = GVolume("flux_box")
flux.description = "air flux box"
flux.make_box(40.0, 40.0, 2.0)
flux.set_position(0, 0, 100)
flux.material = "G4_AIR"
flux.color = "3399FF"
flux.style = 1
flux.digitization = "flux"
flux.set_identifier("box", 2)
flux.publish(cfg)
```
## Placement convention
`GVolume.g4placement_type` selects which Geant4 placement convention GEMC should use for a volume:
| Value | Meaning |
| --------- | ---------------------------------------------------------------------------------------- |
| `active` | Default; uses `G4Transform3D(rotation, translation)` |
| `passive` | Uses `G4PVPlacement(rotation, translation, ...)`, matching GEMC2/clas12Tags conventions |
Most new GEMC3 geometry can use the default `active` convention. Detector systems ported from GEMC2 that rely on
frame rotations should set:
```python
gvolume.g4placement_type = "passive"
```
This field is written to SQLite geometry databases. Existing SQLite databases are upgraded with the missing
column when a geometry script publishes new rows.
Common command-line options accepted by geometry scripts:
| Option | Purpose |
| ------------------- | ----------------------------------------------------------------------------- |
| `-f`, `--factory` | Select `sqlite` or `ascii` output |
| `-v`, `--variation` | Select the geometry variation |
| `-r`, `--run` | Select the run number |
| `-sql`, `--dbhost` | Select the SQLite file path |
| `-pv` | Show a PyVista window |
| `-pvb` | Show a PyVistaQt background plotter |
| `-pvvtk` | Export a VTK.js `.vtksz` scene |
| `-pvz` | Set the VTK.js export zoom |
| `-pvbg` | Set the PyVista background color as a name, hex string, or `r g b` triple |
| `-pvbgt` | Set the optional PyVista top gradient color; use `none` for a flat background |
| `--read-yaml` | Read `g4camera` direction and `g4view.background` settings from a GEMC YAML |
## PyVista Visualization
PyVista support is central to `pygemc`: geometry scripts can display the detector as they build it,
open an interactive Qt viewer, or export a `.vtksz` scene that can be published in documentation.
Example
Preview

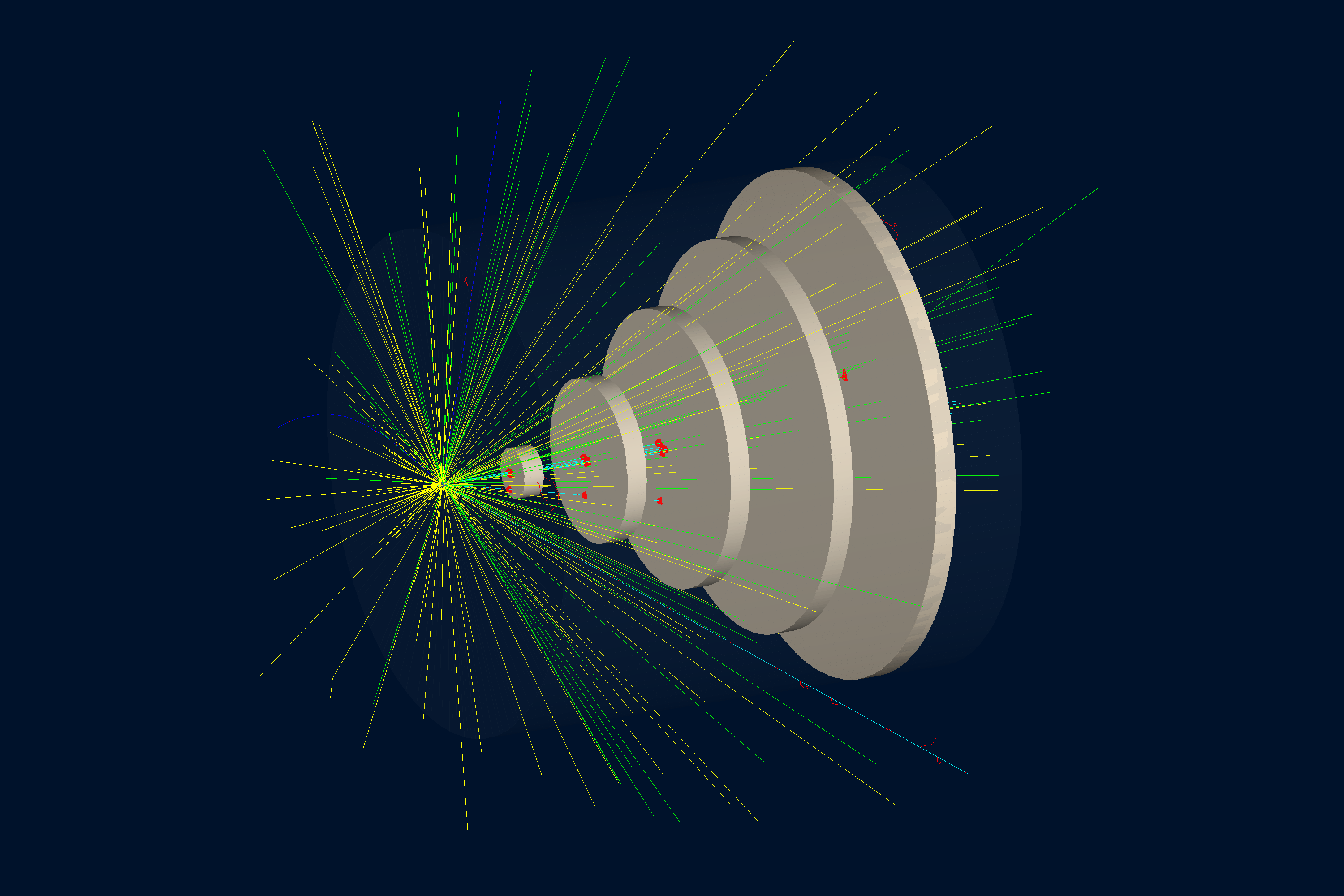

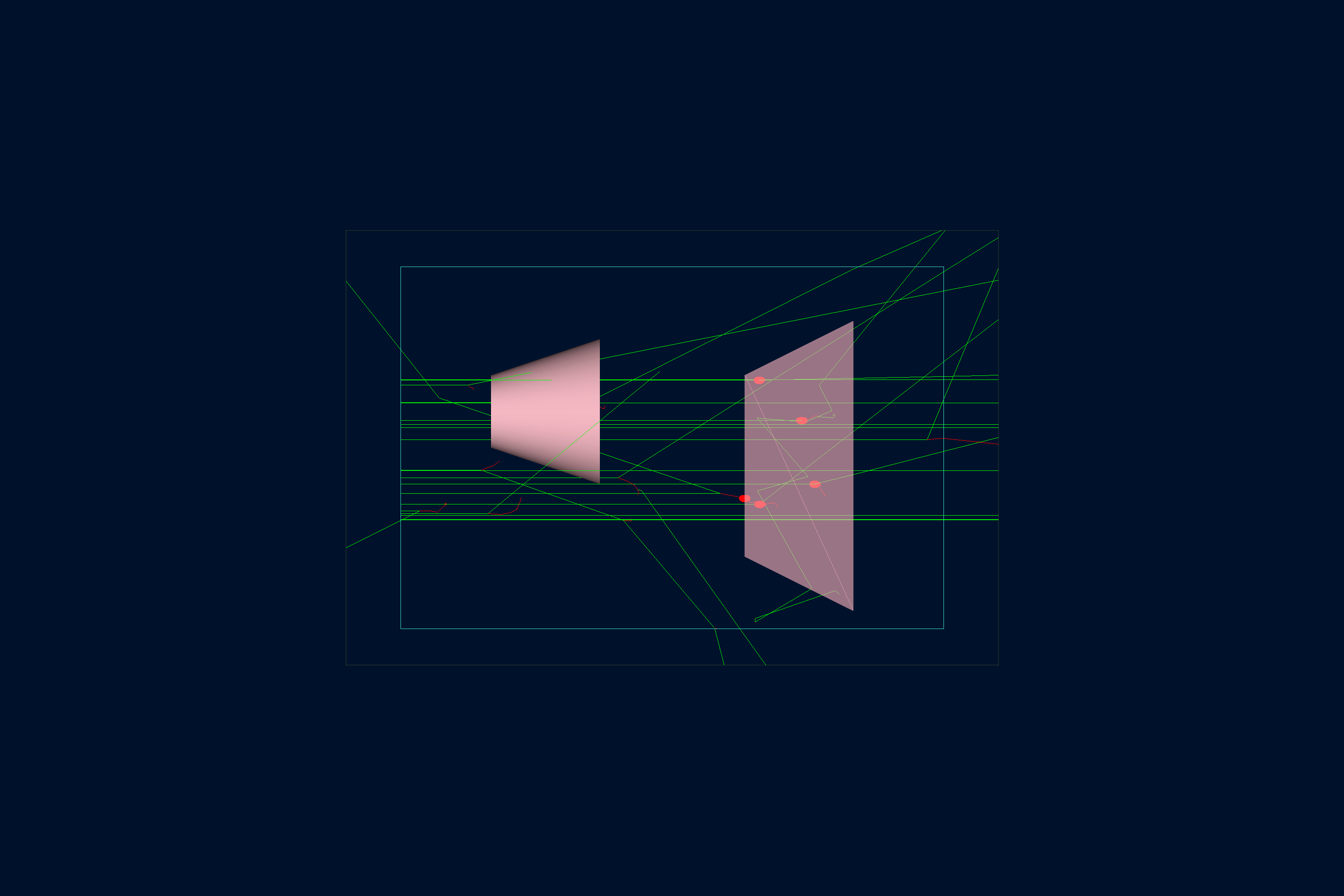

B1
B2

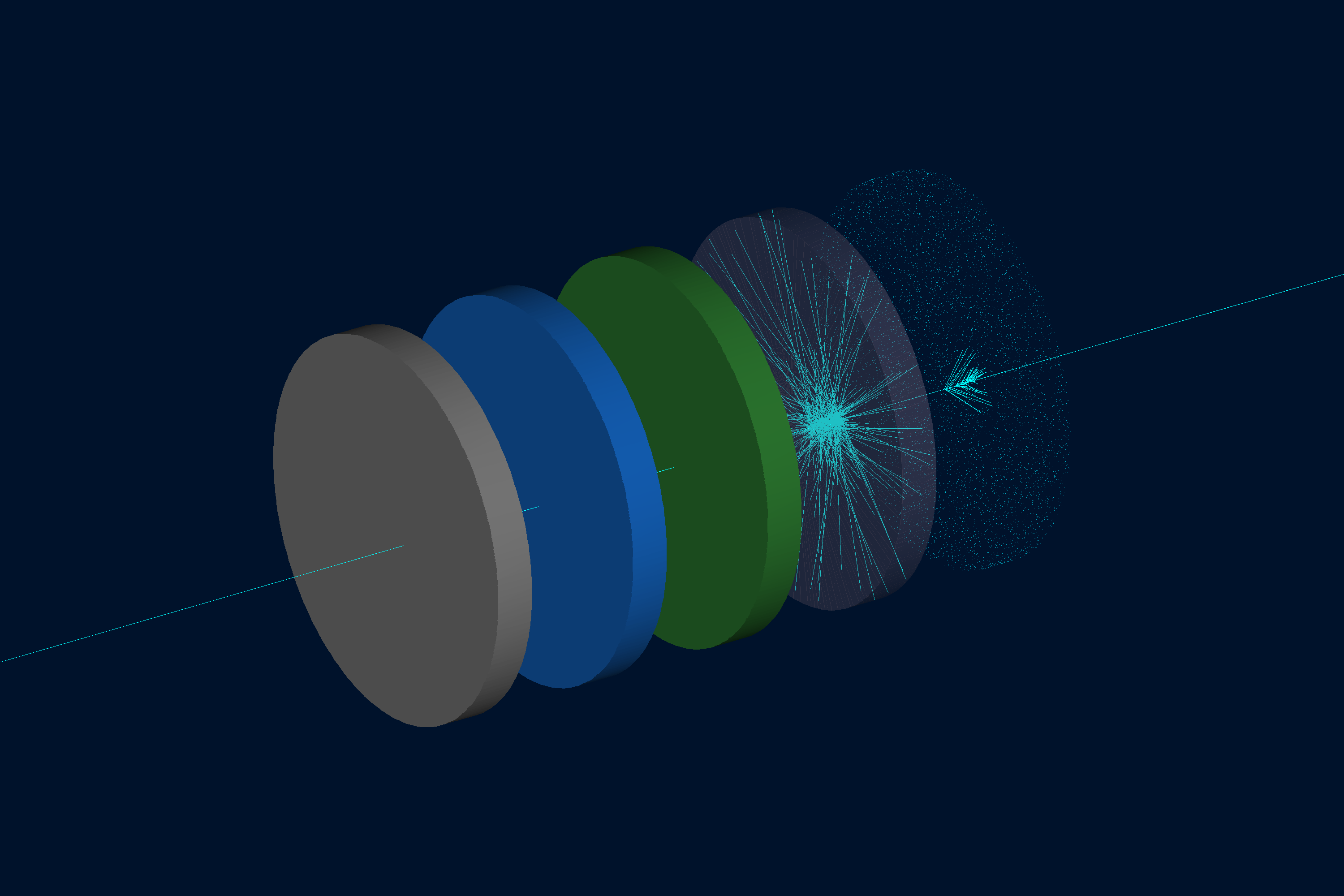

Materials

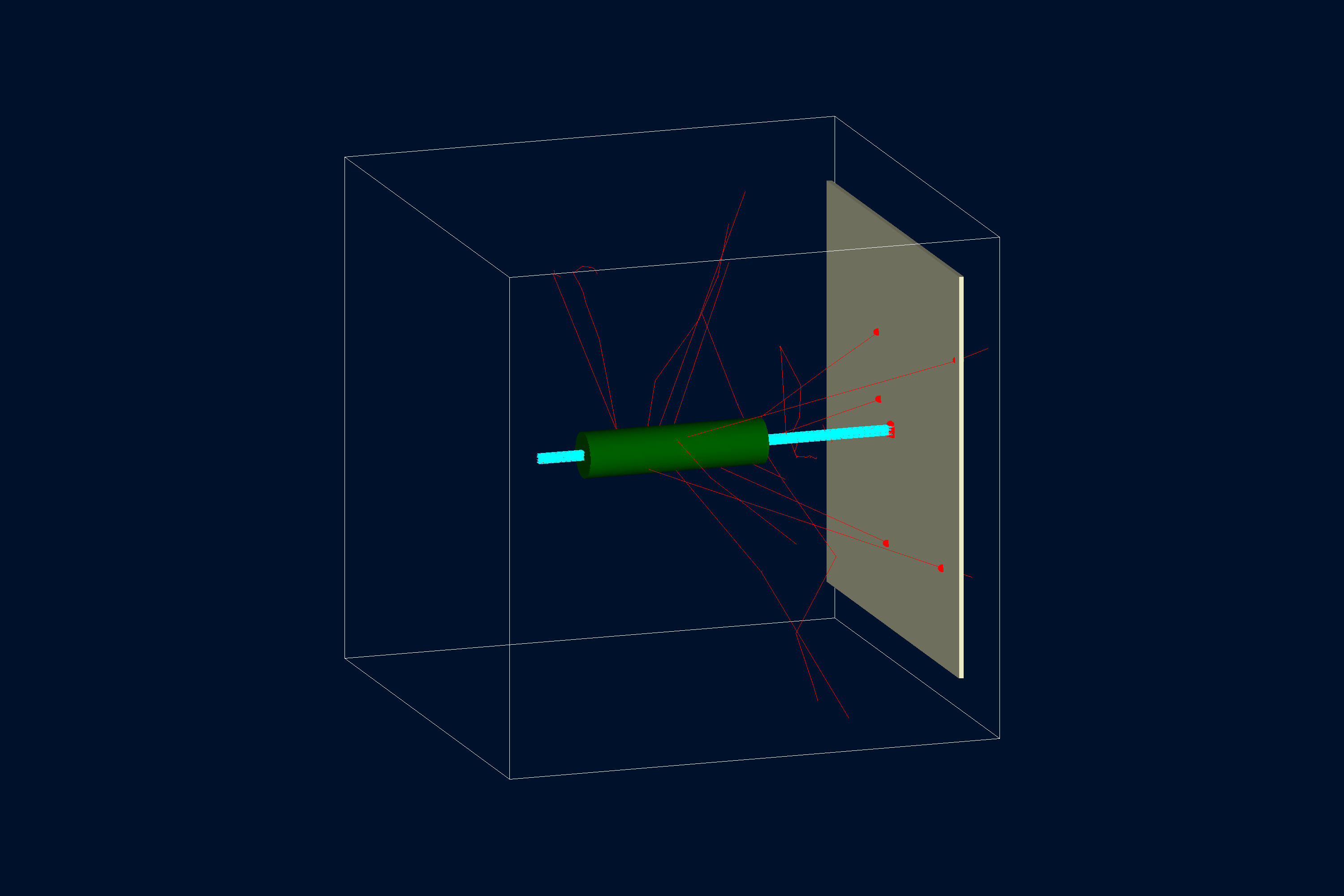

Simple Flux
Open the linked interactive PyVista scenes generated from the GEMC examples.
GitHub README pages cannot embed `.vtksz` files directly, so the preview image links to the hosted VTK.js viewer.
## Command-Line Tools
Command
What it does
gemc-system-template -s counter
Generate a detector skeleton named counter.
gemc-system-template -sl
List supported Geant4 solid snippets.
gemc-system-template -gv G4Box
Print a volume-construction snippet for a G4Box.
gemc-system-template -gv G4Tubs -write_to geometry.py -geo_sub build_tube
Write a G4Tubs snippet to geometry.py.
gemc-sqlite -n mydetector.sqlite
Create a new SQLite database with the GEMC geometry and materials schema.
gemc-sqlite -sql mydetector.sqlite -sv
Open an existing database and list its volumes.
gemc-sqlite -sql mydetector.sqlite -sm
Open an existing database and list its materials.
gemc-sqlite -sql mydetector.sqlite -sv -ef examples -vf default -sf counter -rf 1
Filter listed volumes by experiment, variation, system, and run number.
gemc-analyzer counter_t0_digitized.csv --kind csv
Summarize a GEMC CSV output file.
gemc-analyzer counter_t0_digitized.csv totEdep --kind csv --bins 50
Plot a digitized variable with 50 bins.
gemc-analyzer counter_t0_true_info.csv --kind csv --data true_info --plot yvsx --xlim -20 20
--ylim -20 20
Plot true hit positions in the y-vs-x plane.
gemc-analyzer out.root E --kind root --detector flux --save energy.png
Save a ROOT-based analyzer figure without opening a GUI.
## Tests
Run the standalone Python tests:
```shell
pytest
pytest tests/test_analyzer.py
pytest tests/test_cli.py
pytest tests/test_gconfiguration_yaml.py
pytest tests/test_geometry.py
pytest -v
pytest -k "sqlite"
```
The tests cover analyzer plotting, CLI behavior, YAML-driven PyVista configuration, and geometry database
generation. They intentionally do not require Geant4 or a compiled `gemc` executable; full simulation tests live
in the parent GEMC Meson build.
## Project Layout
| Path | Purpose |
| ---------------------- | ------------------------------------------------------------------------- |
| `src/pygemc/api/` | Geometry, materials, units, SQLite output, PyVista support, and templates |
| `src/pygemc/analyzer/` | CSV/ROOT readers, plotting, and analyzer CLI |
| `tests/` | Standalone pytest suite |
| `releases/` | Release notes |
| `pyproject.toml` | Python packaging metadata and console scripts |
| `meson.build` | Meson subproject integration used by GEMC |
## Documentation
- [GEMC homepage](https://gemc.github.io/home/)
- [Python API overview](https://gemc.github.io/home/documentation/api/pyvista_api.html)
- [Quickstart](https://gemc.github.io/home/documentation/quickstart/)
- [Examples](https://gemc.github.io/home/examples/)
- [GEMC source repository](https://github.com/gemc/src)
- [CLAS12 GEMC systems repository](https://github.com/gemc/clas12-systems)
- [Documentation website repository](https://github.com/gemc/home)
- [GEMC2 / CLAS12 repository](https://github.com/gemc/clas12Tags)
## Contributing
Keep patches focused and run the relevant pytest targets before opening a pull request. If a change affects the integrated GEMC build, also run the parent repository Meson tests for the affected examples or modules.
## License
`pygemc` is distributed under the GEMC Software License, the same license used by the main GEMC source repository. See [`LICENSE.md`](LICENSE.md).
