README












  <avn-annolog/>






A reusable canvas-based image annotation editor that can easily be integrated into an existing application through the `` custom element.

> ℹ️ Rendering concepts demonstrated herein require no third-party libraries. Features used are built into JavaScript and the Web browser.

[See demo](https://annolog.vercel.app)

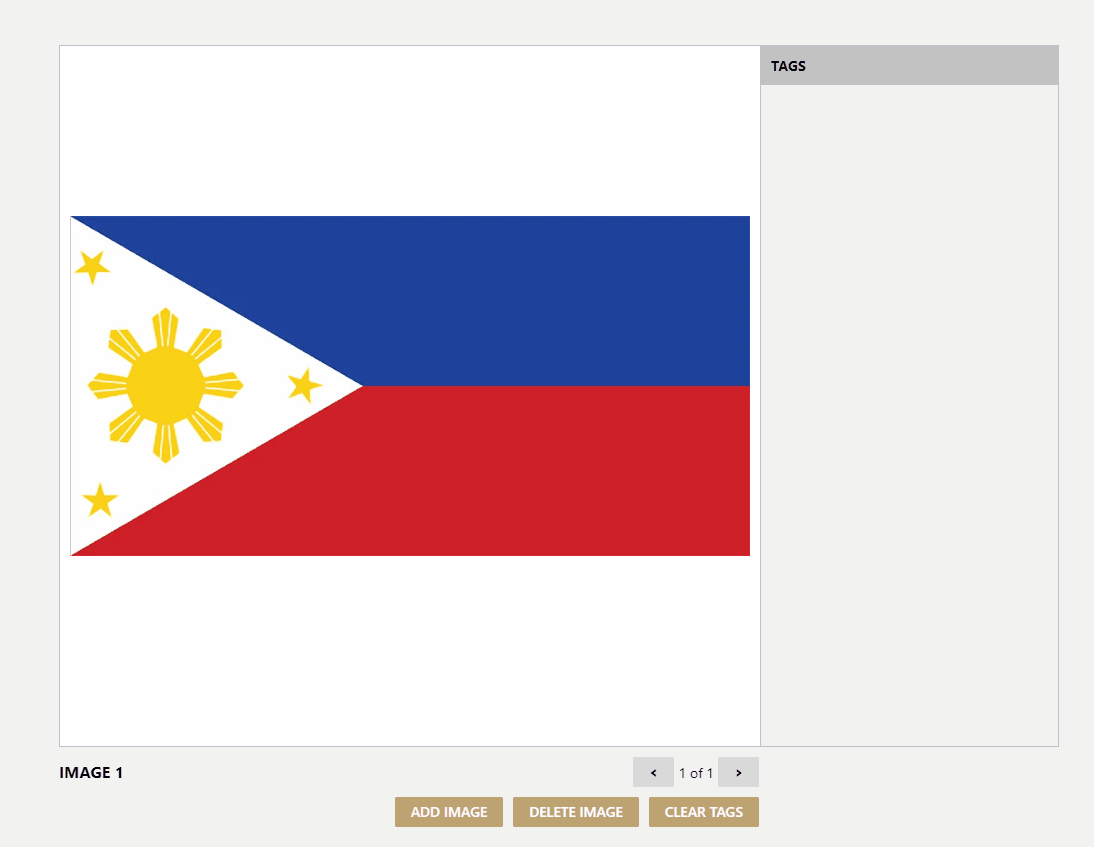

![demo](https://user-images.githubusercontent.com/507464/162627074-7816fef0-fcbf-4ac0-a69f-ff8bdb958552.gif)

## Overview

The [Canvas](https://developer.mozilla.org/en-US/docs/Web/API/Canvas_API) is extended using [Custom Elements](https://developer.mozilla.org/en-US/docs/Web/Web_Components/Using_custom_elements) and is exposed using the [`is` global attribute](https://developer.mozilla.org/en-US/docs/Web/HTML/Global_attributes/is) which allows it to behave as a defined [Custom Built-in Element](https://developer.mozilla.org/en-US/docs/Web/Web_Components/Using_custom_elements#customized_built-in_elements). The [requestAnimationFrame](https://developer.mozilla.org/en-US/docs/Web/API/window/requestAnimationFrame) is used for the render loop.

> ℹ️ All Canvas related interaction logic are implemented using the Canvas API except for text input where a custom textarea is used.

These are the three (3) core Canvas inside ``.

- **``** - handles loading/scaling of an image

- **``** - handles rendering of tag inputs

- **``** - handles rendering of selection previews

The source for the `` custom element can be found on the `annolog` directory.

## Disclaimer

**Custom Built-in Elements** is not supported in Safari.

The use of polyfill [custom-elements-builtin](https://github.com/WebReflection/custom-elements-builtin) is not implemented in the demo.

The experience is the same as every other modern browser should the polyfill be used with proper feature detection.

> ⚠️ Everything is stored on local storage, do not use big images to prevent exceeding local storage qouta.

## License

[](http://www.gnu.org/licenses/gpl-3.0.html)

_**annolog**_ is licensed under the GNU General Public License v3.0 (GPLv3). See [LICENSE](LICENSE) file for more details.
