A multi-cloud and multi-region Kubernetes CI/CD Agent for ArgoCD

Awesome Lists containing this project

README


# Gravity CI/CD Agent for ArgoCD

Gravity Agent for k8s is a multi-cloud and multi-region deployment tool. It enables easy replication of applications, low-code CI/CD setup on top of ArgoCD.

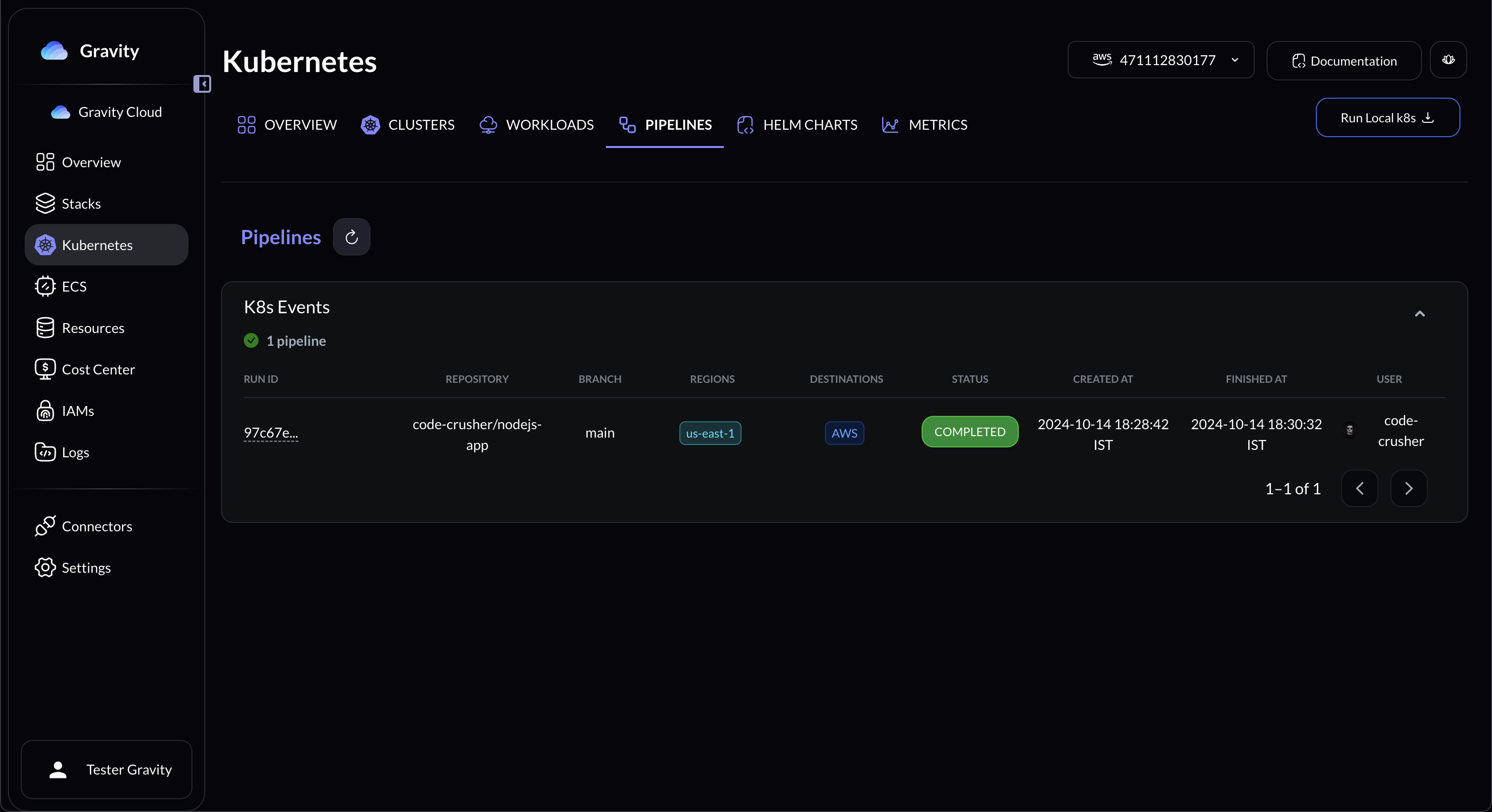

![Gravity CI/CD Pipelines](https://res.cloudinary.com/dor5uewzz/image/upload/v1728963598/gravity-ui-k8s-pipeline_wvpx4m.png)

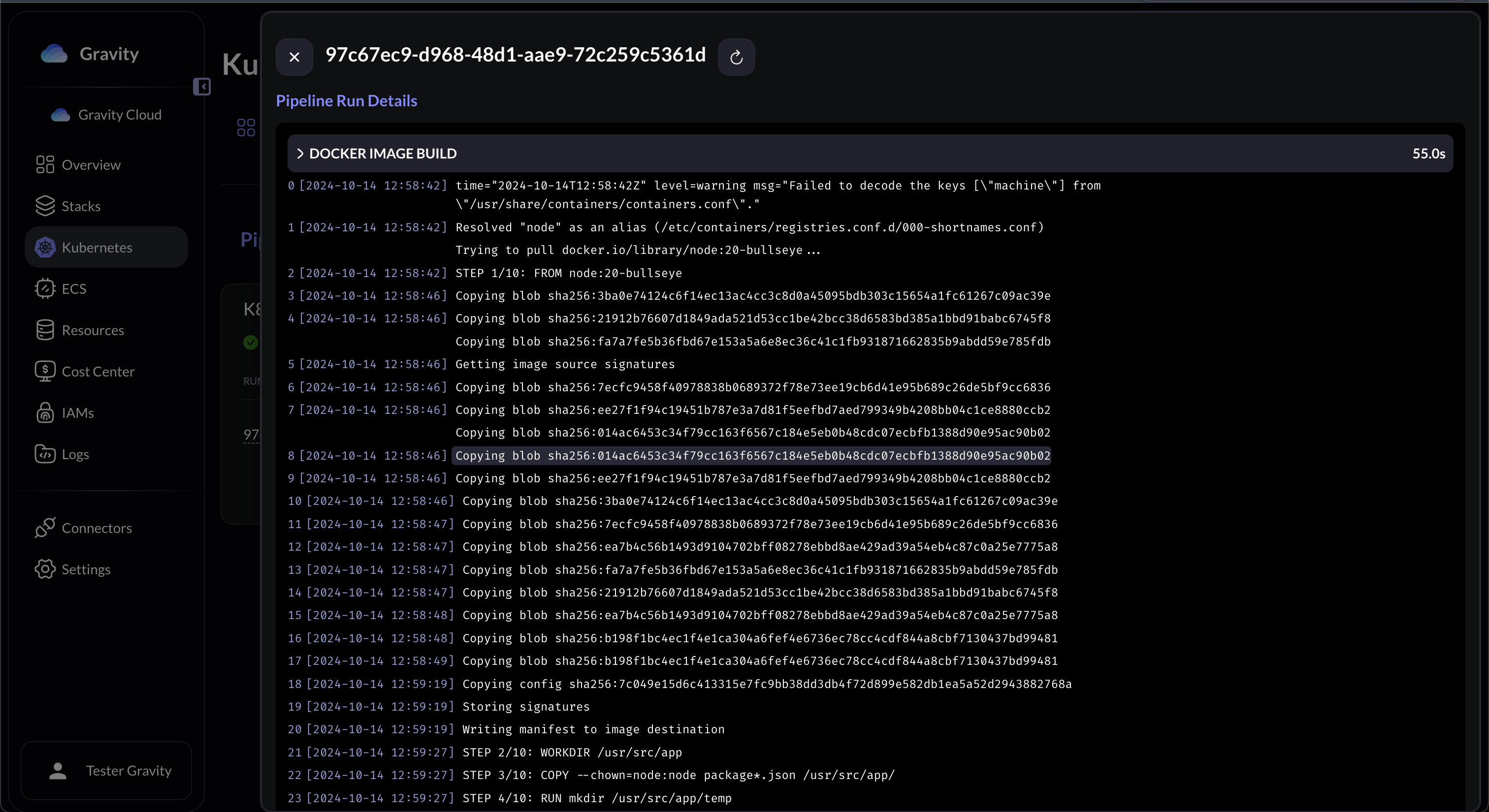

![Gravity CI/CD Logs](https://res.cloudinary.com/dor5uewzz/image/upload/v1728963598/gravity-ui-k8s-logs_y4wrxb.png)



## Setup



### Github Repository

1. Add the `gravity.yaml` file to the root of your repository.

2. Make the changes as per your app



You can use the following example as a template:

```yaml

metadata:

  name: nodejs-app

spec:

  branch:

    - name: main

      approval: manual

    - name: development

      approval: automatic

  aws:

    repository:

      - name: nodejs-app-east

        regions:

          - us-east-1

        branch: main

        valueFile:

          source: s3

          bucket: gravity-app-prod-values

```



> If you are using Github to store the values file, you can use the following example to setup the repository:



```yaml

metadata:

  name: nodejs-app

spec:

  branch:

    - name: main

      approval: manual

    - name: development

      approval: automatic

  aws:

    repository:

      - name: nodejs-app-east

        regions:

          - us-east-1

        branch: main

        valueFile:

          source: git

```

3. Update Github Action workflow with name as `Deploy` and only run CI, tests and any business logic to generate values file (such as secrets, no need to manage docker images)



4. You can also add `pre-deploy` scripts to run any commands before the deployment (such as linting, testing, etc.)

```yaml

metadata:

  name: mono-repo-js

spec:

  branch:

    - name: main

      approval: manual

    - name: development

      approval: automatic

    - name: feat-.*

      approval: automatic

  preDeploy:

    - name: run dummy script

      command: bash ./dummy.sh

  aws:

    repository:

      - name: mono-repo-js-east

        regions:

          - us-east-1

        branch: main

        valueFile:

          source: git

```



### Installing Gravity K8s Agent



1. Update the `values.yaml` file with the required values

```

global:

  namespace: "gravity-cloud"

  storageClass: "standard"



components:

  gravityAgent:

    deployment:

      name: gravity-ci-cd-agent

      replicas: 1

      image:

        repository: gravitycloud/gravity-ci-cd-agent

        tag: latest

        pullPolicy: Always

      resources:

        requests:

          memory: "512Mi"

          cpu: "512m"

        limits:

          memory: "8192Mi"

          cpu: "4000m"

      env:

        GRAVITY_API_KEY: ""

        GRAVITY_WEBSOCKET_URL: ""

        GRAVITY_API_URL: ""

        ENV: "production"

        NAMESPACE: "gravity-cloud"

        GITHUB_TOKEN: ""

        GITHUB_REPOSITORIES: ""

        GIT_BRANCHES_ALLOWED: ""

        GITHUB_JOB_NAME: ""

        AWS_ACCESS_KEY_ID: ""

        AWS_SECRET_ACCESS_KEY: ""

        AWS_ACCOUNT_ID: ""

        POSTGRES_HOST: "postgres-gravity-service"

        POSTGRES_USER: ""

        POSTGRES_PASSWORD: ""

        POSTGRES_DB: ""

        POSTGRES_PORT: "5432"

        REDIS_HOST: "redis-gravity-service"

        REDIS_PORT: "6379"

        REDIS_PASSWORD: ""

        SLACK_WEBHOOK_URL: ""

        ARGOCD_URL: ""

        ARGOCD_TOKEN: ""

        DOCKER_REGISTRY_URL: ""

        DOCKER_REGISTRY_PORT: "5000"

    service:

      name: gravity-agent-service

      type: ClusterIP

      port: 8080

      targetPort: 8080



  postgres:

    deployment:

      name: postgres-gravity

      replicas: 1

      image:

        repository: postgres

        tag: latest

        pullPolicy: IfNotPresent

      resources:

        requests:

          memory: "1Gi"

          cpu: "500m"

        limits:

          memory: "2Gi"

          cpu: "1000m"

      env:

        POSTGRES_DB: ""

        POSTGRES_USER: ""

        POSTGRES_PASSWORD: ""

    service:

      name: postgres-gravity-service

      type: ClusterIP

      port: 5432

      targetPort: 5432



  redis:

    deployment:

      name: redis-gravity

      replicas: 1

      image:

        repository: redis

        tag: latest

        pullPolicy: IfNotPresent

      command:

        - "/bin/sh"

        - "-c"

        - "redis-server --requirepass $(REDIS_PASSWORD)"

      resources:

        requests:

          memory: "256Mi"

          cpu: "250m"

        limits:

          memory: "512Mi"

          cpu: "500m"

      env:

        REDIS_PASSWORD: ""

    service:

      name: redis-gravity-service

      type: ClusterIP

      port: 6379

      targetPort: 6379



  dockerregistry:

    deployment:

      name: gravity-docker-registry

      replicas: 1

      image:

        repository: registry

        tag: "2"

        pullPolicy: IfNotPresent

      resources:

        requests:

          memory: "512Mi"

          cpu: "512m"

        limits:

          memory: "4096Mi"

          cpu: "4000m"

      env:

        REGISTRY_STORAGE_DELETE_ENABLED: "true"

    service:

      name: gravity-docker-registry

      type: ClusterIP

      port: 5000

      targetPort: 5000



# RBAC Configuration

rbac:

  serviceAccount:

    name: gravity-job-agent-sa

    create: true

  clusterRole:

    name: gravity-job-agent-role

    rules:

      - apiGroups: [""]

        resources: ["pods", "pods/log", "pods/exec", "services", "secrets", "configmaps", "persistentvolumeclaims", "serviceaccounts"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: [""]

        resources: ["secrets", "events", "namespaces"]

        verbs: ["get", "list", "watch"]

      - apiGroups: ["apps"]

        resources: ["deployments", "statefulsets", "replicasets"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: ["batch"]

        resources: ["jobs", "jobs/status"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: ["networking.k8s.io"]

        resources: ["ingresses", "networkpolicies"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: ["rbac.authorization.k8s.io"]

        resources: ["roles", "rolebindings"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: ["policy"]

        resources: ["podsecuritypolicies", "poddisruptionbudgets"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

      - apiGroups: ["argoproj.io"]

        resources: ["applications"]

        verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

  clusterRoleBinding:

    name: gravity-job-agent-rolebinding



persistence:

  postgres:

    name: postgres-gravity-pvc

    size: "1Gi"

    accessMode: ReadWriteOnce

  redis:

    name: redis-gravity-pvc

    size: "1Gi"

    accessMode: ReadWriteOnce

  agent:

    name: agent-gravity-pvc

    size: "20Gi"

    accessMode: ReadWriteOnce

```



2. Add the helm repo `helm repo add gravity-cloud https://gravitycloudai.github.io/gravity-k8s-ci-cd-agent`



3. Update the helm repo `helm repo update`



4. Install the chart `helm upgrade --install  gravity-k8s-ci-cd-agent gravity-cloud/gravity-ci-cd-agent -f ./chart/values.yaml -n gravity-cloud --create-namespace`



5. Check the deployment `kubectl get pods -n gravity-cloud`

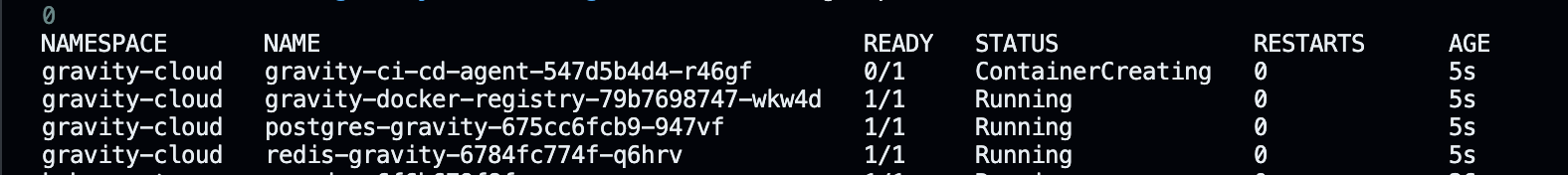

![Gravity Cloud Pods](https://res.cloudinary.com/dor5uewzz/image/upload/v1736776860/Screenshot_2025-01-13_at_19.30.10_obug49.png)



### Custom Helm Charts (feature/dev environments)

1. Logon to Gravity UI and go to Kubernetes -> Pipelines -> Pipeline Charts OR visit [Console Here](https://console.gravitycloud.ai/kubernetes?tab=PIPELINES)



2. Click on Create a new Pipeline Chart

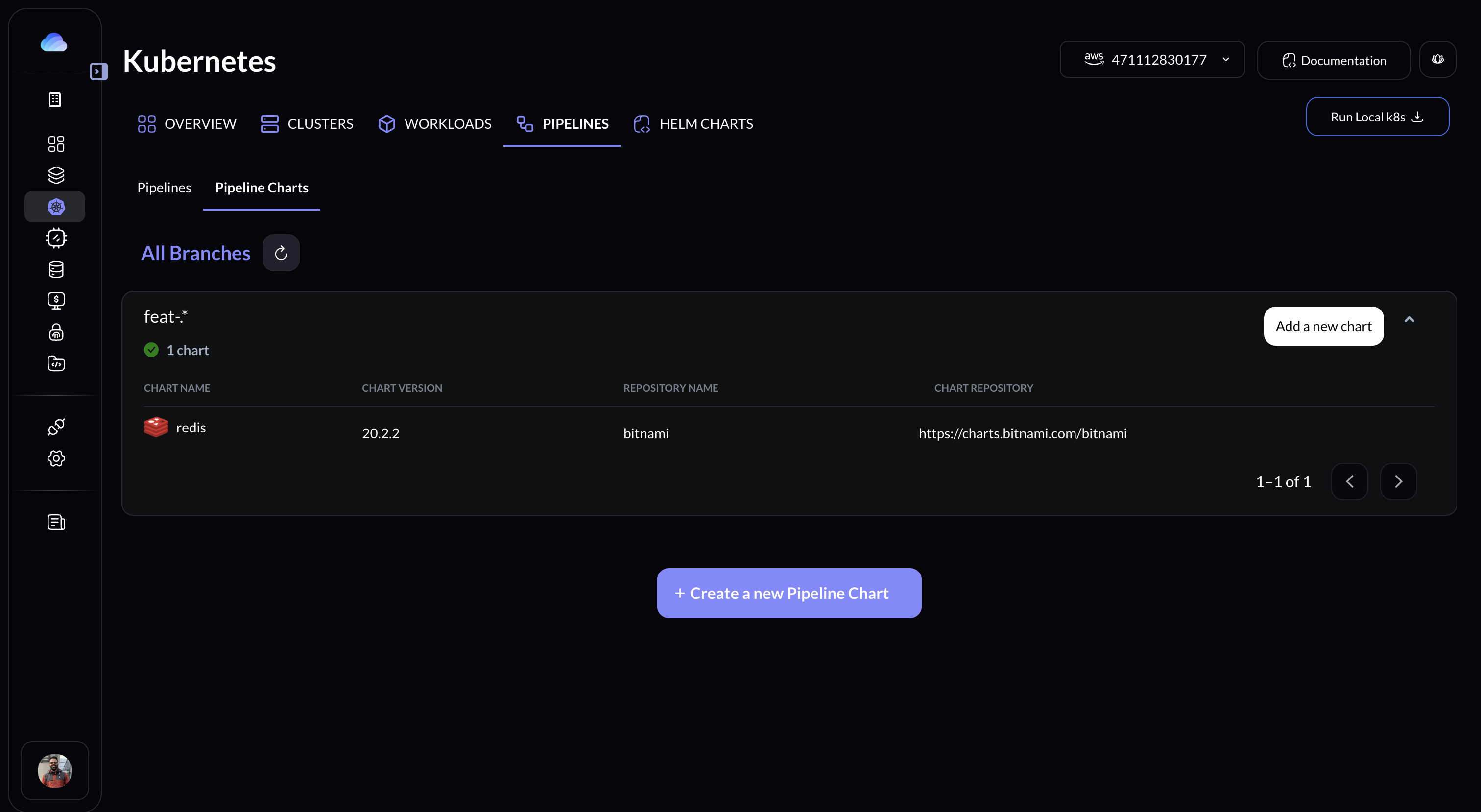

![Create a new Pipeline Chart](https://res.cloudinary.com/dor5uewzz/image/upload/v1731921421/k8s-pipeline-charts_p4wfiu.png)



3. Select the pre-defined chart and edit the values file as per your requirement

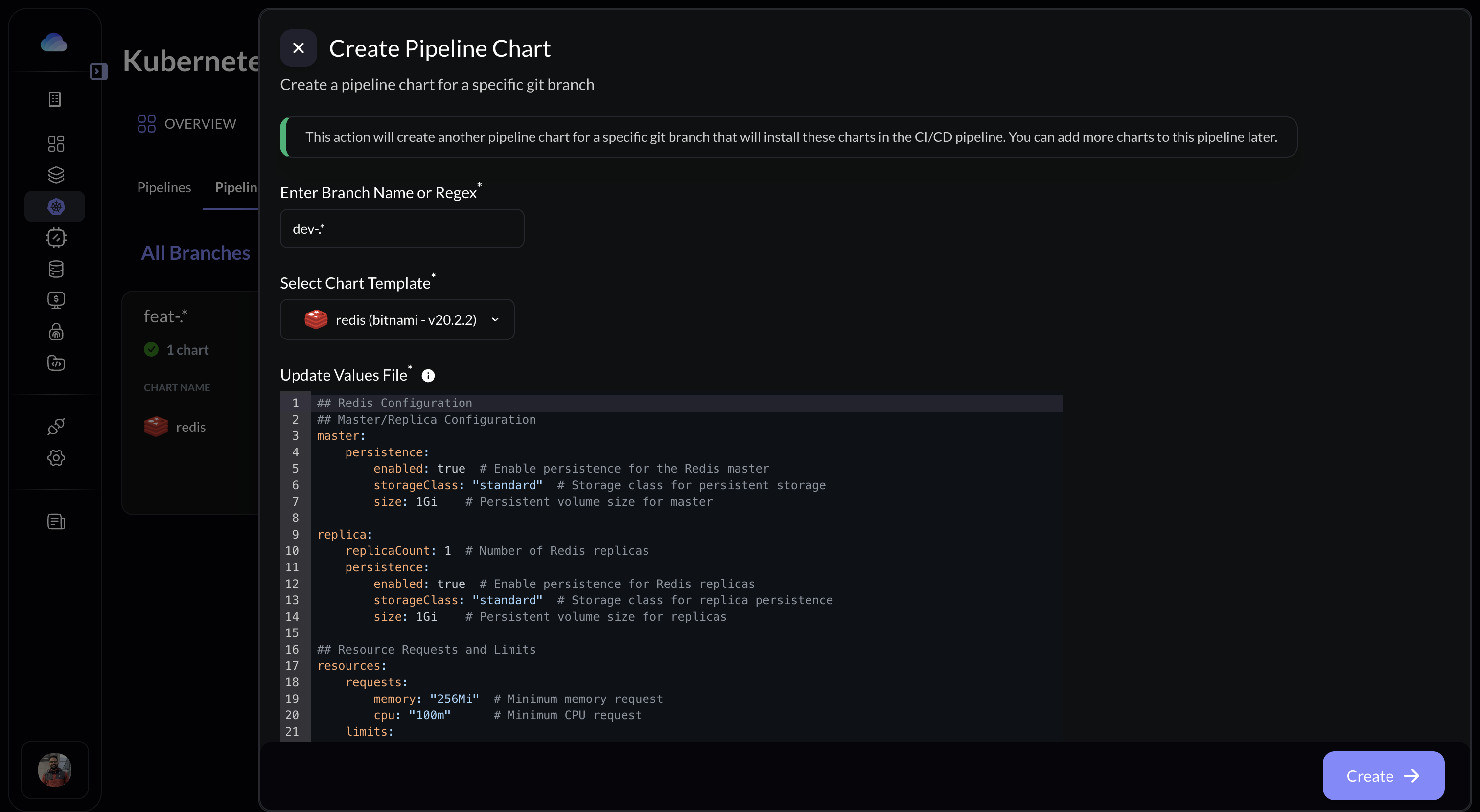

![Edit Pipeline Chart](https://res.cloudinary.com/dor5uewzz/image/upload/v1731921421/k8s-pipeline-charts-add_zoiaqo.png)



4. Once added, the agent will automatically sync the changes and deploy the helm chart to the respective environment when the new branch is created or updated.



5. Upon the deletion of the branch, the agent will delete the helm chart from the respective environment.



### Working

1. The agent syncs with the repository and checks if there are any new CI actions completed.

2. It then check the postgress database for the status of the deployment action (if completed previously, pending or failed)

3. Upon finding the need for a new deployment, it creates a Kubernetes Job for that deployment.

4. The K8s job will generate the Docker image (along with cache stored in local docker registry), and then iterates through the cloud accounts, regions while tagging and pushin them into the repositories.

5. It will go and update the Values file in your git or Update the S3 values file along with the ArgoCD manifest file.

6. In the whole workflow, Slack notifications can be setup as per your requirement.

7. In the whole workflow, you can sync the deployment process with Gravity UI also.



## Links

1. Docker Hub: https://hub.docker.com/r/gravitycloud/gravity-ci-cd-agent

2. Website: https://gravitycloud.ai

3. Discord: https://discord.gg/fJU5DvanU3
