# api-gateway-case-study
An implementation of the concept of `API Gateway` in `Node.js`.
**⚠️ Note: Not to be used in production! This is just [me](https://github.com/gurleensethi) messing around with code.**
## Recommended reading on API Gateway
- [What does an API Gateway do?](https://www.redhat.com/en/topics/api/what-does-an-api-gateway-do)
- [Pattern: API Gateway](https://microservices.io/patterns/apigateway.html)
- [Nginx - API Gateway](https://www.nginx.com/learn/api-gateway/)
## Stack
- `Node.js` with `Typescript`
- `Redis`
## Gateway Features
There is no hard and fast rule for the features that an API Gateway should support.
- [`Routing`](#routing): The gateway routes api calls to the target service.
- [`Heartbeat`](#heartbeat): Services have a hearbeat mechanism to denote if they are still available.
- [`Dynamic Service Registration`](#dynamic-service-registration): Services can register themselves dynamically without the need of restarting gateway server itself.
## Routing

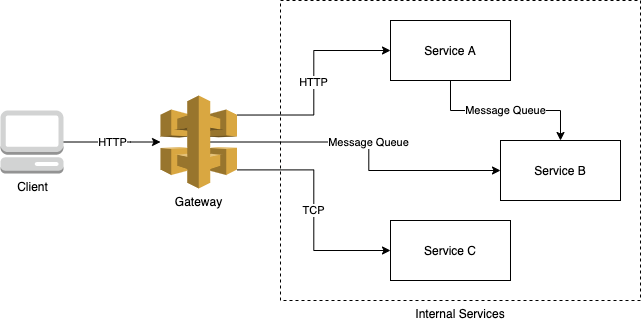

One benefit of an API Gateway is that the internal services can communicate with each other using any protocol, regarless of the protocol used by client to connect to the Gateway. The gateway can map the incoming request data to the protocol used by the service internally.
Protocols used for routing (from gateway to service) in this case study:
- **http**: Communication over good old http, gateway receives and http request and forwards it to the service that is also using http for communication.

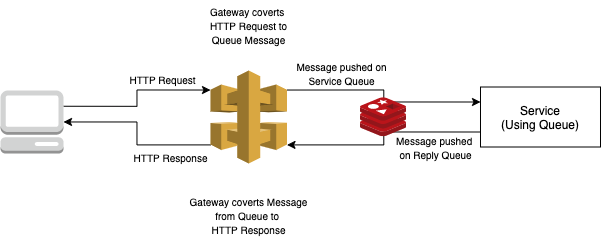

- **queues**: Gateway receives an http request, it then converts the http request to a payload and sends it to the queue that is sepcified by the service, the gateway also listens for response from the service on a different queue and replies to the client by converting the response to http response. For this project I have a hacky implementation of queues using redis.
## Heartbeat
Hearbeat is the mechanism used by a system to constantly keep denoting at an interval that it is running and ready for use. If a heartbeat from a system is not detected then it is considered to be down.
I have implemented the heart beat using Redis's key expiration feature.
In this implementation, Services are responsible for mainting liveness on their own by constantly updating the expiration of service metadata in redis.
Services run the following redis commands at a fixed `interval`.
```redis
hset service: name protocol [other metadata fields ...]
expire service:
```
By doing this, if a service crashes its metadata will expire and be no longer available in redis, thus denoting that the service is not available anymore.
### Usage by Gateway
Whenever gateway receives a request (for example `/api/service-name/some-path`), it extracts the service name from the url path and checks if corresponding entry exists in redis, if the entry is not found, the service is considered not available.
## Dynamic Service Registration
Since gateway checks for exitance of a service on runtime of each request, it allows us to dynamically swapn services without requiring the gateway to change. To get itself registered all a service has to do is make an entry in `redis` with its name and communication protocol.
Exmaple:
```
hset name hello-service protocol http port 4000 host localhost
```
The above command registers a service with name `hello-service` that comunicates over `http` and listens on port `4000`. Whenever a request is sent to gateway for hello-service (`/api/hello-service`), gateway will check for the above entry in redis and foward the request to the service based on the communication protocol.
## Setup and Running the Project
- Run `redis`
```
docker-compose -f docker/docker-compose.dev.yaml up -d
```
- Install Dependencies
```
npm install
```
- Run `Gateway`
```
npm run dev:gateway
```
- Run the `services`
```
npm run dev:hello-service
# Run the follwing in a different terminal
npm run dev:bitcoin-service
```
## Access the services
`hello-service`
```
curl localhost:3000/api/hello-service
```
`bitcoin-service`
```
curl localhost:3000/api/bitcoin-service
```
