# 1dofResponseAnalysis

The  component which analyze of the single DOF mass point by Newmark β method in grasshopper.

![コンポーネント画像](https://github.com/hiro-n-rgkr/1dofResponseAnalysis/blob/master/1dofResponseAnalysis/images/howtouse.PNG)

# LICENSE

This software is released under the MIT License, see LICENSE.md

# Operating Environment

Make for Rhino6 of Windows

# Information Concerning the Author

hiron_rgkr

twitter: https://twitter.com/hiron_rgkr

# How to Use

## List of Component

![List of Component](https://github.com/hiro-n-rgkr/1dofResponseAnalysis/blob/master/1dofResponseAnalysis/images/ListOfComponent.jpg)



## Component Appearance

![Component Appearance](https://github.com/hiro-n-rgkr/1dofResponseAnalysis/blob/master/1dofResponseAnalysis/images/ComponentAppearance.PNG)

## Function

+ Calc T

  + A peculiar period and a natural frequency and a peculiar angular frequency are calculated by mass and rigidity

+ MTtoK

  + Calculate rigidity from mass and a peculiar period

+ KTtoM

  + Calculate mass from rigidity and a peculiar period

+ MakeSinWave

  + Make a sin wave as an input wave

+ 1dofRA

  + For input parameter, calculate 1dof response analysis in Newmarkβ method and output result

+ ModelView

  + Output a model on Rhino

+ ResultVeiw

  + Move the model that output on Rhino depending on a result

# Development Status

+ ~2018/09/24

  + ver 0.1.00

    Prepare a basic function and release it as ver 0.1.0



# Video

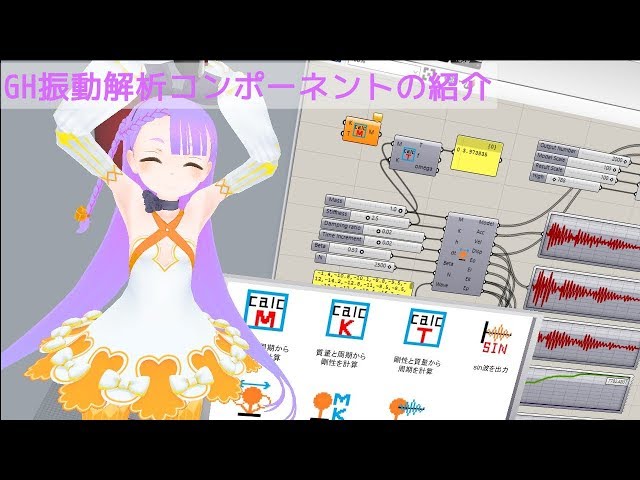

[![](http://img.youtube.com/vi/4HIVYRezRaI/sddefault.jpg)](https://www.youtube.com/watch?v=4HIVYRezRaI&t=3s)
