README
# Status - Workaround
The issue has a workaround, although it isn't a great experience to discover that workaround. A proposal has been made to add / improve tests to document and preseve this behavior if it is indeed intentional (the tests only test the first request and thus this is untested as the second request on the same connection is where the issue starts).
Issue report: https://github.com/dotnet/runtime/issues/96223
Suggested workaround: https://github.com/dotnet/runtime/issues/30295#issuecomment-516210081
Testing the workaround locally:
`USE_DEADLOCK_FIX=true TEST_MODE=complete-deadlock-one-request dotnet run --project httpclient`
# Overview - HttpClient Deadlock with AllowDuplex=true over HTTP2
This is an SSCCE [Short, Self-Contained, Correct (Compilable), Example](http://www.sscce.org/) of a deadlock in [DotNet Core 8](https://github.com/dotnet/runtime) when using a custom `Content` object with `AllowDuplex=true` over HTTP2.
The problem is that `HttpClient` in (Http2Connection.cs/SendHeadersAsync)[] will not force a flush to write new headers on the entire connection (not just the stream) except in these cases:
1. There is a half-duplex request on the same HTTP2 connection (half-duplex meaning the entire Request Content data is available before the request is sent)
1. This happens because s.EndStream is true for half-duplex requests: https://github.com/dotnet/runtime/blob/2f1fbb009cccc137092429e2a7f367ad7bed92b9/src/libraries/System.Net.Http/src/System/Net/Http/SocketsHttpHandler/Http2Connection.cs#L1684
2. All pending streams have enough data force a flush of the headers (e.g. there are 10 paralell requests and they all send a lot of headers)'
3. `Headers.ExpectContinue` is `true`, which causes `mustFlush` to be set to true here: https://github.com/dotnet/runtime/blob/2f1fbb009cccc137092429e2a7f367ad7bed92b9/src/libraries/System.Net.Http/src/System/Net/Http/SocketsHttpHandler/Http2Connection.cs#L1999
Other than this issue, `AllowDuplex` works fine on HTTP2.

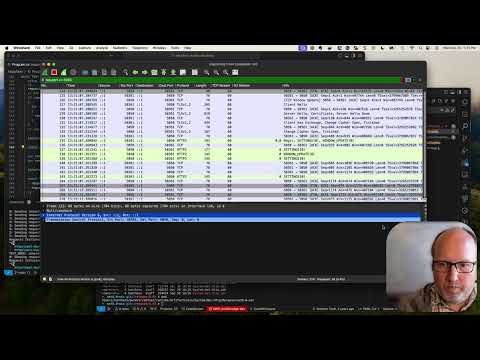

## Video of Issue and Fix
[](https://www.youtube.com/watch?v=UN2oHXhKQf0)
## Related Concern
First, it is ok / wise to batch up requests before sending them to the server. But, there needs to be a periodic flush to clear any pending data. It does not seem acceptable to leave data in a send buffer indefinitely, which is the case here.
If there is no background flush timer then there may be other related fixes needed.
Since the behavior here is changed by the other requests sent on the same connection, and no existing tests have caught this, it seems like there may be other related issues or that the tests may need to be updated to ensure complete isolation of connections across tests.
## Fix Approach
Possibly the simplest fix is that the callback in `SendHeadersAsync` should *always* return `true`, causing a flush. The nominal case of non-duplex requests essentially always causes this to return `true` and it seems only this odd case of duplex requests is causing it to return `false`.
https://github.com/dotnet/runtime/blob/2f1fbb009cccc137092429e2a7f367ad7bed92b9/src/libraries/System.Net.Http/src/System/Net/Http/SocketsHttpHandler/Http2Connection.cs#L1684
However, a more narrow fix is to add in `mustFlush: ... || AllowDuplex` here: https://github.com/dotnet/runtime/blob/2f1fbb009cccc137092429e2a7f367ad7bed92b9/src/libraries/System.Net.Http/src/System/Net/Http/SocketsHttpHandler/Http2Connection.cs#L1999
## Repro Steps
1. `./certs.sh`
1. This generates a self-signed cert but does not trust it
2. The test HttpClient has a custom `ServerCertificateCustomValidationCallback` that trusts the cert
2. `dotnet restore`
3. Install and setup WireShark
1. Open WireShark
2. Open Preferences
3. Select Protocols
4. Select the TLS protocol
5. Click the `RSA keys list` Edit... button
6. Click the + button
1. Enter address `127.0.0.1`
2. Enter port `5050`
3. Enter protocol `http`
4. Browse and find `httpclient-duplex-deadlock/certs/dummy.local.key`
7. Start capturing traffic on the loopback interface
8. Add a filter for `tcp.port == 5050`
4. Open 2 terminals
5. In terminal 1:\
1. `dotnet run --project server`
2. This can be left running for all of the test variations below
6. In terminal 2:
1. `TEST_MODE=complete-deadlock-one-request dotnet run --project httpclient`
1. This will hang until the connection times out
2. Wireshark will show the `SETTINGS` and `WINDOW_UPDATE` frames exchanged, but no `HEADERS` frame sent
3. Simple adding a `Date` request header will cause the 1st request to send, but the 2nd request will deadlock
2. `TEST_MODE=complete-deadlock-many-requests dotnet run --project httpclient`
1. This will hang until the connection times out
2. The 1st 10 parallel requests will send because they have enough data to force a flush with the connection establishment, but the subsequent 10 parallel requests will not have enough data to force a flush and will never send their `HEADERS` frame
3. `TEST_MODE=partial-deadlock-many-requests dotnet run --project httpclient`
1. This finishes in ~10 seconds
2. This works because the 10 parallel requests are *always* sending a lot of headers, which causes a flush
3. However, the requests would deadlock if sent individually, as below
4. `TEST_MODE=complete-deadlock-one-request-with-headers dotnet run --project httpclient`
1. This will hang until the connection times out
2. This sends the same mass of headers as in `partial-deadlock-many-requests`, but only sends 1 request, which is not sufficient by itself to cause a flush
5. `TEST_MODE=partial-deadlock-with-half-duplex-requests dotnet run --project httpclient`
1. This finishes in `~50` seconds!!!
2. This "works" because there is a once-per-5-seconds half-duplex request that causes a flush when it's headers send, which forces a flush of all pending frames in front of that
3. The 50 seconds vs 10 seconds shows the impact of the 5 second delay between the half-duplex requests
## Testing HttpClient Fix Locally
1. Open ()[./httpclient/httpclient.csproj]
2. Uncomment `true`
3. Uncomment the `` `ItemGroup` block
4. Fix the path to point to your local release build of `System.Net.Http.dll`
5. Checkout `dotnet/runtime` and build it
1. Switch to the `release/8.0` branch
2. `dotnet build -c Release` once at the repo root
3. Check if `artifacts/bin/System.Net.Http/Release/net8.0-osx` (for example) has a `System.Net.Http.dll` file
4. If the file exists, you can proceed to building/rebuilding only in `src/libraries/System.Net.Http`
6. Run rebuilds only in `src/libraries/System.Net.Http`
1. `cd src/libraries/System.Net.Http`
2. `dotnet build -c Release`
3. Confirm that the timestamp on `System.Net.Http.dll` in `artifacts/bin/System.Net.Http/Release/net8.0-osx` has been updated
7. If you want to be able to set breakpoints in `System.Net.Http` code:
1. Open `src/libraries/System.Net.Http/src/System.Net.Http.csproj`
2. Add `false` to the top ``
3. Rebuild `src/libraries/System.Net.Http`
8. Set breakpoints in this project for files in `src/libraries/System.Net.Http`
1. Copy the absolute path to `src/System/Net/Http/SocketsHttpHandler/Http2Connection.cs`
2. In VS Code, hit Command-P and paste in the path to open the file
3. Set a breakpoint on the first line of `SendHeadersAsync`
4. Start the `httpclient` project using the debug configuration `HttpClient (console)`
5. Confirm that the breakpoint in `SendHeadersAsync` is red (if it's gray the code was changed but the library was not recompiled, or disabling optimization was missed)
# Secondary Issue - Lack of Thread Safety in Kestrel Response
A secondary issue that can be reproduced with this repository is the lack of thread safety that can lead to Kestrel sending a `DATA` frame before a `HEADERS` frame AND not throwing an exception in that case.
Instead only the client throws an exception when it sees the `DATA` frame at a time when it was expecting a `HEADERS` frame. Additionally, `HttpClient` provides only generic info about this as a `HttpProtocolError` under `HttpRequestException` and does not indicate that the `DATA` frame was sent before the `HEADERS` frame, which would make finding the problem easier.
## Take Away
Perhaps the documentation can be improved here to indicate that `HttpResponse` is not thread safe and can lead to data corruption if accessed from multiple threads. It would be nice to have a specific mention of the `DATA` frame being sent before the `HEADERS` frame as a possible result of accessing `HttpResponse` from multiple threads.
## Docs for ASP.NET Core (Kestrel)
- `HttpContext` docs DO indicate that it is not thread safe and note that data can become corrupted if accessed from multiple threads:
- https://learn.microsoft.com/en-us/aspnet/core/fundamentals/use-http-context?view=aspnetcore-8.0
- `HttpResponse` docs DO NOT indicate that it is not thread safe:
- https://learn.microsoft.com/en-us/dotnet/api/microsoft.aspnetcore.http.httpresponse?view=aspnetcore-8.0
- `HttpResponse.StartAsync` docs DO NOT indicate that it is not thread safe:
- https://learn.microsoft.com/en-us/dotnet/api/microsoft.aspnetcore.http.httpresponse.startasync?view=aspnetcore-8.0
## Repro Steps
1. `PROTOCOL_ERROR_TRIGGER=true dotnet run --project server`
2. `TEST_MODE=rippin dotnet run --project httpclient`
3. Wait a few seconds to a few minutes or hours
4. Observe the exception in the `httpclient` terminal
## Exception
```log
TEST_MODE: rippin
Unhandled exception. System.Net.Http.HttpRequestException: The HTTP/2 server sent invalid data on the connection. HTTP/2 error code 'PROTOCOL_ERROR' (0x1). (HttpProtocolError)
---> System.Net.Http.HttpProtocolException: The HTTP/2 server sent invalid data on the connection. HTTP/2 error code 'PROTOCOL_ERROR' (0x1). (HttpProtocolError)
at System.Net.Http.Http2Connection.ThrowRequestAborted(Exception innerException)
at System.Net.Http.Http2Connection.Http2Stream.CheckResponseBodyState()
at System.Net.Http.Http2Connection.Http2Stream.TryEnsureHeaders()
at System.Net.Http.Http2Connection.Http2Stream.ReadResponseHeadersAsync(CancellationToken cancellationToken)
at System.Net.Http.Http2Connection.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
at System.Net.Http.Http2Connection.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
at System.Net.Http.Http2Connection.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
at System.Net.Http.Http2Connection.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
--- End of inner exception stack trace ---
at System.Net.Http.Http2Connection.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
at System.Net.Http.HttpConnectionPool.SendWithVersionDetectionAndRetryAsync(HttpRequestMessage request, Boolean async, Boolean doRequestAuth, CancellationToken cancellationToken)
at System.Net.Http.RedirectHandler.SendAsync(HttpRequestMessage request, Boolean async, CancellationToken cancellationToken)
at System.Net.Http.HttpClient.g__Core|83_0(HttpRequestMessage request, HttpCompletionOption completionOption, CancellationTokenSource cts, Boolean disposeCts, CancellationTokenSource pendingRequestsCts, CancellationToken originalCancellationToken)
at Program.<>c__DisplayClass0_0.<<$>g__HandleSingleRequest|2>d.MoveNext() in /Users/huntharo/pwrdrvr/httpclient-duplex-deadlock/httpclient/Program.cs:line 171
--- End of stack trace from previous location ---
at Program.<>c__DisplayClass0_1.<<$>b__6>d.MoveNext() in /Users/huntharo/pwrdrvr/httpclient-duplex-deadlock/httpclient/Program.cs:line 64
--- End of stack trace from previous location ---
at Program.$(String[] args) in /Users/huntharo/pwrdrvr/httpclient-duplex-deadlock/httpclient/Program.cs:line 110
at Program.(String[] args)
```
