# DraggableView

[![](https://jitpack.io/v/hyuwah/DraggableView.svg)](https://jitpack.io/#hyuwah/DraggableView)



DraggableView is an Android library to make floating draggable view easy.



This library basically wrap your view into DraggableView object, overriding it's onTouchListener and adds some extra utilities

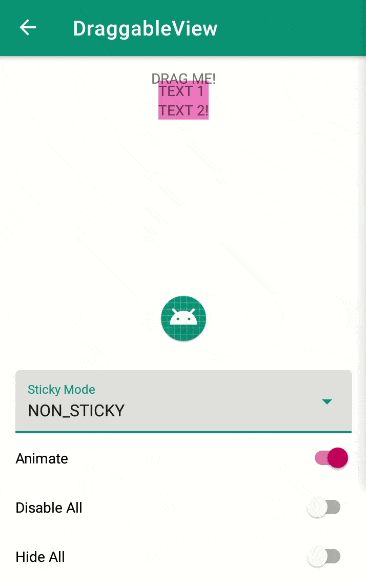

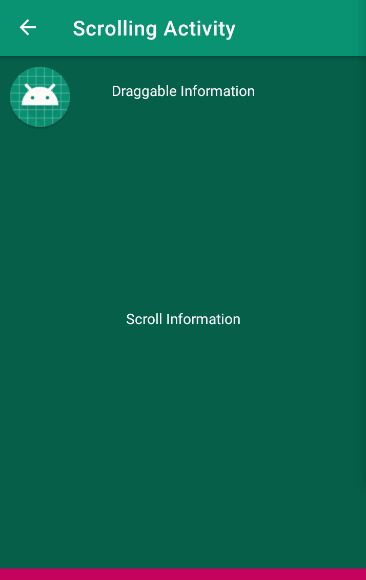

## Preview









## Setup

In your root gradle add dependency to Jitpack:

```gradle

// project build.gradle

allprojects {

    repositories {

        ...

        maven { url 'https://jitpack.io' }

    }

}

```

In you module gradle add dependency to library:

```gradle

// module / app build.gradle

dependencies {

    ...

    implementation 'com.github.hyuwah:DraggableView:LatestVersion'

}

```






Latest Version:











## Contributors










## Documentation



### Basic Usage



```kotlin

// Need to declare draggable view in your activity / fragment

private lateinit var someDraggableView: DraggableView // can be other type of View or ViewGroup



// ... When setting up the view (i.e. onCreate) ...



// assign via DraggableView class

someDraggableView = DraggableView.Builder(someView).build()



// or assign via extensions

someDraggableView = someView.setupDraggable().build() // setupDraggable() returns DraggableView.Builder



// Above code will make `someView` draggable with default settings (Non-sticky / floating)

```



**Builder options**



Options|Parameter|Default|Description

---|---|---|---

`setStickyMode()` | `Draggable.Mode.NON_STICKY`, `Draggable.Mode.STICKY_X`, `Draggable.Mode.STICKY_Y`, `Draggable.Mode.STICKY_XY` | `Draggable.Mode.NON_STICKY` | Set stickiness mode

`setAnimated()` | `true`, `false` | `true` | To animate the sticky movement, doesn't affect `NON_STICKY`

`setListener()` | `null`, `DraggableListener` implementation | `null` | Listener for on view position's changed & on long click



```kotlin

private lateinit var someDraggableView: DraggableView // can be other View or ViewGroup



// ... inside onCreate

// via DraggableView class with builder options

someDraggableView = DraggableView.Builder(someView)

                        .setStickyMode(DraggableView.Mode.NON_STICKY)

                        .setListener(this)

                        .build()

// or via extensions with builder options

someDraggableView = someView.setupDraggable()

                        .setStickyMode(DraggableView.Mode.STICKY_X)

                        .setAnimated(true)

                        .build()



```



**Methods**



Method|Description

---|---

`getView()` | returns the original view

`setViewPosition(x, y)` | programmatically set view position

`enableDrag()` | enable draggable / override the onTouchListener

`disableDrag()` | disable draggable / set the onTouchListener to null

`show(duration)` | show the view with expanding animation (duration default to 300ms if omitted)

`hide(duration)` | hide the view with shrinking animation (duration default to 300ms if omitted)

`dockToEdge()` | dock the view to left or right (only applies to MODE.STICKY_X for now)

`undock()` | undock the view if it's docked



You can still add click listener to your view as usual with `originalView.setOnClickListener` directly to your original view or via `wrappedDraggableView.getView().setOnClickListener`



But for long click listener, you **have to use the `DraggableListener` interface**, as setting `setOnLongClickListener` directly on the view will interfere / might not be working well with the draggable view behavior



**Listener**



```kotlin

private var someDraggableListener = object: DraggableListener {

    override fun onPositionChanged(view: View) {

        // Here you can access x & y of the view while moving

        Log.d(TAG, "X: ${view.x.toString()}, Y: ${view.y.toString()}")

    }

    override fun onLongPress(view: View) {

        // Handle on long click

    }

}



// set the listener when creating the draggable view

someDraggableView = DraggableView.Builder(someView)

    .setListener(someDraggableListener)

    .build()



// or to existing one

anotherDraggableView.listener = someDraggableListener

```



Check example module for actual implementation

- [Basic Example (Kotlin)](https://github.com/hyuwah/DraggableView/blob/master/example/src/main/java/io/github/hyuwah/draggableview/BasicExampleActivity.kt)

- [Basic Example (Java)](https://github.com/hyuwah/DraggableView/blob/master/example/src/main/java/io/github/hyuwah/draggableview/JavaMainActivity.java)

- [Scrolling Activity (Kotlin)](https://github.com/hyuwah/DraggableView/blob/master/example/src/main/java/io/github/hyuwah/draggableview/ScrollingActivity.kt)



### Draggable view over other App (Overlay)



> Tested working on API 25, 28 & 29

> Not working as of now on API 19 (on investigation)



This is the simplest way to setup an overlay draggable view, assuming it will be started from an activity.



It's best to use foreground service for the overlay draggable view



Some notes:

* On the service, implement `OverlayDraggableListener`

* We need to make the view programmatically, here i'm creating a TextView, you can also inflate a layout



```kotlin

class OverlayService : Service(), OverlayDraggableListener {



    private lateinit var overlayView: TextView

    private var isOverlayOn = false

    private var params: WindowManager.LayoutParams? = null

    private lateinit var windowManager: WindowManager



    override fun onBind(intent: Intent): IBinder? {

        return null

    }



    override fun onStartCommand(intent: Intent?, flags: Int, startId: Int): Int {

        isOverlayOn = if(isOverlayOn){

            windowManager.removeViewImmediate(overlayView)

            false

        } else {

            windowManager.addView(overlayView, params)

            true

        }

        return START_NOT_STICKY

    }



    override fun onCreate() {

        super.onCreate()

        windowManager = getSystemService(WINDOW_SERVICE) as WindowManager

        initOverlayView()

    }



    override fun onDestroy() {

        super.onDestroy()

        if(isOverlayOn){

            windowManager.removeViewImmediate(overlayView)

        }

        isOverlayOn = false

    }



    override fun onParamsChanged(updatedParams: WindowManager.LayoutParams) {

        windowManager.updateViewLayout(overlayView, updatedParams)

    }



    private fun initOverlayView() {

        overlayView = TextView(this)

        overlayView.text = "Overlay Text View"

        overlayView.textSize = 32f

        overlayView.setTextColor(Color.rgb(255, 255, 0))

        overlayView.setShadowLayer(10f, 5f, 5f, Color.rgb(56, 56, 56))

        overlayView.setOnClickListener {

            Toast.makeText(this, "Overlay view clicked", Toast.LENGTH_SHORT).show()

        }



        params = overlayView.makeOverlayDraggable(this)



    }

```



You also need to add some permission and define your service in manifest

```xml



    ...







    ...



        ...



        ...





```



Also, before starting the service, you need to check if the device support overlay and required permission



```kotlin

// in Activity



private var isOverlayOn = false // Global flag to toggle start / stop service



// Check draw over other app permission before starting the service

private fun toggleOverlay() {

        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M &&

            !Settings.canDrawOverlays(this)

        ) {

            // Get permission first on Android M & above

            val intent = Intent(

                Settings.ACTION_MANAGE_OVERLAY_PERMISSION,

                Uri.parse("package:$packageName")

            )

            startActivityForResult(intent, 1234)

        } else {

            val i = Intent(this, OverlayService::class.java)

            if (!isOverlayOn) {

                // Show

                startService(i)

            } else {

                // Hide

                stopService(i)

            }

            isOverlayOn = !isOverlayOn

        }

    }

```



Check the example here

- [Activity (Kotlin)](https://github.com/hyuwah/DraggableView/blob/master/example/src/main/java/io/github/hyuwah/draggableview/OverlayDraggableActivity.kt)

- [Service (Kotlin)](https://github.com/hyuwah/DraggableView/blob/master/example/src/main/java/io/github/hyuwah/draggableview/overlay/OverlayService.kt)



## Related Article



* [Implementasi DraggableView di Android (Bahasa)](https://medium.com/@hyuwah/implementasi-draggable-view-di-android-eb84e50fbba9)



## License

**DraggableView** is available under the MIT license. See the [LICENSE](https://github.com/hyuwah/DraggableView/blob/master/LICENSE) file for more info.
