README
Production Engineering Essistant
**AI-Powered Troubleshooting & Decision Support System for Production Engineers**
[](https://www.python.org/)
[](https://streamlit.io/)
[](https://langchain.com/)
[](https://ai.google.dev/)
[](LICENSE)
[Live Demo](https://petro-assistant.streamlit.app/) · [Report Bug](https://github.com/ifulxploit/production-engineering-assistant/issues) · [Request Feature](https://github.com/ifulxploit/production-engineering-assistant/issues)
---
## 📋 Table of Contents
- [About The Project](#-about-the-project)
- [Features](#-features)
- [Tech Stack](#-tech-stack)
- [Architecture](#-architecture)
- [System Flow](#-system-flow)
- [Installation](#-installation)
- [Usage](#-usage)
- [Project Structure](#-project-structure)
- [Screenshots](#-screenshots)
- [Roadmap](#-roadmap)
- [Contributing](#-contributing)
- [License](#-license)
- [Contact](#-contact)
- [Acknowledgments](#-acknowledgments)
---
## 🎯 About The Project
**Production Engineering Assistant (PEA)** adalah aplikasi chatbot berbasis **Large Language Model (LLM)** yang dirancang khusus untuk membantu **Production Engineer**, **mahasiswa Teknik Perminyakan**, dan **Production Supervisor** dalam menganalisis dan troubleshooting masalah produksi sumur migas.
### 🎓 Background
Project ini dikembangkan sebagai **Final Project** untuk program **Maju Bareng AI - Hacktiv8**
Kelas: *LLM-Based Tools and Gemini API Integration for Data Scientists*
### 💡 Why This Project?
Dalam industri minyak dan gas, Production Engineer sering menghadapi berbagai masalah kompleks seperti:
- Penurunan produksi sumur yang drastis
- Water cut yang naik tiba-tiba
- Masalah pada sistem artificial lift (ESP, Gas Lift)
- Flow assurance issues (hydrate, wax, scale)
- Dan banyak lagi...
PEA hadir sebagai **Decision Support Assistant** yang:
- ✅ Menganalisis masalah berdasarkan **Knowledge Base** (PDF teknis)
- ✅ Memberikan kemungkinan penyebab secara terstruktur
- ✅ Menjelaskan alasan engineering di balik setiap masalah
- ✅ Merekomendasikan tindakan troubleshooting yang tepat
- ✅ Menyediakan referensi dari dokumen teknis
**PENTING:** Aplikasi ini **BUKAN** bertujuan menggantikan engineer, melainkan menjadi **asisten cerdas** yang mempercepat proses diagnosis dan pengambilan keputusan.
---
## ✨ Features
### 🤖 Core Features
| Feature | Description |
|---------|-------------|
| **🧠 AI-Powered Analysis** | Menggunakan Gemini 2.5 Flash untuk analisis masalah yang cerdas dan kontekstual |
| **📚 RAG Pipeline** | Retrieval-Augmented Generation dengan FAISS untuk jawaban berbasis dokumen |
| **💬 Conversation Memory** | AI mengingat konteks percakapan untuk follow-up questions |
| **📄 PDF Knowledge Base** | Upload dan proses dokumen PDF sebagai sumber pengetahuan |
| **🎯 Structured Response** | Format jawaban profesional: Problem → Causes → Explanation → Action |
### 🎨 UI/UX Features
| Feature | Description |
|---------|-------------|
| **🎨 Modern Dark Theme** | Desain modern dengan gradient purple & cyan |
| **💡 Click-to-Ask Chips** | Suggestion questions yang bisa diklik langsung |
| **👤 Personal Branding** | Profile card dengan foto dan informasi developer |
| **🔗 Social Media Links** | Quick access ke GitHub, LinkedIn, Instagram |
| **🗑️ Reset Chat** | Tombol untuk memulai sesi troubleshooting baru |
| **📱 Responsive Design** | Tampilan optimal di desktop dan mobile |
### 🛠️ Technical Features
| Feature | Description |
|---------|-------------|
| **🔒 Secure API Key** | Environment variables untuk keamanan API key |
| **📊 Logging System** | Centralized logging untuk debugging dan monitoring |
| **⚡ Auto-Build Vector DB** | FAISS database otomatis dibangun saat pertama kali run |
| **🔄 Modular Architecture** | Kode terstruktur dengan separation of concerns |
| **🎯 Type Hints** | Python type hints untuk code quality |
---
## 🛠️ Tech Stack
### Core Technologies
- **Language:** Python 3.10+
- **UI Framework:** Streamlit 1.30+
- **LLM:** Google Gemini 2.5 Flash
- **Orchestration:** LangChain 0.2+
- **Vector Database:** FAISS
- **Embeddings:** Sentence Transformers (all-MiniLM-L6-v2)
- **Document Loader:** PyPDF
### Libraries & Tools
```
streamlit>=1.30.0
langchain>=0.2.0
langchain-google-genai>=1.0.0
langchain-community>=0.2.0
langchain-huggingface>=0.1.0
faiss-cpu>=1.8.0
sentence-transformers>=2.7.0
pypdf>=4.0.0
python-dotenv>=1.0.0
pydantic>=2.0.0
pydantic-settings>=2.0.0
```
---
## 🏗️ Architecture
```
┌─────────────────────────────────────────────────────────────┐
│ USER INTERFACE │
│ (Streamlit Web App) │
└────────────────────────┬────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────┐
│ ORCHESTRATION LAYER │
│ (LangChain Framework) │
└────────────────────────┬────────────────────────────────────┘
│
┌──────────────┴──────────────┐
│ │
▼ ▼
┌──────────────────┐ ┌──────────────────┐
│ LLM ENGINE │ │ RAG PIPELINE │
│ (Gemini API) │ │ │
│ │ │ ┌────────────┐ │
│ - Chat Model │ │ │ Retriever │ │
│ - Temperature │ │ │ (FAISS) │ │
│ - Max Tokens │ │ └─────┬──────┘ │
└──────────────────┘ │ │ │
│ ▼ │
│ ┌────────────┐ │
│ │ Embedding │ │
│ │ Model │ │
│ └─────┬──────┘ │
│ │ │
│ ▼ │
│ ┌────────────┐ │
│ │ Vector │ │
│ │ Database │ │
│ └────────────┘ │
└──────────────────┘
│
▼
┌──────────────────┐
│ KNOWLEDGE BASE │
│ (PDF Files) │
└──────────────────┘
```
### Component Description

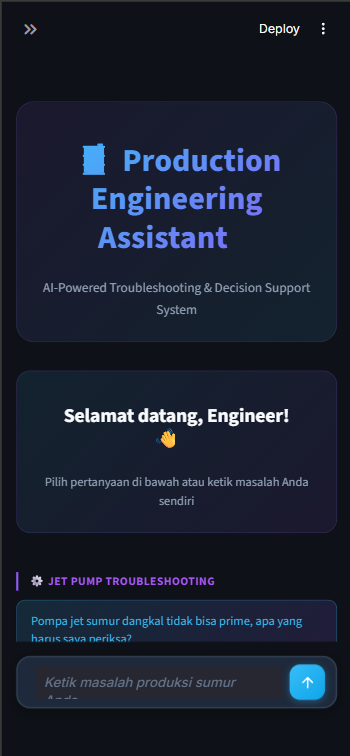

1. **User Interface (Streamlit)**
- Chat interface dengan modern UI/UX

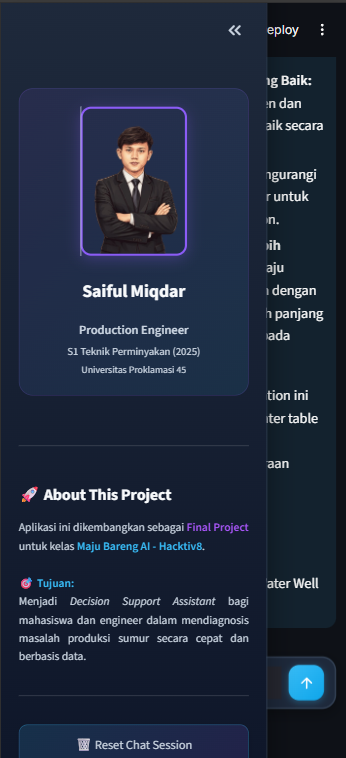

- Sidebar dengan personal branding
- Suggestion chips untuk quick questions
2. **Orchestration Layer (LangChain)**
- Menghubungkan semua komponen
- Mengelola conversation flow
- Handling RAG pipeline
3. **LLM Engine (Gemini 2.5 Flash)**
- Model bahasa besar dari Google
- Temperature rendah (0.2) untuk akurasi
- Max tokens 2048 untuk respons detail
4. **RAG Pipeline**
- **Retriever:** Mencari dokumen relevan dari FAISS
- **Embedding Model:** Sentence Transformers untuk vectorization
- **Vector Database:** FAISS untuk similarity search
5. **Knowledge Base**
- PDF documents (Well Troubleshooting, ESP Manual, dll)
- Chunking strategy: 1000 characters, 200 overlap
- Stored as vectors in FAISS
---
## 🔄 System Flow
### Pseudocode: How PEA Works
```python
# ============================================
# MAIN APPLICATION FLOW
# ============================================
def main():
# 1. INITIALIZATION
load_environment_variables() # Load .env (API keys)
initialize_logger() # Setup logging
check_vector_db_exists() # Check if FAISS DB exists
if not vector_db_exists:
build_knowledge_base() # Build FAISS from PDFs
# 2. USER INTERACTION LOOP
while True:
user_input = get_user_input() # Get question from UI
# 3. RETRIEVAL PHASE (RAG)
relevant_docs = retrieve_from_faiss(user_input)
# - Convert question to vector using Sentence Transformers
# - Search FAISS for top 4 similar chunks
# - Return document chunks with metadata
# 4. CONTEXT BUILDING
context = format_documents(relevant_docs)
# - Combine chunks into single context string
# - Add metadata (source, page number)
# 5. PROMPT CONSTRUCTION
system_prompt = build_system_prompt(context)
# - Include professional response format
# - Inject retrieved context
# - Add conversation history (memory)
# 6. LLM INFERENCE
response = call_gemini_api(system_prompt)
# - Send prompt to Gemini 2.5 Flash
# - Get structured response
# - Temperature: 0.2 (factual, not creative)
# 7. RESPONSE DISPLAY
display_response(response)
# - Render in chat interface
# - Format with markdown
# - Show references if available
# 8. MEMORY UPDATE
save_to_conversation_history(user_input, response)
# - Store in session state
# - Enable follow-up questions
# ============================================
# KNOWLEDGE BASE BUILDING (One-time Setup)
# ============================================
def build_knowledge_base():
# 1. LOAD PDFs
documents = load_pdfs_from_directory("knowledge/pdf/")
# - Read all PDF files
# - Extract text from each page
# 2. CHUNKING
chunks = split_documents(documents, chunk_size=1000, overlap=200)
# - Split long documents into smaller chunks
# - Overlap to maintain context
# 3. EMBEDDING
vectors = embed_chunks(chunks, model="all-MiniLM-L6-v2")
# - Convert text chunks to vector embeddings
# - Each chunk → 384-dimensional vector
# 4. STORE IN FAISS
faiss_index = create_faiss_index(vectors)
save_faiss_index(faiss_index, "knowledge/vector_db/")
# - Build FAISS index for fast similarity search
# - Save to disk for persistence
# ============================================
# RETRIEVAL PROCESS
# ============================================
def retrieve_from_faiss(query):
# 1. EMBED QUERY
query_vector = embed_text(query, model="all-MiniLM-L6-v2")
# 2. SIMILARITY SEARCH
top_k_chunks = faiss_index.search(query_vector, k=4)
# - Find 4 most similar chunks
# - Return chunks with similarity scores
# 3. RETURN DOCUMENTS
return top_k_chunks
# ============================================
# PROFESSIONAL RESPONSE FORMAT
# ============================================
PROFESSIONAL_RESPONSE_FORMAT = """
**Problem Summary**
[Rangkuman masalah 1-2 kalimat]
**Possible Causes**
- Penyebab 1
- Penyebab 2
- Penyebab 3
**Engineering Explanation**
[Penjelasan teknis mendalam]
**Recommended Inspection**
- Inspeksi 1
- Inspeksi 2
**Recommended Action**
- Tindakan 1
- Tindakan 2
**Additional Notes**
[Peringatan keselamatan, dll]
**References**
[Rujukan dari Knowledge Base]
"""
```
### Flow Diagram
```
User Question
│
▼
┌─────────────────┐
│ Embed Query │ ← Sentence Transformers
└────────┬────────┘
│
▼
┌─────────────────┐
│ Search FAISS │ ← Top 4 Similar Chunks
└────────┬────────┘
│
▼
┌─────────────────┐
│ Build Context │ ← Combine Chunks
└────────┬────────┘
│
▼
┌─────────────────┐
│ Construct │ ← System Prompt + Context + History
│ Prompt │
└────────┬────────┘
│
▼
┌─────────────────┐
│ Call Gemini │ ← Gemini 2.5 Flash API
│ API │
└────────┬────────┘
│
▼
┌─────────────────┐
│ Display │ ← Streamlit UI
│ Response │
└─────────────────┘
```
---
## 📦 Installation
### Prerequisites
- Python 3.10 or higher
- Git
- Google Gemini API Key ([Get it here](https://aistudio.google.com/apikey))
### Step-by-Step Installation
#### 1. Clone Repository
```bash
git clone https://github.com/ifulxploit/production-engineering-assistant.git
cd production-engineering-assistant
```
#### 2. Create Virtual Environment
**Windows:**
```bash
python -m venv venv
venv\Scripts\activate
```
**macOS/Linux:**
```bash
python3 -m venv venv
source venv/bin/activate
```
#### 3. Install Dependencies
```bash
pip install -r requirements.txt
```
#### 4. Setup Environment Variables
Create a `.env` file in the root directory:
```bash
# Windows
copy .env.example .env
# macOS/Linux
cp .env.example .env
```
Edit `.env` and add your Gemini API key:
```env
GOOGLE_API_KEY=your_gemini_api_key_here
```
> **⚠️ IMPORTANT:** Never commit `.env` file to Git! It's already in `.gitignore`.
#### 5. Add PDF Documents
Place your PDF documents in the `knowledge/pdf/` folder:
```bash
# Example PDFs to add:
# - Well_Troubleshooting_Guide.pdf
# - ESP_Manual.pdf
# - Artificial_Lift_Handbook.pdf
```
**Supported PDF Topics:**
- Well Troubleshooting
- Artificial Lift Systems (ESP, Gas Lift, Beam Pump)
- Flow Assurance
- Well Testing & Analysis
- Production Optimization
#### 6. Run the Application
```bash
streamlit run app.py
```
The application will:
1. ✅ Check if Vector DB exists
2. ✅ Build FAISS database from PDFs (first time only)
3. ✅ Start Streamlit server
4. ✅ Open browser at `http://localhost:8501`
---
## 🚀 Usage
### Basic Usage
1. **Open the application** in your browser (auto-opened after `streamlit run`)
2. **Ask a question** in the chat input:
```
Produksi sumur minyak saya turun 30% dalam seminggu, apa yang harus saya lakukan?
```

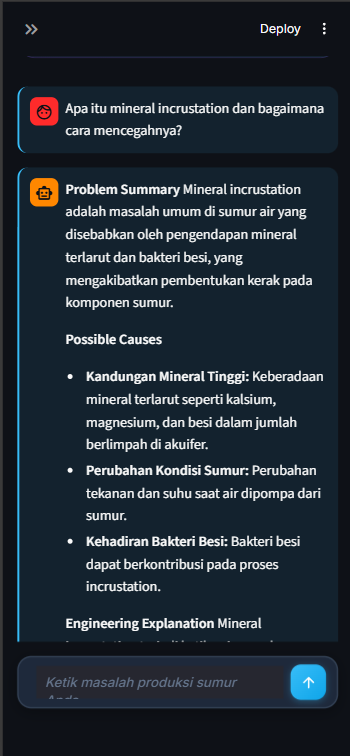

3. **Get structured response** with:
- Problem Summary
- Possible Causes
- Engineering Explanation
- Recommended Inspection
- Recommended Action
- References

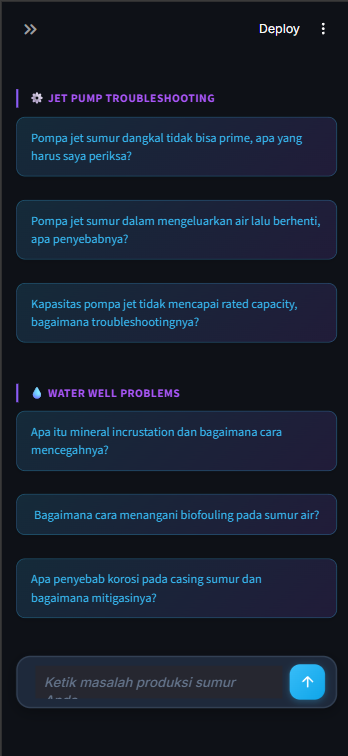

4. **Click suggestion chips** for quick questions:
- 💧 Water Cut Naik Drastis
- ⚙️ ESP Underload
- 📉 Penurunan Tekanan Reservoir
5. **Follow-up questions** (AI remembers context):
```
Jelaskan lebih detail tentang penyebab pertama yang kamu sebutkan.
```
6. **Reset chat** when needed:
- Click "🗑️ Reset Chat Session" in sidebar
### Example Questions
#### Well Troubleshooting
```
Water cut naik dari 20% menjadi 60%, apa penyebabnya?
```
#### Artificial Lift
```
ESP mengalami underload, apa langkah troubleshootingnya?
```
#### Flow Assurance
```
Terjadi hydrate blockage di flowline, bagaimana cara mengatasinya?
```
#### Well Testing
```
Bagaimana cara melakukan Pressure Buildup Test (PBU)?
```
---
## 📂 Project Structure
```
production-engineering-assistant/
│
├── app.py # Main Streamlit application
├── requirements.txt # Python dependencies
├── .env # Environment variables (NOT in Git)
├── .env.example # Template for .env
├── .gitignore # Git ignore rules
├── README.md # This file
│
├── config/ # Configuration files
│ ├── __init__.py
│ ├── settings.py # App settings (API, LLM params)
│ ├── prompt.py # System prompts
│ └── constants.py # Constants & format templates
│
├── core/ # Core business logic
│ ├── __init__.py
│ ├── llm.py # Gemini API integration
│ ├── chatbot.py # Chat logic & RAG chain
│ ├── rag.py # RAG pipeline (PDF → FAISS)
│ ├── retriever.py # FAISS retriever
│ ├── memory.py # Conversation memory
│ └── formatter.py # Response formatting
│
├── knowledge/ # Knowledge base
│ ├── pdf/ # PDF documents (input)
│ │ ├── well_troubleshooting.pdf
│ │ ├── esp_manual.pdf
│ │ └── ...
│ └── vector_db/ # FAISS index (auto-generated)
│ ├── index.faiss
│ └── index.pkl
│
├── utils/ # Utility functions
│ ├── __init__.py
│ ├── helpers.py # Helper functions
│ └── logger.py # Logging configuration
│
├── data/ # Data files
│ └── sample_questions.json # Suggestion questions
│
├── assets/ # Static assets
│ ├── profile.png # Developer photo
│ └── logo.png # App logo
│
└── docs/ # Documentation
├── architecture.md
├── roadmap.md
└── prompt-design.md
```
---
## 📸 Screenshots
### Main Chat Interface
### Suggestion Chips
### Professional Response Format
### Sidebar with Personal Branding
---
## 🗺️ Roadmap
### ✅ Completed (v1.0)
- [x] Basic chatbot with Gemini API
- [x] Conversation memory
- [x] Professional prompt engineering
- [x] PDF knowledge base (RAG)
- [x] FAISS vector database
- [x] Modern UI/UX with purple/cyan theme
- [x] Click-to-ask suggestion chips
- [x] Personal branding in sidebar
- [x] Social media links
- [x] Centralized logging system
- [x] Auto-build vector DB
### 🚧 Future Enhancements (v2.0)
- [ ] **Engineering Calculator**
- Nodal Analysis calculator
- PIPESIM integration
- Well performance calculator
- [ ] **Advanced Features**
- Excel upload for production data
- Production dashboard analytics
- Multi-agent system
- Voice assistant
- [ ] **Integration**
- SCADA integration
- Real-time data monitoring
- Well report generator
- [ ] **Deployment**
- Azure deployment
- API service
- Docker containerization
See the [open issues](https://github.com/ifulxploit/production-engineering-assistant/issues) for a full list of proposed features.
---
## 🤝 Contributing
Contributions are what make the open source community such an amazing place to learn, inspire, and create. Any contributions you make are **greatly appreciated**.
If you have a suggestion that would make this better, please fork the repo and create a pull request. You can also simply open an issue with the tag "enhancement".
1. Fork the Project
2. Create your Feature Branch (`git checkout -b feature/AmazingFeature`)
3. Commit your Changes (`git commit -m 'Add some AmazingFeature'`)
4. Push to the Branch (`git push origin feature/AmazingFeature`)
5. Open a Pull Request
---
## 📄 License
Distributed under the MIT License. See `LICENSE` for more information.
---
## 📧 Contact
**Saiful Miqdar**
Production Engineer | S1 Teknik Perminyakan (2025)
Universitas Proklamasi 45
- 📧 Email: [miqdarsaiful@gmail.com](mailto:miqdarsaiful@gmail.com)
- 💼 LinkedIn: [Saiful Miqdar](https://www.linkedin.com/in/saiful-miqdar-7050511b1/)
- 🐙 GitHub: [@ifulxploit](https://github.com/ifulxploit)
- 📷 Instagram: [@saiful_miqdar](https://www.instagram.com/saiful_miqdar)
Project Link: [https://github.com/ifulxploit/production-engineering-assistant](https://github.com/ifulxploit/production-engineering-assistant)
---
## 🙏 Acknowledgments
- [Hacktiv8 Indonesia](https://hacktiv8.com/) - Maju Bareng AI Program
- [Google Gemini API](https://ai.google.dev/) - LLM Provider
- [LangChain](https://langchain.com/) - LLM Orchestration Framework
- [Streamlit](https://streamlit.io/) - Web App Framework
- [FAISS](https://faiss.ai/) - Vector Database
- [Sentence Transformers](https://www.sbert.net/) - Embedding Models
- [SVG Repo](https://www.svgrepo.com/) - Icons
---
**⭐ If you find this project useful, please consider giving it a star! ⭐**
Made with ❤️ by **Saiful Miqdar**
*Production Engineering Assistant - Empowering Engineers with AI*
