# Subgraph Isomorphism
❄Implement the common subgraph isomorphism algorithms (i.e. Ullmann, VF2) based on `MapReduce` on `Hadoop`.
More information, please see [wiki](https://github.com/InnoFang/subgraph-isomorphism/wiki)
More usage, please see test cases:
+ [GraphReaderTest](https://github.com/InnoFang/subgraph-isomorphism/blob/master/src/test/java/io/github/innofang/graph/GraphReaderTest.java)
+ [UllmannTest](https://github.com/InnoFang/subgraph-isomorphism/blob/master/src/test/java/io/github/innofang/lib/UllmannTest.java)
+ [VF2Test](https://github.com/InnoFang/subgraph-isomorphism/blob/master/src/test/java/io/github/innofang/lib/VF2Test.java)
[Download](https://github.com/InnoFang/subgraph-isomorphism/releases) jar files for a try!
## What's subgraph isomorphism problem?
In theoretical computer science, the subgraph isomorphism problem is a computational task in which two graphs G and H are given as input, and one must determine whether G contains a subgraph that is isomorphic to H.

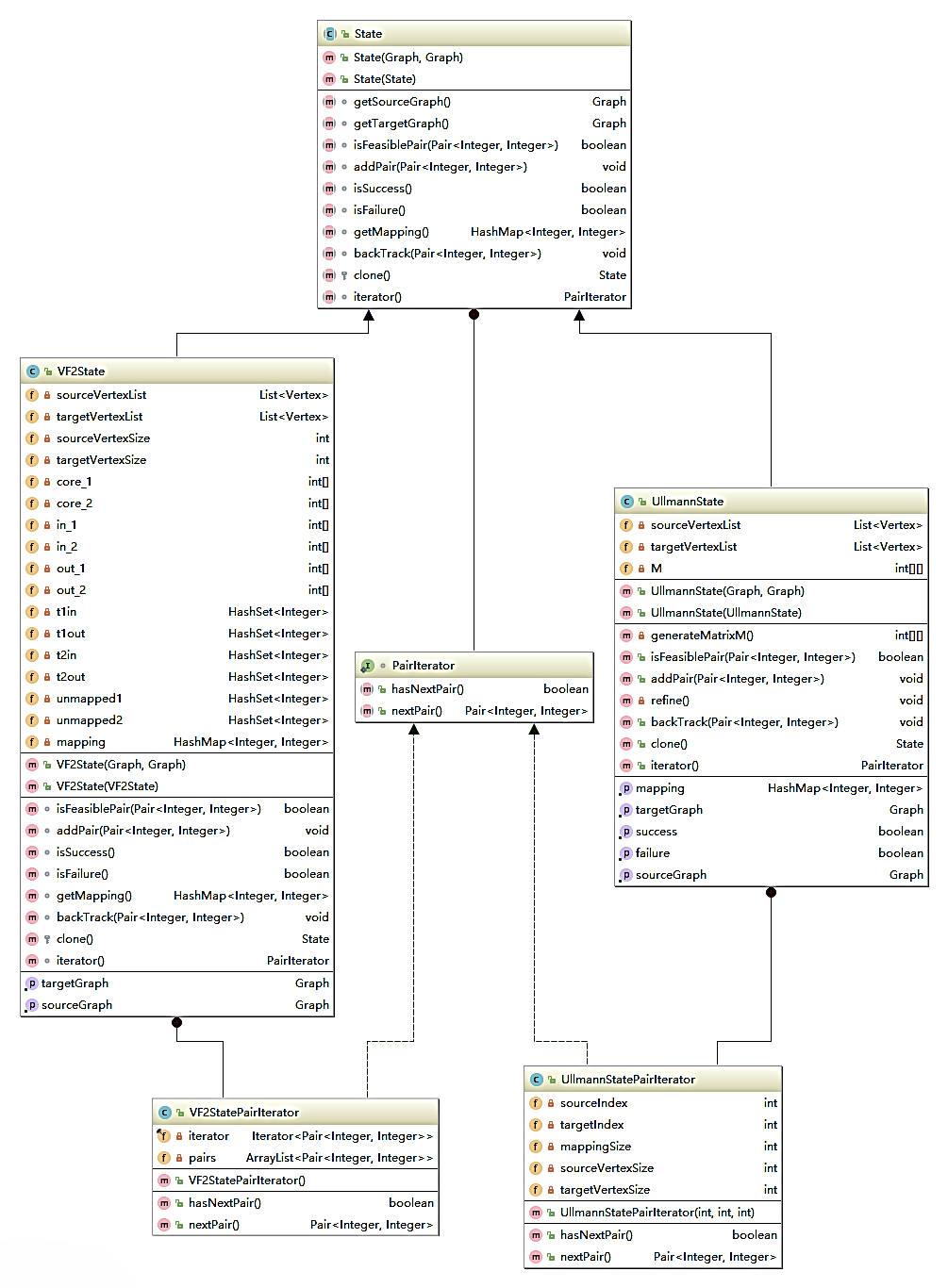

## the UML of Implementation of SubGraph Isomorphism Algorithms
the encapsulation and optimization of the Ullmann algorithm and the VF2 algorithm are carried out. The UML as follow:

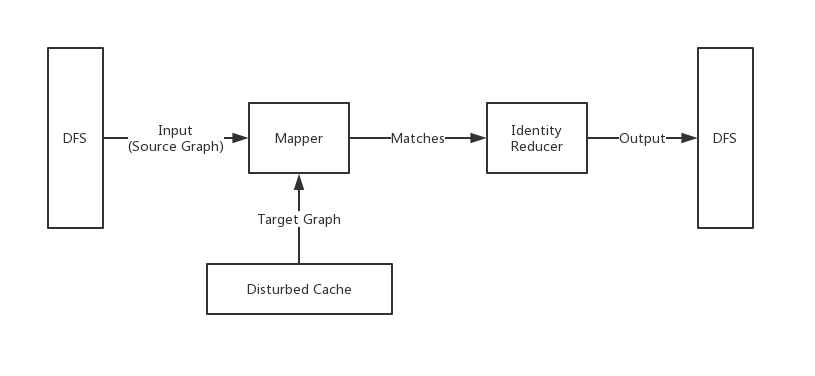

## Flow Diagram of the MapReduce Process
## Reference & Bibliography
+ Wikipedia contributors. (2018, October 13). Subgraph isomorphism problem. In Wikipedia, The Free Encyclopedia. Retrieved 09:12, April 8, 2019, from https://en.wikipedia.org/w/index.php?title=Subgraph_isomorphism_problem&oldid=863918223
+ Ullmann J R. An algorithm for subgraph isomorphism[J]. Journal of the ACM (JACM), 1976, 23(1): 31-42. [link](https://www.cs.bgu.ac.il/~dinitz/Course/SS-12/Ullman_Algorithm.pdf)
+ Cordella L P, Foggia P and Sansone C. A (sub)graph isomorphism algorithm for matching large graphs[J]. IEEE PAMI, 2004, 26(10):1367–1372. [link](https://ieeexplore.ieee.org/document/1323804?arnumber=1323804&tag=1)
+ Ashish Sharma, Santosh Bahir, Sushant Narsale, Unmil Tambe, "A Parallel Algorithm for Finding Sub-graph Isomorphism", CS420-ProjectReport (www.cs.jhu.edu/~snarsal/CS420-ProjectReport.pdf), CS420: Parallel Programming. Fall 2008.
