# Particle Image Velocimetry Demonstration

Simple Particle Image Velocimetry algorithm demo based on zero-mean cross correlation.

## Description

### 1/ Images generation

N gaussian particles are located randomly in the first frame. We applied an Affine transformation to the first frame to generate the second one. Gaussian noise is added.

### 2/ PIV

Frames are subdivided in smaller region of interest (ROI). We compute the zero-mean cross correlation (ZMCC) with Fast Fourier Transform on each ROI two by two (ROI_frame_1, ROI_frame_2). The displacement is estimated by finding the location of the maximum in the result of the ZMCC.

## Example of motions

We tested different motions :

#### [1] Shearing

#### [2] Translation

#### [3] Rotation

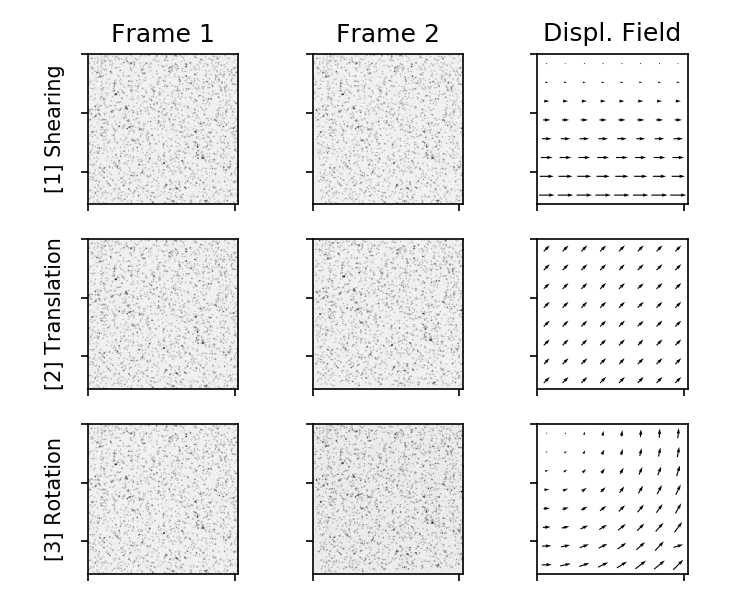

![alt amplitude spectrums](https://raw.githubusercontent.com/j-colas/piv_demo/master/result_piv.png)
