# Dot Net & CQRS
CQRS Pattern & Clean Architecture Design In Dot Net 6.0 based Api Project with Test units in xUnit tool & Duende Identity Server with Two Factor Authentication & RabbitMQ
**Command Query Responsibility Segregation (CQRS)** is a design pattern that segregates read and write operations for a data store into separate data models. This approach allows each model to be optimized independently and can improve the performance, scalability, and security of an application.

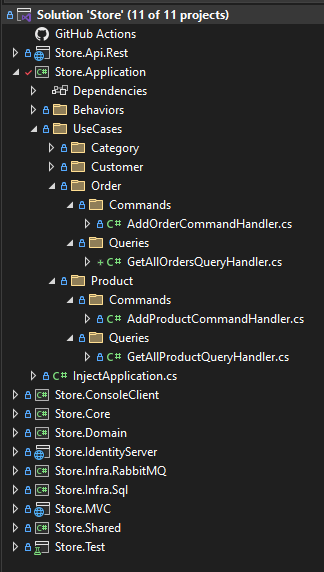

# Project Structure :
**Clean Architecture** is an architecture pattern aimed at building applications that we can maintain, scale, and test easily.
It achieves this by separating the application into different layers that have distinct responsibilities:
**Domain** Layer – The domain layer represents the application’s core business rules and entities. This is the innermost layer and should not have any external dependencies.
**Application** Layer – The application layer sits just outside the domain layer and acts as an intermediary between the domain layer and other layers. In other words, it contains the use cases of the application and we expose the core business rules of the domain layer through the application layer. This layer depends just on the domain layer.
**Infrastructure** Layer – We implement all the external services like databases, Queues, file storage, emails, etc. in the infrastructure layer. It contains the implementations of the interfaces defined in the domain layer.
**Presentation** Layer – The presentation layer handles the user interactions and fetches data to the user interface.

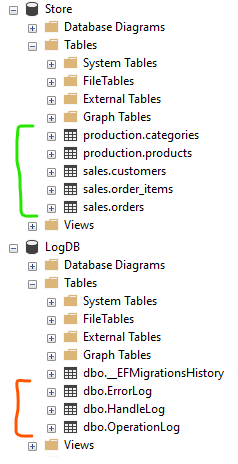

# Databases :
You can create the databases from scripts placed inside **Store.Infra.Sql** project :
```
StoreDatabaseScript.sql
LogDbDatabaseScript.sql
```

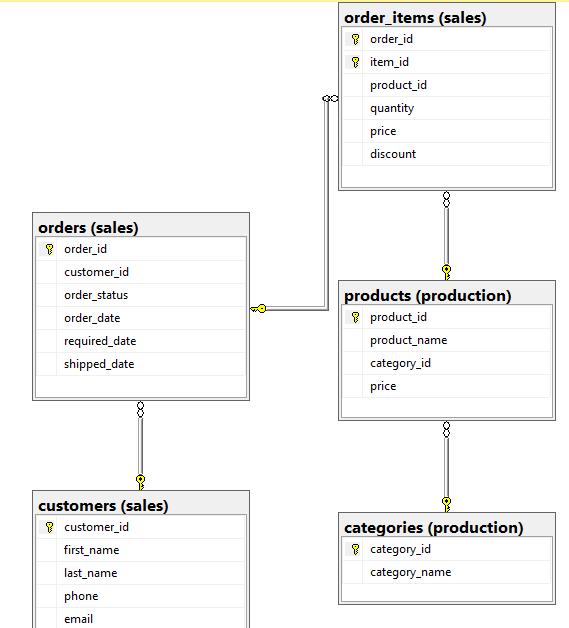

# ERD

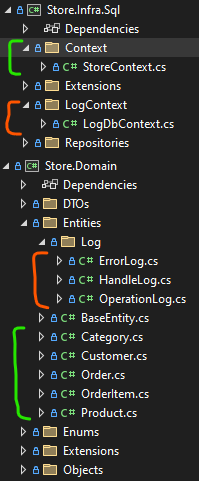

Run Line below inside **Store.Infra.Sql** project to generate the **StoreContext** :
```
Scaffold-DbContext "Data Source=.;Initial Catalog=Store;Integrated Security=True;TrustServerCertificate=True" Microsoft.EntityFrameworkCore.SqlServer -OutputDir Context -Force
```
For the **LogDbContext** :
```
Scaffold-DbContext "Data Source=.;Initial Catalog=LogDB;Integrated Security=True;TrustServerCertificate=True" Microsoft.EntityFrameworkCore.SqlServer -OutputDir LogContext -Force
```

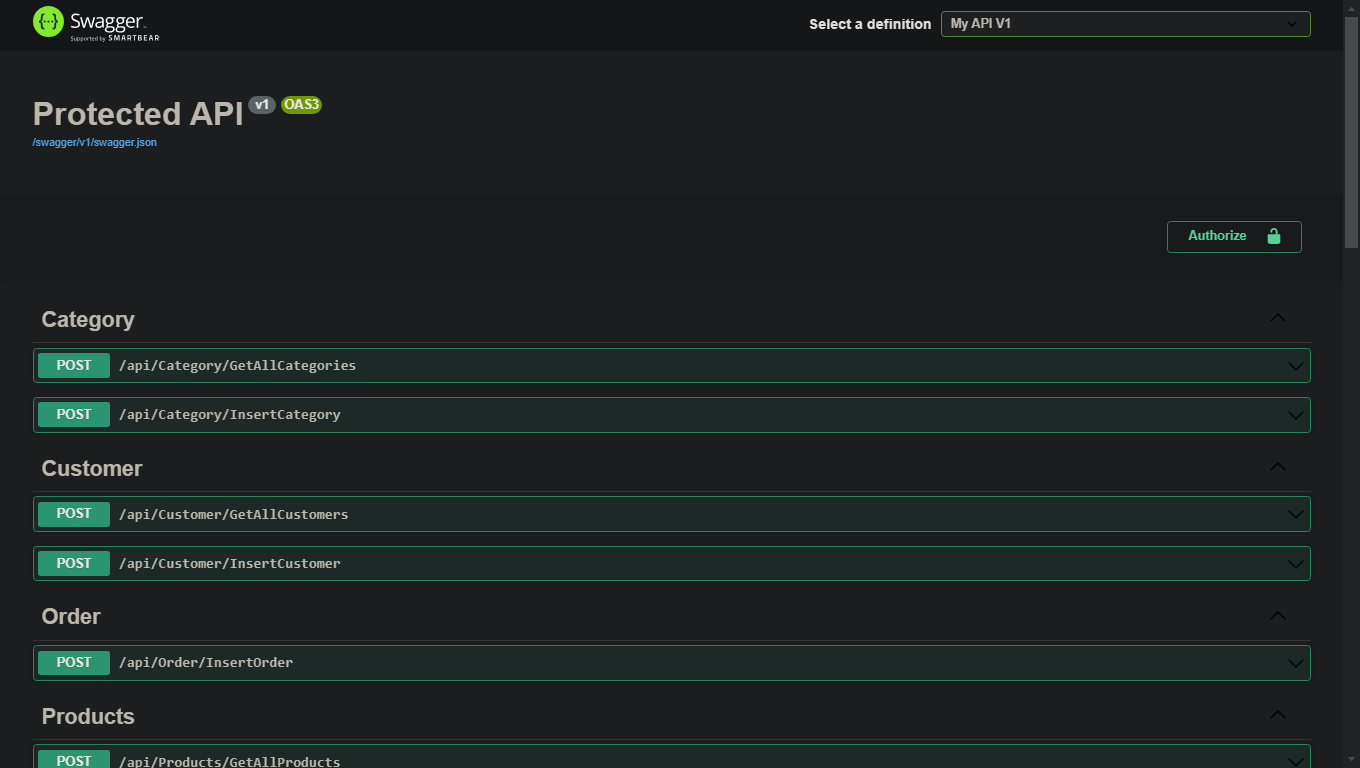

# Rest Apis Swagger page :
Simplify API development with open-source and professional tools, built to help you and your team efficiently design and document APIs at scale.
# Order Command Handler Code (for e.g.):
```
public class AddOrderCommandDto
{
public int? CustomerId { get; set; }
public byte OrderStatus { get; set; }
public DateTime OrderDate { get; set; }
public DateTime RequiredDate { get; set; }
public DateTime? ShippedDate { get; set; }
public List Items { get; set; } = new List();
}
public class Items
{
public int ProductId { get; set; }
public int Quantity { get; set; }
public decimal Price { get; set; }
public decimal Discount { get; set; }
}
```
```
public record AddOrderCommand(AddOrderCommandDto AddDto) : IRequest>
{
}
```
```
public class OrderRepository : Repository, IOrderRepository
{
private readonly StoreContext _context;
private readonly IRepository _repo;
private readonly IMapper _mapper;
public OrderRepository(StoreContext context,
IRepository repo, IMapper mapper) : base(context)
{
_context = context;
_repo = repo;
_mapper = mapper;
}
public async Task CreateAsync(Order data)
{
_context.Add(data);
_context.SaveChanges();
return data;
}
}
```
```
public class AddOrderCommandHandler : IRequestHandler>
{
private readonly IOrderRepository orderRepository;
private readonly IMapper mapper;
public AddOrderCommandHandler(IOrderRepository orderRepository, IMapper mapper)
{
this.orderRepository = orderRepository;
this.mapper = mapper;
}
public async Task> Handle(AddOrderCommand request, CancellationToken cancellationToken)
{
var dto = request.AddDto;
List orderItems = new List();
int i = 0;
foreach (var item in dto.Items)
{
i++;
orderItems.Add(new Domain.OrderItem
{
Discount = item.Discount,
Price = item.Price,
ProductId = item.ProductId,
Quantity = item.Quantity,
ItemId = i
});
}
Domain.Order order = new()
{
CustomerId = dto.CustomerId,
OrderDate = dto.OrderDate,
RequiredDate = dto.RequiredDate,
ShippedDate = dto.ShippedDate,
OrderStatus = dto.OrderStatus,
OrderItems = orderItems
};
await orderRepository.CreateAsync(order);
// Send order event success action message to RabbitMQ ...
Producer.Produce($"Order with number {order.OrderId} created for customer number {order.CustomerId}");
return ResultDto.ReturnData(Unit.Value, (int)EnumResponseStatus.OK, (int)EnumResultCode.Success, EnumResultCode.Success.GetDisplayName());
}
}
```
```
public class BaseController : Controller
{
private IMediator mediator;
protected IMediator Mediator => mediator ??= HttpContext.RequestServices.GetService();
}
```
```
[Route("api/[controller]")]
[ApiController]
public class OrderController : BaseController
{
[AllowAnonymous]
[HttpPost("InsertOrder")]
public async Task> InsertOrder(AddOrderCommand command, CancellationToken cancellationToken) => await Mediator.Send(command, cancellationToken);
}
```

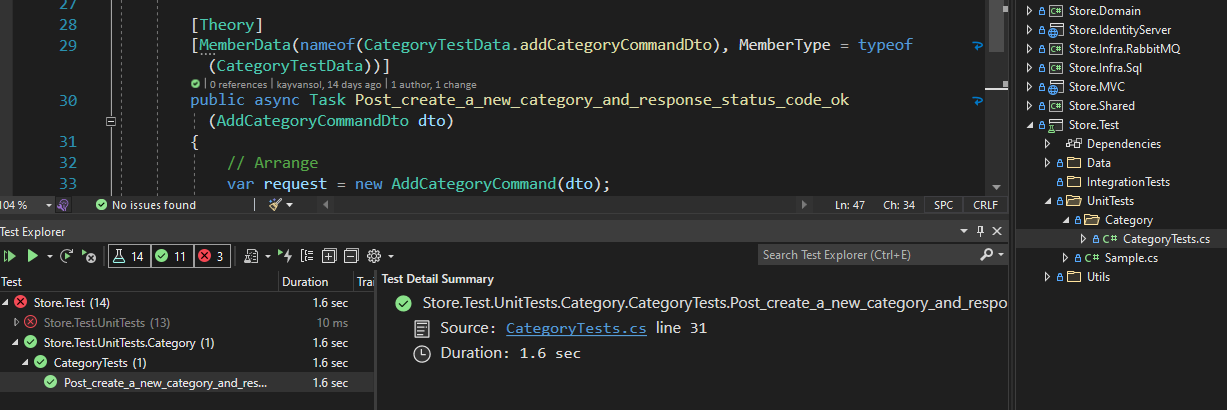

# Test Class with xUnit :
**xUnit** is a free, open source, community-focused unit testing tool for the .NET Framework.
```
public class CategoryTestData
{
public static IEnumerable addCategoryCommandDto()
{
List data = new List();
AddCategoryCommandDto[] adds = new AddCategoryCommandDto[1];
adds[0] = new AddCategoryCommandDto()
{
CategoryName = "Dell G9 Server"
};
data.Add(adds);
return data;
}
}
```
```
public class CategoryTests : IDisposable
{
private readonly ICategoryRepository _repository;
private readonly AddCategoryCommandHandler _handler;
private readonly Repository _repo;
private readonly StoreContext _context;
private readonly IMapper _mapper;
public CategoryTests()
{
_mapper = GetServices.GetMapper();
_context = GetServices.GetStoreContext();
_repo = new Repository(_context);
_repository = new CategoryRepository(_context, _repo, _mapper);
_handler = new AddCategoryCommandHandler(_repository, _mapper);
}
[Theory]
[MemberData(nameof(CategoryTestData.addCategoryCommandDto), MemberType = typeof(CategoryTestData))]
public async Task Post_create_a_new_category_and_response_status_code_ok(AddCategoryCommandDto dto)
{
// Arrange
var request = new AddCategoryCommand(dto);
var token = new CancellationToken(false);
// Act
var result = await _handler.Handle(request, token);
// Assert
result.StatusCode.Should().Be((int)HttpStatusCode.OK);
result.Data.Should().NotBeNull();
}
public void Dispose()
{
_repo.Dispose();
_context.Dispose();
}
}
```
# Single Sign On (SSO) with Duende Identity Server :
The most flexible and standards-compliant **OpenID Connect** and **OAuth 2.0** framework for ASP.NET Core.
**Migrations** to use SQL Server for User Registeration and Login process :
```
add-Migration init -Context ApplicationDbContext
Update-Database -Context ApplicationDbContext
add-Migration init -Context ConfigurationDbContext
Update-Database -Context ConfigurationDbContext
add-Migration init -Context PersistedGrantDbContext
Update-Database -Context PersistedGrantDbContext
```
Running line below inside ConfigurePipeline at HostingExtensions.cs to insert some initial data in the identity database :
```
InitializeDbTestData(app);
```

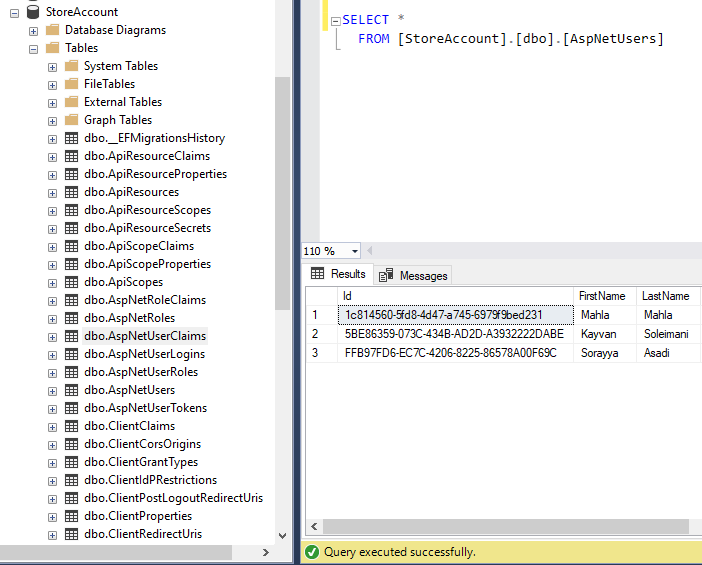

**Identity DataBase** :
**Register a new User** :

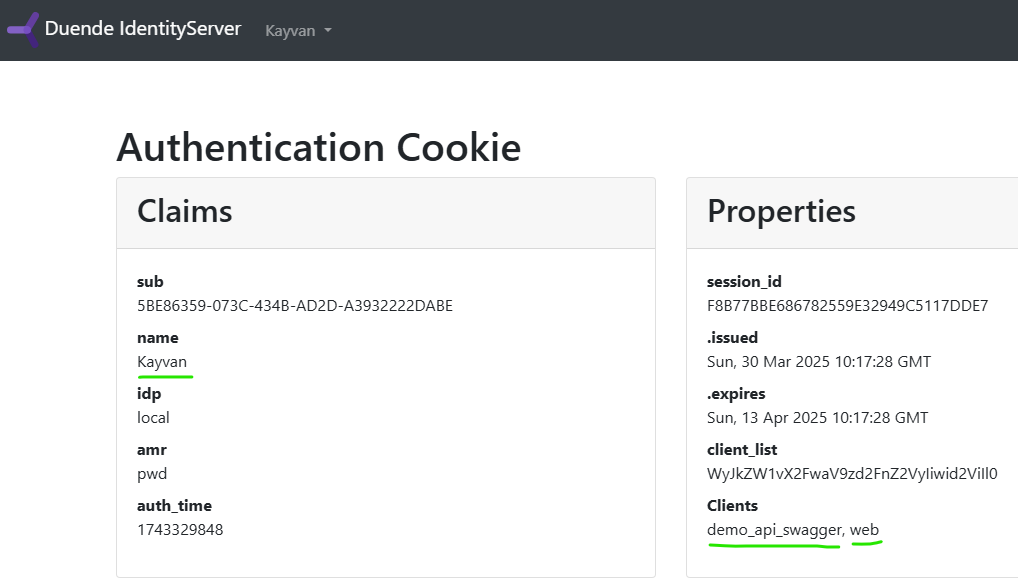

**Login** :

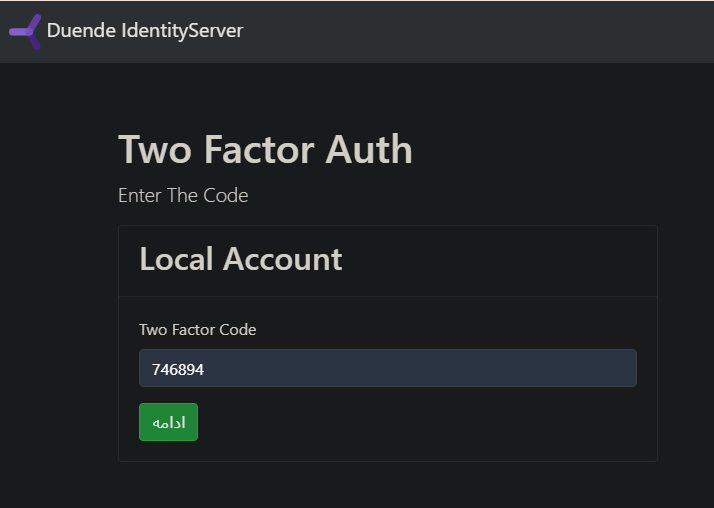

**Two Factor Authentication** :

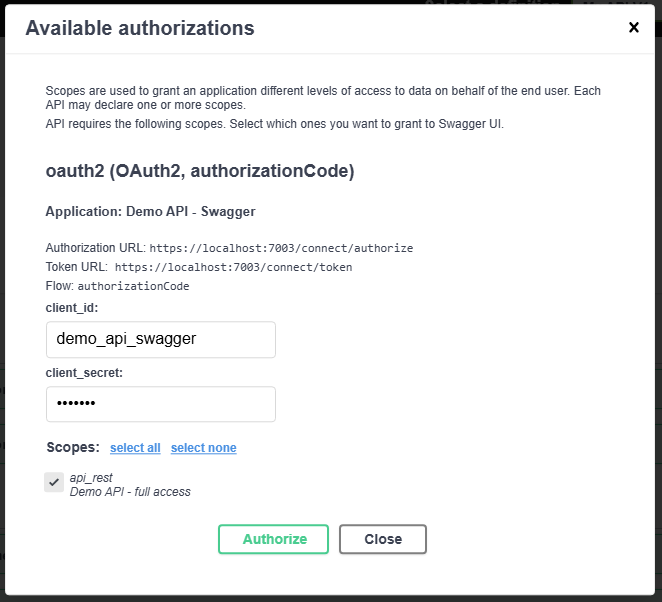

**Swagger Authentication** :
Duende Identity Server **Admin** Page :
**Identity Logging** :

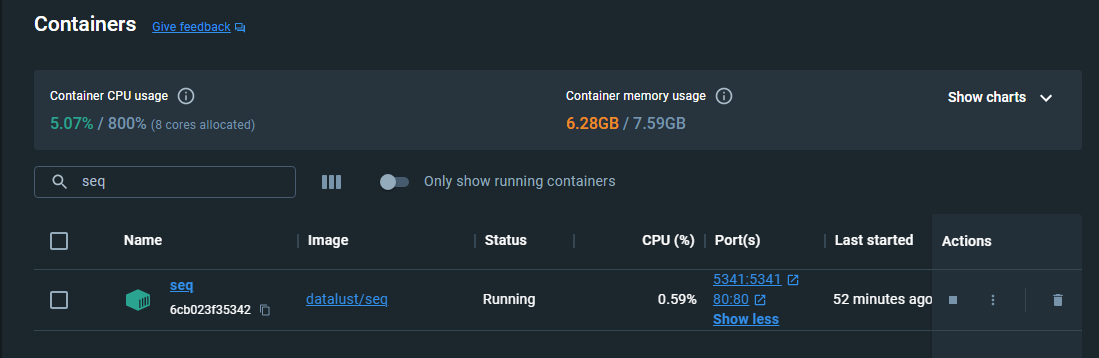

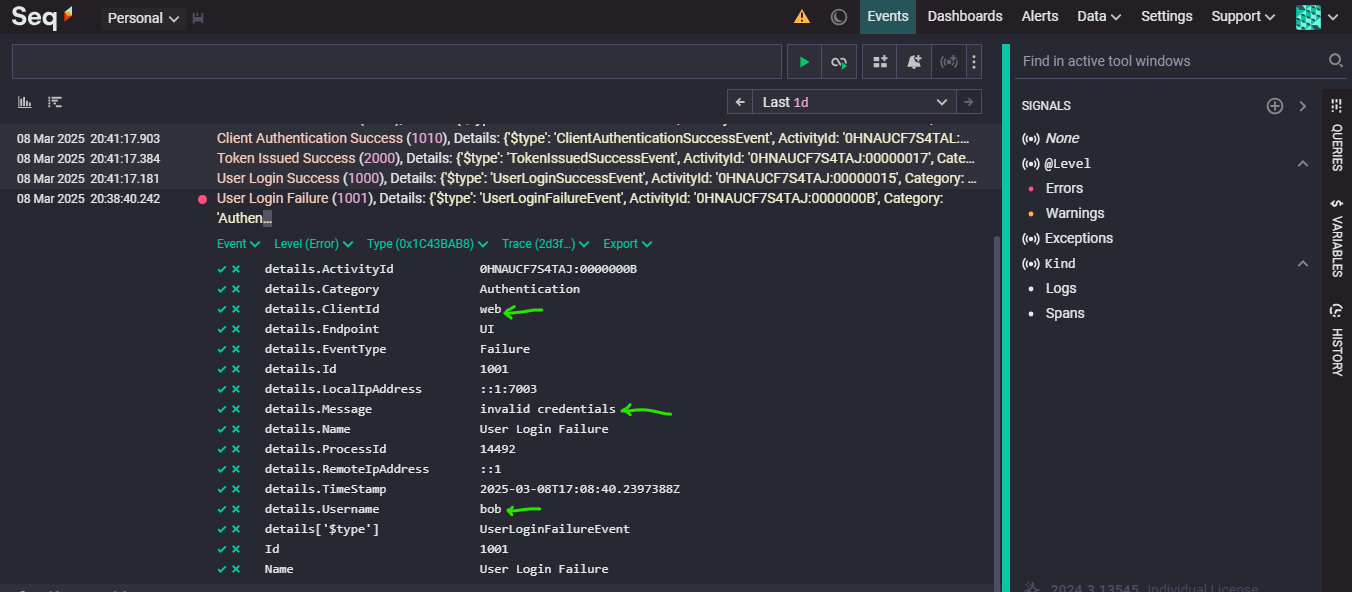

**Seq** is the self-hosted search, analysis, and alerting server built for structured log data.
Sink Duende Identity Server **Event Logs** to the avaiable Seq Server on Docker :
# Event Store :

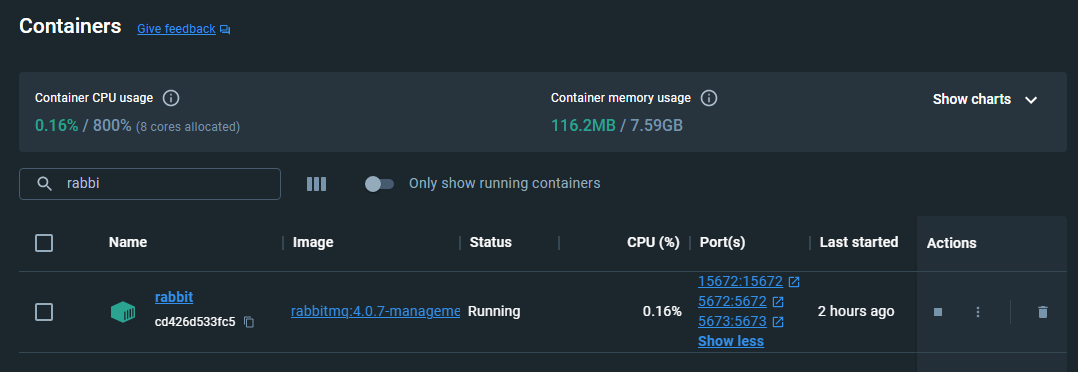

**RabbitMQ with Docker** :
```
docker pull rabbitmq:4.0.7-management
docker run -d --hostname myrabbit --name rabbit -p 5672:5672 -p 5673:5673 -p 15672:15672 rabbitmq:4.0.7-management
```

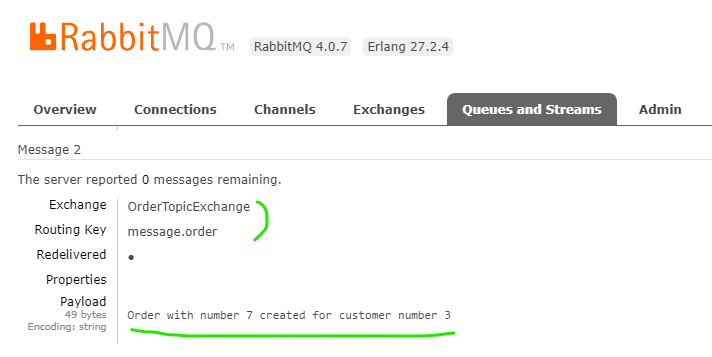

Order Message has been sent to RabbitMQ :

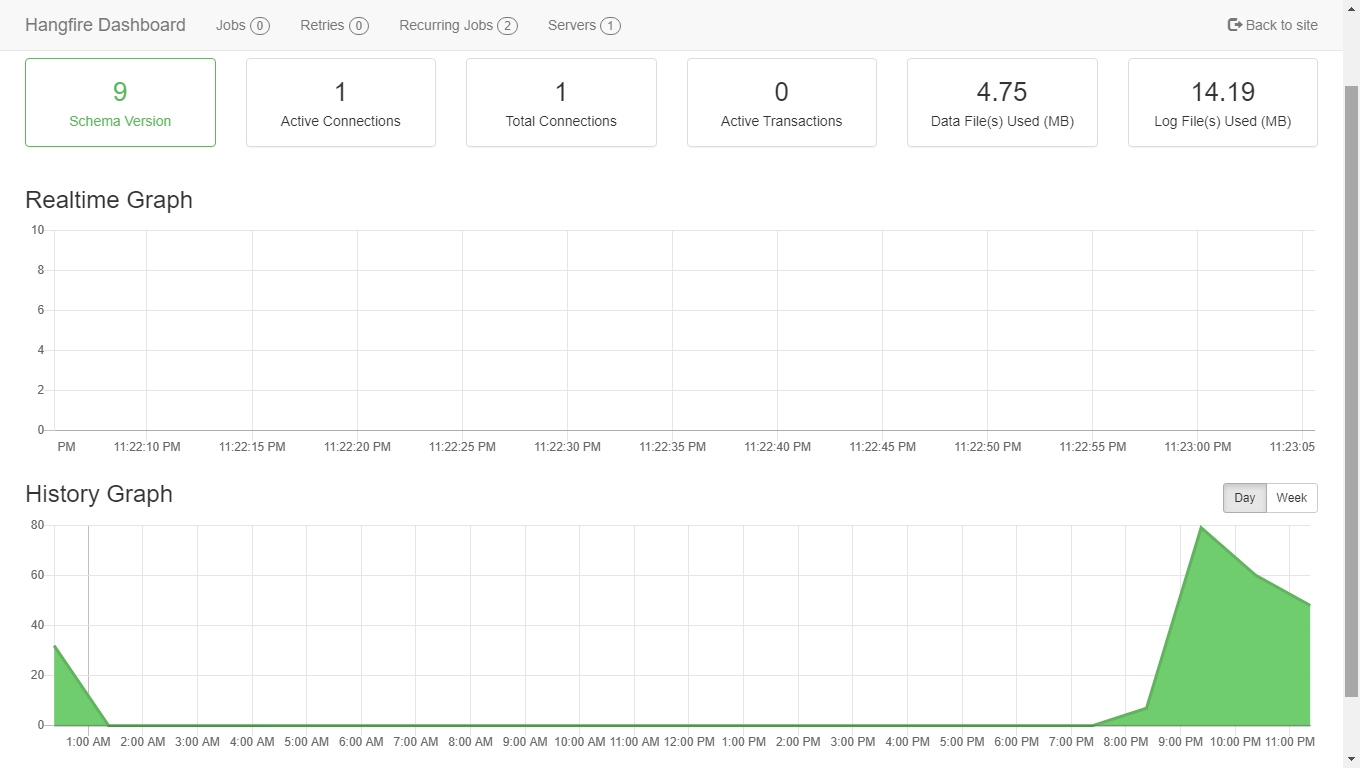

# Hangfire Dashbourd :
An easy way to perform **background processing** in .NET and .NET Core applications. No Windows Service or separate process required.
