# ZX Spectrum external ROM

The interface allows you to connect an external ROM. The interface uses a 64K x 8-bit memory organization system, e.g. EEPROM W27C (E) 512 - 4 banks 16KB each, switched with DIP switch, which gives us the opportunity to run 4 different ROMs.

After uploading the diagnostic ROMs, it can be used as a simple diagnostic interface for repairs.

The interface will work properly with computers:

* ZX Spectrum 48

* ZX Spectrum 128

* ZX Spectrum +2

* Timex 2048

The interface does not work with ZX Spectrum 128 + 2A / B and +3 computers

![ZX Spectrum external ROM](/photos/zx_external_diagnostic_interface_small.jpg)

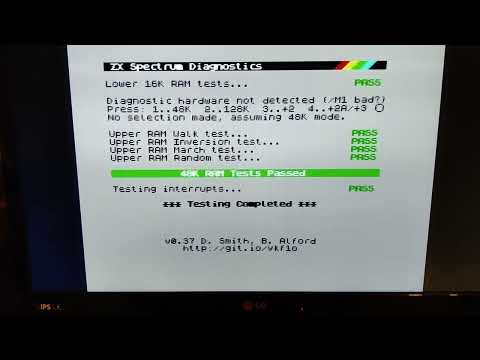

### Look at YouTube:

[![YouTube link](https://img.youtube.com/vi/Yh-fAGhiGfk/0.jpg)](https://www.youtube.com/watch?v=Yh-fAGhiGfk)
