README
# Membrane_vibration_FDM
Finite difference method (FDM) to solve the membrane vibration problem
**Communication**
**Language**
## Directory
└─membrane_PDE
├─save
│ └─fig
└─ToolBoxes
## Preparation before analysis
__[Step 1] Install the ToolBoxes__
The following ToolBoxes in “./cores/ToolBoxes/” are required,
__For plotting results:__
* __“mmwrite”__ by Micah Richert:
https://jp.mathworks.com/matlabcentral/fileexchange/15881-mmwrite
## Governing equation
$$
\begin{aligned}
\mathrm{PDE}&: \partial^2_t u(x,y,t) - t_x \partial^2_x u(x,y,t) - t_y \partial^2_y u(x,y,t) = 0, \ (x,y) \in [0, L_x] \times [0, L_y], \\
\mathrm{BC} &: u(x,y,t) = 0, \ (x,y) \in ([0, L_x] \times \\{0, L_y \\}) \cup (\\{0, L_x \\} \times [0, L_y]), \\
\mathrm{IC} &: u(x,y,0) = \left( \sin{\pi \frac{x}{L_x}}\sin{\pi \frac{y}{L_y}} \right)^3.
\end{aligned}
$$

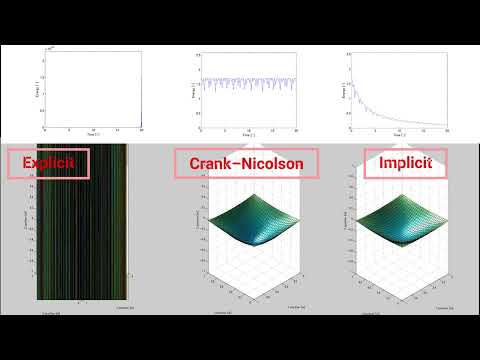

## Demonstration movie
[](https://www.youtube.com/watch?v=_kEdkMvdkE4)
