# JAMduino (Arduino Clock without RTC)

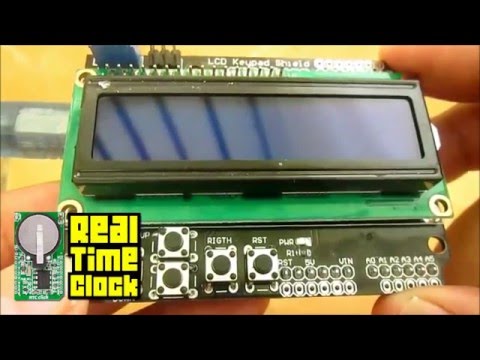

### __JAMduino (Arduino Clock without RTC)__ is a simple Arduino clock project using Arduino Uno & LCD Keypad Shield, without RTC module (Real Time Clock). Watch the video below ([click here](https://www.youtube.com/watch?v=ROXa1smvINY)) to see its action, then follow the instructions below to build your own JAMduino!
#
[](https://www.youtube.com/watch?v=ROXa1smvINY)
#
### **1. What You Need** :gift:
To build this project, you need the following items:
- 1 Arduino Uno board
- 1 LCD Keypad Shield
- Arduino IDE ([download here](https://www.arduino.cc/en/Main/Software))
- LCD Keypad library (I've attached its __.rar__ on this repo)
#
### **2. Schematics** :wrench::hammer:
Just plug the LCD Keypad Shield on top of Arduino Uno board.
#
### **3. Sketch** :clipboard:
- First, extract _**LCD Keypad**_ library (LCDKeypad.rar) then copy it to _C:\\...\Documents\Arduino\libraries_.
- Open Arduino IDE then copy sketch below. Make sure you have chosen the right option for **_Board_** and **_Port_** under **_Tools_** menu, then upload to your Arduino board.
```c++
#include
#include "LCDKeypad.h"
#define DAYS 0
#define HOURS 1
#define MINUTES 2
#define SECONDS 3
LCDKeypad lcd;
unsigned int days = 0;
unsigned int hours = 0;
unsigned int minutes = 0;
unsigned int seconds = 0;
unsigned int setting = 0;
void setup() {
lcd.begin(16,2);
lcd.setCursor(4, 0);
lcd.print("JamDUINO");
lcd.setCursor(0, 1);
lcd.print("tanpa modul RTC");
delay(3500);
lcd.clear();
lcd.setCursor(0,0);
lcd.print("Lintang Wisesa");
lcd.setCursor(1,1);
lcd.print("simpLINnovation");
delay(3500);
lcd.clear();
lcd.setCursor(0,0);
lcd.print(" Setting: Hari "); // "Hari" means "Day"
}
void loop() {
incTime();
printTime();
buttonListen();
}
void buttonListen() {
for (int i = 0; i < 5; i++) {
int button = lcd.button();
switch (button) {
case KEYPAD_RIGHT:
setting++;
break;
case KEYPAD_LEFT:
setting--;
break;
case KEYPAD_UP:
switch (setting) {
case DAYS:
days++;
if (days == 7) days = 0;
if (days == 0)
lcd.setCursor(0,1);
lcd.print("SENIN "); // "Senin" means "Monday"
if (days == 1)
lcd.setCursor(0,1);
lcd.print("SELASA"); // "Selasa" means "Tuesday"
if (days == 2)
lcd.setCursor(0,1);
lcd.print("RABU "); // "Rabu" means "Wednesday"
if (days == 3)
lcd.setCursor(0,1);
lcd.print("KAMIS "); // "Kamis" means "Thursday"
if (days == 4)
lcd.setCursor(0,1);
lcd.print("JUMAT "); // "Jumat" means "Friday"
if (days == 5)
lcd.setCursor(0,1);
lcd.print("SABTU "); // "Sabtu" means "Saturday"
if (days == 6)
lcd.setCursor(0,1);
lcd.print("AHAD "); // "Ahad" means "Sunday"
break;
case HOURS:
hours++;
break;
case MINUTES:
minutes++;
break;
case SECONDS:
seconds++;
}
break;
case KEYPAD_DOWN:
switch (setting) {
case DAYS:
days--;
if (days == -1) days = 6;
if (days == 0)
lcd.setCursor(0,1);
lcd.print("SENIN ");
if (days == 1)
lcd.setCursor(0,1);
lcd.print("SELASA");
if (days == 2)
lcd.setCursor(0,1);
lcd.print("RABU ");
if (days == 3)
lcd.setCursor(0,1);
lcd.print("KAMIS ");
if (days == 4)
lcd.setCursor(0,1);
lcd.print("JUMAT ");
if (days == 5)
lcd.setCursor(0,1);
lcd.print("SABTU ");
if (days == 6)
lcd.setCursor(0,1);
lcd.print("AHAD ");
break;
case HOURS:
hours--;
if (hours == -1) hours = 23;
break;
case MINUTES:
minutes--;
if (minutes == -1) minutes = 59;
break;
case SECONDS:
seconds--;
if (seconds == -1) seconds = 59;
}
}
setting %= 4;
printSetting();
days %= 7;
hours %= 24;
minutes %= 60;
seconds %= 60;
printTime();
while(millis() % 200 != 0);
}
}
void printSetting() {
lcd.setCursor(0,0);
switch (setting) {
case DAYS:
lcd.print("JamDUINO Hari~"); // "Hari" means "Day"
break;
case HOURS:
lcd.print("JamDUINO Jam~"); // "Jam" means "Hour"
break;
case MINUTES:
lcd.print("JamDUINO Menit~"); // "Menit" means "Minute"
break;
case SECONDS:
lcd.print("JamDUINO Detik~"); // "Detik" means "Second"
}
}
void incTime() {
seconds++;
if (seconds == 60) {
seconds = 0;
minutes++;
if (minutes == 60) {
minutes = 0;
hours++;
if (hours == 24) {
hours = 0;
days++;
if (days == 7) days = 0;
if (days == 0)
lcd.setCursor(0,1);
lcd.print("SENIN ");
if (days == 1)
lcd.setCursor(0,1);
lcd.print("SELASA");
if (days == 2)
lcd.setCursor(0,1);
lcd.print("RABU ");
if (days == 3)
lcd.setCursor(0,1);
lcd.print("KAMIS ");
if (days == 4)
lcd.setCursor(0,1);
lcd.print("JUMAT ");
if (days == 5)
lcd.setCursor(0,1);
lcd.print("SABTU ");
if (days == 6)
lcd.setCursor(0,1);
lcd.print("AHAD ");
}
}
}
}
void printTime() {
lcd.setCursor(6,1);
char time[17];
sprintf(time, " %02i:%02i:%02i", hours, minutes, seconds);
lcd.print(time);
}
```
#
### **4. Have Fun!** :sunglasses:
- After uploading done, you have to set the time manually first.
- On LCD Keypad Shield, use:
- Use :arrow_left: **left / right** :arrow_right: **button** to choose time option: _**HARI** (days), **JAM** (hours), **MENIT** (min) & **DETIK** (sec)_.
- Use :arrow_up: **up / down** :arrow_down: **button** to set its time, then your clock is ready to go! Have fun!
#
