# Ramadan Prayer Times Display & Alarm
## 📋 Project Summary

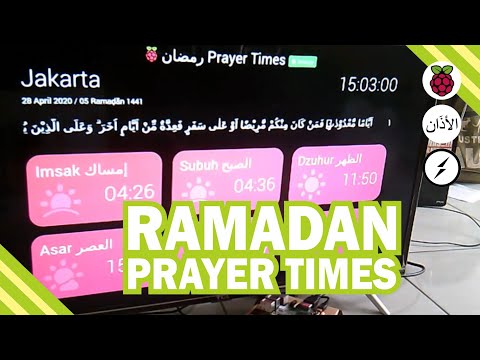

Klik gambar berikut untuk melihat video demo:
[](https://youtu.be/0uLCCJUrUKU)
Display jadwal Imsakiyah Ramadan dengan fitur: menampilkan jadwal Imsakiyah di kota tertentu (di Indonesia), setting kota secara wireless via WiFi & alarm azan otomatis setiap masuk waktu sholat. Dirancang dengan Raspberry Pi 3B+, untuk fitur display dengan Node.js (Express.js & Socket.io), sedangkan alarm azan otomatis dengan Python (Pygame). Data jadwal Imsakiyah diambil dari [Aladhan Prayer Times API](https://aladhan.com/prayer-times-api), sedangkan audio azan bersumber dari serial Upin & Ipin, dengan muazzin Syeikh Abdul Karim Al-Makki.
## 📋 Project Tutorial
This project is built on __Raspberry Pi 3B+__ with __Raspbian OS__, __Python 3.x__ (I'm using 3.4 & 3.8) & __Node.js 8++__ (I'm using 10). So make sure you've installed Python 3.x & Node.js 8++, also __git__ to clone this project from my github.
- ### 1. Connect to WiFi & Check its IP
Connect your Raspberry Pi to a WiFi connection, then check its IP address. On terminal type:
```bash
$ ifconfig
```
Your Pi's IP address must be various, it consists of some numbers with some dots like ```123.456.78.910```. Note your IP address!
- ### 2. Clone this project
Clone this project from my github repo. [Download here](https://github.com/LintangWisesa/RPi_Ramadan_PrayerTimes) or clone it from your terminal (make sure you've installed *__git__* on your Pi):
```bash
$ git clone https://github.com/LintangWisesa/RPi_Ramadan_PrayerTimes.git
```
- ### 3. Insert your IP on the app
Inside this project folder, go to ```/public``` then insert your Pi's IP address on ```chat.js``` file.
```bash
$ cd RPi_Ramadan_PrayerTimes
$ cd public
$ sudo nano chat.js
```
Insert your IP address on the following line (```chat.js```):
```javascript
var socket = io.connect('http://123.456.78.910:1234')
// change with your RPi IP address
```
Exit & save it!
- ### 4a. Run Express.js server (Display prayer times)
Go back to the project root, then run its server application (```app.js``` file). It'll be better if you have __*nodemon*__ installed.
```bash
$ node app
```
or by using __*nodemon*__:
```bash
$ nodemon app
```
The server will be listening on port ```1234```, so you can access it via your Pi's web browser (for example *__Chromium__*): http://localhost:1234. It will make a GET request to Aladhan API then render an __*HTML*__ page with prayer times displayed, you can configure its city by click _Settings_ button on the page.
- ### 4b. Run Python app (Alarm prayer times)
Open new terminal, go to the project root, then run its Python application. If you're using Python below 3.5, use ```rpi34.py``` and if you're using Python above 3.5 please use ```rpi38.py``` file.
```bash
$ python3 rpi34.py
```
or
```bash
$ python3 rpi38.py
```
It will make a GET request to Aladhan API then play ```azan.mp3``` automatically every prayer times are occured.
- ### 5. Control it from your gadget
You can also configure the city displayed (Indonesia only) via your laptop, tablet or even a smartphone. First connect your gadget to a WiFi which your Raspberry Pi is connected to. Open your browser & go to your Pi's IP address on port ```1234```, for example: http://123.456.78.910:1234. You'll see something similar with your Pi display & try to config its city. Enjoy!
