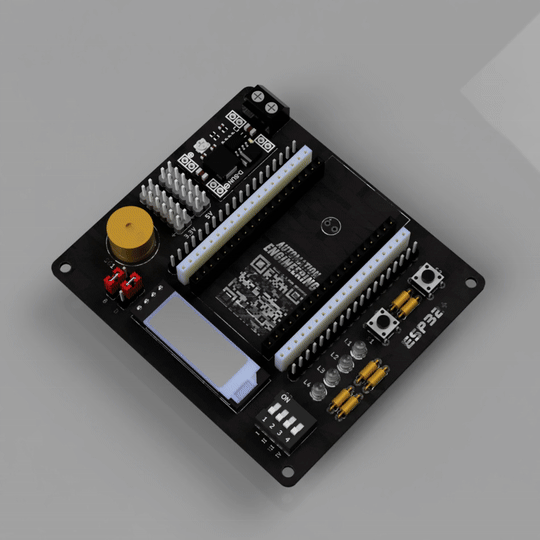

# ESP32+ PROJECT
### I. Features
🔧 Fixes incorrect Boot Mode selection
🔓 Compatible with ESP32 DevKit-V4 only
🔌 Stepdown Buck Converter MP1584 supports
âš¡ Includes 3.3V and 5V additional Power Expander
### II. Technical Description
| Label | Component | I/O | Switchable | Description |
| :------: | :-----: | :------: | :-----: | ----- |
| S1 | Pushbutton | GPIO 34 | | Parallel with pull-up 10K Resistor to 3.3V |
| S2 | Pushbutton | GPIO 35 | | Parallel with pull-up 10K Resistor to 3.3V |
| L1 | 3mm LED | GPIO 17 | ✅ | Series 330 ohm Resistor for current limiter, Toggle switch (IV) to enable |
| L2 | 3mm LED | GPIO 16 | ✅ | Series 330 ohm Resistor for current limiter, Toggle switch (III) to enable |
| L3 | 3mm LED | GPIO 4 | ✅ | Series 330 ohm Resistor for current limiter, Toggle switch (II) to enable |
| L4 | 3mm LED | GPIO 2 | ✅ | Series 330 ohm Resistor for current limiter, Toggle switch (I) to enable |
| SG1 | Buzzer DC | GPIO 32 | ✅ | Place (B) jumper on pins 1-2 to enable |
| DISP | OLED 128x32 | GPIO 21 (SDA)
GPIO 22 (SCL) | ✅ | Place (D) jumper on pins 1-2 to enable |
| C1 | Polar Capacitor | EN | | Determine ESP32 to FLASH mode upon power-up |
### III. Schematic
🔗 [Download PDF](https://github.com/user-attachments/files/19268394/esp32_plus.pdf)
### IV. 3D Model & Drawing
🔗 [Download PDF](https://github.com/user-attachments/files/19269748/ESP32_PLUS_DRAWING.pdf)
