# Zig GUI App for PinePhone
Read the article...
- ["Build a PinePhone App with Zig and capy"](https://lupyuen.github.io/articles/pinephone)
Can we build a Zig GUI App for PinePhone with the capy library?
- [capy-ui/capy](https://github.com/capy-ui/capy)
Let's find out!
[(More about Zig)](https://ziglang.org)
# Install Zig Compiler
On PinePhone, download the latest Zig Compiler `zig-linux-aarch64` from...
https://ziglang.org/download/
```bash
## Download the Zig Compiler
curl -O -L https://ziglang.org/builds/zig-linux-aarch64-0.10.0-dev.2674+d980c6a38.tar.xz
## Extract the Zig Compiler
tar xf zig-linux-aarch64-0.10.0-dev.2674+d980c6a38.tar.xz
## Add to PATH. TODO: Also add this line to ~/.bashrc
export PATH="$HOME/zig-linux-aarch64-0.10.0-dev.2674+d980c6a38:$PATH"
## Test the Zig Compiler, should show "0.10.0-dev.2674+d980c6a38"
zig version
```
_Will Zig Compiler run on any PinePhone?_

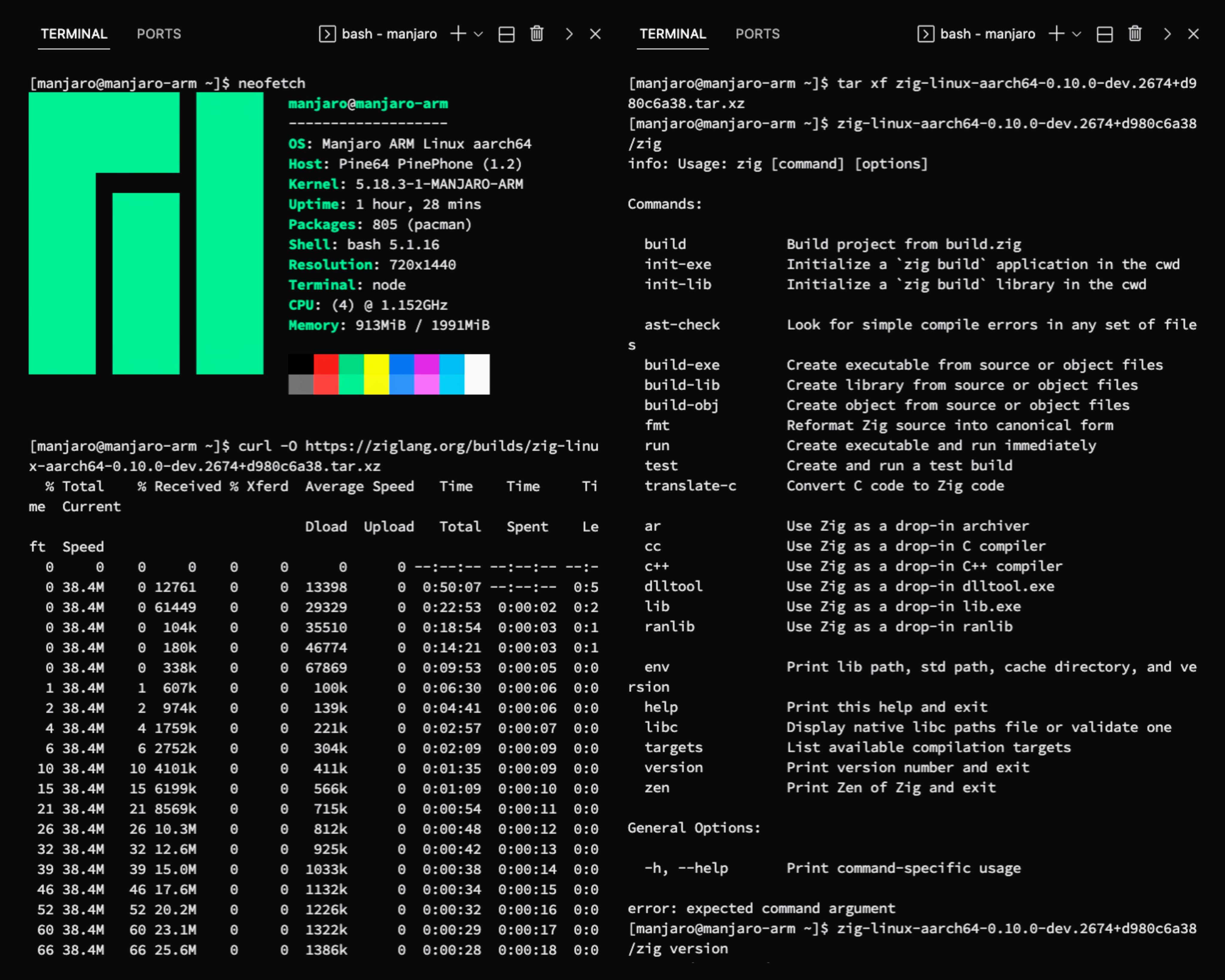

I tested the Zig Compiler with Manjaro Phosh on PinePhone (pic above), but it will probably work on any PinePhone distro since the Zig Compiler is a self-contained Arm64 Binary.
[(Zig Compiler works with Mobian on PinePhone too)](https://twitter.com/techneo/status/1539510460726509568)
# Install Zigmod
Download the latest [Zigmod Package Manager](https://nektro.github.io/zigmod/) `zigmod-aarch64-linux` from...
https://github.com/nektro/zigmod/releases
```bash
## Download Zigmod Package Manager
curl -O -L https://github.com/nektro/zigmod/releases/download/r80/zigmod-aarch64-linux
## Make it executable
chmod +x zigmod-aarch64-linux
## Move it to the Zig Compiler directory, rename as zigmod
mv zigmod-aarch64-linux zig-linux-aarch64-0.10.0-dev.2674+d980c6a38/zigmod
## Test Zigmod, should show "zigmod r80 linux aarch64 musl"
zigmod
```
# Build The App
To build the app on PinePhone...
```bash
## Download the Source Code
git clone --recursive https://github.com/lupyuen/zig-pinephone-gui
cd zig-pinephone-gui
## Install the dependencies for capy library
pushd libs/zgt
zigmod fetch
popd
## Build the app
zig build
```
[(See the Build Log)](https://gist.github.com/lupyuen/a44bc3faaf6d674d2b227aeb992ccfb8)
If the build fails, check that the `gtk+-3.0` library is installed on PinePhone. [(Here's why)](https://github.com/zenith391/zgt/blob/master/build.zig#L9-L13)
[(The app builds OK on Mobian after installing `gtk+-3.0`)](https://twitter.com/techneo/status/1539828828213616640)
# Run The App
To run the app on PinePhone...
```bash
zig-out/bin/zig-pinephone-gui
```
We should see the screen below.
When we tap the `Run` and `Save` buttons, we should see...
```text
info: You clicked button with text Run
info: You clicked button with text Save
```
Yep we have successfully built a Zig GUI App for PinePhone with capy! 🎉
_Is the app fast and responsive on PinePhone?_
Yep it feels as fast and responsive as a GTK app coded in C.
Remember that Zig is a compiled language, and our compiled app is directly calling the GTK Library.
# Inside The App
Here's the source code for the app: [`src/main.zig`](src/main.zig)
```zig
// Import the capy library and Zig Standard Library
const zgt = @import("zgt");
const std = @import("std");
/// Main Function for our app
pub fn main() !void {
// Init the capy library
try zgt.backend.init();
// Fetch the Window
var window = try zgt.Window.init();
// Set the Window Contents
try window.set(
// One Column of Widgets
zgt.Column(.{}, .{
// Top Row of Widgets
zgt.Row(.{}, .{
// Save Button
zgt.Button(.{ .label = "Save", .onclick = buttonClicked }),
// Run Button
zgt.Button(.{ .label = "Run", .onclick = buttonClicked }),
}),
// Expanded means the widget will take all the space it can
// in the parent container
zgt.Expanded(
// Editable Text Area
zgt.TextArea(.{ .text = "Hello World!\n\nThis is a Zig GUI App...\n\nBuilt for PinePhone...\n\nWith zgt Library!" })
)
}) // End of Column
); // End of Window
// Resize the Window (might not be correct for PinePhone)
window.resize(800, 600);
// Show the Window
window.show();
// Run the Event Loop to handle Touch Events
zgt.runEventLoop();
}
/// This function is called when the Buttons are clicked
fn buttonClicked(button: *zgt.Button_Impl) !void {
// Print the Button Label to console
std.log.info(
"You clicked button with text {s}",
.{ button.getLabel() }
);
}
```
This app is based on the capy demo...
https://github.com/capy-ui/capy#usage
For comparison, here's a typical GTK app coded in C...
https://www.gtk.org/docs/getting-started/hello-world/
Though I think our Zig app looks more like Vala than C...
https://www.gtk.org/docs/language-bindings/vala/
# VSCode Remote
For convenience, we may use VSCode Remote to do Remote Development with PinePhone...
https://code.visualstudio.com/docs/remote/remote-overview
Just connect VSCode to PinePhone via SSH, as described here...
https://code.visualstudio.com/docs/remote/ssh
Remember to install the Zig Extension for VSCode...
https://github.com/ziglang/vscode-zig
# Pinebook Pro
_Will the Zig GUI App run on Arm64 laptops like Pinebook Pro?_
Yep! The same steps above will work on Pinebook Pro.
Here's our Zig GUI App running with Manjaro Xfce on Pinebook Pro...
