# Noob-Pwner-Kit

## MOVING LOCATIONS:

My small tutorial is moving to CTF Wiki...



## Purpose

This kit was created to help me, and anyone else who is trying to takeup the dreaded

art of binary pwning, find useful links to tools, challs, and tutorials. I have found

many of these places from experiening my noob-ness first hand in CTF challenges. I

hope you enjot the kit.



## Background

Binary Pwning can be devided into a few parts that tend to intertwine out in the wild.

1. Reverse Engineering

    1. Static Analysis

    2. Dynamic Analysis

    3. Weird Love Childs

2. [Heap Exploitation](#heap-exploitation) gotta add heap from SHELLPHISH

3. [Stack Exploitation & ROP](#stack-exploitation-&-rop)

4. [Shellcoding](#shellcoding)

5. Network Program Exploitation



## Stack Exploitation & Rop

### ROP

Return Oriented Programming (ROP) is type of stack exploitation that levrages a string copied into

the stack to bypass NX/DEP protections. See tools.



## Heap Exploitation

### Heap Layout

To understand how to beat the heap, you got to understand where it lives.

The heap exsists under the .data allocation area (the place the actual program code

is located). It grows down towards the Stack, while the Stack grows up towards it.

So, the heap is located between the .data and the Stack. The heap is mainly controled by glibc.



The functions used to control the heap are sbrk(), mmap(), and malloc() & free().

sbrk() and mmap() actually address memory once the initial heap is done, which

complicates the entire process and makes it easier to use malloc().



ptmalloc2 is something that abstracts the tracking of the heap (i.e. its size and

location). This abstraction is broken into three layers:

1. arena: Top, reliant on sbrk() and mmap().

2. heap: single contiguous memory region recording each mmap() we call to grow the arena.

3. chunk: Bottom, free places, great place to attack.



NOTE: for more info see [this](https://medium.com/@c0ngwang/the-art-of-exploiting-heap-overflow-part-4-4f1140585210)



### Chunk and malloc()

Each chunk has a header which says if its free or not for use. When malloc() is used, the size of the header is added to whatever the size requested is. The header is placed at the beginning of the chunk, **easy to edit if you know the address of the memory**.

The header should look something like this:

```c

    struct chunk {

    INTERNAL_SIZE_T      mchunk_prev_size;

    INTERNAL_SIZE_T      mchunk_size;

    struct malloc_chunk* fd;

    struct malloc_chunk* bk;

    }

```

Because each header should be linked to the last chunk, we have the linkedlist apporach.

#### Sorting these chuncks

When malloc() is activated we use chunks. Chunks are sorted in a few ways.

1. Fast Bins

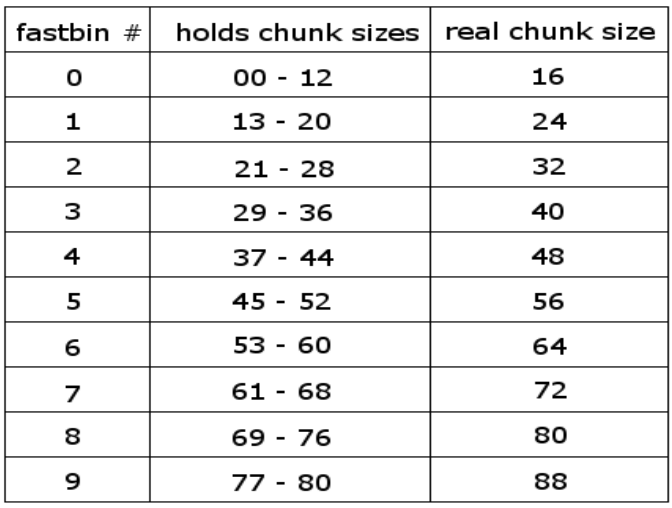

    It contains 10 types of chunks based on their size malloc() in bytes.

    ![alt text](https://cdn-images-1.medium.com/max/1600/1*vKesMDWlcOf0EHRMJKNIjg.png)

    FIFO



    They are sorted in LIFO (Last In, First Out).

2. Other Bins

    1. Unsorted: where freed small and large chunks end up in. Doubly linked.

    2. Small: 62 types just like fast starting at 8-bytes. Doubly linked, FIFO.

    3. Large: Chunks between 512 bytes - 128k bytes.

Larger than that an mmap() does it directly.



#### First-fit Behavior

Consider the sample code:



```c

char *a = malloc(20);     // 0xe4b010

char *b = malloc(20);     // 0xe4b030

char *c = malloc(20);     // 0xe4b050

char *d = malloc(20);     // 0xe4b070



free(a);

free(b);

free(c);

free(d);



a = malloc(20);           // 0xe4b070

b = malloc(20);           // 0xe4b050

c = malloc(20);           // 0xe4b030

d = malloc(20);           // 0xe4b010

```

This is due to the Fast Bin being FIFO.

#TODO: ADD THE FASTBIN Attack



### Resources

(blackhat-pres)[https://www.blackhat.com/presentations/bh-usa-07/Ferguson/Presentation/bh-usa-07-ferguson.pdf] - condensed info on fastbins and such



## Shellcoding



Shellcoding must be used every now-and-then to exploit a system in a customizable, yet highly restricted, byte code.

Shellcoding consists of:

1. Ideallizing your C code that is wanted for execution

2. Convert your C code into assembly

3. Remove Nullbytes (most times) from your assembly

4. Assure your shellcode is small (or big) enough to fit in your designated buffer

5. Convert assmbly into bytes [see 3].

6. Get those bytes into your exploited program



Each section consists of roadblocks and tools that are needed to get the job done that often circle each step,

similar to the scientific method.



### C Code Creation (CCC)

CCC is the first step to making a *killer* of a exploit.

This step is arbitrarily hard to explain becasue each CCC is different in the scenario.

For your convience, a shellcode example is provided:



#### Open, Read, Write

Consider you have program with which you can inject shellcode to execute. For this problem, the functions we are allowed to use

are Open, Read, and Write. The flags name is "flag".

The C code would look something like this:

```C

int fd = open("flag", O_RDONLY) //open the file

char* buf;

read(fd, buf, 1024) //assuming the flag is no bigger than 1024

write(1, buf, 1024) //write to stdout

```

the next part is translating this to asm.



### Assembling maddness

Continuing on our C code example we need to convert these system calls into assembly.

Luckily, assembly has an easy way to call system calls, which each has a value in hex.

The x86 table can be found here: [x86 Table](https://syscalls.kernelgrok.com/)

The x64 table can be found here: [x64 Table](https://filippo.io/linux-syscall-table/)



The above values will be used when we call the syscalls in an assembler convention.

For the continued example, we will assume x64 architecture is used. Calling conventions can be found here: [x86 & x64 Calling Conventions](https://en.wikipedia.org/wiki/X86_calling_conventions)



Starting with the open function, we need to start passing parameters to registers.

The open function takes three parameteres:
