Raspberry Pi Irrigation System

• Host: GitHub
• URL: https://github.com/matthias-bs/flora1
• Owner: matthias-bs
• License: gpl-3.0
• Created: 2021-05-31T16:03:32.000Z (over 3 years ago)
• Default Branch: main
• Last Pushed: 2024-11-24T13:27:51.000Z (2 months ago)
• Last Synced: 2024-12-11T07:06:25.956Z (about 2 months ago)
• Topics: mqtt, python, raspberry-pi
• Language: Python
• Homepage:
• Size: 1.53 MB
• Stars: 0
• Watchers: 2
• Forks: 0
• Open Issues: 1
• Metadata Files:
  • Readme: README.md
  • License: LICENSE
  • Code of conduct: CODE_OF_CONDUCT.md

Awesome Lists containing this project

README


[![linting: pylint](https://github.com/matthias-bs/flora1/actions/workflows/pylint.yml/badge.svg)](https://github.com/matthias-bs/flora1/actions/workflows/pylint.yml)

[![GitHub release](https://img.shields.io/github/release/matthias-bs/flora1?maxAge=3600)](https://github.com/matthias-bs/flora1/releases)

[![License: GPLv3](https://img.shields.io/badge/license-GPLv3-green)](https://github.com/matthias-bs/flora1/blob/main/LICENSE)

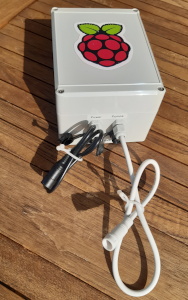

# flora1 — Raspberry Pi Irrigation System

![flora-1_188x300](https://user-images.githubusercontent.com/83612361/120393655-9590ad80-c332-11eb-8bba-2d2cbcf6389f.jpg)

## Features

* Plant status monitorig via [Xiaomi Mi Flora Plant Sensor MQTT Client/Daemon](https://github.com/ThomDietrich/miflora-mqtt-daemon)

* Tank low / tank empty status monitoring with XKC-Y25-T12V (Non-Contact Liquid Level Sensor)

* Pump control (12 Volts) with [Infineon BTS621L1](https://www.infineon.com/cms/en/product/power/smart-low-side-high-side-switches/high-side-switches/classic-profet-12v-automotive-smart-high-side-switch/bts621l1-e3128a/) (Smart Two-Channel High-Side Power Switch)

* Automatic and manual irrigation control with one or two pumps

* Status reports via Email (HTML) with complex trigger filtering

* Controlling and monitoring via MQTT

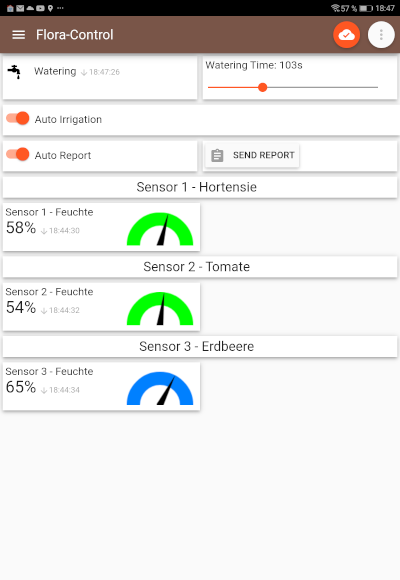

## Dashboard with [IoT MQTT Panel](https://snrlab.in/iot/iot-mqtt-panel-user-guide) (Example)

![IoTMQTTPanel_Flora-Control_400x580](https://user-images.githubusercontent.com/83612361/120223811-7adf0b80-c242-11eb-98a7-2d18f1335ca9.png)

## Flora Status Report (Example)

![flora_email](https://user-images.githubusercontent.com/83612361/120225128-f5108f80-c244-11eb-9133-0f7b753c0b68.png)

## Why is it called _flora1_?

Because _flora2_ is already in the works!

## Notes

### Starting with Linux systemd service

#### Issue

After updating from *Raspbian Buster* to Raspberry Pi OS *Debian Bookworm*, the service wouln't start. The reason was that some code in `lgpio` used for accessing GPIO pins tries to write into the working directory (see https://github.com/gpiozero/gpiozero/issues/1106), which was not permitted.

#### Workaround

* Split WorkingDirectory and RuntimeDiretory (see [09_software/template.service](https://github.com/matthias-bs/Flora1/blob/2-starting-via-linux-systemd-service-fails/09_software/template.service))

  * WorkingDirectory=/var/run/flora/

  * RuntimeDirectory=/opt/flora

* Create `/var/run/flora` at startup (if will not persist if created manually!)

  * See https://serverfault.com/questions/824393/var-run-directory-creation-even-though-service-is-disabled

  * In `/usr/lib/tmpfiles.d/var.conf`:


    add


    `d /var/run/flora 0770 root daemon -`

----

## Disclaimer and Legal

> *Xiaomi* and *Mi Flora* are registered trademarks of *BEIJING XIAOMI TECHNOLOGY CO., LTD.*

>

> This project is a community project not for commercial use.

> The authors will not be held responsible in the event of device failure or withered plants.

>

> This project is in no way affiliated with, authorized, maintained, sponsored or endorsed by *Xiaomi* or any of its affiliates or subsidiaries.
