# Ratemypet
[](https://github.com/maurolps/ratemypet/actions/workflows/ci.yml)
[](https://coveralls.io/github/maurolps/ratemypet?branch=feature/uc001-enhance)
[](https://opensource.org/licenses/MIT)
[](https://github.com/maurolps/ratemypet/tags)
[](#)
This project showcases a **scalable and maintainable** backend implementation in **NodeJs** and **TypeScript**. Modern development best practices are enforced with **Design Patterns**, **Clean Architecture**, **TDD**, **SOLID principles**.
## Summary:
- [Overview](#overview)
- [Architecture](#architecture)
- [Tech Stack](#tech-stack)
- [Folder Structure](#folder-structure)
- [Scripts](#scripts)
- [Getting Started](#getting-started)
- [Conventions](#conventions)
- [Contributing](#contributing)
- [License](#license)
---
## Overview
RateMyPet is a social web app where users can post photos of their pets ( dogs or cats ), and receive feedback, likes, and fun AI-generated content. See more about the **product vision**, **requirements**, **diagrams** and more in the [docs](./docs/).
## Architecture

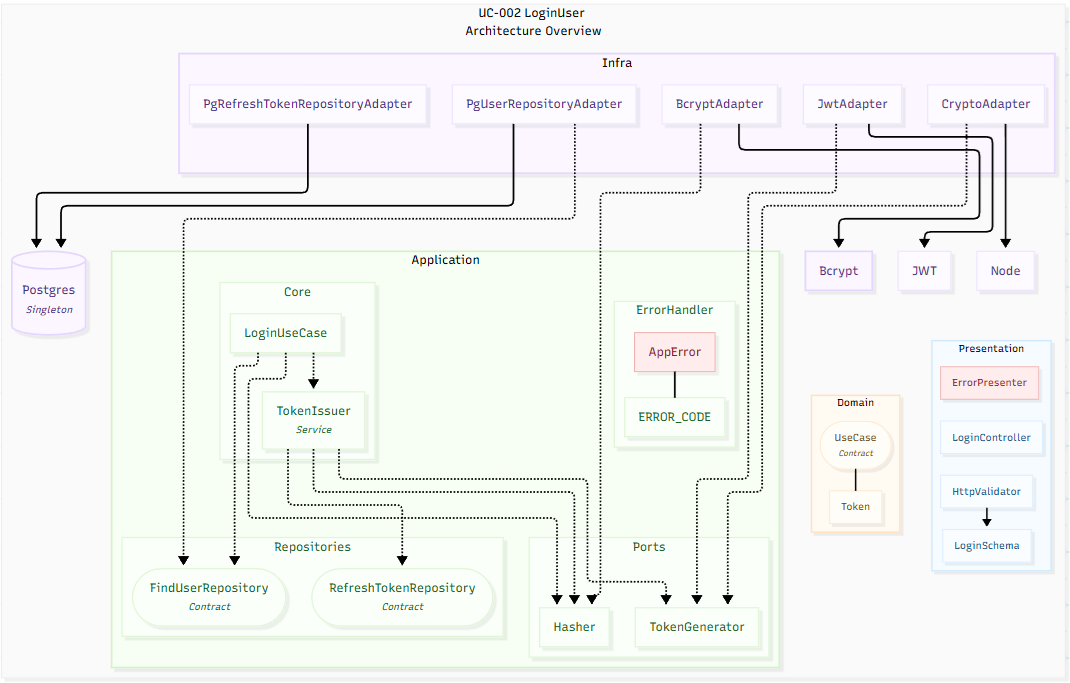

*UC-002 LoginUser - Clean Architecture based | [Mermaid diagram](./docs/diagrams/backend/UC-002-login-architecture.md)*
**The layers are structured as follows:**
- **Domain**: entities, contracts
- **Application**: usecases, app business rules, services, ports, repository interfaces, custom error
- **Presentation**: controllers, validator, DTOs, error presenter
- **Infrastructure**: libs/frameworks adapters
- **Main**: entrypoint, composition root (dependency injection/inversion), http server setup
## Tech Stack
- **Runtime:** `Nodejs` + `Typescript`
- **Http:** `Express` (modular structure)
- **Relational Database:** `PostgreSQL` (local or `Docker`), versioned migrations with `dbmate`, pooling connection, singleton instance
- **Code Quality:** `Biome` (lint/format), `Conventional Commits`, `Husky`
- **Testing:** `Vitest`, `Supertest`(e2e), `TestContainers`(integration)
- **API Docs:** `Swagger/OpenAPI` documentation on `/docs` endpoint
- **Security:** Server-side validator, Authentication (`JWT`, refresh tokens, token rotation), Headers (helmet, cors), Rate-limit, Hasher, .env
- **Error Handling:** Custom AppError class, internal error logging, error handler middleware, error codes catalog
- **CI/CD:** `GitHub Actions` (typecheck, lint, tests, coverage)
> See more about the features and technical goals in the [Product Vision](./docs/product-vision.md)
## Folder Structure
```shell
#v0.2.0
/src/main
├── composition # composition root, factories, dependency injection
├── config # env
├── http # http server setup (Express)
│ ├── adapters
│ ├── middlewares
│ └── routes
└── layers # core
├── application
│ ├── errors
│ ├── ports
│ ├── repositories
│ └── usecases
├── domain
│ ├── entities
│ └── usecases
├── infra
│ ├── db
│ └── security
└── presentation
├── contracts
├── controllers
├── dtos
├── errors
├── http
└── validation
/tests # tests (unit, integration, e2e)
```
## Scripts
```shell
# from package.json v0.2.0
> npm run
{
"prepare": # set up git hooks for husky
"dev": # run development mode with hot-reload,
"start": # run the prod server from backend/dist
"debug": # start with inspector and source maps
"typecheck": # typeScript type checking
"lint": # lint/format code with Biome,
"lint:ci": # run Biome in CI mode (no writes), fail on issues
"build": # bundle, clean and minify into backend/dist
"build:debug": # inline source maps, no minify,code splitting
"test": # run unit and integration test
"test:watch": # watch mode for unit tests (TDD loop)
"test:coverage": # run tests and generate coverage
"test:staged": # for pre-commit
"test:integration": # run only the integration tests
"db:up": # start Postgres container
"db:down": # stop and remove the container,
"db:init": # bring up the database and apply all migrations
"db:reset": # remove the database with volumes (clean slate)
"migrate": # apply pending migrations with dbmate
"migrate:new": # create a new timestamped migration file with dbmate
"docker:start": # start all dev services in the foreground
"docker:up": # start all dev services in the background (detached)
"docker:down": # stop and remove all dev services
"docker:rebuild": # rebuild images (required on deps change)
}
```
## Getting Started
### Prerequisites
- Nodejs 22+
- Docker
### Clone and install
1. *Clone*
```shell
> git clone https://github.com/maurolps/ratemypet.git
> cd ratemypet
```
2. *Install deps*
```shell
> npm install # or npm ci to guarantee clean install
```
### Start
- **Start with Docker**
```shell
> npm run docker:start # or docker:up to detached mode
# First run builds images, sets up Postgres with the dev user/password and do migrations.
# App starts in dev mode with hot-reload.
```
- **Local**
```shell
# Note that docker still required for testcontainers (used in e2e and integration tests)
# 1. Start the database container
> npm run db:up
# (Or use a local Postgres install and config DATABASE_URL, check config/env.ts)
# 2. Run the migrations
> npm run migrate
# 3. Run the app in dev mode
> npm run dev
```
## Conventions
### Commits and Naming
- **Conventional Commits**: `feat`, `fix`, `docs`, `test`, `refactor`, `chore`
- **Naming**: `PascalCase` (classes/interfaces/types), `camelCase` (vars/functions)
### Testing
- **Files**: `*.spec.ts` (unit), `*.test.ts` (integration), `*.e2e.test.ts` (e2e)
- **Principles**: TDD, `AAA `Pattern (Arrange, Act, Assert), Red Green Refactor
- **Coverage**: 100% across all layers
### Branching & Versioning
- **Flow**: Based on `GitHub Flow`. Create branches from `main` (e.g., `feature/uc001-domain`, `fix/uc001-db`)
- **Pull Requests**: Always with green `CI` ( use draft to trigger CI test )
- **SemVer Tags for milestones**: v0.1.0 (setup), v0.2.0 (UC-001), v1.0.0 (MVP)
---
## Contributing
I built this project to learn and share, your ideas and contributions are welcome!
Please check out [Contributing Guide](./CONTRIBUTING.md) for details on the workflow.
## License
[MIT](./LICENSE) - **Feel free to fork, improve, break, learn :D**
