# Spinnaker-Chaos-Templates
Consists of [custom (kubernetes) jobs](https://spinnaker.io/guides/operator/custom-job-stages/#custom-job-stages) to implement predefined chaos stages in a spinnaker pipeline.
The jobs are expressed as individual `orca-local.yml` definitions that can be used as is.
These kubernetes jobs make use of the [chaos-ci-lib](https://github.com/mayadata-io/chaos-ci-lib) docker image and executes a specific chaos experiment,
The job essentially implements a wrapper logic that does the following actions:
- Pulls the chaosexperiment manifest from [chaos-charts](https://github.com/litmuschaos/chaos-charts)
- Modifies the chaosengine with tunables supplied to the run job as environment variables
- Launches the experiment by creating the chaosengine, monitors experiment completion & examines the verdict
The above actions are performed as a BDD test implemented using the popular Ginkgo, Gomega test framework
## Sample Chaos Custom Job
The custom jobs are defined within the `orca-local.yaml` file, that serves as a profile which will be read by the `halyard` microservice, thereby ensuring the predefined spinnaker
stage is available while creating new pipelines. It describes the metadata of the stage along with tunables that will be propagated to the kubernetes job.
An example template running a custom job to perform the `generic/pod-delete` chaos experiment is provided below:
**Note**: The chaos jobs need the litmus chaos operator & CRDs to be installed. You can refer to the install & uninstall templates for litmus in [here](./templates/litmus-infra-ops)
```yaml
job:
preconfigured:
kubernetes:
- label: Pod-Delete-Chaos
type: PodDeleteChaosExperiment
description: Kill an application pod
cloudProvider: kubernetes
account: spinnaker
credentials: spinnaker
application: litmuschaos
waitForCompletion: true
parameters:
- name: INSTALL_LITMUS
label: install litmus
description: Install litmus if it is not already installed
mapping: manifest.spec.template.spec.containers[0].env[0].value
defaultValue: "false"
- name: APPLICATION_NAMESPACE
label: Namespace of AUT
description: Namespace where chaos will occur
mapping: manifest.spec.template.spec.containers[0].env[1].value
defaultValue: "spinnaker"
- name: APPLICATION_LABEL
label: Label of AUT
description: Label by which app is filtered
mapping: manifest.spec.template.spec.containers[0].env[2].value
defaultValue: "name=hello"
- name: CHAOS_DURATION
label: Chaos duration
description: The time duration for chaos insertion (in sec)
mapping: manifest.spec.template.spec.containers[0].env[3].value
defaultValue: "30"
- name: CHAOS_INTERVAL
label: Chaos interval
description: Time interval b/w two successive pod deletes (in sec)
mapping: manifest.spec.template.spec.containers[0].env[4].value
defaultValue: "10"
- name: FORCE_DELETE
label: force
description: To delete pod forcefully
mapping: manifest.spec.template.spec.containers[0].env[5].value
defaultValue: "false"
- name: UNINSTALL_LITMUS_ON_COMPLETION
label: uninstall litmus
description: Uninstall litmus if no more test to run
mapping: manifest.spec.template.spec.containers[0].env[6].value
defaultValue: "false"
manifest:
apiVersion: batch/v1
kind: Job
metadata:
name: run-pod-delete-chaos
spec:
backoffLimit: 0
template:
spec:
restartPolicy: Never
containers:
- name: run-pod-delete-chaos
image: mayadataio/chaos-ci-lib:ci
env:
- name: INSTALL_LITMUS
value: "$(INSTALL_LITMUS)"
- name: APP_NS
value: $(APPLICATION_NAMESPACE)
- name: APP_LABEL
value: $(APPLICATION_LABEL)
- name: TOTAL_CHAOS_DURATION
value: "$(CHAOS_DURATION)"
- name: CHAOS_INTERVAL
value: "$(CHAOS_INTERVAL)"
- name: FORCE
value: "$(FORCE_DELETE)"
- name: UNINSTALL_LITMUS
value: "$(UNINSTALL_LITMUS_ON_COMPLETION)"
- name: EXPERIMENT_NAME
value: "pod-delete"
command: ["/bin/bash"]
args:
- -c
- ./experiment_entrypoint.sh
```
## Updating the Custom Job Template
- Exec inside the halyard pod
```console
kubectl exec -it halyard-0 bash
bash-5.0$ cd ~/.hal/default/profiles/
bash-5.0$ ls
front50-local.yml gate-local.yml orca-local.yml settings-local.js
```
- Update the orca-local.yml (if present) template within `/home/spinnaker/.hal/default/profiles` with the new custom job. Else create this file.
- Update the service by running `hal deploy apply`. This will restart the spin-orca microservices pod to read the latest orca profile
```console
bash-5.0$ hal deploy apply
+ Get current deployment
Success
+ Prep deployment
Success
Validation in default.features:
- WARNING Field Features.artifacts not supported for Spinnaker
version 2.21.1: Artifacts are now enabled by default.
? You no longer need this.
- WARNING Field Features.artifactsRewrite not supported for
Spinnaker version 2.21.1: The artifacts rewrite UI is now enabled by
default.
? You no longer need this.
Validation in default:
- WARNING Version "2.21.1" was patched by "2.21.4". Please upgrade
when possible.
? https://www.spinnaker.io/community/releases/versions/
Validation in default.stats:
- INFO Stats are currently ENABLED. Usage statistics are being
collected���Thank you! These stats inform improvements to the product, and that
helps the community. To disable, run `hal config stats disable`. To learn more
about what and how stats data is used, please see
https://www.spinnaker.io/community/stats.
+ Preparation complete... deploying Spinnaker
+ Get current deployment
Success
+ Apply deployment
Success
+ Deploy spin-redis
Success
+ Deploy spin-clouddriver
Success
+ Deploy spin-front50
Success
+ Deploy spin-orca
Success
+ Deploy spin-deck
Success
+ Deploy spin-echo
Success
+ Deploy spin-gate
Success
+ Deploy spin-rosco
Success
+ Run `hal deploy connect` to connect to Spinnaker.
```
- Wait for the spinnaker orca pod to restart & enter ready state
```
bash-5.0$ kubectl get pods -l app.kubernetes.io/name=orca -n spinnaker
NAME READY STATUS RESTARTS AGE
spin-orca-6b84d44768-jtgml 1/1 Running 0 50m
```
- Refresh the Deck (Spinnaker UI) via a Relogin

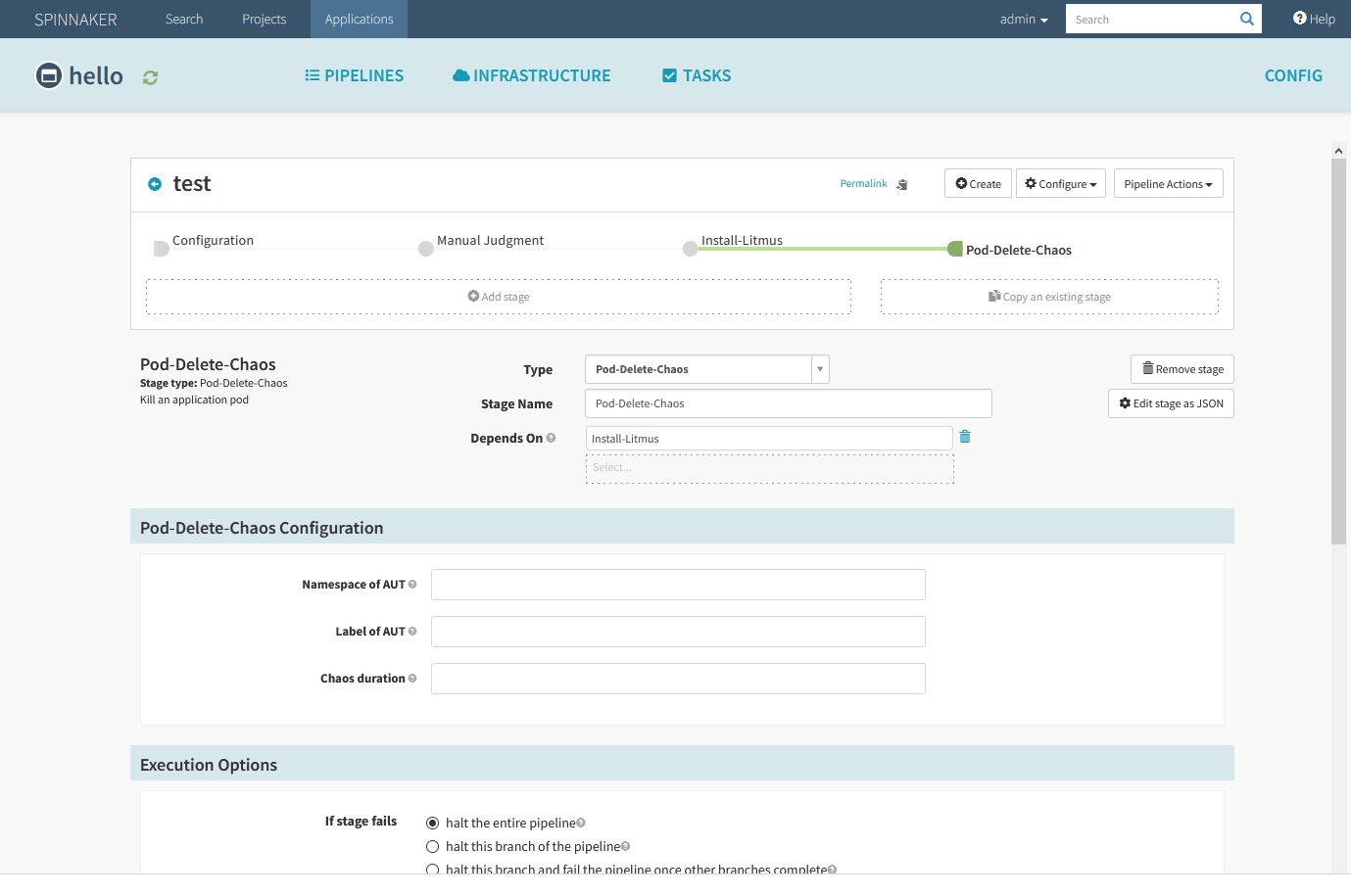

- Post this, the experiment-specific stage will appear in the list/drop-down for addition of new stages
