# ESP32 LilyGo T-QT C6 SDK
## Description
This is an Arduino library (v3.x) to use the [LilyGo T-QT C6](https://lilygo.cc/products/t-qt-c6) with touch gesture display and LiPo battery.

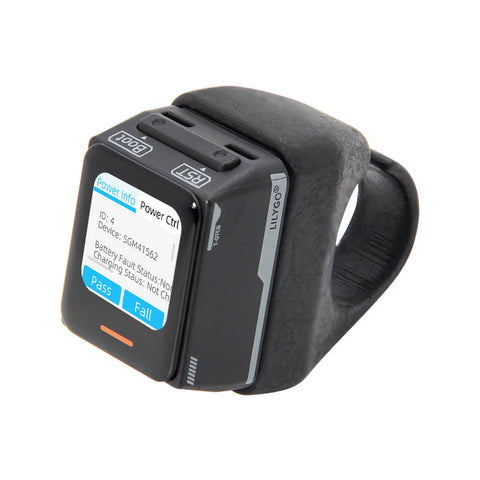

image from lilygo.cc
[LilyGo T-QT C6](https://lilygo.cc/products/t-qt-c6) is a mini development board based on the [ESP32-C6](https://www.espressif.com/en/products/socs/esp32-c6) chip from [espressif](https://www.espressif.com/en) and with a 128x128px TFT full-color touch gesture screen
example code from LilyGo: [T-QT-C6](https://github.com/Xinyuan-LilyGO/T-QT-C6)
## Features
- Wireless: Wi-Fi 6 2.4GHz, Bluetooth 5 (LE), Thread, Zigbee
- CPU 32-bit RISC-V 160 MHz
- CPU 32-bit RISC-V 20 MHz
- 320 KB ROM
- 512 KB SRAM
- supports PSRAM
- protocols: SPI, UART, I2C, RMT, TWAI, PWM, SDIO, Motor Control PWM
- 12-bit ADC
- temperature sensor
## Example codes
Clone this repository.
Uncomment a `src_dir=` line in the `platform.ini` file.
|example|code|description|
|---|---|---|
| Serial | [./examples/serial](./examples/serial) | UART as debug output |
| MAC | [./examples/mac](./examples/mac) | Outputs the MAC address |
| breathing light | [./examples/breathing-light](./examples/breathing-light) | showcase breathing-light |
| task stack size | [./examples/task-stack-size](./examples/taskstack-size) | gather needed stack size |
| dev mode | [./examples/dev-mode](./examples/dev-mode) | QtDev class with all features |
| battery voltage | [./examples/battery-voltage](./examples/battery-voltage) | Outputs the battery voltage |
| touch CST816T | [./examples/touch-CST816T](./examples/touch-CST816T) | touch gesture to Serial |
| gfx | [./examples/gfx](./examples/gfx) | showcase display drawing |
| touch-CST816T-gfx | [./examples/touch-CST816T-gfx](./examples/touch-CST816T-gfx) | display with touch gesture |
| WiFi AP | [./examples/wifi-ap](./examples/wifi-ap) | Access Point with Qwik UI |
| catalog | [./examples/](./examples/) | |
### WiFi AP - WiFi Access Point with Qwik UI example
1. modify the [./partitions.csv](./partitions.csv) if needed to prepare the filesystem
2. comment out `src_dir = ./examples/wifi-ap` line in [platformio.ini](platformio.ini)
3. build and upload the project
4. build and upload Qwik UI (SSG) in `/data`
```sh
cd ui && pnpm i
```
```sh
pnpm build.state
```
5. call
`Build Filesystem Image` then
`Upload Filesystem Image`:
## Get Started a new project
1. create a platformio project (e.g. with expressif esp32-c6-devkitc-1)
2. copy the [boards](boards/) path to your project root path
3. adapt the platformio.ini
```ini
[env:esp32-c6]
board = esp32-c6-n4
framework = arduino
platform = https://github.com/pioarduino/platform-espressif32/releases/download/stable/platform-espressif32.zip
lib_deps =
https://github.com/mcuw/esp32-t-qt-c6-sdk.git
```
4. example main.cpp
```c
#include
#include
Qt qt;
void setup()
{
qt.begin();
}
void loop()
{
qt.setBreathingLight(0);
delay(1000);
qt.setBreathingLight(255);
delay(1000);
}
```
## Disclaimer
Contribution and help ... if you find an issue or wants to contribute then please do not hesitate to create a Pull request or an issue.
We provide our build template as is, and we make no promises or guarantees about this code.
