# SpriteKitAutoLayout

[![CI Status](http://img.shields.io/travis/mgrebenets/SpriteKitAutoLayout.svg?style=flat)](https://travis-ci.org/mgrebenets/SpriteKitAutoLayout)
[![Version](https://img.shields.io/cocoapods/v/SpriteKitAutoLayout.svg?style=flat)](http://cocoadocs.org/docsets/SpriteKitAutoLayout)
[![License](https://img.shields.io/cocoapods/l/SpriteKitAutoLayout.svg?style=flat)](http://cocoadocs.org/docsets/SpriteKitAutoLayout)
[![Platform](https://img.shields.io/cocoapods/p/SpriteKitAutoLayout.svg?style=flat)](http://cocoadocs.org/docsets/SpriteKitAutoLayout)

SpriteKitAutoLayout (SKAL) is a framework that brings the power of [Auto Layout](https://developer.apple.com/library/ios/documentation/UserExperience/Conceptual/AutolayoutPG/Introduction/Introduction.html) to your [SpriteKit](https://developer.apple.com/library/ios/documentation/GraphicsAnimation/Conceptual/SpriteKit_PG/Introduction/Introduction.html) apps.

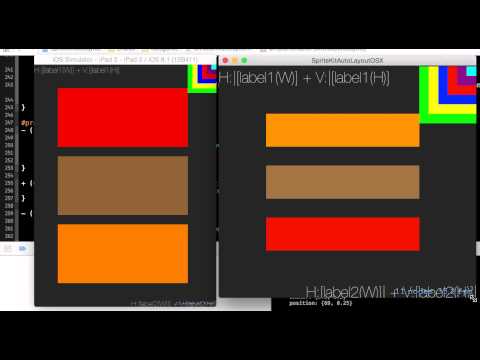

[![SpriteKitAutoLayout](http://img.youtube.com/vi/5BaXF5eCJp4/0.jpg)](http://www.youtube.com/watch?v=5BaXF5eCJp4)

## Good / Bad For
SpriteKitAutoLayout is **good** for the same purpose Auto Layout is good with UIKit or AppKit, that is to layout your app UI elements, such as buttons, labels, etc. Auto Layout will handle your UI layout when your scene size changes (on rotation for iOS or window resize on OSX).

It is **not good** for things that don't need any layout as such. For example a sprite that represents one of your (game) characters, which moves around, changes it's scale, rotates, animates and does other crazy things.

## Installation

SpriteKitAutoLayout is available through [CocoaPods](http://cocoapods.org). To install it, simply add the following line to your Podfile:

pod "SpriteKitAutoLayout"

## Usage

Start with including the header file.

```objective-c
#import
```

Put it in your Bridging Header if your project is Swift project.

That's pretty much it in regards to configuration, now you can use Auto Layout for SpriteKit nodes the same way you do that for UIKit/AppKit views.

The major difference is that you have to set `autoLayoutEnabled` to `true`, this is similar to setting `translatesAutoresizingMaskIntoConstraints` to `NO` in UIKit/AppKit.

You also have to call `layoutNodes` method of `SKScene` excplicitly. The best way to do that is in `didChangeSize:` implementation. Note, that you have to dispatch it asynchronously on main queue if you want you UI updates to be properly applied.

```swift
import SpriteKit

class DemoScene: SKScene {
override func didMoveToView(view: SKView) {
super.didMoveToView(view)

self.scaleMode = .ResizeFill
self.name = "DemoScene"

// Add label to put it left bottom corner
let leftBottomLabel = SKLabelNode()
leftBottomLabel.text = "Left Bottom"
leftBottomLabel.name = "leftBottomLabel" // a C language identifier
leftBottomLabel.autoLayoutEnabled = true // enable autolayout for this node
addChild(leftBottomLabel)

// Add color sprite with non-default anchor point to put in the center
let centerSprite = SKSpriteNode(color: SKColor.greenColor(), size: CGSizeZero)
centerSprite.name = "centerSprite"
centerSprite.anchorPoint = CGPoint(x: 1, y: 1) // non-default anchor point
centerSprite.autoLayoutEnabled = true
addChild(centerSprite)

// Get dictionary of all nodes in this scene
let nodesDic = self.nodesDic() // self. is required to avoid compile error

// Configure Auto Layout constraints

// Pin label to left bottom corner, use label's intrinsic size
let width = Float(leftBottomLabel.frame.width)
var format = "H:|[leftBottomLabel(\(width))]"
var constraints = NSLayoutConstraint.constraintsWithVisualFormat(format, options: .DirectionLeadingToTrailing, metrics: nil, views: nodesDic)
addConstraints(constraints) // add constraints

let height = Float(leftBottomLabel.frame.height)
format = "V:|[leftBottomLabel(\(height))]"
constraints = NSLayoutConstraint.constraintsWithVisualFormat(format, options: .DirectionLeadingToTrailing, metrics: nil, views: nodesDic)
addConstraints(constraints) // add constraints

// Put color sprite in the center
// Make it's size related to parent (aka "superview")

// Constraint center (x, y) to parent's (x, y)
// it's save to do it here because parent is skene filling whole SKView
var constraint = NSLayoutConstraint(item: centerSprite, attribute: .CenterX, relatedBy: .Equal, toItem: self, attribute: .CenterX, multiplier: 1, constant: 0)
addConstraint(constraint)
constraint = NSLayoutConstraint(item: centerSprite, attribute: .CenterY, relatedBy: .Equal, toItem: self, attribute: .CenterY, multiplier: 1, constant: 0)
addConstraint(constraint)

// Make the the centerSprite's width to be 20% of the parent's width
constraint = NSLayoutConstraint(item: centerSprite, attribute: .Width, relatedBy: .Equal, toItem: self, attribute: .Width, multiplier: 0.2, constant: 0)
addConstraint(constraint)

// Make the centerSprite's height to be equal to centerSprite's width
constraint = NSLayoutConstraint(item: centerSprite, attribute: .Height, relatedBy: .Equal, toItem: centerSprite, attribute: .Height, multiplier: 1, constant: 0)
centerSprite.addConstraint(constraint) // centerSprite's constraint on itself
}

override func didChangeSize(oldSize: CGSize) {
dispatch_async(dispatch_get_main_queue()) {
layoutNodes()
}
}
}
```

### Use With Other Auto Layout Frameworks

Want to use it with other Auto Layout wrappers and helpers?

No problem, use SKNode's `layoutProxyView()` read-only property exposed since `0.2.0`.

For example, this is what you code would look like with [Cartography](https://github.com/robb/Cartography).

```swift
let button = SKSpriteNode(color: SKColor.greenColor(), size: CGSizeZero)
button.autoLayoutEnabled = true
addChild(button)

layout(button.layoutProxyView()) { button in
// button in closure is not the same as 'let button' declared before
button.left == button.superview!.left // same as "H:|[button]"
button.bottom == button.superview!.bottom // same as "V:|[button]"
button.height == button.superview!.height * 0.1
button.width == button.height
}
```

## Example

To run the example project, clone the repo, and run `pod install` from the Example directory first.

## Requirements

Just like SpriteKit itself SpriteKitAutoLayout is available both for iOS and OSX platforms.

- Min iOS version is 7.0
- Min OSX version is 10.9

## Limitations & Issues

- Setting constraints for SKLabelNode is tricky if you want to use `.CenterX`, `.CenterY` or other attributes.
- No support for intrinsic size on labels and sprites.

## Roadmap

- Support for non-default anchor points for SKScene. Now works fine with (0.5, 0.5) only.
- Support for concept of intrinsic size for SKLabelNode and SKSpriteNode.
- More and more unit tests!
- Make it more lightweight by using dummy subclass of CALayer for UIView instances.

## Author

Maksym Grebenets, [email protected]

## License

SpriteKitAutoLayout is available under the MIT license. See the LICENSE file for more info.
