# Webhook Ingestion Pipeline
> **TypeScript webhook operations portfolio project** demonstrating multi-provider event ingestion, shared-secret verification, idempotency handling, retry workflows, and production-style operational visibility.
**Recruiter takeaway:** *"This person can design reliable backend services around real SaaS integration patterns, not just basic CRUD APIs."*
---
## Project Overview
| Attribute | Detail |
|---|---|
| **Runtime** | Node.js + TypeScript |
| **Framework** | Express 5 |
| **Domain** | SaaS webhook ingestion and event operations |
| **Providers Modeled** | Stripe · HubSpot · Salesforce · Internal App |
| **Core Behaviors** | Secret verification · Idempotency · Failure handling · Retry operations · Metrics |
| **Docs** | Swagger UI at `/docs` |
---
## Executive Summary
Webhook Ingestion Pipeline models the kind of internal platform service revenue, product, and operations teams rely on when third-party systems need to push event data into a centralized processing layer. Instead of stopping at "receive a POST body," the project demonstrates the operational concerns that matter in production: duplicate delivery protection, event state transitions, retry workflows, failure visibility, and clear observability endpoints.
The result is a recruiter-facing backend project that feels like a real integration service sitting between vendors such as Stripe or HubSpot and a broader internal event-processing stack.
---
## Architecture
```text
Provider Webhook
|
v
POST /webhooks/:provider
|
+--> Shared-secret verification
+--> Payload validation
+--> Idempotency lookup
+--> Event record creation
+--> Processing attempt
|
+--> processed
+--> failed
|
v
GET /api/failures
POST /api/events/:id/retry
```
### Request Flow
1. A provider sends an event to `POST /webhooks/:provider`.
2. The service verifies the provider secret from `x-webhook-secret`.
3. The payload is validated with Zod.
4. The service checks whether the `(provider, eventId)` pair has already been seen.
5. New events move through `received -> validated -> processed/failed`.
6. Failed events remain operator-visible via `/api/failures`.
7. Retries create a new processing attempt and can promote the event into `retried`.
---
## Event Lifecycle
| State | Meaning |
|---|---|
| `received` | Inbound delivery has been captured |
| `validated` | Provider and payload checks passed |
| `processed` | First-pass processing succeeded |
| `failed` | Processing failed and is awaiting operator action |
| `retried` | A later attempt succeeded after a prior failure |
### Idempotency Model
Each event is keyed by provider and external event ID, with an optional explicit `idempotencyKey`. Duplicate deliveries are accepted but not reprocessed. Instead, the service increments a `duplicateDeliveries` counter and returns the existing event record.
That mirrors the defensive patterns needed when Stripe, HubSpot, or internal event buses redeliver the same event more than once.
---
## API Endpoints
| Method | Endpoint | Purpose |
|---|---|---|
| `GET` | `/health` | Service status and uptime |
| `POST` | `/webhooks/:provider` | Receive a provider webhook |
| `GET` | `/api/events` | List webhook event records |
| `GET` | `/api/events/:id` | Fetch a single event |
| `GET` | `/api/failures` | View failed deliveries / dead-letter style records |
| `POST` | `/api/events/:id/retry` | Retry a failed event |
| `GET` | `/api/metrics` | Operational metrics summary |
| `GET` | `/docs` | Swagger / OpenAPI UI |
---
## Sample Webhook Request
```json
{
"eventId": "evt_stripe_test_200",
"eventType": "invoice.paid",
"occurredAt": "2026-05-06T14:00:00.000Z",
"data": {
"customerId": "cus_test_77",
"amount": 42000
}
}
```
Example request:
```bash
curl -X POST http://localhost:3000/webhooks/stripe \
-H "Content-Type: application/json" \
-H "x-webhook-secret: stripe-demo-secret" \
-d @payload.json
```
## Sample Processed Event Response
```json
{
"accepted": true,
"duplicate": false,
"event": {
"id": "evt_8d4b9d56-5f4f-4fd4-9a8b-4d8c0f583777",
"provider": "stripe",
"eventType": "invoice.paid",
"status": "processed",
"idempotencyKey": "stripe:evt_stripe_test_200",
"duplicateDeliveries": 0,
"processingAttempts": 1,
"latestSummary": "Event validated, routed, and processed successfully."
}
}
```
---
## Screenshots

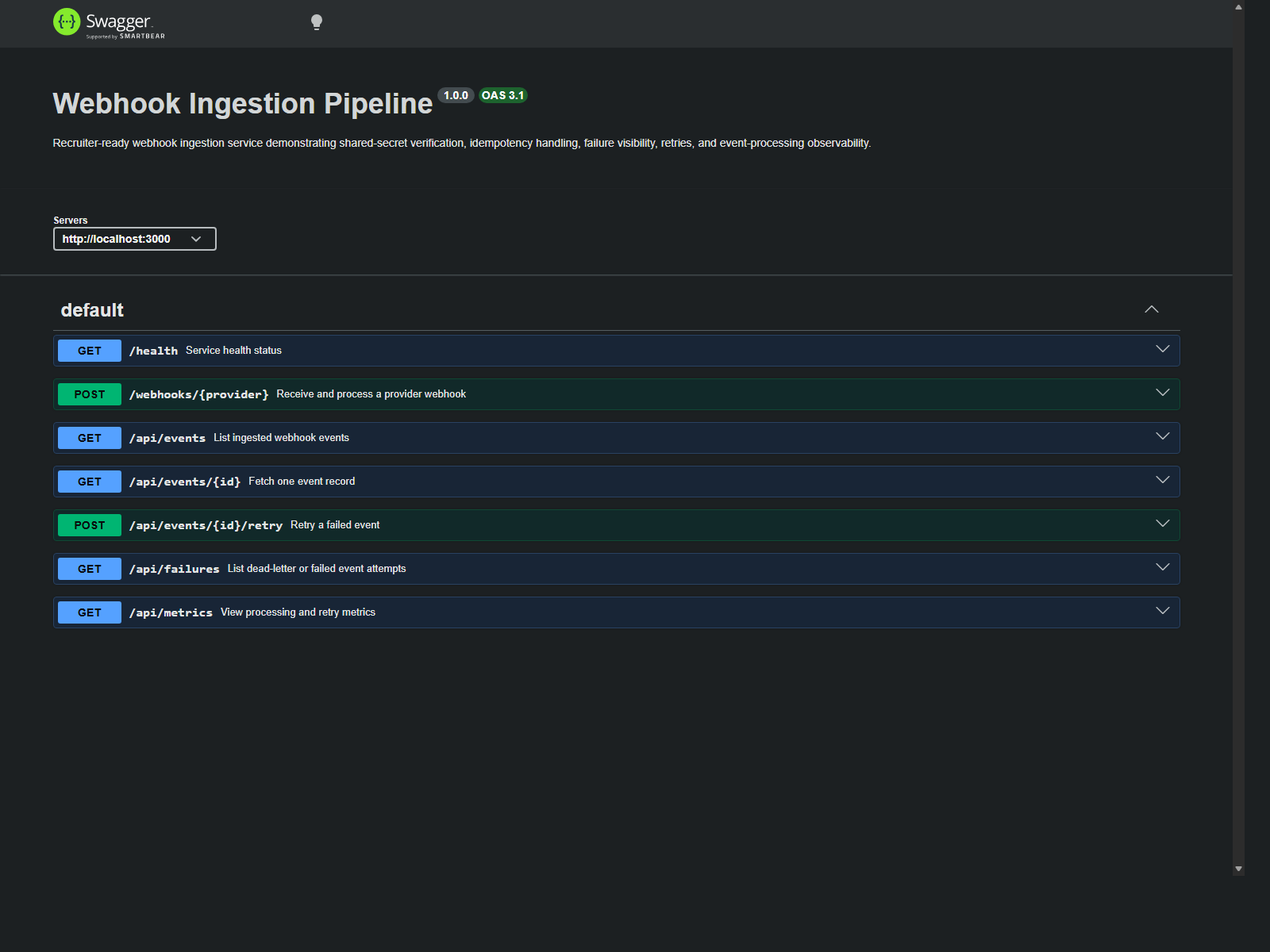

### Hero Capture

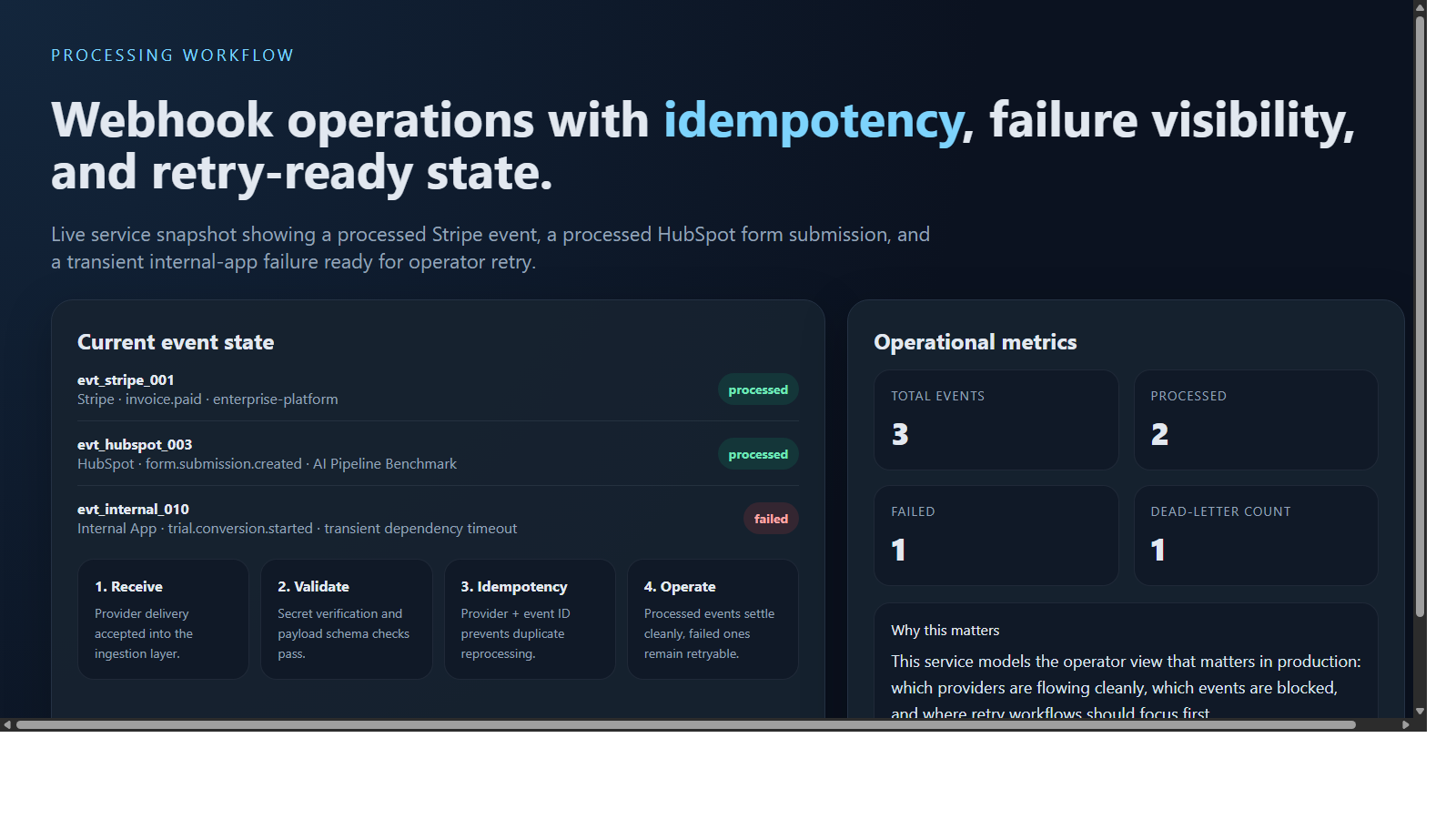

### Processing Workflow

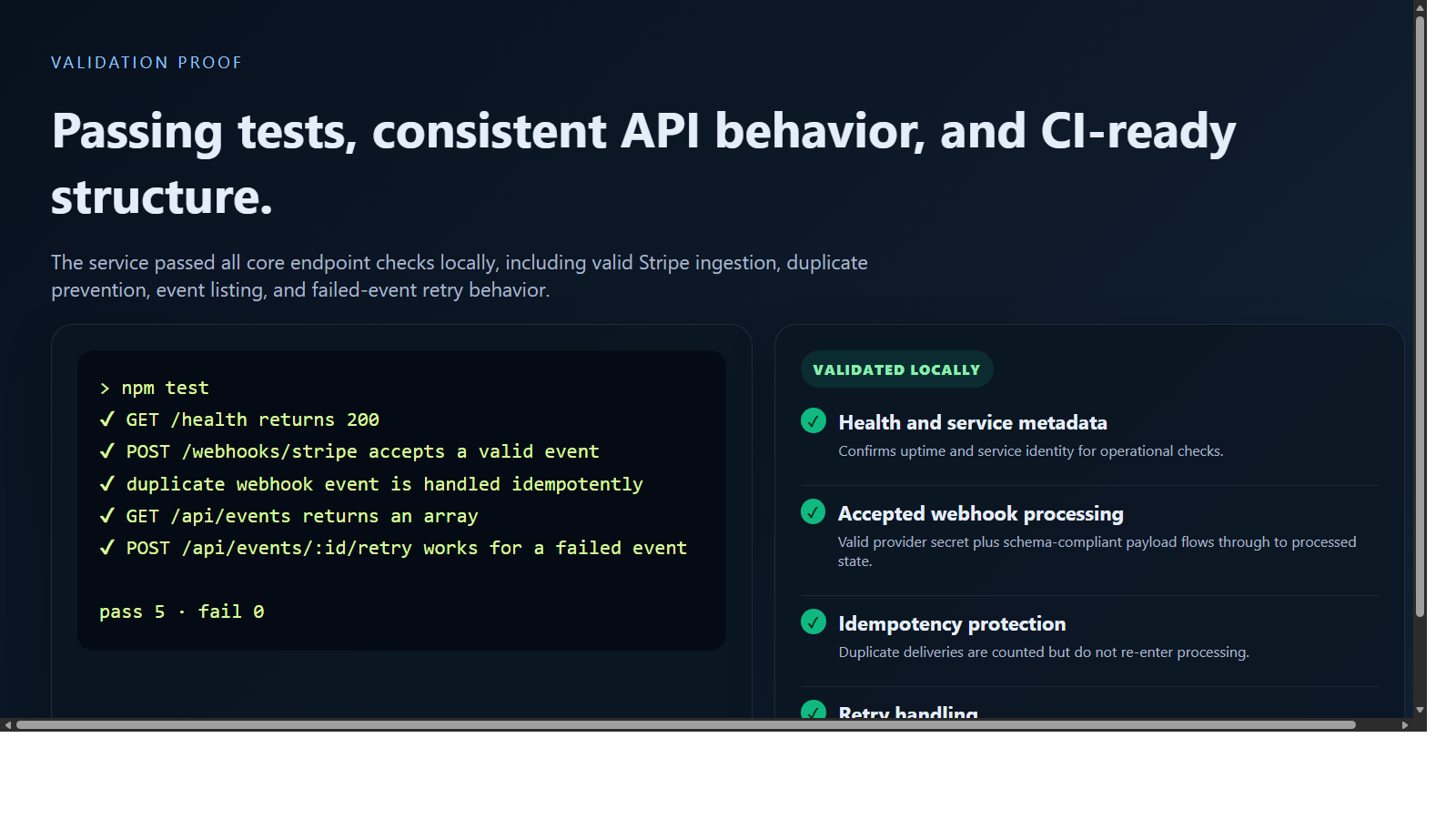

### Validation Proof
---
## Getting Started
### Prerequisites
- Node.js 20+
- npm
### Setup
```bash
git clone https://github.com/mizcausevic-dev/webhook-ingestion-pipeline.git
cd webhook-ingestion-pipeline
npm install
cp .env.example .env
npm run dev
```
Visit:
- `http://localhost:3000/docs`
- `http://localhost:3000/api/events`
- `http://localhost:3000/api/metrics`
### Run Tests
```bash
npm test
```
---
## What This Demonstrates
- backend API design beyond CRUD
- webhook hardening with provider verification
- idempotency and duplicate-delivery handling
- event lifecycle modeling and operator-friendly retry flows
- production-minded observability through failures and metrics
- clean TypeScript service structure and documentation discipline
---
## Future Enhancements
- persist events and attempts in PostgreSQL
- introduce Redis or SQS-backed asynchronous workers
- add HMAC signature verification for each provider
- emit OpenTelemetry traces and structured logs
- add dead-letter replay policies and alerting hooks
---
## Tech Stack
- Node.js
- TypeScript
- Express
- Zod
- Swagger / OpenAPI
- Helmet
- CORS
- Morgan
- Node test runner + Supertest
