# go-gracefully
`go-gracefully` is a library for monitoring and reporting on an applications' health.
Unlike many solutions out there, `go-gracefully` uses an asynchronous, stream based check scheme.
This enables real-time checks as well as push based changes.
**Status:**
This library is currently available as a _preview_.
I started development to support my existing work on [deps.cloud](http://github.com/depscloud).
Most health check libraries you find are pull based.
In this model, you define your check as a function that's called on some set interval.
While this is a great start to a solution, more advance techniques need to be able to push.

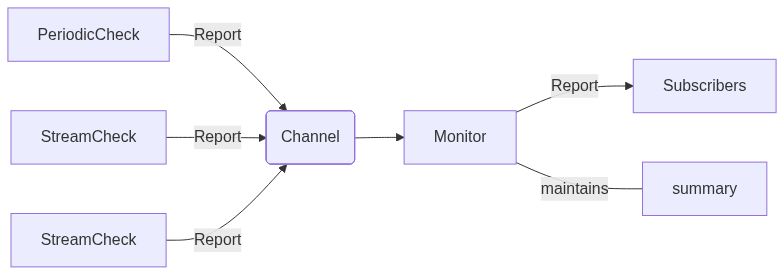

The flow of information in the system is as follows:
[](https://mermaid-js.github.io/mermaid-live-editor/#/edit/eyJjb2RlIjoiZ3JhcGggTFJcbiAgQVtQZXJpb2RpY0NoZWNrXSAtLT58UmVwb3J0fCBDaChDaGFubmVsKVxuICBCW1N0cmVhbUNoZWNrXSAtLT58UmVwb3J0fCBDaFxuICBDW1N0cmVhbUNoZWNrXSAtLT58UmVwb3J0fCBDaFxuXHRDaCAtLT4gTVtNb25pdG9yXVxuICBNIC0tPnxSZXBvcnR8IFNbU3Vic2NyaWJlcnNdXG4gIE0gLS0tfG1haW50YWluc3wgc3VtbWFyeSIsIm1lcm1haWQiOnsidGhlbWUiOiJkZWZhdWx0In0sInVwZGF0ZUVkaXRvciI6ZmFsc2V9)
1. Each `Check` produces a `Report`
2. `Reports` are collected through the use of a channel by the `Monitor`.
3. The monitor updates its `summary` of the system.
4. When either a check, or the system state changes, a `Report` is published to subscribers.
A snapshot of the full report can be obtained from the `Monitor`.
## How does it work?
All checks in `go-gracefully` have a common block of metadata.
* `Name` is a required descriptor of the check.
* Avoid whitespace where possible. Preferred character set: `[a-zA-Z0-9-_.]`
* An optional `Runbook` can be provided to aid in the resolution of issues.
* When provided, this should be a valid URL.
* Finally, a `Weight` is used to determine relative importance of check to the overall system.
* A check with `Weight: 100` has a greater impact on the system health than one with `Weight: 10`.
```go
// ...
Metadata: check.Metadata{
Name: "periodic-check",
Runbook: "http://path/to/runbook.md",
Weight: 10,
},
// ...
```
When check's evaluated, it can return one of four possible states.
* `OK` - The check is operating as expected.
* `Minor` - The check is failing and will require attention soon.
* `Major` - The check is failing and requires attention soon.
* `Outage` - The check is failing and requires attention.
On its own, `state` represents a fractional value of health (i.e. `[0-1]`).
Together, the `state` and the `weight` are used to approximate an applications' health.
## Inspirations
There are a lot of prior work out there.
It's hard to list them all.
The list below was is just a few I drew inspiration from.
* http://github.com/indeedeng/status
* https://github.com/InVisionApp/go-health
* https://godoc.org/github.com/heptiolabs/healthcheck
* https://github.com/AppsFlyer/go-sundheit
## Installation
```bash
go get -u github.com/mjpitz/go-gracefully
```
## Usage
```go
package main
import (
"context"
"http"
"log"
"time"
"github.com/mjpitz/go-gracefully/check"
"github.com/mjpitz/go-gracefully/health"
"github.com/mjpitz/go-gracefully/state"
)
func main() {
monitor := health.NewMonitor([]check.Check{
&check.Periodic{
Metadata: check.Metadata{
Name: "periodic-check",
Runbook: "http://path/to/runbook.md",
Weight: 10,
},
Interval: time.Second * 5,
Timeout: time.Second,
RunFunc: func(ctx context.Context) (state.State, error) {
// make API call, check system health
return state.OK, nil
},
},
&check.Stream{
Metadata: check.Metadata{
Name: "stream-check",
Runbook: "http://path/to/runbook.md",
Weight: 10,
},
WatchFunc: func(ctx context.Context, channel chan check.Result) {
stopCh := ctx.Done()
var upstreamCh chan interface{}
// make call that fills chan
for {
select {
case <-stopCh:
return
case _ = <-upstreamCh:
channel <- check.Result{
State: state.OK,
Error: nil,
}
}
}
},
},
}...)
reports, unsubscribe := monitor.Subscribe()
defer unsubscribe()
ctx := context.Background()
if err := monitor.Start(ctx); err != nil {
log.Fatal(err.Error())
}
// subscribe to changes in health
for report := range reports {
// access check information if present
// - Check will not be present for changes in overall system health
_ = report.Check
// access check evaluation result data
// - Result will be present for all reports
_ = report.Result
}
// or add an HTTP endpoint to view the results of it
http.HandleFunc("/healthz", health.HandlerFunc(monitor))
}
```
