# TransferScheduler Contract

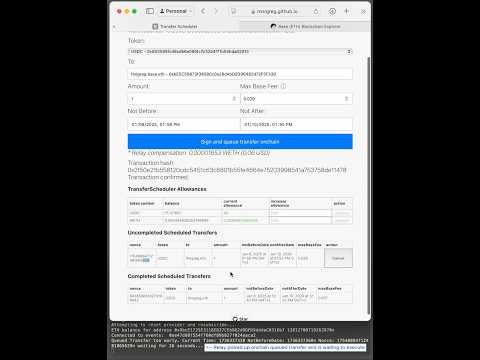

## Frontend demo
[](https://youtu.be/DPMkH1oqtj0)
## Overview
The TransferScheduler is a public-good smart contract to facilitate scheduled ERC20 token transfers on Ethereum blockchains. It allows users to queue transfers that will be executed at a specified future time, ensuring that transactions occur automatically without the need for manual intervention. This offers:
- **Better Capital Efficiency**: Users retain control of their ERC20 tokens until the scheduled transaction date, allowing them to accrue interest and rewards or utilize funds for other purposes in the interim.
- **Onchain Transparency**: Senders and Recipients can view upcoming transfers directly on the blockchain, enhancing financial transparency.
- **Convenience**: This allows users to plan and automate payments, improving convenience. Ideal for routine payments, such as remittances, DAO disbursements, and small business payroll.
## Features
- **Non-Monotonic Nonces**: Allows for non-sequential scheduling of transactions at arbitrary points in time, independent of previous transactions.
- **Transfer Restrictions**: `notBeforeDate` and `notAfterDate` dates ensure that transfers are only executed within the valid time frame. `block.timestamp` is used for comparison.
- **Relayer Gas Compensation**: The contract [compensates](./contracts/src/TransferSchedulerV1.sol#L206-L210) relayers for their ETH gas spend in WETH. An additional gas percentage commission is added to compensate relayers for their `MaxPriorityFeePerGas` tip, compute costs, and opportunity costs.
- The gas compensation is calculated as `block.basefee * 380000 (gas usage) * (100 + relayGasCommissionPercentage) / 100`.
- `relayGasCommissionPercentage` is initialized at contract deployment for each chain (50% by default).
- The WETH payment to the relayer is included automatically as part of the contract transfer.
- If insufficient WETH is available, the relayer will not broadcast the transaction.
- **Gas Price Threshold**: Transfers will not execute if the network gas price `block.basefee` is higher than the user specified threshold `maxBaseFee`.
- **Offchain queuing**: ScheduledTransfer signed messages can be provided directly to recipients or third party relays for offchain queuing, thereby avoid onchain queueing gas cost (70k gas).
## Components
### Smart Contract
The core functionality is implemented in the TransferScheduler smart contract, which includes methods for:
- Queuing signed scheduled transfers (address, nonce, nonce status) - 70k gas
- [Verifies](./contracts/src/TransferSchedulerV1.sol#L198) the user [EIP712 ScheduledTransfer typed message signature](./client-sdk/src/web3.ts#L11-L37)
- Executing scheduled transfers
- Base: 130k gas with EOA | 380k gas with Smart Account
- Arbitrum: 700k gas with EOA | 800k gas with Smart Account
- [Retrieving](./contracts/src/TransferSchedulerV1.sol#L146) the [relay gas token](./contracts/src/TransferSchedulerV1.sol#L32)
- [Retrieving](./contracts/src/TransferSchedulerV1.sol#L136) the [relay gas usage](./contracts/src/TransferSchedulerV1.sol#L32)
- [Retrieving](./contracts/src/TransferSchedulerV1.sol#L141) the [relay gas commission percentage](./contracts/src/TransferSchedulerV1.sol#L32)
### Frontend
The frontend provides an example user interface for:
- Creating, signing and queuing scheduled transfers
- Increasing allowance for the transfer token and relay gas token
- Watching for TransferScheduled events
- Listing historical completed or future uncompleted transfers
An demo example is published at [https://mnrgreg.github.io/TransferScheduler/](https://mnrgreg.github.io/TransferScheduler/) which uses [Arbitrum Mainnet](https://arbiscan.io/address/0xBa551D945d9d4f14F7F6abc9abd26BD2684fA940#writeProxyContract) and [Base Mainnet](https://basescan.org/address/0xBa551D945d9d4f14F7F6abc9abd26BD2684fA940#writeProxyContract) with `WETH` as the relay gas token and [Polygon Mainnet](https://polygonscan.com/address/0xBa551D945d9d4f14F7F6abc9abd26BD2684fA940#writeProxyContract) with `WPOL`.
### Client SDK
The client SDK provides a JavaScript library for interacting with the TransferScheduler contract. It includes functions for:
- Queuing a signed scheduled transfer.
- Watching for TransferScheduled events.
- Types for creating and signing scheduled transfers.
### Relay Worker
A basic reference implementation that is responsible for:
- Listening for events.
- Persisting event entries to a local queue.
- Evaluating all transfer restrictions before executing.
- Executing the transfer with a pre-signed signature.
## Types
```typescript
// EIP712 Typed Message for Scheduled Transfers
primaryType: 'ScheduledTransfer',
domain: {
name: 'TransferScheduler',
version: '1',
chainId: chainId,
verifyingContract: TransferSchedulerContractAddress
},
types: {
EIP712Domain: [
{ name: "name", type: "string" },
{ name: "version", type: "string" },
{ name: "chainId", type: "uint256" },
{ name: "verifyingContract", type: "address" }
],
ScheduledTransfer: [
{ name: 'owner', type: 'address' },
{ name: 'nonce', type: 'uint96' },
{ name: 'token', type: 'address' },
{ name: 'to', type: 'address' },
{ name: 'amount', type: 'uint128' },
{ name: 'spender', type: 'address' },
{ name: 'notBeforeDate', type: 'uint40' },
{ name: 'notAfterDate', type: 'uint40' },
{ name: 'maxBaseFee', type: 'uint40' },
]
}
```
## Contributing
Contributions are welcome! Please open an issue or submit a pull request for any enhancements or bug fixes.
## License
This project is licensed under the MIT License. See the LICENSE file for details.
