# Arango CVE Processor
## Before you get started
Arango CVE Processor is built into [Vulmatch](https://github.com/muchdogesec/vulmatch) which also handles the download of CVE objects (what you need for ACVEP to work). As such, [Vulmatch](https://github.com/muchdogesec/vulmatch) is probably better suited to what you're looking for.
## tl;dr
A small script that enriches CVEs to other sources with all data stored as STIX 2.1 objects.

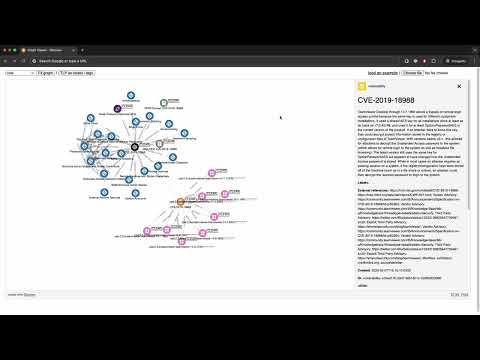

[](https://www.youtube.com/watch?v=J_LbAzoUpd4)
[Watch the demo](https://www.youtube.com/watch?v=J_LbAzoUpd4).
## Overview
Here at DOGESEC we work with a lot of CVE data across our products. [cve2stix](https://github.com/muchdogesec/cve2stix) generates core STIX 2.1 Vulnerability objects from CVE data.
However, we have lots of other sources (EPSS, KEV, ATT&CK...) that we want to enrich this data with.
We built Arango CVE Processor to handle the generation and maintenance of these enrichments.
In short, Arango CVE Processor is a script that;
1. reads the ingested CVE STIX data in ArangoDB
2. creates STIX objects to represent the relationships between CVE and other datasets
## Usage
### Install the script
```shell
# clone the latest code
git clone https://github.com/muchdogesec/arango_cve_processor
# create a venv
cd arango_cve_processor
python3 -m venv arango_cve_processor-venv
source arango_cve_processor-venv/bin/activate
# install requirements
pip3 install -r requirements.txt
````
### Configuration options
Arango CVE Processor has various settings that are defined in an `.env` file.
To create a template for the file:
```shell
cp .env.example .env
```
To see more information about how to set the variables, and what they do, read the `.env.markdown` file.
### Run
```shell
python3 arango_cve_processor.py \
--database DATABASE \
--relationship RELATIONSHIP \
--ignore_embedded_relationships BOOLEAN \
--modified_min DATE \
--cve_id CVE-NNNN-NNNN CVE-NNNN-NNNN
```
Where;
* `--database` (required): the arangoDB database name where the objects you want to link are found. It must contain the collections `nvd_cve_vertex_collection` and `nvd_cve_edge_collection`
* `--relationship` (optional, dictionary): you can apply updates to certain relationships at run time. Default is all. Note, you should ensure your `database` contains all the required seeded data. User can select from;
* `cve-cwe`
* `cve-capec`
* `cve-attack`
* `cve-epss`
* `cve-kev`
* `--ignore_embedded_relationships` (optional, boolean). Default is `false`. if `true` passed, this will stop any embedded relationships from being generated. This is a stix2arango feature where STIX SROs will also be created for `_ref` and `_refs` properties inside each object (e.g. if `_ref` property = `identity--1234` and SRO between the object with the `_ref` property and `identity--1234` will be created). See stix2arango docs for more detail if required, essentially this a wrapper for the same `--ignore_embedded_relationships` setting implemented by stix2arango
* `--ignore_embedded_relationships_sro` (optional): boolean, if `true` passed, will stop any embedded relationships from being generated from SRO objects (`type` = `relationship`). Default is `false`
* `--ignore_embedded_relationships_smo` (optional): boolean, if `true` passed, will stop any embedded relationships from being generated from SMO objects (`type` = `marking-definition`, `extension-definition`, `language-content`). Default is `false`
* `--modified_min` (optional, date in format `YYYY-MM-DD`). By default arango_cve_processor will consider all CVEs in the database specified with the property `_is_latest==true` (that is; the latest version of the object). Using this flag with a modified time value will further filter the results processed by arango_cve_processor to STIX objects with a `modified` time >= to the value specified. This is useful when you don't want to process data for very old CVEs in the database.
* `--created_min` (optional, date in format `YYYY-MM-DD`). Same as `modified_min` but considers `created` date.
* `--cve_id` (optional, CVE ID): will only process the relationships for the CVE passed, otherwise all CVEs will be considered.
### Examples
Process CVE -> CWE relationships for all CVEs modified after 2023-01-01 and only created embedded relationships from SDOs and SCOs...
```shell
python3 arango_cve_processor.py \
--database arango_cve_processor_standard_tests_database \
--relationship cve-cwe \
--modified_min 2024-02-01 \
--ignore_embedded_relationships true \
--ignore_embedded_relationships_sro true \
--ignore_embedded_relationships_smo true
```
Get all EPSS scores for CVEs
```shell
python3 arango_cve_processor.py \
--database arango_cve_processor_standard_tests_database \
--relationship cve-epss \
--ignore_embedded_relationships false \
--ignore_embedded_relationships_sro true \
--ignore_embedded_relationships_smo true
```
## Backfilling data
[stix2arango contains a set of utility scripts that can be used to backfill all the datasources required for this test](https://github.com/muchdogesec/stix2arango/tree/main/utilities).
## How it works
If you would like to know how the logic of this script works in detail, please consult the `/docs` directory.
## Useful supporting tools
* To generate STIX 2.1 extensions: [stix2 Python Lib](https://stix2.readthedocs.io/en/latest/)
* STIX 2.1 specifications for objects: [STIX 2.1 docs](https://docs.oasis-open.org/cti/stix/v2.1/stix-v2.1.html)
* [ArangoDB docs](https://www.arangodb.com/docs/stable/)
## Support
[Minimal support provided via the DOGESEC community](https://community.dogesec.com/).
## License
[Apache 2.0](/LICENSE).
