## About

stm32_APA102 is a C++ library for APA102 led pixel tape using cube HAL.

It contains two examples, `APA102_driver_basic_example` demonstrating the basic functionality of the driver,

and `APA102_driver_animations_example` which utilizes a timer peripheral to create some animations.

(back to top)


## Video Demo

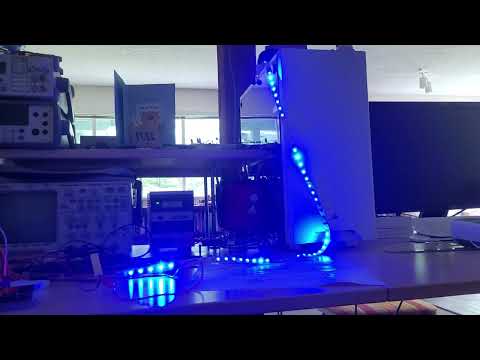

[![APA102 Animation Demo](https://img.youtube.com/vi/J8TFftAH_eE/0.jpg)](https://www.youtube.com/watch?v=J8TFftAH_eE)

(back to top)


## Running Examples

The examples are compiled for an stm32l476RGT.

**If a stm32l476RGT is being used:**

From within stm32CubeIDE, click `file->import`, then select `Existing Projects into Workspace`, then browse to the respective example folder and click next.

**If you are not using an stm32l476RGT:**

Follow the directions in the [Configuring A New Project](#configuring-a-new-project) then copy

and paste the `main_cpp.cpp` of the respective example to `your_project/core/src` and `main_cpp.h` to `your_project/core/inc`.

Next, edit the `main.c` file to include the `main_cpp.h` header and call the `cpp_main()` function:

```cpp

/* Private includes ----------------------------------------------------------*/

/* USER CODE BEGIN Includes */

#include "main_cpp.h"

//...

//farther below after MX_init functions

  /* USER CODE BEGIN 2 */

  //jump to cpp program

  cpp_main();

  /* USER CODE END 2 */

```

(back to top)


## Configuring A New Project

**1.**

    Open STM32CubeIDE and create a new project (`file->new->stm32_project`).

**2.**

    Find your controller from the list and hit next to proceed to the project window.

**3.**

    Select `C++` from `Targeted Language` and enter your project name on the STM32 project window.

    ![image](README_images/create_project.png)

**4.**

    From the `your_project.ioc` pinout and configuration file, first select the `Clock Configuration`.

    We want around 16 to 20MHz for our SPI SCLK, as long as you can derive that from your HCLK. Here,

    I am using 80MHz:

    ![image](README_images/clock_tree.png)

**5.**

    Next, select your desired SPI peripheral from `Pinout & Configuration`.

    Set the Mode to Transmit Only Master, Data Size to 8 bits, CPOL to high, CPHA to 2 Edge (SPI mode 3), and the Prescaler to a suitable divisor to achieve 16 - 20MHz on SCLK.

    ![image](README_images/spi_settings.png)

**5.**

    From the `DMA settings` tab of the same SPI peripheral, add a request for SPIX_TX (in this case SPI1) by clicking the add button.

    Set the priority to high/very high, if possible.

    ![image](README_images/dma_settings.png)

**6.**

    From the `NVIC settings` tab of the same SPI peripheral, enable the respective SPI global interrupt.

    ![image](README_images/spi_interrupt_settings.png)

**7.**

    If you are not using the animations, skip to step  **10**.

**8.**

Select a timer peripheral to use for driving the animations from `Pinout & Configuration` and set the Prescaler to achieve a 20MHz

tick frequency (in this case, 80MHz / 4 = 20MHz), alternatively, replace *TIM_TICK_FREQ* in `APA102Animation.h` with your used tick frequency.

![image](README_images/timer_settings.png)

**9.**

Select the `NVIC Settings` tab of the same timer peripheral and enable its respective interrupt.

![image](README_images/interrupt_settings.png)

**10.**

From `Project Manager` select the `Advanced Settings` tab and enable `Register CallBack` on `SPI`, if you are using animations enable `TIM` as well:

![image](README_images/register_callbacks.png)

**11.**

From `Project Manager` select the `Code Generator` and check `'.c/.c' files per peripheral`.

![image](README_images/code_generator.png)

**12.**

Hit `ctrl+s` to save and generate code.

**13.**

Select `project->properties` and click the `Settings` menu underneath the `C/C++ Build` drop down.

In `MCU/MPU G++ Compiler` set the Language Standard to C++ 20.

![image](README_images/build_settings.png)

**14.**

Copy and paste the `Inc` and `Src` from the repo `APA102_driver` folder into `your_project/Core`
