# Wired

![Version](https://img.shields.io/badge/version-0.0.1-green.svg?style=flat-square)

![License](https://img.shields.io/badge/license-GNU%20GPLv3-green?style=flat-square)

![Language](https://img.shields.io/badge/language-C++23-green.svg?style=flat-square)

Wired is a cross-platform, C++23, 2D/3D, game and render engine.

The Wired Renderer currently ships with a Vulkan-based GPU implementation.

## Screenshots

![Alt text](screenshots/collage.webp "Collage")

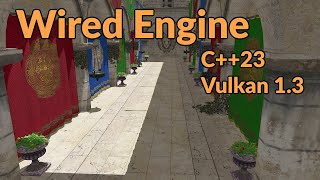

## Tech Demo Video

[![Tech Demo Video](https://img.youtube.com/vi/R-enitNsDyU/mqdefault.jpg)](https://youtu.be/R-enitNsDyU)

## High-Level Features

- Cross Platform

- 2D & 3D Rendering

- Entity Component System

- Asset Loading System

- Point, Spot, and Directional Lights

- Single, Cubic, and Stabilized Cascaded Shadow Mapping

- Material, Mesh, and Texture Systems

- PBR lighting

- Heightmap Mesh Generation

- Compute-Based GPU Culling, LOD Selection, Post Processing

- Node and Skeleton-Based Model Animations

- 3D Physics System

- Global and 3D Spatialized Audio System

- Player Controller

- Input Handling

## Sample Client

A sample client can be found at the link below. It's a minimal example of using Wired to create a window, load a package's resources, and render a model in 3D space.

[Sample Client](https://github.com/neon-software-dev/Wired/blob/main/samples/sample_client.cpp)

--

If you want to use package loading functionality to load assets from disk (```LoadPackageResources```), a sample package structure can be found at the link below. A ```wired``` directory with the indicated structure should be present in the runtime directory of your executable.

*(Note that models must be in their own subdirectory under assets/models, with the directory name matching the model file name, as demonstrated in the sample package).*

[Sample Package](https://github.com/neon-software-dev/Wired/blob/main/samples/PackageSample)



## Building The Engine

### Dependencies

Have available on the command line:

- CMake

- Python3 (If using any of the helper scripts)

- A C++ compiler

### Option 1 - Using the build script

The ```build.[sh/bat]``` script will configure dependencies, invoke CMake, and build (a distro build of) the engine for you.

### Option 2 - Building manually

The engine is defined by a typical CMake project, located in src.

The ```external/prepare_dependencies.[sh/bat]``` helper script uses vcpkg to fetch the engine's dependencies. It will create a local vcpkg repo and install the engine's dependencies into it.

Either use the ```prepare_dependencies``` script or provide dependencies manually to CMake later via your own means.

The ```CMakePresets.json``` file defines configurations for typical build presets. Preset names follow the pattern: ```desktop-[debug/release/distro]-[windows/linux]```.

Set ```BUILD_SHARED_LIBS ON/OFF``` for whether to build Wired as shared or static libraries.

**Sample CMake invocation:**

```cmake src --preset desktop-distro-linux -DBUILD_SHARED_LIBS=ON -DCMAKE_INSTALL_PREFIX=/install/location```

See also: The ```build.sh``` script, which does the above for you.
