# W5500 Decoder

Decodes Wiznet W5500 SPI bus transactions in VDM mode.

## Features

* Annotates address phase with "Address {address_value}"

* Annotates the control phase with "{name} block {rw}"

* Annotates following bytes with "Read {register} {value}" or "Write {register} {value}"

## Example

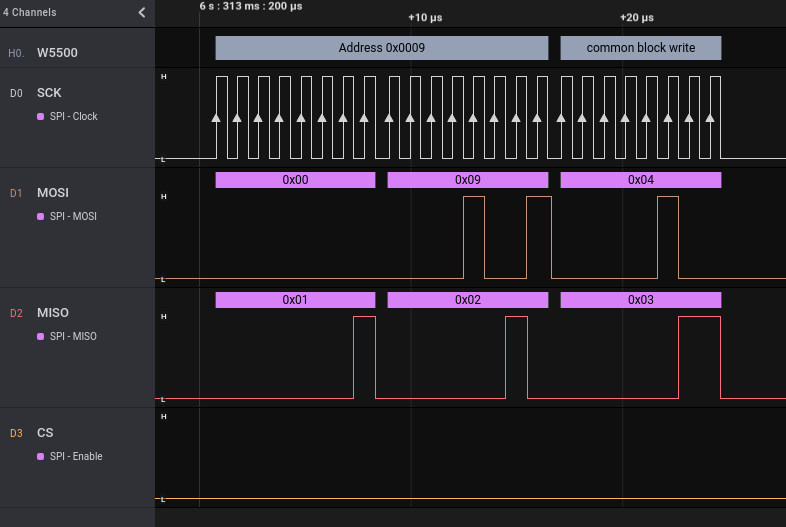

![Example1](https://raw.githubusercontent.com/newAM/saleae-logic-w5500/main/example1.png)

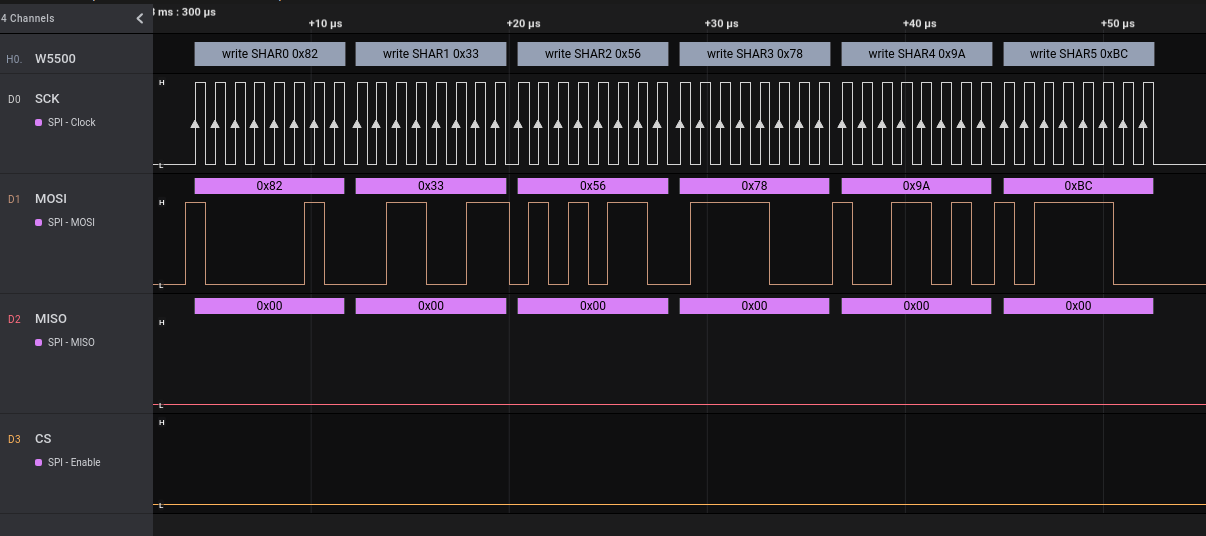

![Example2](https://raw.githubusercontent.com/newAM/saleae-logic-w5500/main/example2.png)
