# Android-MVVM-boilerplate

Android MVVM boilerplate inspired by [android-boilerplate](https://github.com/ribot/android-boilerplate) and powered by [data-binding](https://developer.android.com/topic/libraries/data-binding/index.html)

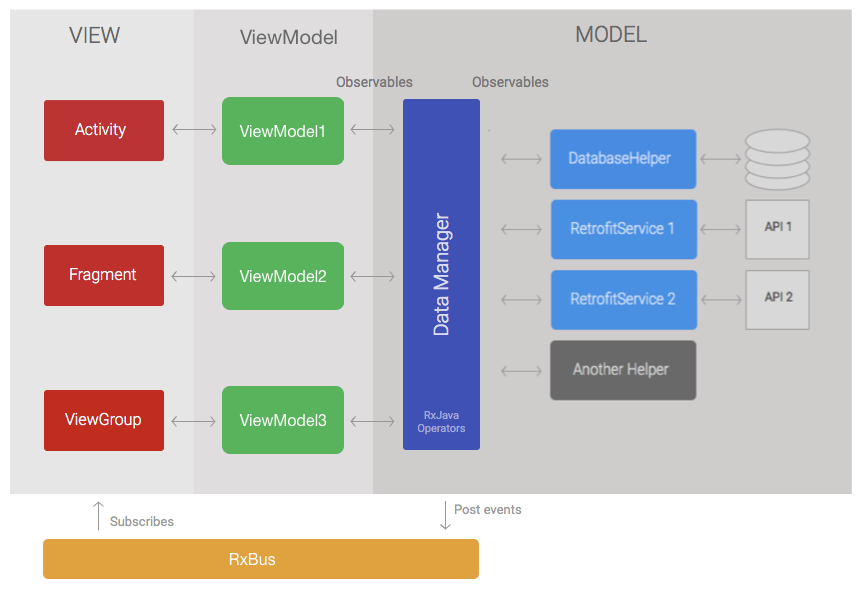

## Archetcture

![](https://cdn.rawgit.com/njleonzhang/Android-MVVM-boilerplate/master/assets/archtecure.png)

It's similar to [android-boilerplate](https://github.com/ribot/android-boilerplate#architecture), differences:

* `Presenter` to `ViewModel`

* `EventBus` to `RxBus`

* `shareReferenceHelper` is not proxied by data manager, but a static tools.

## Tech-stack

* Data-Binding

* RxJava2

* Retrofit2

* OKHttp

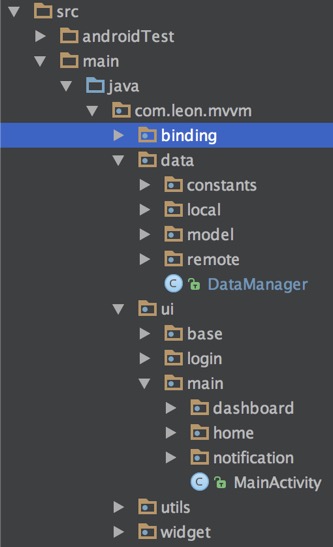

## Code Organization

![](https://cdn.rawgit.com/njleonzhang/Android-MVVM-boilerplate/master/assets/code_organization.png)

* binding —> binding adapters for databinding

* data —> Model(network, database)

* ui —> View and ViewModel(ui and business logic)

* util —> common tools

* widget —> common widget

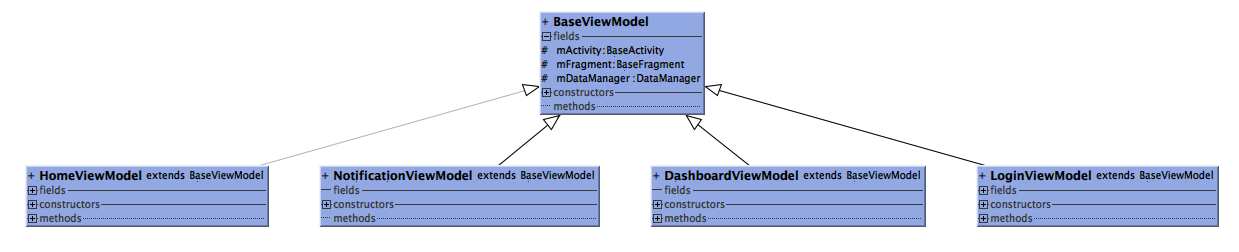

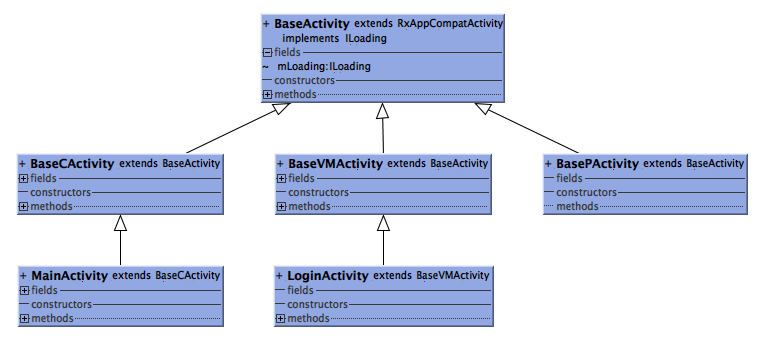

## UML

![](https://cdn.rawgit.com/njleonzhang/Android-MVVM-boilerplate/master/assets/uml2.png)

---

![](https://cdn.rawgit.com/njleonzhang/Android-MVVM-boilerplate/master/assets/uml1.png)

---

![](https://cdn.rawgit.com/njleonzhang/Android-MVVM-boilerplate/master/assets/uml3.png)

## Details

### MVC / MVP / MVVM

We support all 3 in this project.

* Some page is simple, With MVVM, you need create at least 2 new files(class), With MVP, you need more files(class), why not just adopt MVC?

* Someone in your team, does not love MVVM, and used to work in MVP. OK, **Forced love does not last**.

* For all 3 architectures, Activity and Fragment are wrapped and easy to initialize.

Check [base](https://github.com/njleonzhang/Android-MVVM-boilerplate/tree/master/app/src/main/java/com/leon/mvvm/ui/base) folder for more details.

### NetWork

Leverage `Retrofit2` and `RxJava2` to parse response and handle error(including loading) in common place, we just deal with data in business logic.

Check [DataManager](https://github.com/njleonzhang/Android-MVVM-boilerplate/blob/master/app/src/main/java/com/leon/mvvm/data/DataManager.java) for more details

### recycle view binding

No need to write adapter agian and agian, with data-binding and [BaseBindingRecycleViewAdapter](https://github.com/njleonzhang/Android-MVVM-boilerplate/blob/master/app/src/main/java/com/leon/mvvm/utils/BaseBindingRecycleViewAdapter.java), we just need provide a layout file and the array of data, then we get a recycleView

### RxBus

Leverage `Rxjava` to post none-sticky event, no need to override any Activity method, and really easy and clean to use.

Check [RxBus](https://github.com/njleonzhang/Android-MVVM-boilerplate/blob/master/app/src/main/java/com/leon/mvvm/utils/RxBus.java) for more details.
